Statement of BIOBASE Brand ：
 |
This cabinet defined as class II A2 type microbiological safety cabinet. It totally meets that international standard for biological cabinet EN 12469:2000 standard. Microbiological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work material.
| Quantity: | |
|---|---|
BSC-3FA2-HA BSC-4FA2-HA
BIOBASE
Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Advantage:
I.7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2.The power-on password can be set to prevent mis-operation by irrelevant personnel.
3.Automatically adjust the wind speed.
4.Power-off memory, restore the state before power-off, and have a visual reminder to alarm.
5.Side windows on both sides for easy observation.
6.The operation area is integrally formed, which is easy to disassemble and clean.
7.A breeze speed sensor is equipped at the working area and the outer exhaust air outlet to detect the wind speed in real time.
8.It can be used both manually and electrically, and the glass door can be pulled down to close the front window when the power is off.
9.The cabinet is separated from the base. The height of the adjustable base can be customized.
10.Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
II.It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
12.The closing of the front window can double trigger the signal, so that the sterilization and disinfection function of the UV lamp can be turned on normally.
13.The cabinet is designed with a 10° inclination angle, which conforms to the principle of ergonomics, has a larger viewing angle, is easy to operate and is more user-friendly.
14.Anti-paper dust structure at the air inlet to prevent paper dust from entering the air cavity.
15.Split countertop is easier to clean.
16.One button front window lifting function.
Models：
Model | BSC-3FA2-HA | BSC-4FA2-HA | |
External Size(W*D*H) | 1087*800*2260mm | 1383*800*2260mm | |
Internal Size(W*D*H) | 980*600*650mm | 1280*600*650mm | |
Work Surface Height | 750mm | ||
Max Opening | 500mm | ||
Tested Opening | 200mm | ||
Airflow volume | Inflow | 370m³/h(218cfm) | 490m³/h(289cfm) |
Down flow | 65%: 690 m³/h(406cfm) | 65%: 910 m³/h(536cfm) | |
Exhaust | 35%: 370m³/h(218cfm) | 35%: 490m³/h(289cfm) | |
Front Window | Manual and electric, glass thickness> 5mm, anti-ultraviolet | ||
ULPA Filter | 2pcs, filtration efficiency for 0.12um particles299.9995% | ||
Illumination | ≥1000Lux | ||
Noise | EN12469≤65dB | ||
Display | Color Touch Screen | ||
European Standard Socket | 230V, 3A | ||
Power Supply | AC 230V, 50/60HZ | ||
Rated Power | 1100W | 1200W | |
Alarm | Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure | ||
Motor | AC single fan, Adjustable speed, high efficiency, low power | ||
Material | Working Area: 304 stainless steel, side window glass; Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating | ||
LED Lamp | 12W*2 | 14W*2 | |
UV Lamp | 20W | 30W | |
Standard Accessory | Cabined, Base stand*1, LED lamp*2, UV lamp*1, S.S. water tap*1, S.S. gas tap*1, Drain ball valve*1, European Standard Socket*2 | ||
Optional Accessory | Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, S.S. water tap*1, S.S. gas tap*1 | ||
Package Size (W*D*H) | 1240*1060*1880mm | 1530*1060*1880mm | |
Gross Weight | 270kg | 345kg | |

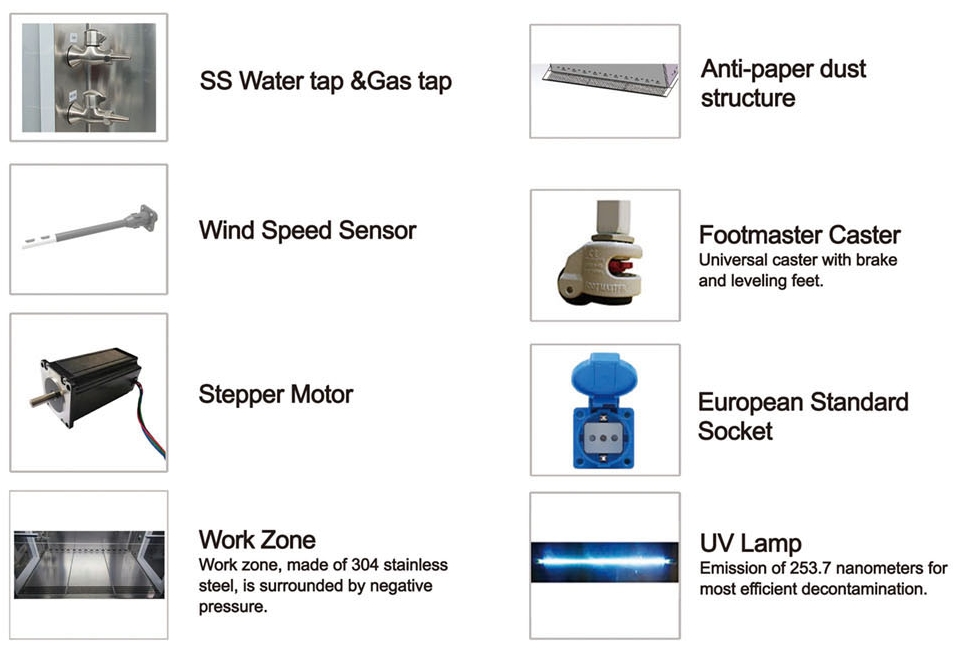

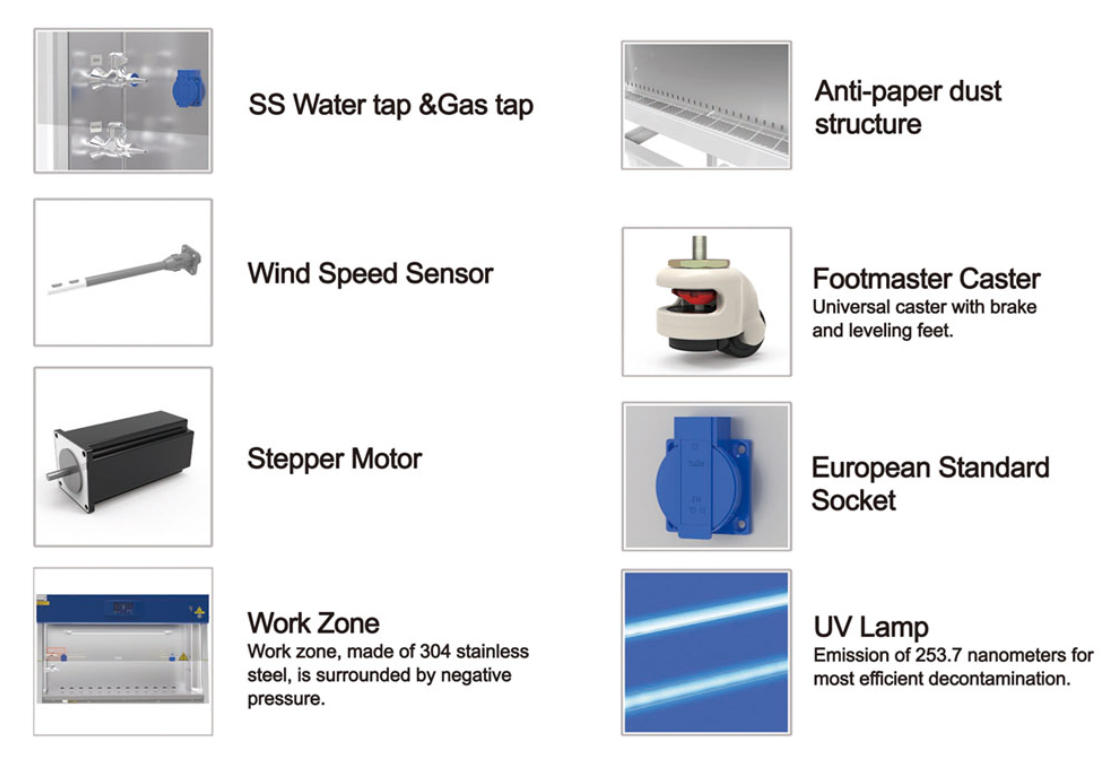

Standard Accessory：
waterproof sockets 1pcs
Base stand 1pc
Fluorescent lamp 1pc
Drain valve 1pc
UV lamp 2pc
SS water & gas taps
Stainless steel I.V. bar with 10 hooks
Optional accessory：
Armrest 1pc
Formalin fumigation sterilizer 1pc
Infrared sterilizer 1pc
Airflow tester 1pc
Remote control 1pc
Electric height adjustable base stand
Motorized front window
