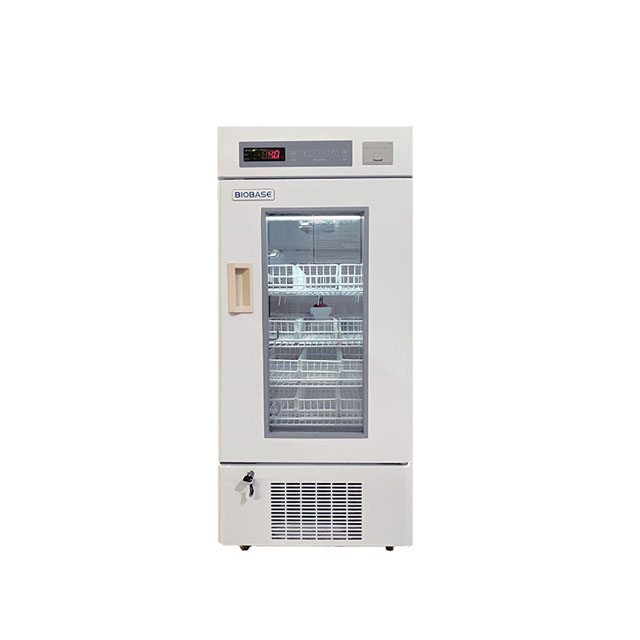

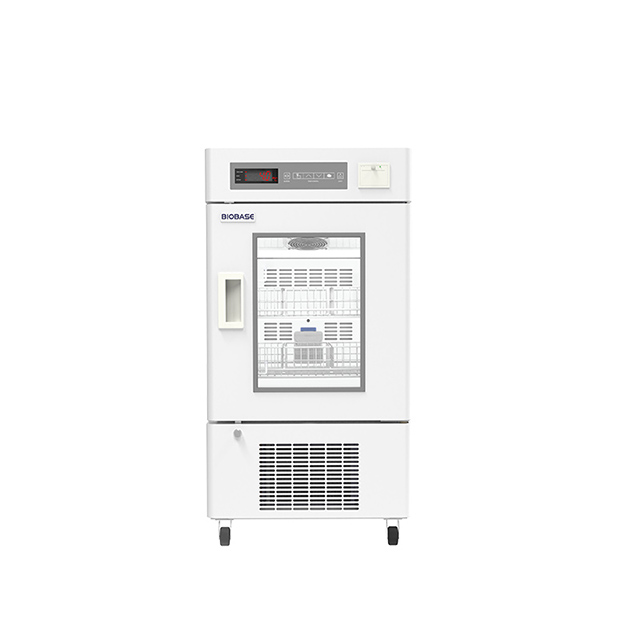

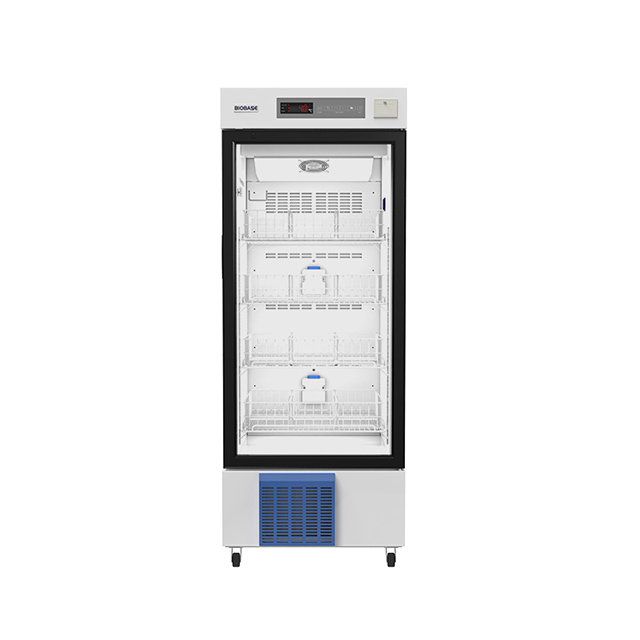

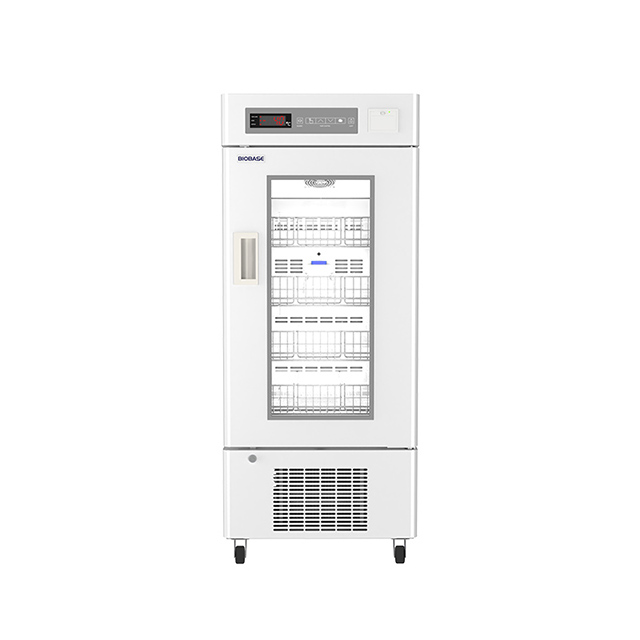

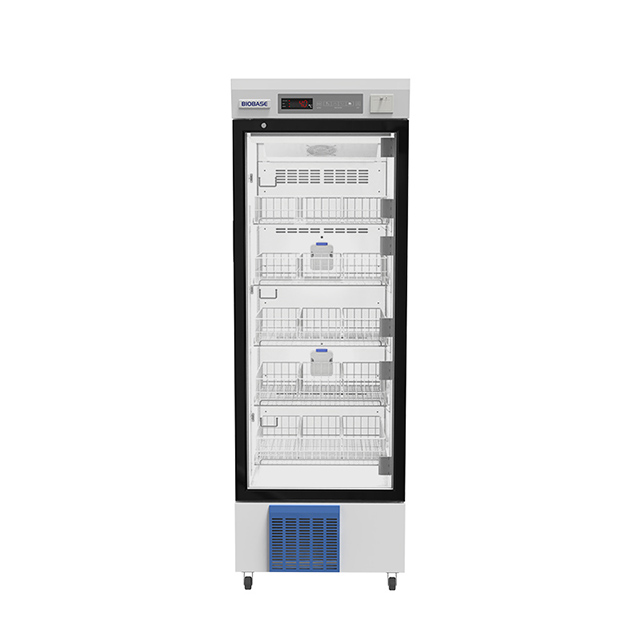

BBR-4V86 BBR-4V136 BBR-4V296 BBR-4V356
BIOBASE
Advantage:
1. Multiple sensors design: make sure the precise monitoring and programming.
2. Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material).
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

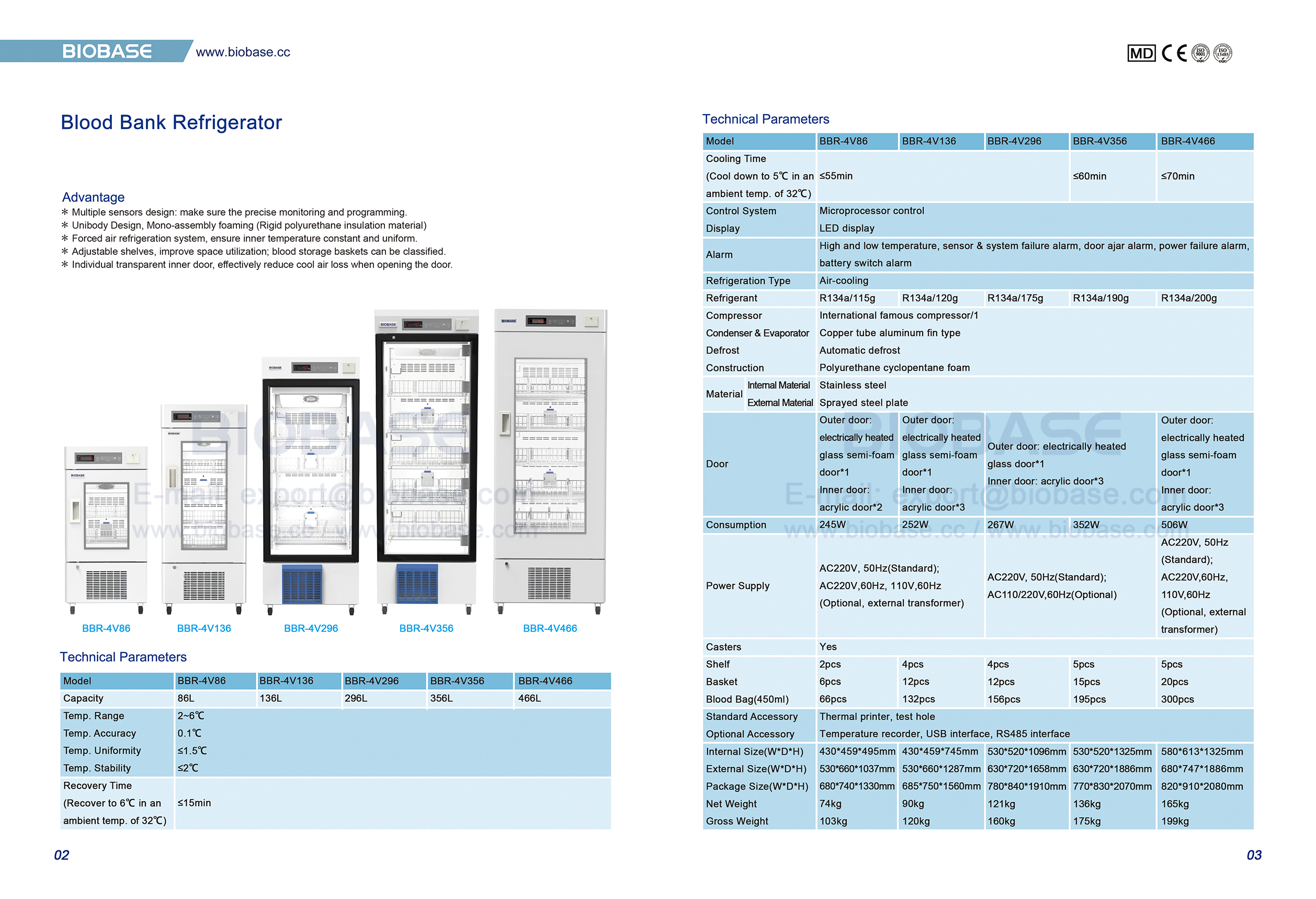

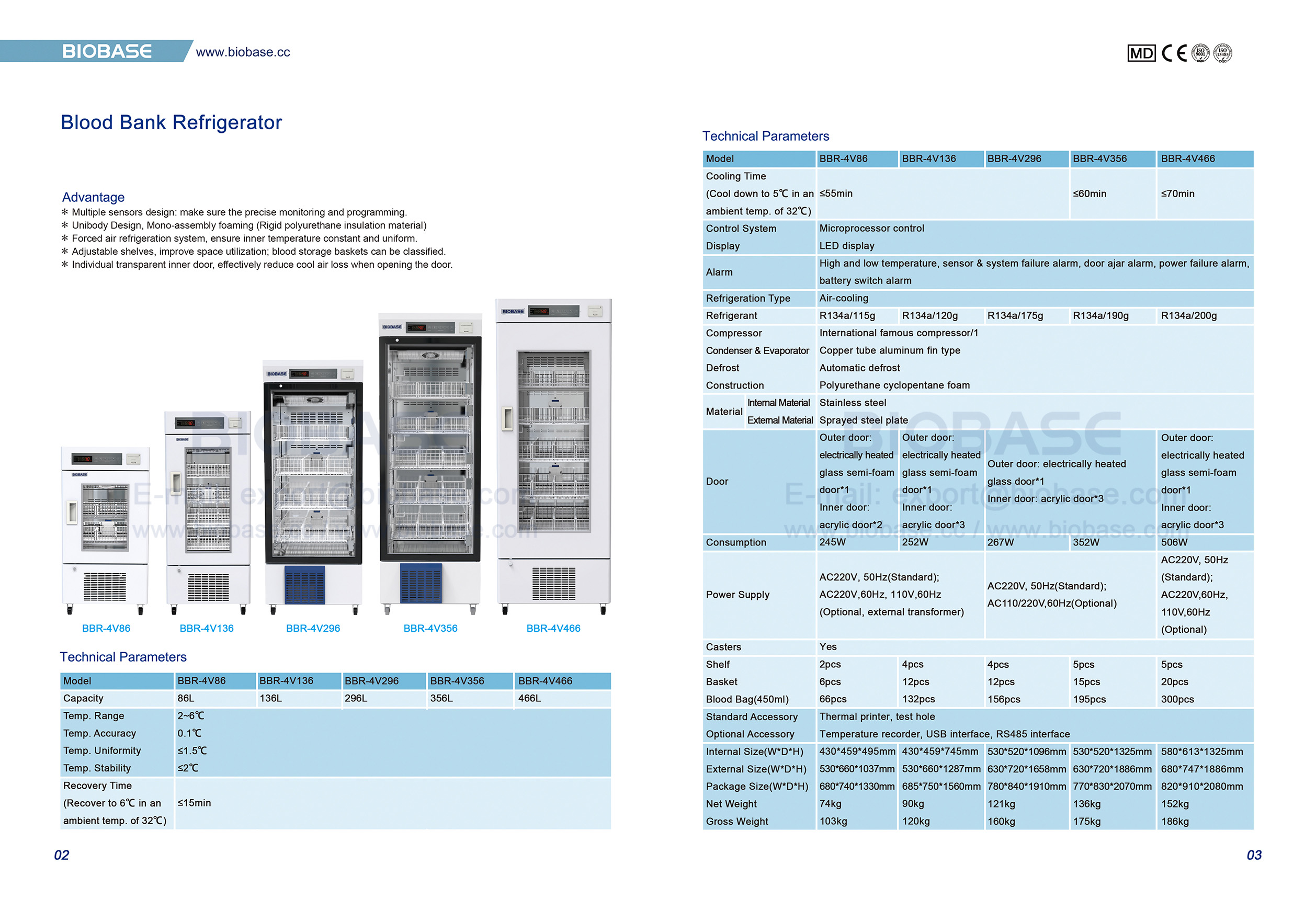

Technical Parameters:
Model | BBR-4V86 | BBR-4V136 | BBR-4V296 | BBR-4V356 | |||||||
Capacity | 86L | 136L | 296L | 356L | |||||||
Temp. Range Temp. Accuracy | 4±2°C 0.1°C | ||||||||||
Control System Display | Microprocessor control LED display | ||||||||||
Alarm | Audio and visual alarm for: High or low temperature, Senor & system failure; Door ajar, Power failure | ||||||||||
Refrigeration Type Refrigerant Compressor Condenser & Evaporator | Forced air refrigeration system R134a, CFC-Free International famous compressor High efficiency air-cooled condenser;Made of copper | ||||||||||
Defrost | frostless deign | ||||||||||
Construction | Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material) | ||||||||||
Material | Internal Material | Stainless steel | |||||||||
External Material | Sprayed steel plate | ||||||||||
Door | Electric heated glass semi-foamed door with lock, Acrylic inner door | Electric heating glass outer door; Acrylic inner door; Outer door with locking buckle | |||||||||
Consumption | 245W | 252W | 267W | 352W | |||||||
Power Supply | AC220V±10%, 50Hz(standard); AC110/220V,60Hz(optional) | ||||||||||
Casters | Two universal casters with brakes, two directional casters | ||||||||||
Adjustable Shelves Baskets Blood Bags (450ml) | 2pcs | 4pcs | 4pcs | 5pcs | |||||||
| 6pcs | 12 pcs | 12pcs | 15pcs | ||||||||
| 66pcs (200ml) | 99pcs (450ml) | 156pcs (450ml) | 195pcs (450ml) | ||||||||
Standard Accessory Optional Accessory | Thermal printer, LED lamp, The temperature test box, probe access port, door key Temperature recorder | ||||||||||
External Size(W*D*H) mm | 530*660*1037 | 530*660*1287 | 630*720*1658 | 630*720*1886 | |||||||
Package Size(W*D*H)mm | 672*732*1251 | 672*732*1501 | 762*812*1866 | 762*812*2091 | |||||||
Gross Weight | 105kg | 104kg | 145kg | 167kg | |||||||
Advantage:
1. Multiple sensors design: make sure the precise monitoring and programming.
2. Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material).
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

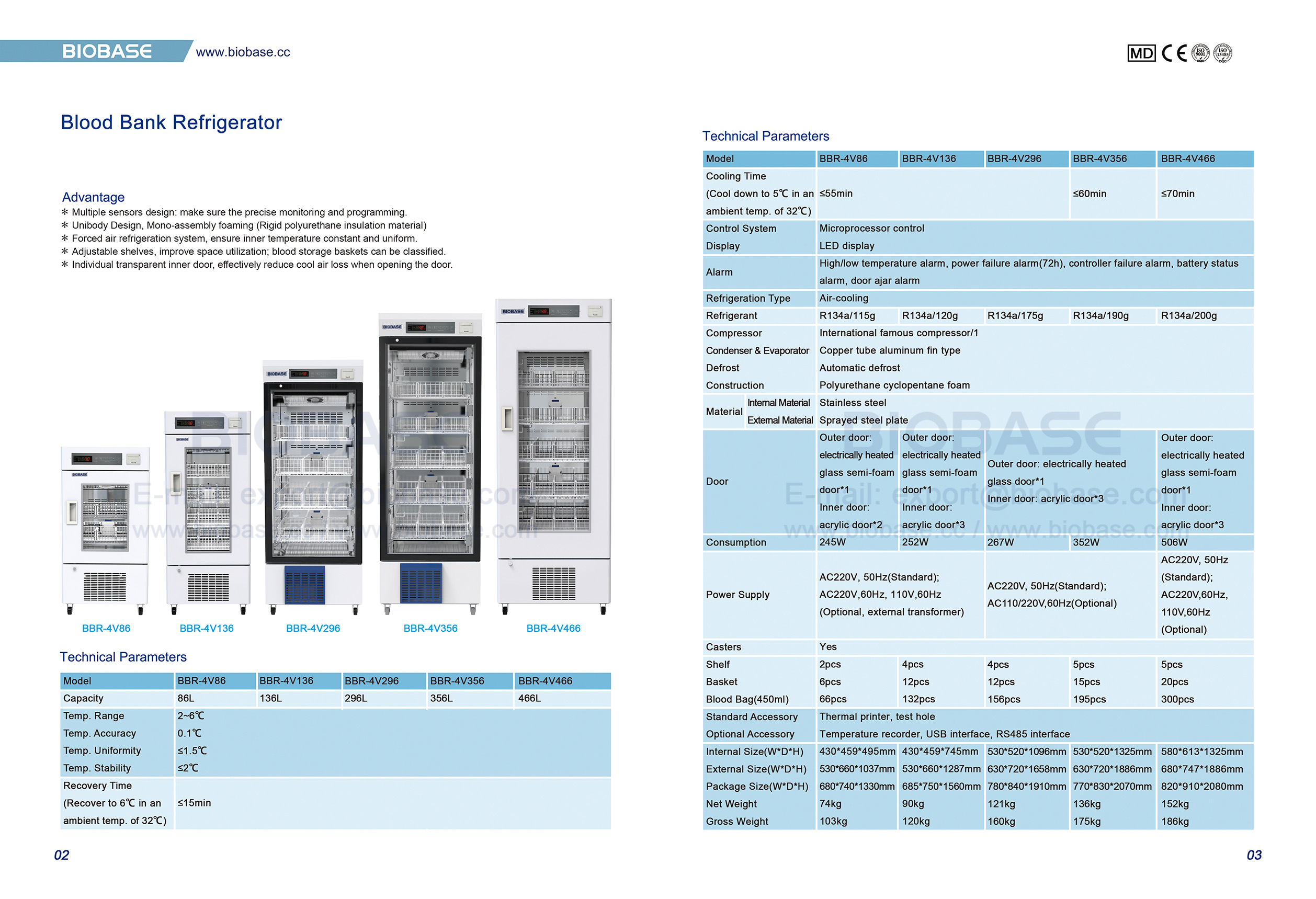

Technical Parameters:
