Features:
1. Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen.
2. Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, The program is cancelled, the inlet valve is closed, and the drain pump is started.
Cleaning Procedure:
1. Standard procedure: Meet the general contaminant blood cleaning.
2. Quick cleaning program: Meet the cleaning of lightly polluted utensils.
3. Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program.
4. Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments.
5. Manual test procedure: Self-check the operation status of each component of the equipment.
Cleaning Racks:
Technical Parameters:

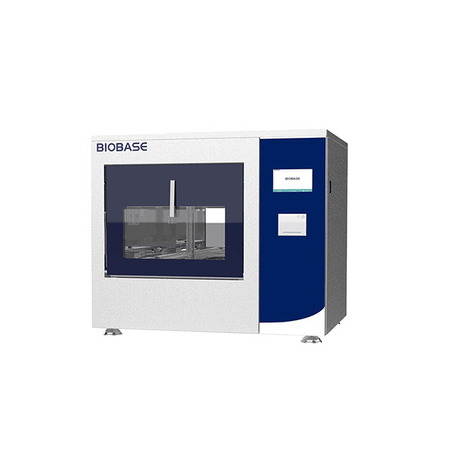

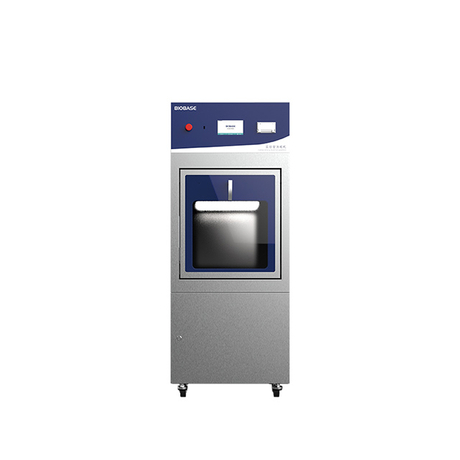

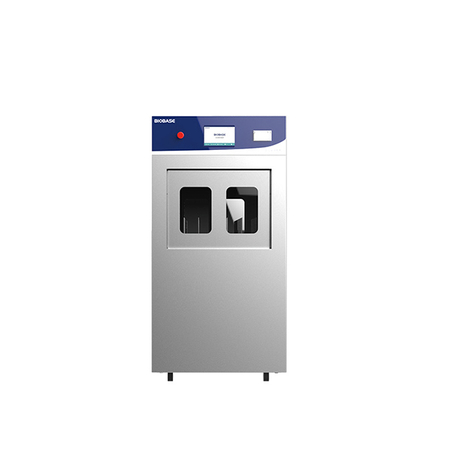

Model | BKX-CQS-120 | BKX-CQZ-120 | BKX-CQS-220 | BKX-CQS-320 | |
Cleaning | Capacity(L) | 120 | 120 | 220 | 320 |
Washer Load Level | 1 | 1 | 2 | 3 | |
Water Wash Power(KW) | 5 | 5 | 7 | 7 | |
Water Heater Power(KW) | 3 | 3 | 4 | 4 | |
MAX. Power(KW) | 6 | 6 | 9 | 9 | |
Water Consumption/Step(L) | 15 | 15 | 20 | 20 | |
Tank Internal Temperature(℃) | 0~95 | ||||
Water Supply Pressure(Mpa) | Tap water: 0.3~0.8 | ||||
Peristaltic Pump for Cleaning Agent | 2 | ||||
Cleaning Agent Level Sensor | YES | ||||
Washing Pump | Sweden 430L/min | Sweden 430L/min | Sweden 1000L/min | Sweden 1000L/min | |
Standard Cleaning Racks | BKXIR36, 1pc | ||||
Drying | Drying Function | YES | |||
Steam Condenser | YES | ||||
Dry Power(KW) | 3 | 3 | 4 | 4 | |
Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor | |||
Cleaning Program | 12 pre-set programs+4 PLC free programming | ||||
Password Protection | YES | ||||
Safety Emergency Button | YES | ||||
USB Port | YES | ||||
Integrated Printer | YES | ||||
Online Monitor Performance of Washing | NO | ||||
Dimension&Weight | Chamber Dimension(W*D*H,mm) | 600*630*460 | 600*630*460 | 600*610*750 | 600*610*920 |
Exterior Dimension(W*D*H,mm) | 980*740*870 | 890*800*1630 | 700*800*1850 | 700*800*2000 | |
Package Dimension(W*D*H,mm) | 1150*940*1060 | 1100*970*1900 | 850*950*2250 | 850*950*2250 | |
Net Weight(Host only, kg) | 190 | 260 | 290 | 310 | |
Gross Weight(Host with rack, kg) | 220 | 290 | 330 | 350 | |
Others | Door | Double-layered glass door, 304 stainless steel | |||
Safety Door Lock | YES | ||||
Built-in RO Water Pump | YES | ||||
Noise(dB) | <50 | ||||
Voltage(V/Hz) | Standard: AC220V, 50Hz | ||||
