Features:
1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
Technical Parameters:
Model | BSC-1300ⅡA2-Pro | BSC-1500ⅡA2-Pro | BSC-1800IIA2-Pro | ||
External Size(W*D*H) | 1100*750*2210mm | 1385*750*2310mm | 1500*760*2160mm | 1875*780*2310mm | |
Internal Size(W*D*H) | 940*600*655mm | 1210*600*660mm | 1400*600*660mm | 1700*600*660mm | |
Tested Opening | Safety height 200mm(8") | ||||
Max Opening | 420mm(17") | 500mm(20") | 460mm(18"） | 520mm(21") | |
Inflow Velocity | 0.53±0.025m/s | ||||
Downflow Velocity | 0.33±0.025m/s | ||||
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | ||||
Front Window | Motorized, two-layer laminated toughened glass≥6mm. Anti UV. | ||||
Noise | ≤ 67dB | ||||
UV Lamp | 30W*1 | 30W*1 | 40W*1 | ||
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination | |||||
Illuminating Lamp | LED lamp | ||||
12W*2 | 12W*2 | 16W*2 | 16W*2 | ||
Illumination | ≥1000Lux | ||||
Consumption | 600W | 700W | 1300W | ||
Waterproof Sockets | Two, total load of two sockets: 500W | ||||
Display | 7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc | ||||
Control System | Microprocessor | ||||
Airflow System | 70% air recirculation, 30% air exhaust | ||||
Visual and Audio Alarm | Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm | ||||
Material | Work zone: 304 stainless steel Main body: Cold-rolled steel with anti-bacteria powder coating | ||||
Work Surface Height | 750mm(Size can be customized according to requirements) | ||||
Caster | Footmaster caster | ||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||

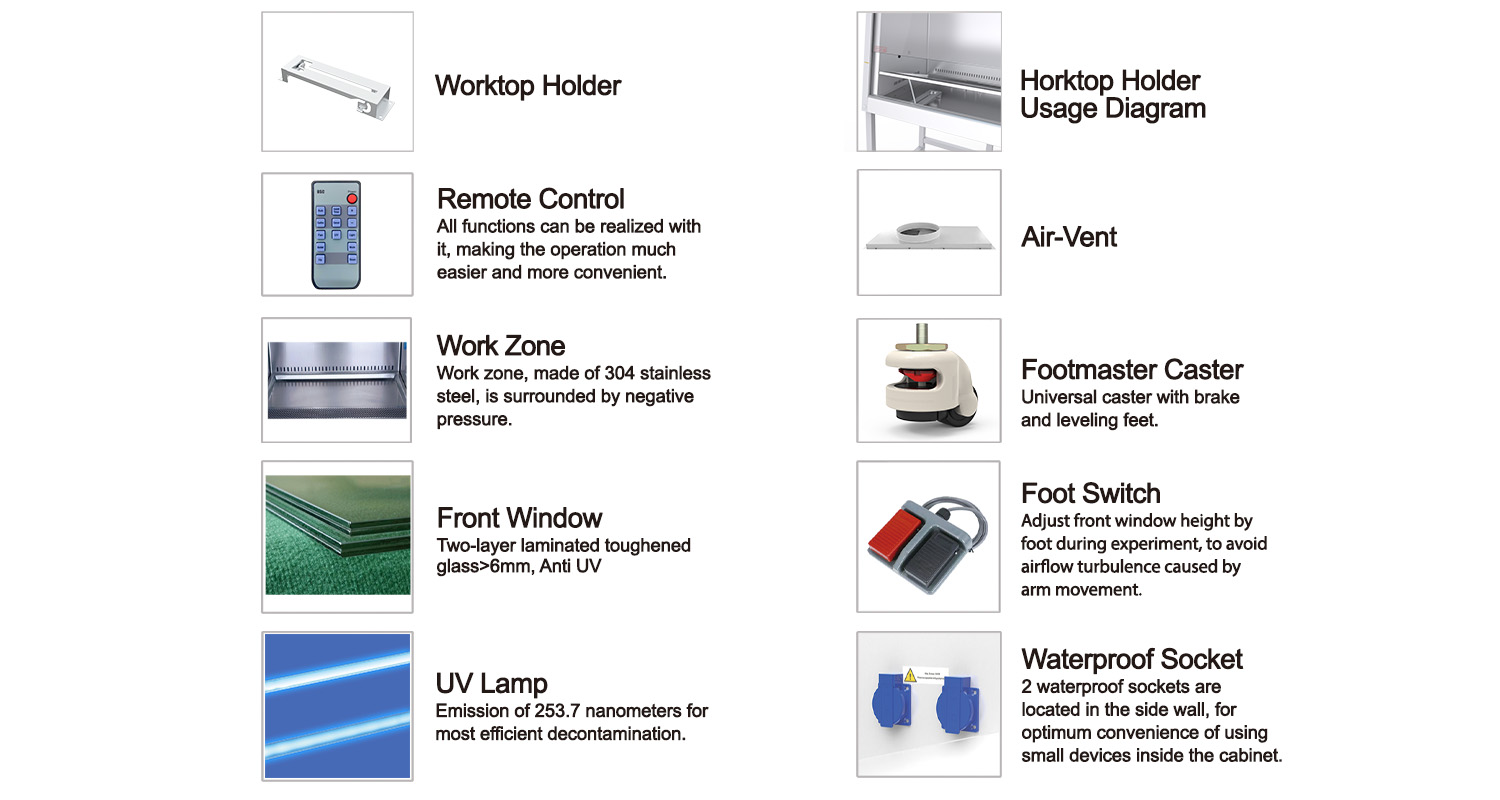

Standard Accessory | LED lamp*2, UV lamp*2, base stand, remote control, foot switch, drain valve, waterproof sockets*2 | ||||
Optional Accessory | 1. Water and gas tap, electric height adjustable base stand, armrest, chair. 2. APP networking remote control. 3. 485/232/USB data transfer function, supporting data monitoring and export. 4. LED fluorescent lamp brightness adjustment function. 5. Base bracket with manual or electric height adjustment function. 6. Manual lifting front window function. 7. Manual automatic lifting front window function. 8. EC fan. | ||||
Package Size(W*D*H) | 1250*980*1765mm | 1530*1025*1895mm | 1640*980*1825mm | 2000*1040*1895mm | |
Gross Weight | 265kg | 340kg | 363kg | 430kg | |
