Features:
1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
Technical Parameters:

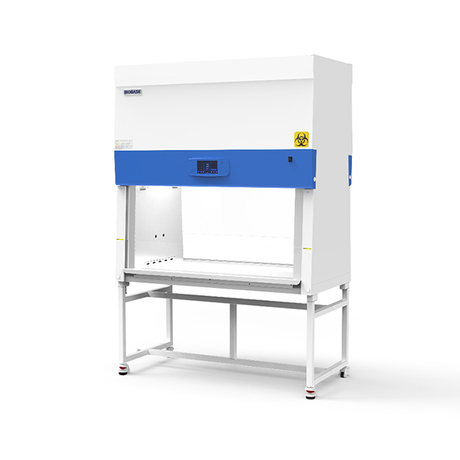

Model | BSC-1500IIA2-S |
External Size(W*D*H) | 1500*785*2220mm |
Internal Size(W*D*H) | 1160*700*660mm |
Tested Opening | Safety height 200mm |
Max Opening | 450mm |
Inflow Velocity | 0.48±0.025m/s |
Downflow Velocity | 0.33±0.025m/s |
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
Front Window | Two-layer laminated toughened glass≥5mm. Anti UV. |
Noise | ≤67dB |
UV Lamp | 15W*2 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
LED Lamp | 16W*2 |
Illumination | ≥1000Lux |
Consumption | 1300W |
Socket | Two, total consumption: 500W |
Display | LCD display |
Control System | 70% air recirculation, 30% air exhaust |
Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity; High filter pressure alarm |
Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
Work Surface Height | 750mm with base stand |
Power Supply | AC220V, 50/60Hz; 110V, 60Hz |
Standard Accessory | Cabinet*1, Base stand*1, Fan*1, Supply filter*1, Exhaust filter*1, LED lamp*2, UV lamp*2, Drain ball valve*1, Socket*2 |
Optional Accessory | Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, S.S. water tap, S.S. gas tap |
Package Size(W*D*H) | 1770*930*1850mm |
Gross Weight | 325kg |
