BKM-K18/23N sterilizer series is an N-level sterilizer. It discharges the cold air in the sterilization chamber by gravity displacement, saturates the internal steam, and reaches the set pressure and temperature. To achieve the purpose of sterilizing the items to be sterilized. Suitable for stomatology, ophthalmology, beauty, operating room and other places. It is suitable for sterilization of glassware, bare metal utensils, and unencapsulated solid instruments.
| Quantity: | |
|---|---|

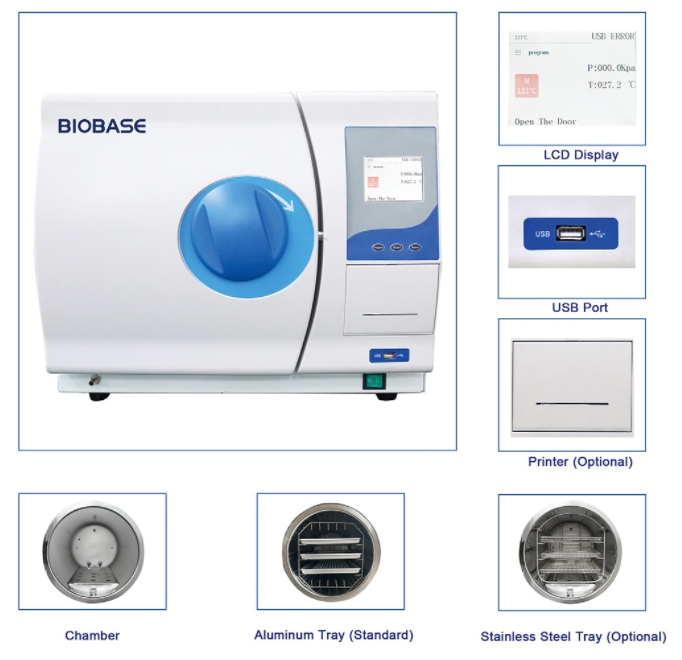

BKM-K18N BKM-K23N
BIOBASE

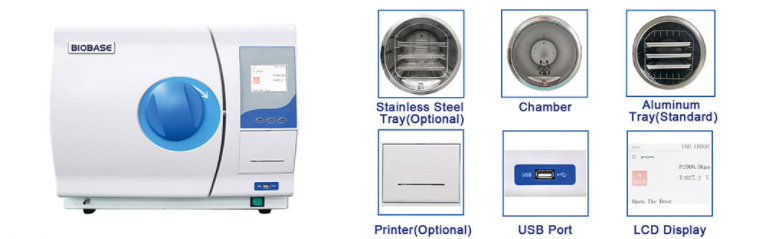

Features:
1. High-quality material: The sterilization chamber is made of high-quality S30408 stainless steel electropolished.
2. Steam generation method: The main body is heated, no external steam source is required.
3. Operation interface: 3.5-inch capacitive color display screen is used to display pressure, temperature, time, alarm code and other information in real time, which is convenient for users to observe. When the sterilization cycle is over, a buzzer will sound.
4. Sterilization record: Standard USB interface, optional printer, record program data.
5. New storage rack: Increase the utilization space of the sterilization chamber, and the selection space for sterilization load is larger.
6. Control system: controlled by single chip microcomputer, automatic control of heating, sterilization and exhaust, without too much manual operation.
7. One-key start on the operation panel, using mechanical keys, the number of actions ≥ 100,000 times
Safety protection:
Over-temperature automatic protection, heating tube anti-dry protection, safety interlock device, double over-voltage protection, over-current leakage safety protection, door detection protection.
Technical Parameter:
Model | BKM-K18N | BKM-K23N | |
Capacity | 18L | 23L | |
Door | Manual | ||
Designed Pressure | 0.28Mpa | ||
Working Pressure | 0.23Mpa | ||
Working Temp. | 121/134℃ | ||
Chamber Material | S30408 | ||
Power Supply | AC220±10%，50/60Hz(Standard); 110V,60Hz(Optional) | ||
Consumption | 1.8KW | ||
Altitude | ≤2500m | ||
Chamber Size(φ*L) | φ250*350mm | φ250*450mm | |
Standard Accessories | Tray, USB port | ||
Optional Accessories | Printer | ||
External Size(W*D*H) | 650*495*410mm | 700*495*410mm | |
Package Size(W*D*H) | 810*610*590mm | ||
Net Weight(kg) | 32 | 36 | |
Gross Weight(kg) | 47 | 50 | |
Autoclaves are equipment for sterilizing widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized.
Features:
* Adopting European N standard, thermodynamic gravity guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
* Specially design for dental clinic field, simply and efficiently.
* Microprocessor control, LED display and modularized panel for easy operation.
* Automatic malfunction detection system makes easy maintaining.
Models:
Model | BKM-Z12N | BKM-Z18N | BKM-Z24N |
Capacity | 12L | 18L | 24L |
Chamber Size(mm) | φ200*360 | φ245*350 | φ245*450 |
Sterillization Class | Class N(according to EN 13060 standard) | ||
Sterilization Temp. | 121℃,134℃ | ||
Drying Procedure | Heat drying | ||
Display | LED display | ||
Control Precision | Temperature:1℃ | ||
Pressure:0.1bar | |||
safety System | Hand lock door | ||
Relief valve in case of over pressure | |||
Pressure or temperature over load protection | |||
Alarm for system failure, finish reminding | |||
Tray Holder | 3 pcs ss trays on SS shelf | ||
Chamber | SUS304 | ||
Max working pressure: 2.3bar | |||
Min working pressure: 1.1bar | |||
Max temperature:145℃ | |||
Ambient Temp. | 5~40℃ | ||
Noise | <50dB | ||
Power | 1600W for 220V,1200W for 110V | ||
Power Supply | Standard:220V±10%,50/60Hz;Optional:110V±10%,50/B0Hz.Wiring Method: Plug | ||
External Size(WD*H)mm | 560*450*400 | 560*450*400 | 670"450*400 |
Package Size(WD-H)mm | 650*515*470 | 650*515*470 | 760°515*470 |
Gross Weight(kg) | 38 | 40.5 | 45.5 |
