Statement of BIOBASE Brand ：
 |
Suitable for sterilization of temperature-proof, pressure-proof, humidity-proof medical equipment, medical dressing kits, glassware, rubber, liquid and other items, it can also be used to sterilize laboratory medium.
| Quantity: | |
|---|---|
BKQ-Z30I, BKQ-Z50I, BKQ-Z75I, BKQ-Z100I
BIOBASE
Application Range：

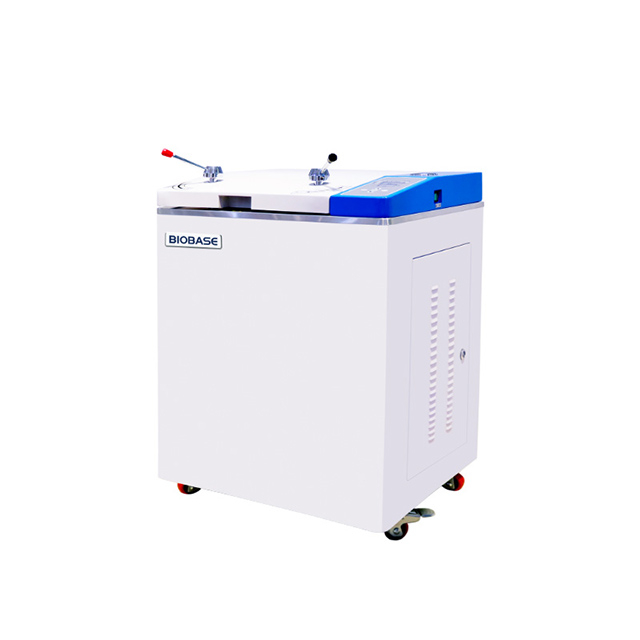

Vertical autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
Safety Features:
* Over pressure, safety valve can automatically open to release pressure.
* Over temperature, the system will stop heating automatically and start alarm.
* Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
* Over current, over voltage or electric leakage protection apparatus-air switch.
Technical Features:
* Complete protection system.
* Flip-open door structure with spring booster, easy to open.
* LED displays inner temperature, time and error codes.
* Automatic exhausting steam function.
* Reliable mechanical safety interlock feature.
* External material: Cold rolled steel with anti-bacteria powder coating.
* Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
* Door cover is wrapped completely, to prevent scald effectively.
* Radial self-expanding silicone rubber seals with high effect and long using life.

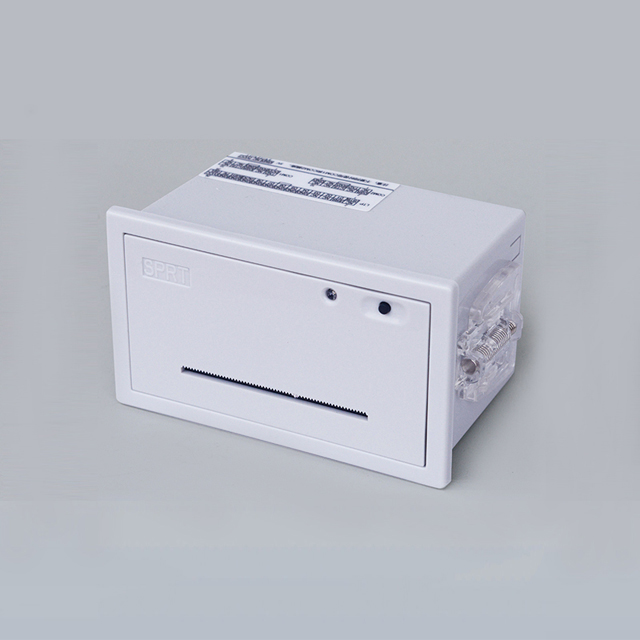

* Optional printer for recording sterilization data.
* Optional stainless steel bucket.
Models:
Model | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I |
Capacity | 30L | 50L | 75L | 100L |
Chamber Size(mm) | φ385*412 | φ385*515 | φ385*715 | φ385*915 |
Chamber Material | S30408 | |||
Designed Pressure | 0.28MPa | |||
Rated Working Pressure | 0.23MPa | |||
Max Temperature | 150℃ | |||
Working Temp Range | 105～136℃ | |||
Temp. Display Accuracy | 0.1℃ | |||
Timing Range | 0-999min | |||
Dynamic Pulse Exhaust Time | 0~9times | |||
Water Requirement | Distilled water or demineralized water | |||
Standard Accessories | SS basket*1pc, SS tray*1pc | SS basket*2pcs, SS tray*1pc | ||
Consumption | 4KW | |||
Power Supply | AC110/220V±10%, 50/60Hz | |||
External Size(W*D*H)mm | 645*610*710 | 645*610*810 | 645*610*945 | 645*610*1150 |
Package Size(W*D*H)mm | 750*745*950 | 750*745*1100 | 750*745*1240 | 750*745*1450 |
Gross Weight(kg) | 100 | 103 | 114 | 122 |
Note: It is applicable to the altitude below 3,500m
