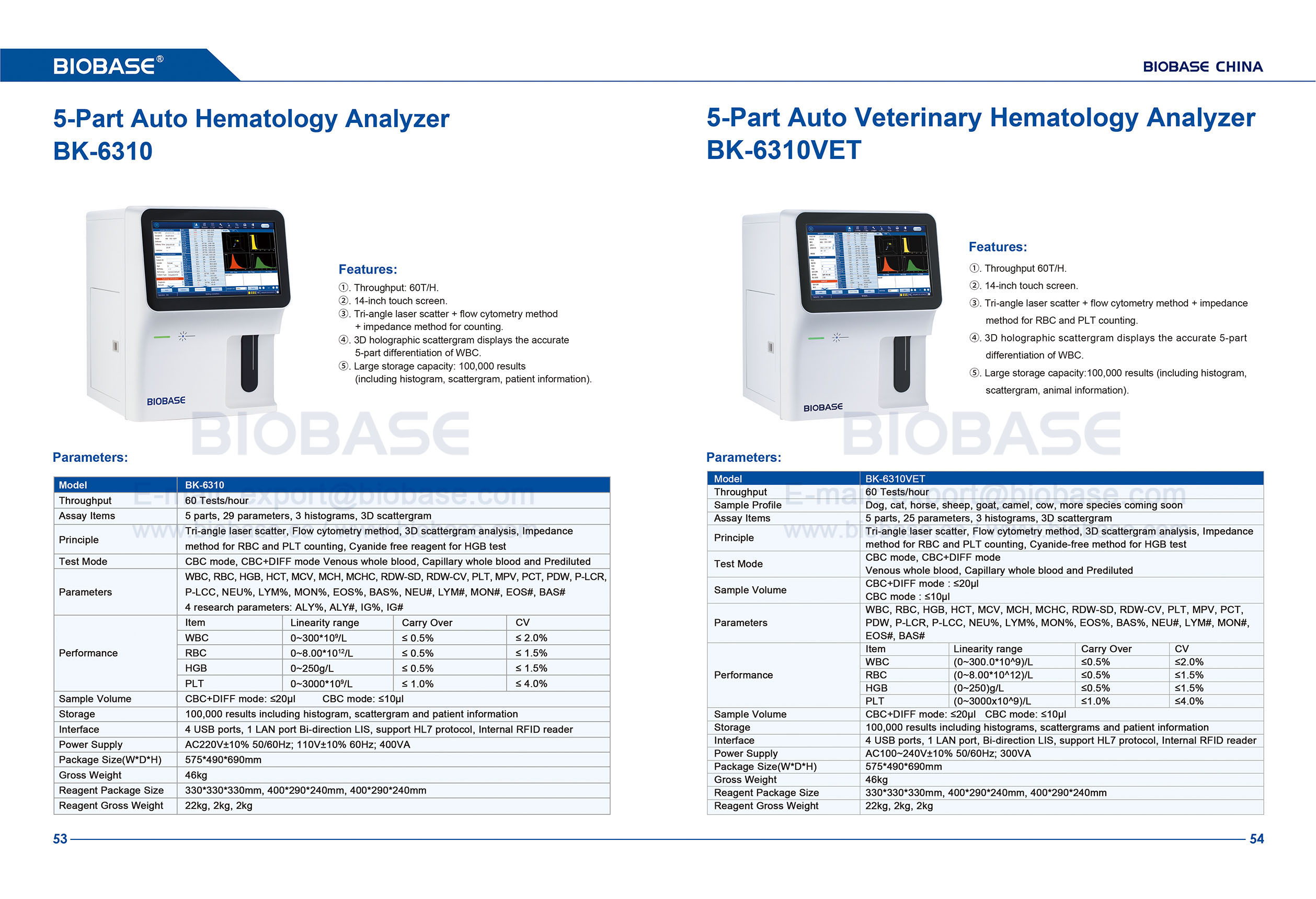

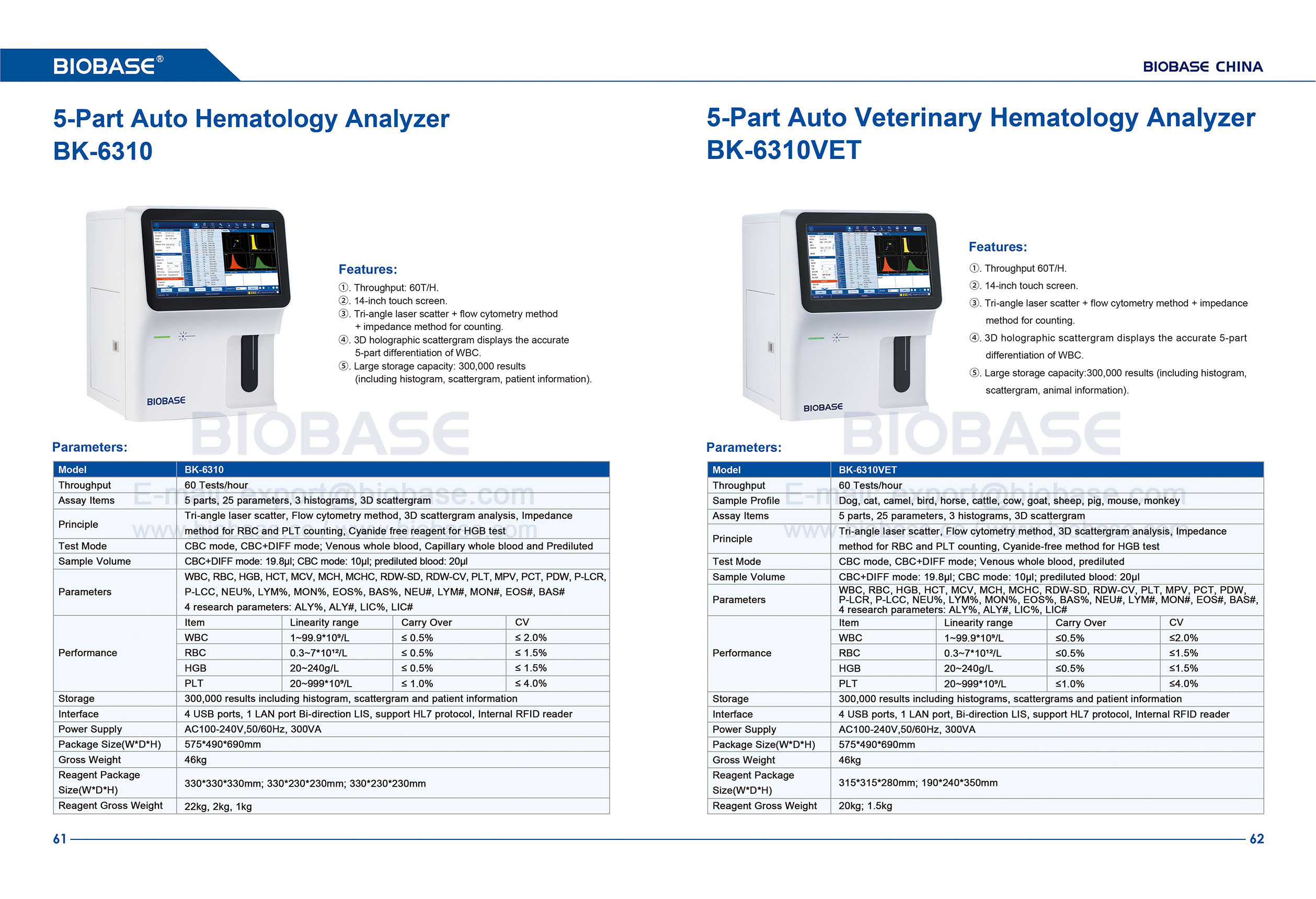

BK-6310
BIOBASE
Features:
1. Throughput 60t/h.
2. 14 inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, patient information).
Technical Parameters:
Model | BK-6310 | |||
Throughput | 60 tests/hour | |||
Assay Items | 5 parts, 29 parameters, 3 histograms, 3D scattergram | |||
Principle | Tri-angle laser scatter, Flow cytometrymethod, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | |||
Test Mode | CBC mode, CBC+DIFF mode venous whole blood, Capillary whole blood and prediluted | |||
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameter: ALY%, ALY#, IG%, IG# | |||
Performance | Item | Linearity Range | Carry Over | CV |
WBC | 0~300*10^9/L | ≤0.5% | ≤2.0% | |
RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% | |
HGB | 0~250g/L | ≤0.5% | ≤1.5% | |
PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% | |
Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | |||
Storage | 10,000 results including histogram, scattergram and patient information | |||
Interface | 4 USB ports, 1 LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz; 400VA | |||
Package Size(W*D*H) | 575*490*690mm | |||
Gross Weight | 46kg | |||
Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm | |||
Reagent Gross Weight | 22kg, 2kg, 1kg |
