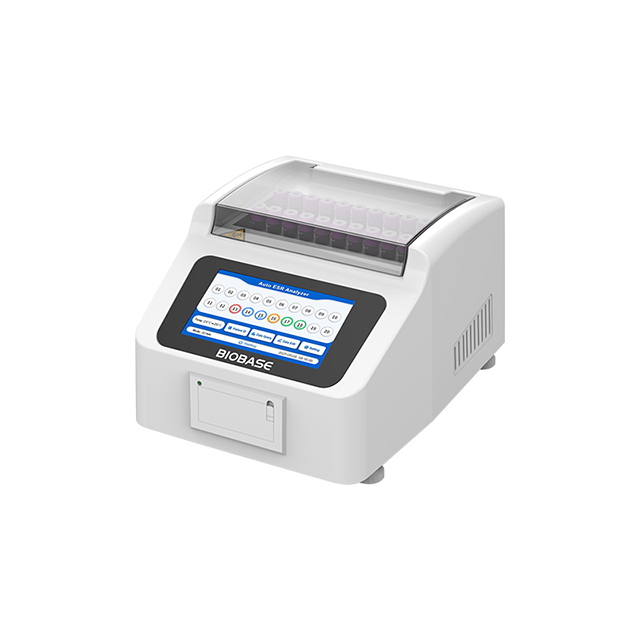

BK-ESR20E
BIOBASE
Features:
1. 7.0-inch color touch-screen for real-time display of sample status.
2. Rapid testing with throughput of 60 samples per hour.
3. Random sample-insertion function, enabling on-demand testing.
4. Built-in thermal printer to print ESR values and dynamic ESR curves.
5. High-precision measurement via infrared-optical detection; automatic temperature compensation, hematocrit compensation and K-value conversion of ESR equation for test-result output.
6. Equipped with USB and Type-C interfaces as well as supporting host-computer software; supports uploading test results to LIS/HIS systems.
7. Power-failure protection function for automatic saving of test results; provides sample-abnormality alarm and logging functions.
8. Height-adjustable feet with bubble level gauge to guarantee measuring accuracy.
Technical Parameters:
Model | BK-ESR20E |
Test Item | Determination of Erythrocyte Sedimentation Rate |
Analysis Time | 20 minutes |
Throughput | Max. 60 tests per hour |
Analysis Channels | 20 (20 samples loaded for simultaneous analysis) |
Loading Mode | On-demand measurement / Random access |
Data Storage | 20000 records |
Temperature Correction | Automatic correction to results at 18℃ |
Sample Requirement | Whole blood with EDTA-K2 tube(2.0~3.0mL) |
Accuracy | Correlation coefficient R≥0.95 compared with Westergren method |
Repeatability | SD≤1.5mm/h(ESR≤10 mm/h); CV≤15%(ESR＞10mm/h) |
Channel Consistency | SD≤1.5mm/h(ESR≤10 mm/h); CV≤15%(ESR＞10mm/h) |
Display | 7.0-inch color touch-screen |
Communication Interface | USB, Type-C (support data upload to LIS/HIS) |
Power Supply | AC100~240V 50/60Hz, 50VA |
External Size(W*D*H) | 284*355*208mm |
Net Weight | 6.3kg |
Packing Size(W*D*H) | 339*544*249mm |
Gross Weight | 9.4kg |
