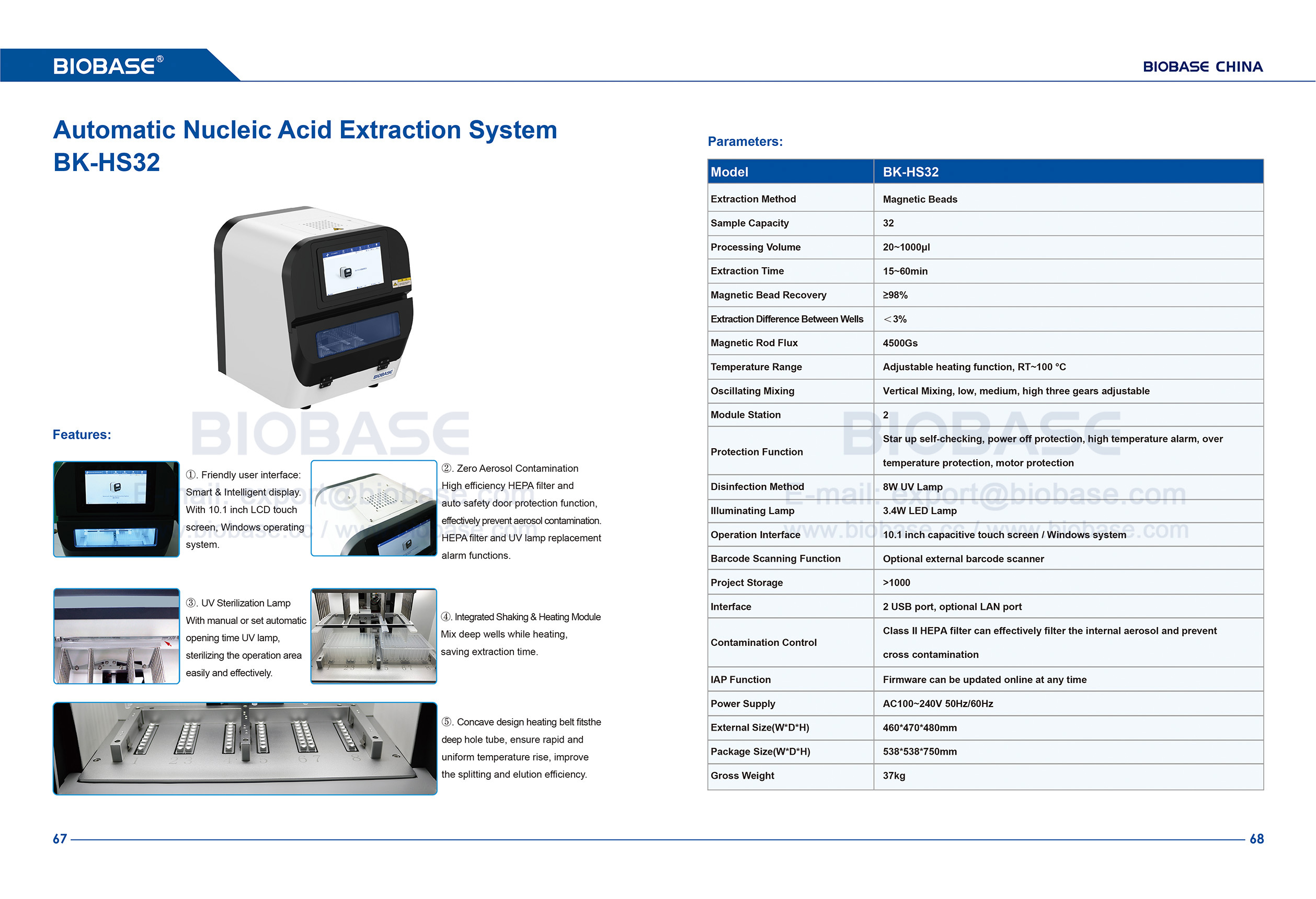

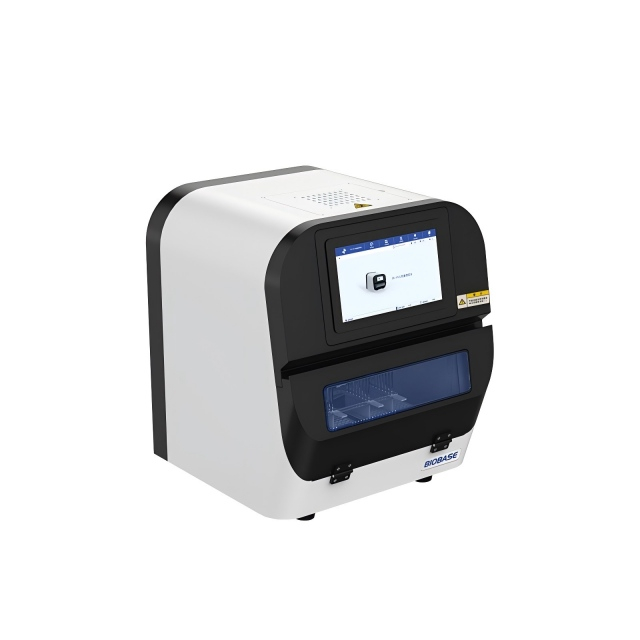

Automatic Nucleic Acid Extraction System BK-HS32

Introduction:
BK-HS32 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.
Availability:
Quantity:
  • BK-HS32

  • BIOBASE

Technical Parameters:

Model

BK-HS32

Extraction Method

Magnetic beads

Sample Capacity

32

Processing Volume

20~1000μl

Extraction Time

15~60min

Magnetic Bead Recovery

≥98%

Extraction Difference Between Wells

<3%

Magnetic Rod Flux

4500Gs

Temperature Range

Adjustable heating function, RT~100 ℃

Oscillating Mixing

Vertical mixing, low, medium, high three gears adjustable

Module Station

2

Protection Function

Star up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection

Disinfection Method

8W UV lamp

Illuminating Lamp

3.4W LED lamp

Operation Interface

10.1 inch capacitive touch screen

Windows system

Barcode Scanning Function

Optional external barcode scanner

Project Storage

>1000

Interface

2 USB port, optional LAN port

Contamination Control

Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination

IAP Function

Firmware can be updated online at any time

Power Supply

AC100~240V, 50Hz/60Hz

External Size(W*D*H)

460*470*480mm

Package Size(W*D*H)

538*538*750mm

Gross Weight

37kg
