Features:

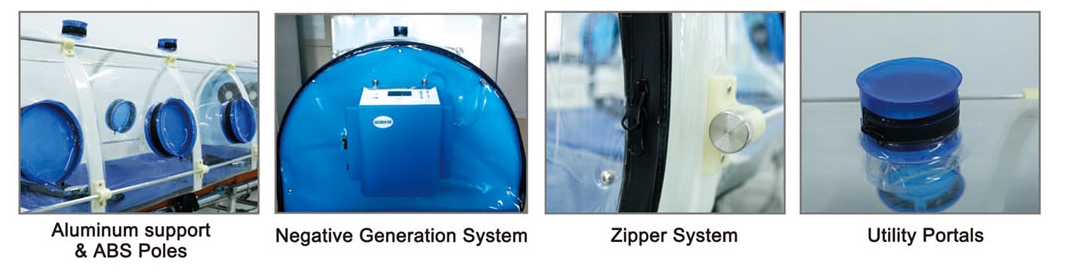

1. The chamber liner is made from a special TPU film and strengthened by inserting aluminum rod along each side of the structure.
2. The "all around" zipper system allows for the chamber to open completely in order for easy operation.
3. The chamber has 10 integrated glove portals on three sides to allow for easy access to the patient and 2 utility portals used for infusions and other medical equipment.
4. Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened to a stretcher or bed.
5. lsolation chamber is a fully collapsible unit that requires minimal storage space and is ready for use within minutes.
6. The chamber must be used with a folding stretcher or stretcher tolley, which will be easy to move the patient.
Technical Parameters:
Model | BFG -IV | BFG -VI |
Unfolded Size(L*W*H) | 1900*560*500mm | 1900*680*500mm |
HEPA Filter | 3pcs, 99.999% efficiency for 0.3μm particles | |
Ventilation | ≥50L/min | |
Chamber Noise | ≤65dB(A) | |
Alarm | Audio and visual alarm for internal pressure insufficient and low power | |
Negative Pressure | ≥15Pa in two minutes after power on | |
Standard Accessory | The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger, 8 long aluminum rods, 4 short aluminum rods, 8 knurled bolts | |
Consumables | HEPA filter(3pcs/set), PE gloves | |
Disinfection | Chlorinated disinfectants sterilize surfaces | |

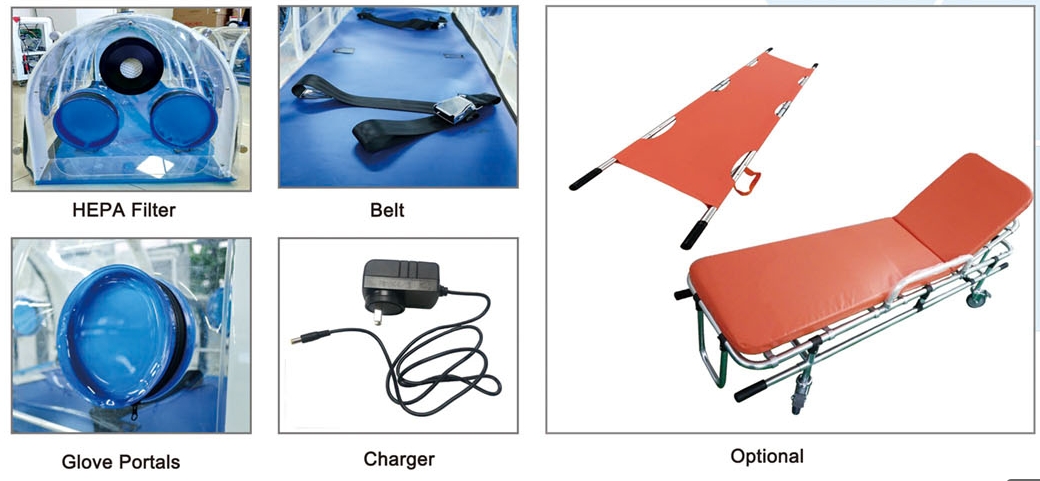

Optional | Folding stretcher, Stretcher trolley | |
Load-bearing | Up to 150kg | |
Power Supply | DC12V power adapter. Battery charging for 8 hours and continuously using for 4~8 hours | |
Package Size(L*W*H) | 860*860*760mm | |
Net Weight | 18kg | 20kg |
Gross Weight | 40kg | 42kg |
Features:
1. The chamber liner is made from a special TPU film and strengthened by inserting aluminum rod along each side of the structure.
2. The "all around" zipper system allows for the chamber to open completely in order for easy operation.
3. The chamber has 10 integrated glove portals on three sides to allow for easy access to the patient and 2 utility portals used for infusions and other medical equipment.
4. Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened to a stretcher or bed.
5. lsolation chamber is a fully collapsible unit that requires minimal storage space and is ready for use within minutes.
6. The chamber must be used with a folding stretcher or stretcher tolley, which will be easy to move the patient.
Technical Parameters:
Model | BFG -IV | BFG -VI |
Unfolded Size(L*W*H) | 1900*560*500mm | 1900*680*500mm |
HEPA Filter | 3pcs, 99.999% efficiency for 0.3μm particles | |
Ventilation | ≥50L/min | |
Chamber Noise | ≤65dB(A) | |
Alarm | Audio and visual alarm for internal pressure insufficient and low power | |
Negative Pressure | ≥15Pa in two minutes after power on | |
Standard Accessory | The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger, 8 long aluminum rods, 4 short aluminum rods, 8 knurled bolts | |
Consumables | HEPA filter(3pcs/set), PE gloves | |
Disinfection | Chlorinated disinfectants sterilize surfaces | |
Optional | Folding stretcher, Stretcher trolley | |
Load-bearing | Up to 150kg | |
Power Supply | DC12V power adapter. Battery charging for 8 hours and continuously using for 4~8 hours | |
Package Size(L*W*H) | 860*860*760mm | |
Net Weight | 18kg | 20kg |
Gross Weight | 40kg | 42kg |
