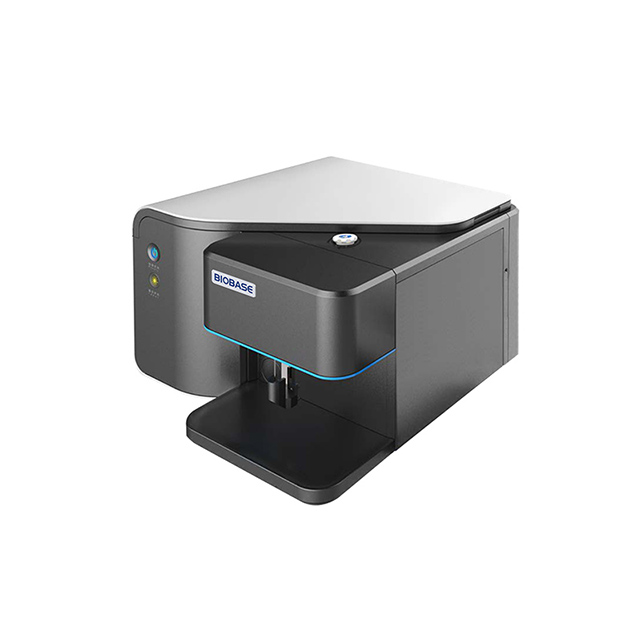

Flow Cytometer ZS-AE7S

Introduction:
Flow cytometer is a high-precision analytical and sorting instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension. By detecting scattered light signals and fluorescent signals from cells labeled with specific probes, the instrument can quantitatively measure multiple physical and chemical properties of cells (such as size, granularity, surface antigens, and intracellular components) at a speed of thousands to tens of thousands of cells per second, enabling high-throughput, multi-parameter, and non-destructive cellular analysis.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZS-AE7S
Brand:
BIOBASE

Features:
Technical Parameters:

Model	ZS-AE7S
Laser	488nm solid（60mW）
Detector	FSC, SSC, FL1-FL5
Fluorescence Channel	FL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7）
Fluorescence Sensitivity	FITC≤50 MESF, PE≤30MESF
Fluorescence Linearity	≥0.99
FSC Sensitivity	≤1μm
Test Particle Size	0.2~50μm
Carry Over	≤0.5%
Instrument CV	FSC and all FL channel CV less than 2%
FSC and SSC CV	Can separate red blood cells and platelet, can separate white blood cells into 3 groups
Test Speed	≥46000 cells/s
Minimum Sample Vol	90μL
Measure Range	Maximum Support 10⁷
Threshold	Double threshold, minimum cells fraction
Fluorescence Compensation	Support auto online compensation, offline compensation and visualized compensation
Item Template	Support Item template, acquisition conditions/fluorescence compensation one-click use
Intake Method	Manual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel
Liquid Storage Station	Sheath bottle, waste bottle, shutdown liquid bottle 2L, cleaning liquid bottle 0.5L
Software	English/Chinese
PC	Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor
Power Supply	AC220/110V±10%, 50/60Hz
Optional	Auto-sampler
External Size(WDH)	430500330mm 650500330mm(with autosampler)
Net Weight	30kg 35kg(with autosampler)
Packing Size(WDH)	Main Instrument: 860635648mm Accessories: 860680810mm Reagent: 405270400mm
Gross Weight	Main Instrument: 56kg Accessories: 54kg Reagent: 16kg
