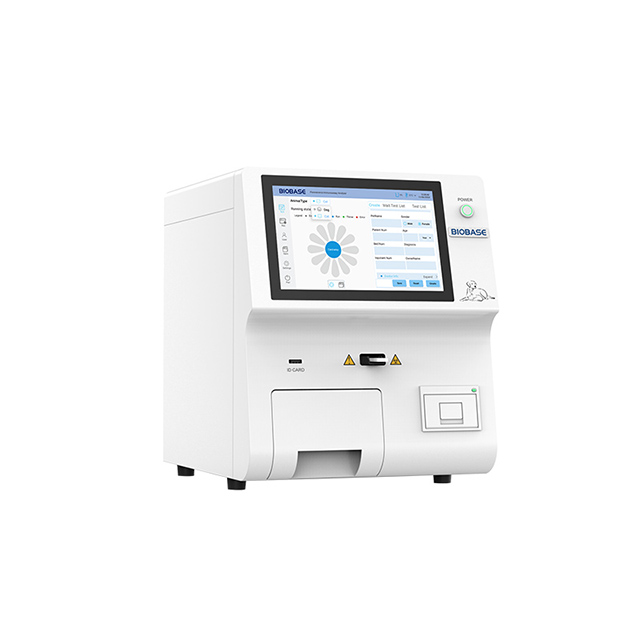

BKP2000
BIOBASE
Application:
It is suitable for in vitro diagnostic tests in central laboratories, outpatient/emergency laboratories, clinical departments, physical examination centers and scientific research laboratories of medical institutions.
Features:
12 independent constant temperature incubation channels, which can detect 12 different items at the same time
Automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss.
Built-in thermal printer, can also be connected to an external printer.
10.1-inch large LCD screen with a resolution of 800*480 or more, the visual experience is better.
The temperature range can be manually set to quickly achieve the predetermined temperature effect and improve the reaction rate.
The operation is convenient, the data is automatically read, and the single detection time is less than 10s.

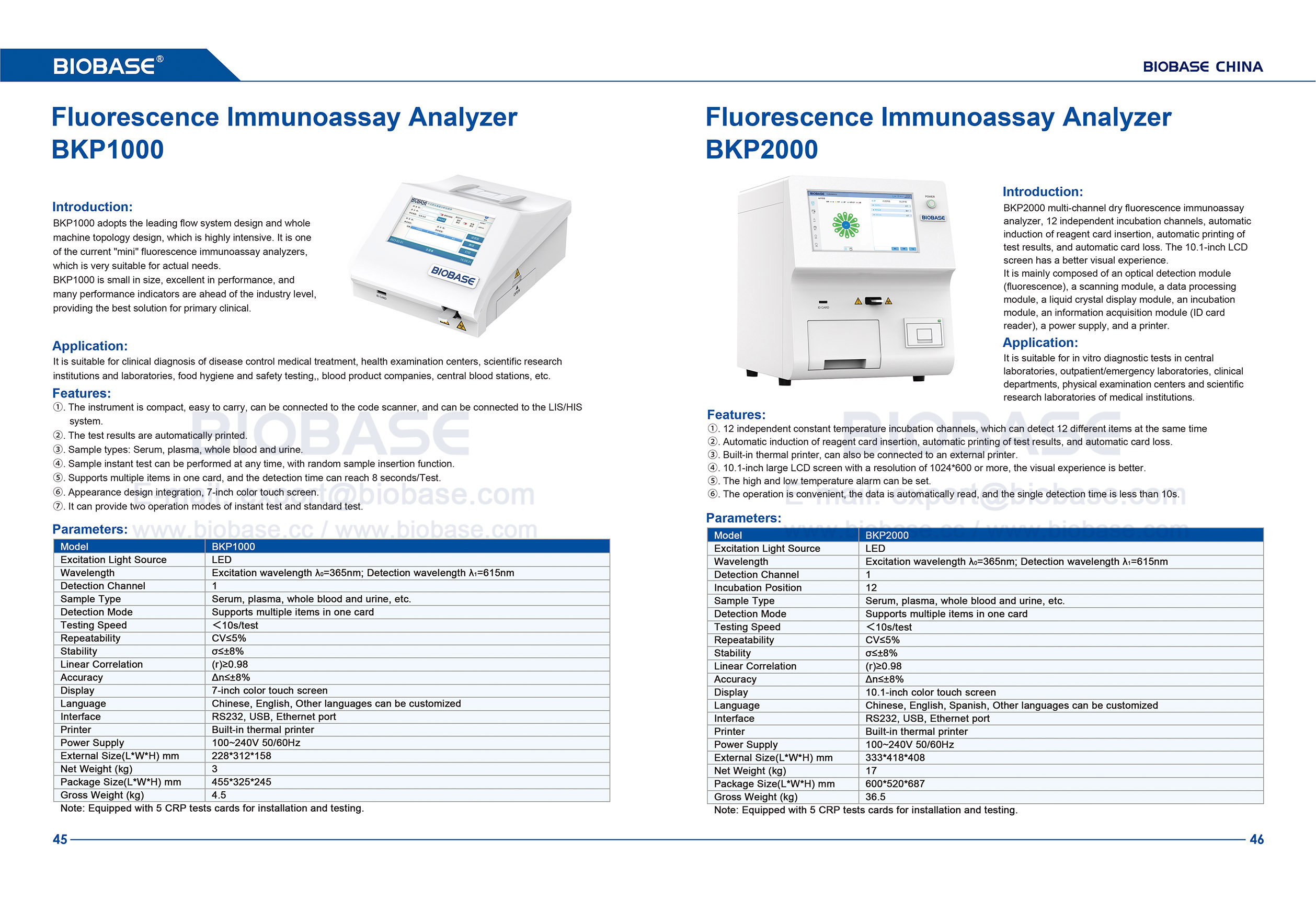

Technical Parameters:
Model | BKP2000 |
Excitation light source | LED |
Wavelength | Excitation wavelength λ0=365nm Detection wavelength λ1=615nm |
Detection Channel | 1 |
Incubation Position | 12 |
Sample Type | Serum, plasma, whole blood and urine, etc. |
Detection Mode | Supports multiple items in one card |
Testing Speed | ＜10s/test |
Repeatability | CV≤5% |
Stability | σ≤±8% |
Linear Correlation | (r)≥0.98 |
Accuracy | Δn≤±8% |
Display | 10.1-inch color touch screen |
Language | Chinese, English, Other languages can be customized |
Interface | RS232, USB, Ethernet port |
Printer | Built-in thermal printer |
Power Supply | 100~240V 50/60Hz |
External Size(L*W*H) mm | 336*410*400 |
Net Weight (kg) | 17 |
Package Size(L*W*H) mm | 530*515*565 |
Gross Weight (kg) | 30 |
