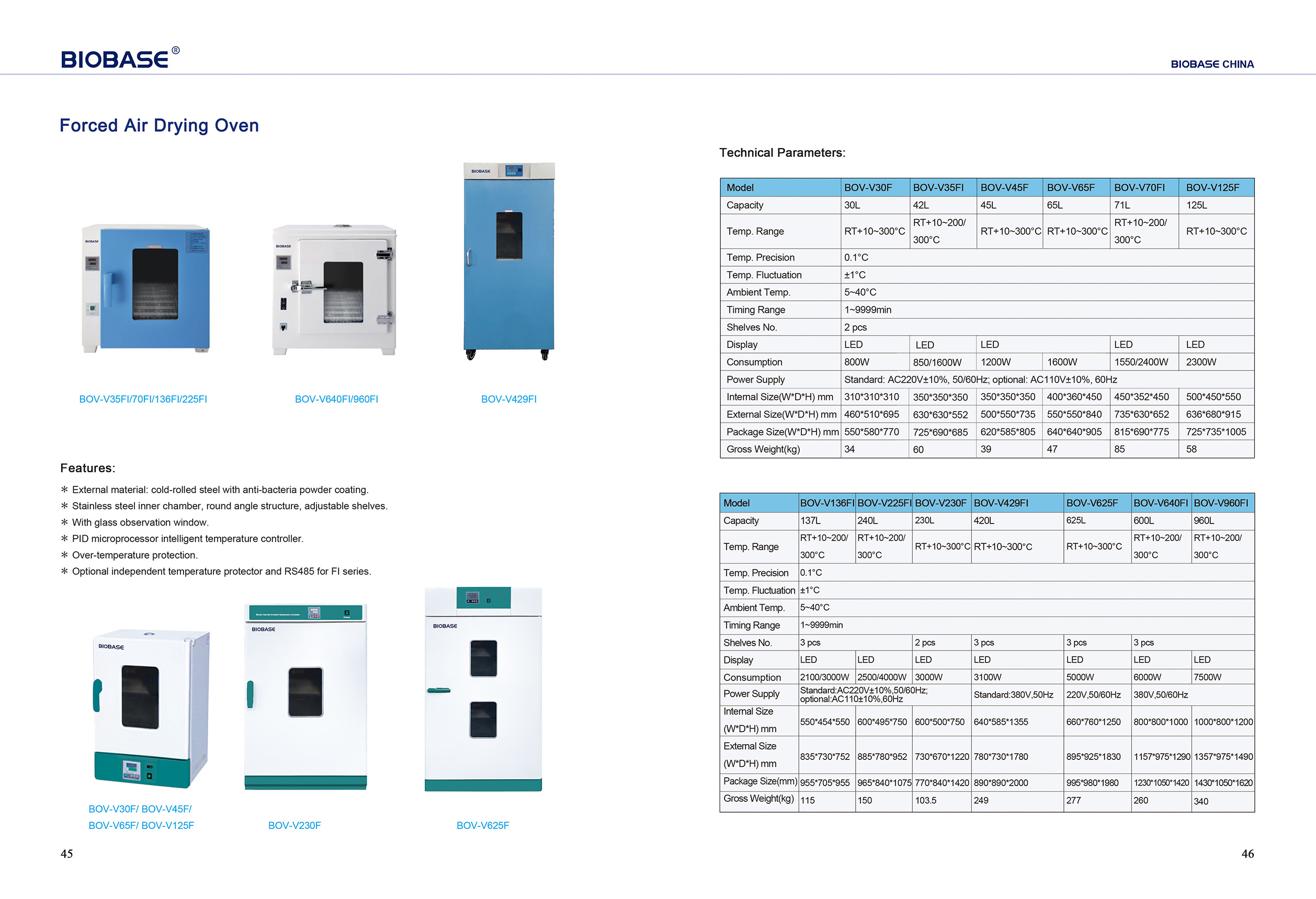

BOV-V30F, BOV-V35FI, BOV-V45F, BOV-V65F, BOV-V70FI, BOV-V125F, BOV-V136FI, BOV-V225FI, BOV-V230F, BOV-V429FI, BOV-V625F, BOV-V640FI, BOV-V960FI
BIOBASE
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* PID microprocessor intelligent temperature controller.
* Over-temperature protection.
* Optional independent temperature protector and RS485 for FI series.
Models:
| Model | BOV-V30F | BOV-V35FI | BOV-V45F | BOV-V65F | BOV-V70F | BOV-V125F |
| Capacity | 30L | 42L | 45L | 65L | 71L | 125L |
| Temp. Range | RT+10~300℃ | RT+10~200/300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~200/300℃ | RT+10~300℃ |
| Temp. Precision | 0.1℃ | |||||
| Temp. Fluctuation | ±1℃ | |||||
| Ambient Temp. | 5~40℃ | |||||
| Timing Range | 1~9999min | |||||
| Shelves No. | 2 pcs | |||||
| Display | LED | LED | LED | LED | LED | |
| Consumption | 800W | 850/1600W | 1200W | 1600W | 1550/2400W | 2300W |
| Power Supply | Standard: AC220V±10%, 50/60Hz; Optional: AC110V±10%, 60Hz | |||||
| Internal Size | 310*310*310 | 350*350*350 | 350*350*350 | 400*360*450 | 450*352*450 | 500*450*550 |
| (W*D*H)mm | ||||||
| External Size | 460*510*695 | 630*630*552 | 500*550*735 | 550*550*840 | 735*630*652 | 636*680*915 |
| (W*D*H)mm | ||||||
| Package Size | 550*580*770 | 725*690*685 | 620*585*805 | 640*640*905 | 815*690*775 | 725*735*1005 |
| (W*D*H)mm | ||||||
| Gross Weight(kg) | 34 | 60 | 39 | 47 | 85 | 58 |
Model | BOV-V136FI | BOV-V225FI | BOV-V230F | BOV-V429FI | BOV-V625F | BOV-V640FI | BOV-V960FI |
Capacity | 137L | 240L | 230L | 420L | 625L | 600L | 900L |
Temp. Range | RT+10~200/300℃ | RT+10~200/300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~200/300℃ | RT+10~200/300℃ |
Temp. Precision | 0.1℃ | ||||||
Temp. Fluctuation | ±1℃ | ||||||
Ambient Temp. | 5~40℃ | ||||||
Timing Range | 1~9999min | ||||||
Shelves No. | 3 pcs | 2 pcs | 3 pcs | ||||
Display | LED | LED | LED | LED | LED | ||
Consumption | 2100/3000W | 2500W/4000W | 3000W | 3100W | 5000W | 6000W | 7500W |
Power Supply | Standard: AC220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz. | Standard: 380V, 50Hz | 220V, 50/60Hz | 380V, 50/60Hz | |||
Internal Size (W*D*H)mm | 550*454*550 | 600*495*750 | 600*500*750 | 640*585*1355 | 660*760 *1250 | 800*800 *1000 | 1000*800 *1200 |
External Size (W*D*H)mm | 835*730*752 | 885*780*952 | 730*670*1220 | 780*730*1780 | 895*925 *1830 | 1157*975*1290 | 1357*975 *1490 |
Package Size (W*D*H)mm | 955*705*955 | 965*840*1075 | 770*840*1420 | 890*890 *2000 | 995*980 *1980 | 1230*1050*1420 | 1430*1050 *1620 |
Gross Weight(kg) | 115 | 150 | 103.5 | 249 | 277 | 260 | 340 |
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* PID microprocessor intelligent temperature controller.
* Over-temperature protection.
* Optional independent temperature protector and RS485 for FI series.
Models:
| Model | BOV-V30F | BOV-V35FI | BOV-V45F | BOV-V65F | BOV-V70F | BOV-V125F |
| Capacity | 30L | 42L | 45L | 65L | 71L | 125L |
| Temp. Range | RT+10~300℃ | RT+10~200/300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~200/300℃ | RT+10~300℃ |
| Temp. Precision | 0.1℃ | |||||
| Temp. Fluctuation | ±1℃ | |||||
| Ambient Temp. | 5~40℃ | |||||
| Timing Range | 1~9999min | |||||
| Shelves No. | 2 pcs | |||||
| Display | LED | LED | LED | LED | LED | |
| Consumption | 800W | 850/1600W | 1200W | 1600W | 1550/2400W | 2300W |
| Power Supply | Standard: AC220V±10%, 50/60Hz; Optional: AC110V±10%, 60Hz | |||||
| Internal Size | 310*310*310 | 350*350*350 | 350*350*350 | 400*360*450 | 450*352*450 | 500*450*550 |
| (W*D*H)mm | ||||||
| External Size | 460*510*695 | 630*630*552 | 500*550*735 | 550*550*840 | 735*630*652 | 636*680*915 |
| (W*D*H)mm | ||||||
| Package Size | 550*580*770 | 725*690*685 | 620*585*805 | 640*640*905 | 815*690*775 | 725*735*1005 |
| (W*D*H)mm | ||||||
| Gross Weight(kg) | 34 | 60 | 39 | 47 | 85 | 58 |
Model | BOV-V136FI | BOV-V225FI | BOV-V230F | BOV-V429FI | BOV-V625F | BOV-V640FI | BOV-V960FI |
Capacity | 137L | 240L | 230L | 420L | 625L | 600L | 900L |
Temp. Range | RT+10~200/300℃ | RT+10~200/300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~300℃ | RT+10~200/300℃ | RT+10~200/300℃ |
Temp. Precision | 0.1℃ | ||||||
Temp. Fluctuation | ±1℃ | ||||||
Ambient Temp. | 5~40℃ | ||||||
Timing Range | 1~9999min | ||||||
Shelves No. | 3 pcs | 2 pcs | 3 pcs | ||||
Display | LED | LED | LED | LED | LED | ||
Consumption | 2100/3000W | 2500W/4000W | 3000W | 3100W | 5000W | 6000W | 7500W |
Power Supply | Standard: AC220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz. | Standard: 380V, 50Hz | 220V, 50/60Hz | 380V, 50/60Hz | |||
Internal Size (W*D*H)mm | 550*454*550 | 600*495*750 | 600*500*750 | 640*585*1355 | 660*760 *1250 | 800*800 *1000 | 1000*800 *1200 |
External Size (W*D*H)mm | 835*730*752 | 885*780*952 | 730*670*1220 | 780*730*1780 | 895*925 *1830 | 1157*975*1290 | 1357*975 *1490 |
Package Size (W*D*H)mm | 955*705*955 | 965*840*1075 | 770*840*1420 | 890*890 *2000 | 995*980 *1980 | 1230*1050*1420 | 1430*1050 *1620 |
Gross Weight(kg) | 115 | 150 | 103.5 | 249 | 277 | 260 | 340 |
