From Sample to Result: Complete PCR Lab Equipment Solutions

In modern medical diagnostics, PCR molecular laboratories serve as vital platforms for conducting nucleic acid testing, genetic analysis, and pathogen identification. Whether in hospitals, disease control centers, research institutes, or third-party testing agencies, PCR labs are at the heart of precision medicine. Today, we'll walk you through how to plan and configure a PCR lab—and provide you with a one-stop solution to help you quickly build a high-standard PCR platform!

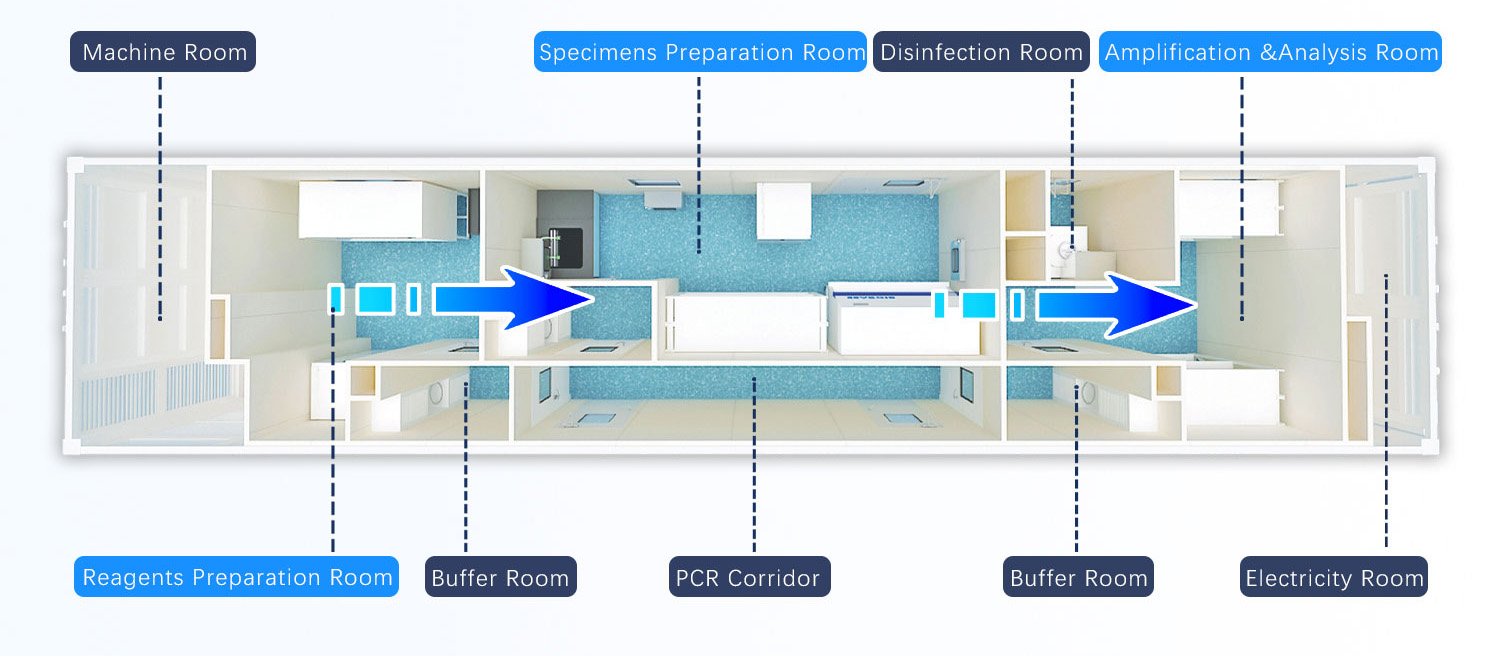

The "Three Areas and Two Passages" Standard of PCR Laboratories

A typical PCR lab consists of three physically separated zones:

*Reagent Preparation Area (for preparing reaction mixtures)

*Sample Processing Area (for sample lysis and nucleic acid extraction)

*Amplification and Analysis Area (for PCR amplification and result interpretation)

*Strict physical separation between the three areas is required to prevent contamination.
*Personnel and materials must follow unidirectional flow rules.

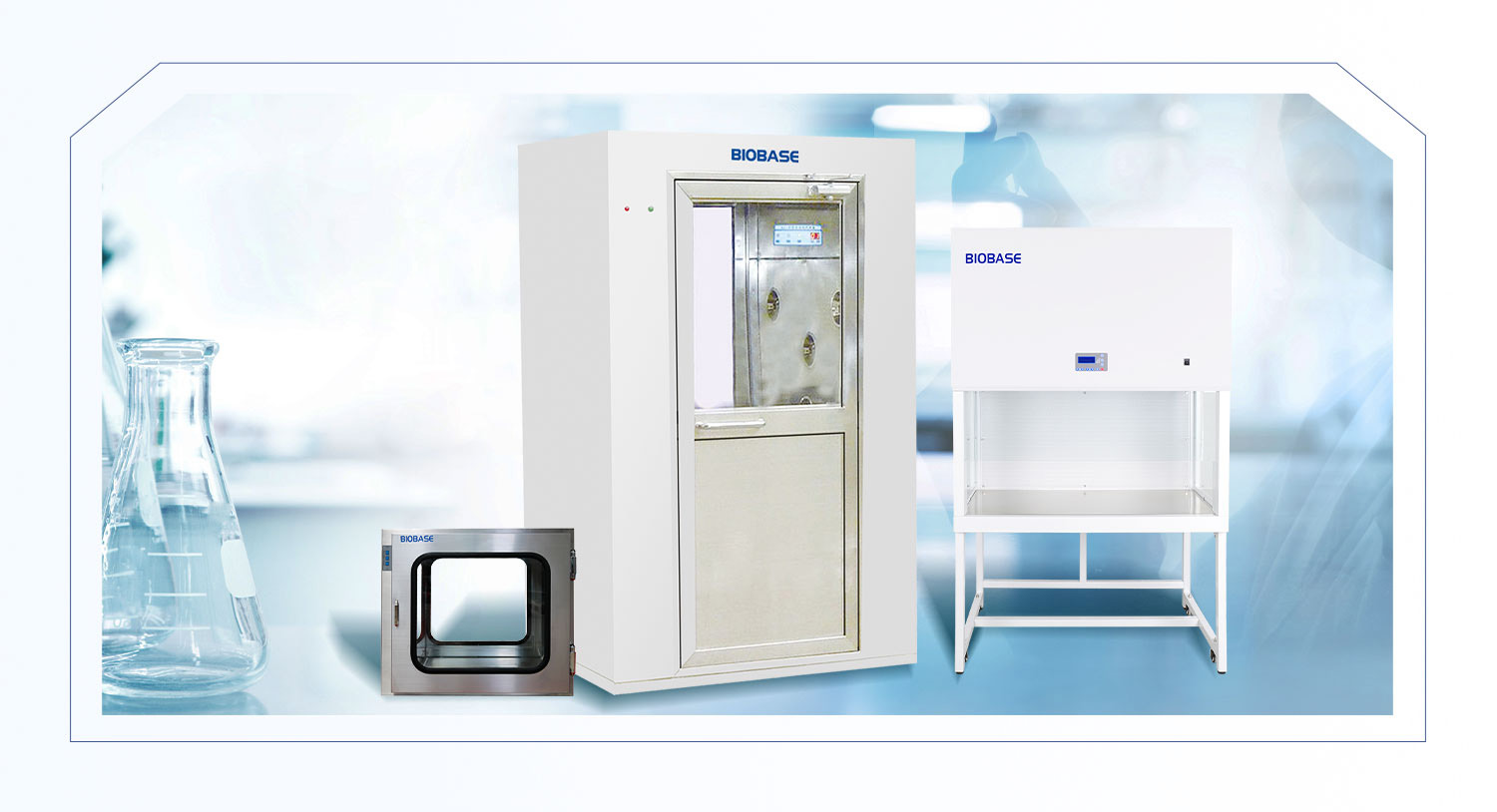

BIOBASE provides complete cleanroom construction and functional zoning design solutions for PCR laboratories, supporting modular delivery. Professional equipment such as pass boxes, air showers, UV lamps, and door access & pressure control systems can be integrated to ensure fast and compliant setup and inspection.

From Sample to Result: Key Equipment Configurations

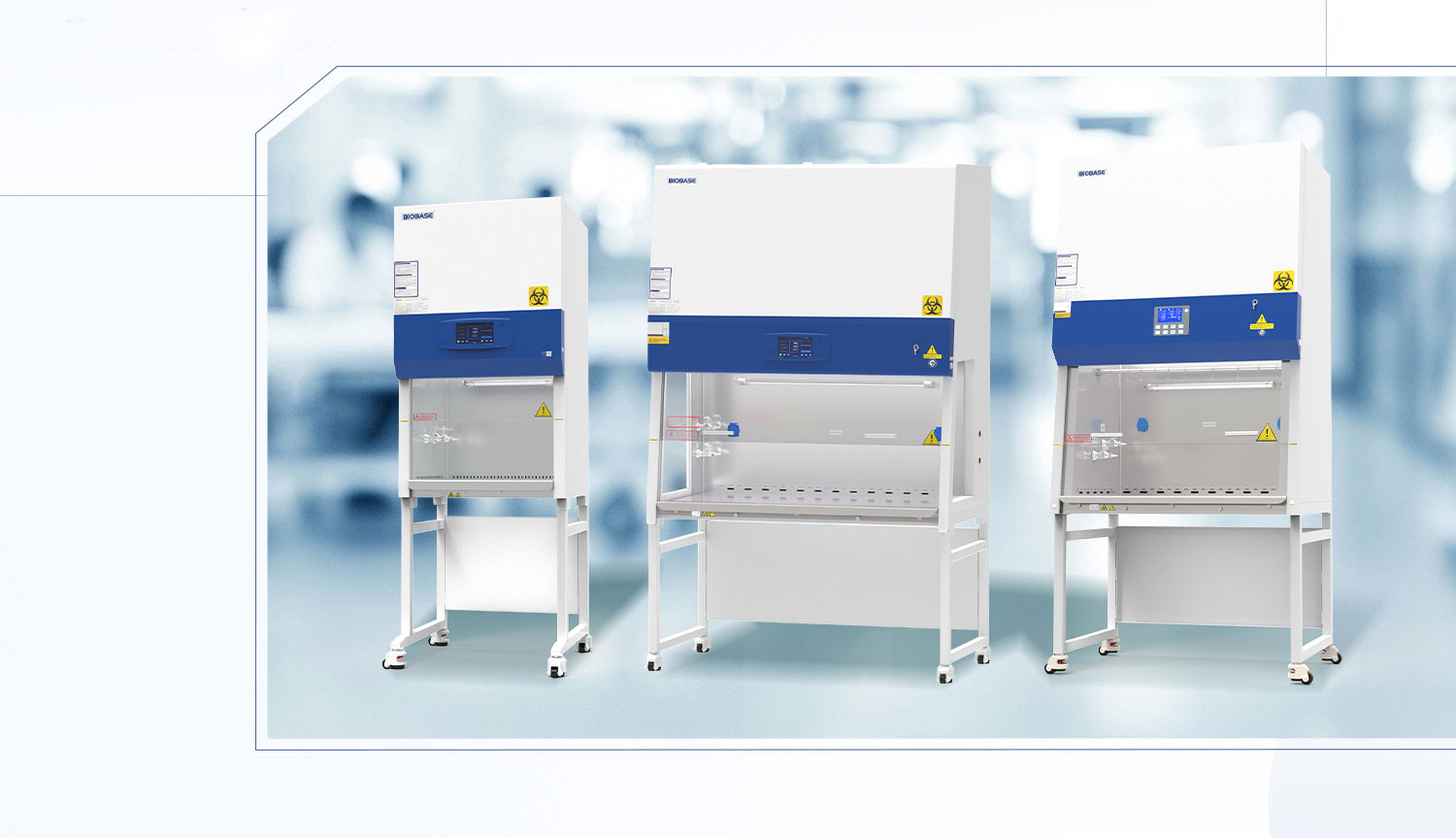

1. Class II Biosafety Cabinet
Used during sample processing and nucleic acid extraction to prevent aerosol dispersion and ensure safety for both personnel and samples. BIOBASE Class II biosafety cabinets are certified to EN/NSF standards, supporting constant negative pressure operation with automatic compensation.

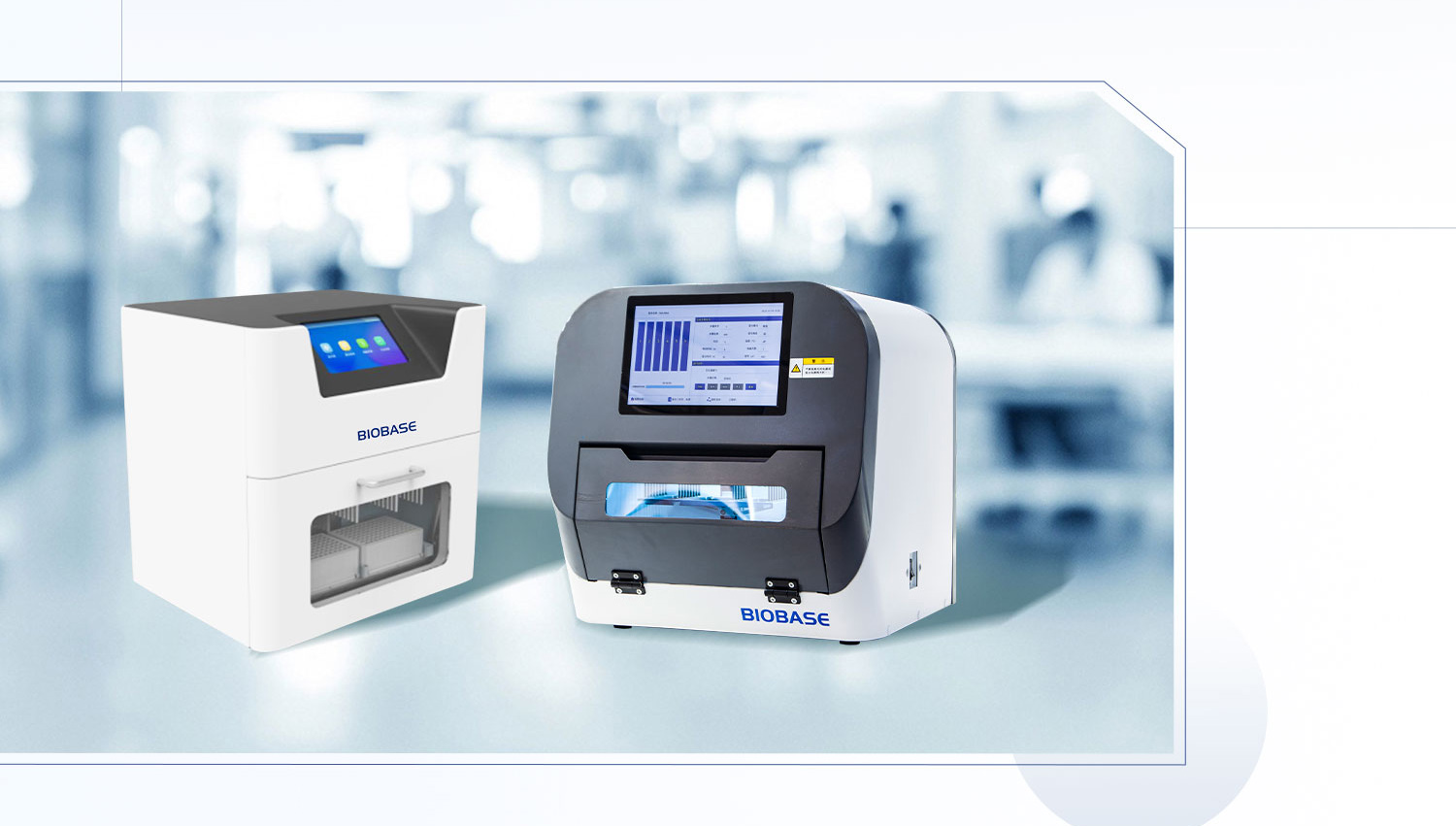

2. Automatic Nucleic Acid Extractor
Compatible with various reagent types and covering throughput from 16 to 96 channels, this equipment offers high efficiency and low contamination. Ideal for virus detection and genomic DNA extraction.

3. Real-Time PCR System (qPCR)
Offers high sensitivity and stability. BIOBASE provides multi-channel, multi-mode configurations suitable for multi-target amplification. The system enables automatic result interpretation with intuitive Ct value analysis.

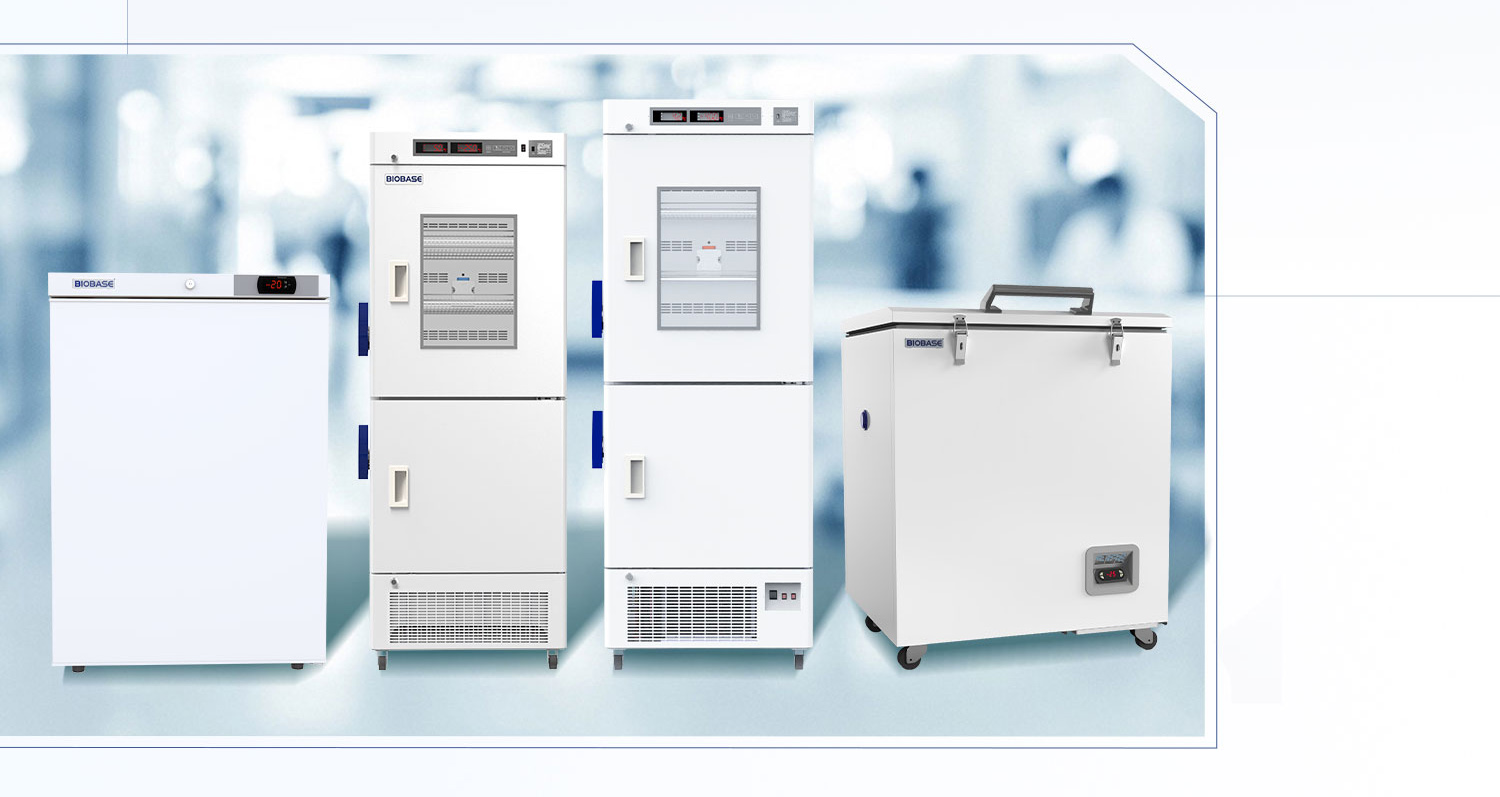

4. Low-Temperature Storage Equipment
BIOBASE -25°C freezer meets the needs of PCR laboratory reagents and sample storage. It has precise temperature control and multiple safety warning functions.

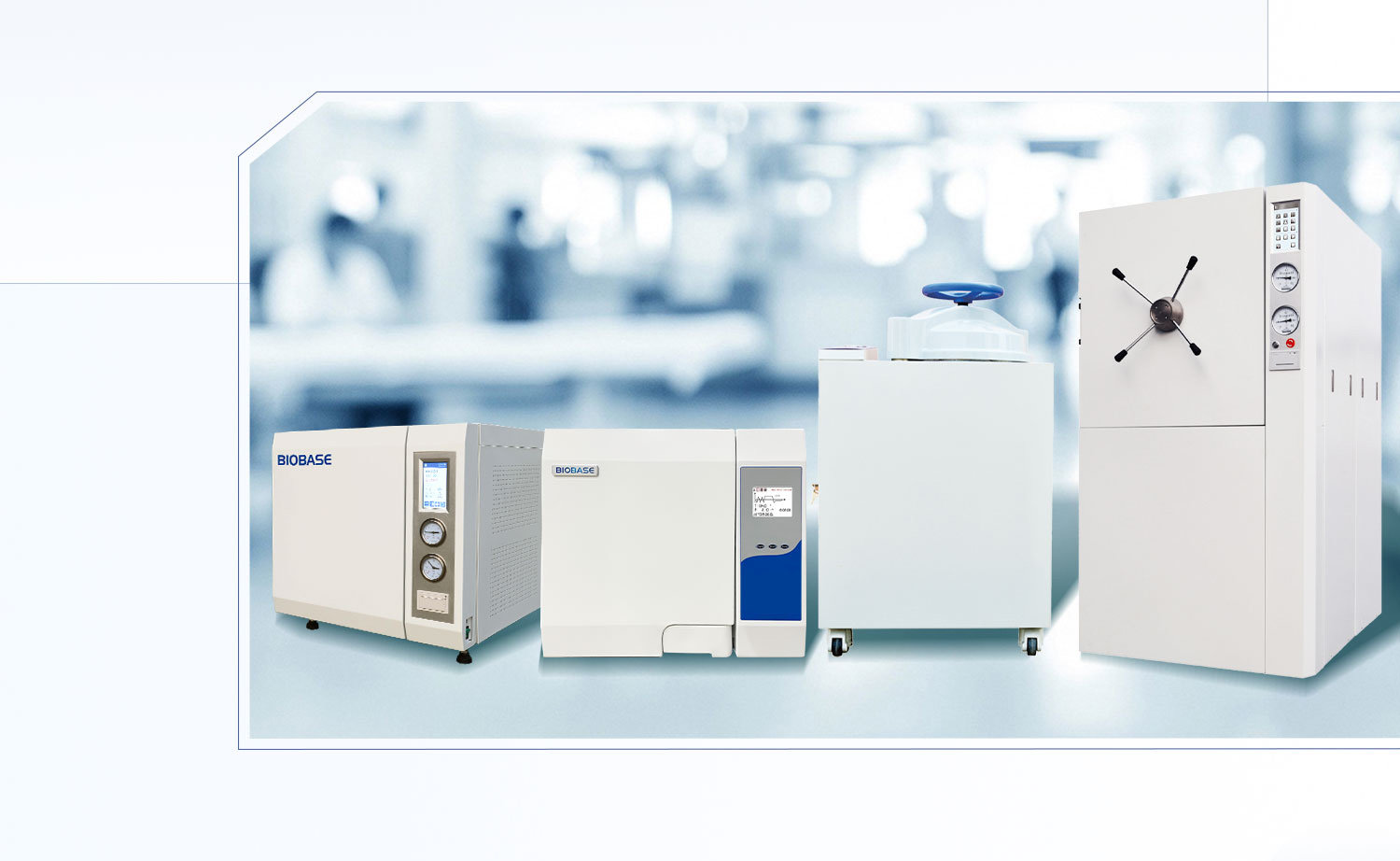

5. Autoclave

Used for sterilizing consumables and contaminated items. The sterilizer adopts high-efficiency low noise vacuum system supports 121°C/134°C sterilization programs, and has excellent sterilization effects.

Safe Operation and Environmental Monitoring System

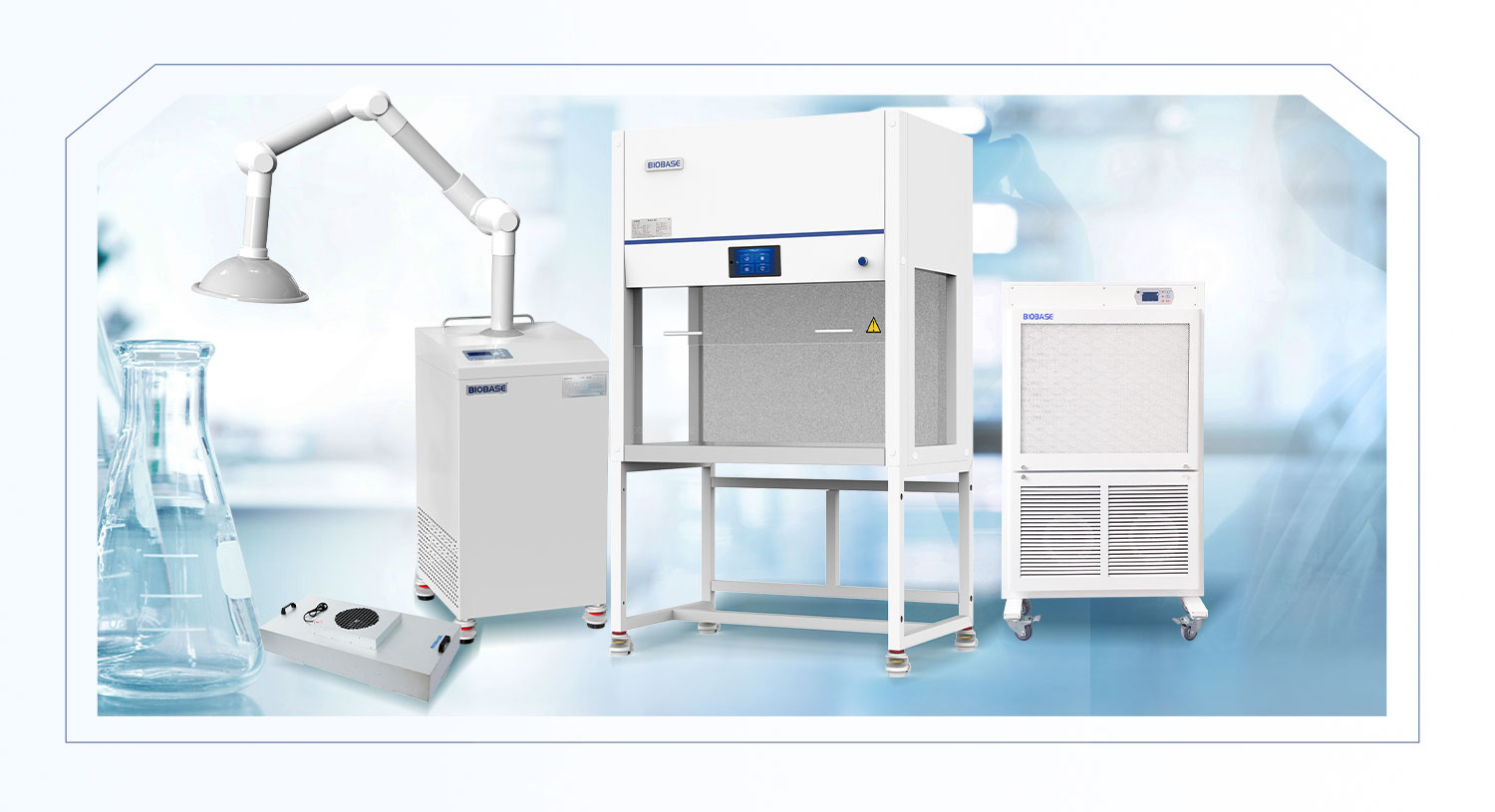

Air Purification and Disinfection:

Equipped with HEPA high-efficiency filtration systems and UV sterilization units with programmable timers to effectively control airborne particles and aerosols.

Pass Box + Clean Bench:

Enhances the efficiency of material transfer between zones while preventing cross-contamination.

Temperature, Humidity, and Pressure Differential Monitoring:

BIOBASE offers intelligent environmental monitoring systems that provide real-time data logging, over-limit alarms, and remote access capabilities.

Whether you're building a new PCR laboratory or upgrading an existing one, we deliver professional, compliant, and cost-effective one-stop solutions tailored to your needs.

Feel free to contact us for more information or consultation.
