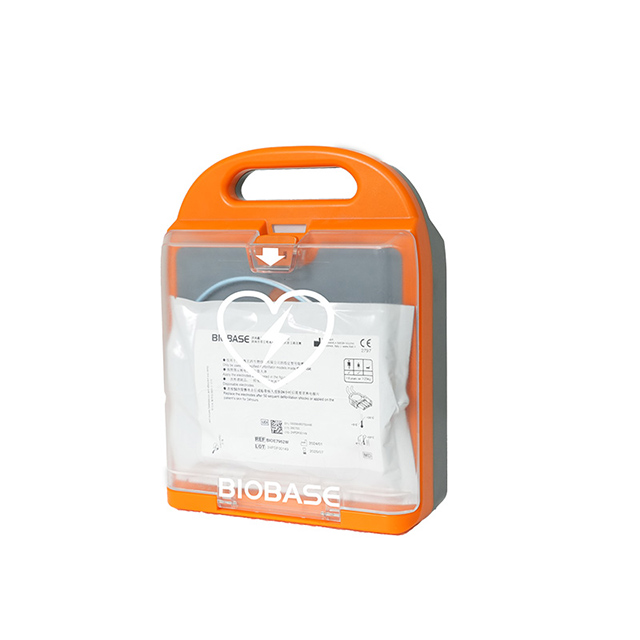

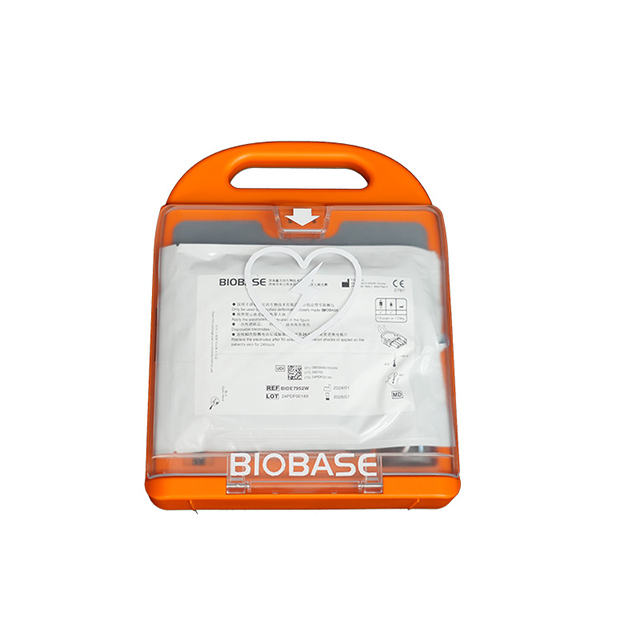

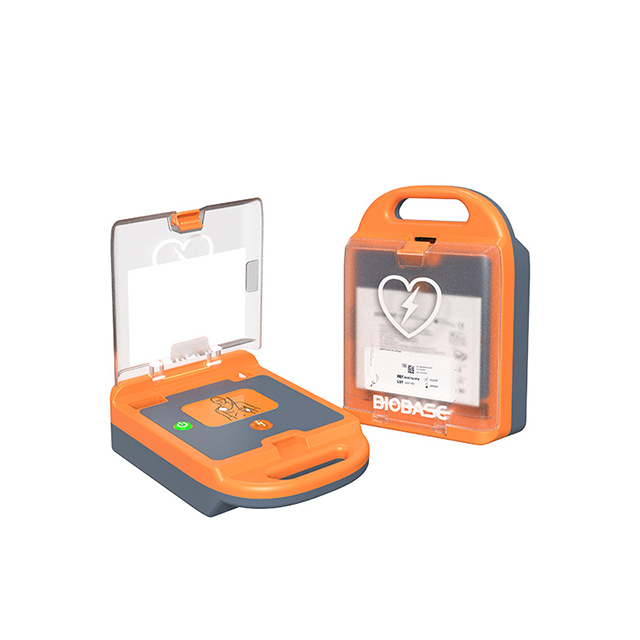

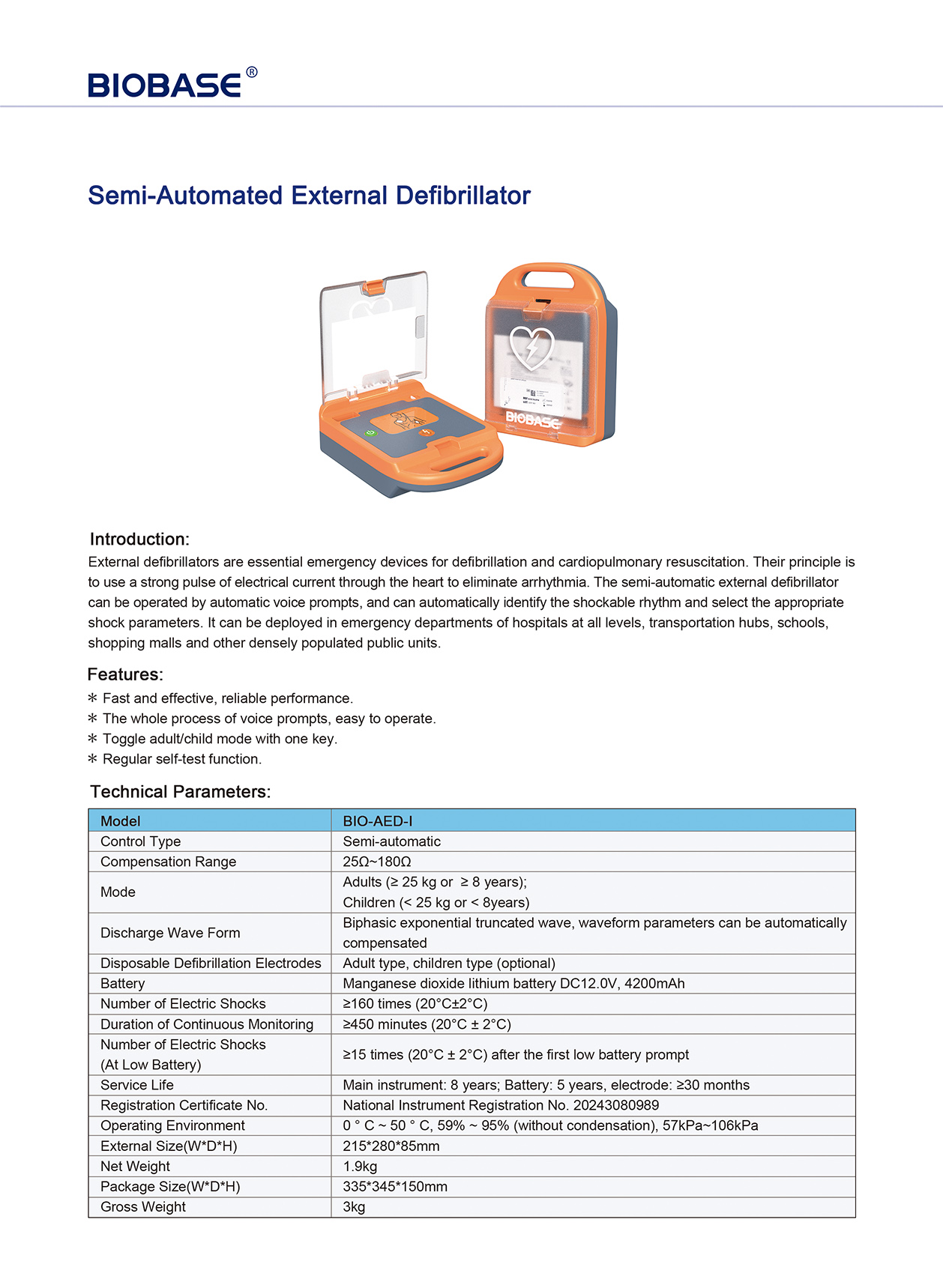

BIO-AED-I
BIOBASE
Feature:
1. Fast and effective, reliable performance
2. The whole process of voice prompts, easy to operate
3. Toggle adult/child mode with one key
4. Regular self-test function
Parameter:
Model | BIO-AED-I |
Control Type | Semi-automatic |
Compensation Range | 25Ω~180Ω |
Mode | Adults (≥ 25 kg or ≥ 8 years); Children (< 25 kg or < 8years) |
Discharge Wave Form | Biphasic exponential truncated wave, waveform parameters can be automatically compensated |
Disposable Defibrillation Electrodes | Adult type, children type (optional) |
Battery | Manganese dioxide lithium battery DC12.0V, 4200mAh |
Number of Electric Shocks | ≥160 times (20°C±2°C) |
Duration of Continuous Monitoring | ≥450 minutes (20°C ± 2°C) |
Number of Electric Shocks (At Low Battery) | ≥15 times (20°C ± 2°C) after the first low battery prompt |
Service Life | Main instrument: 8 years; Battery: 5 years, electrode: ≥30 months |
Registration Certificate No. | National Instrument Registration No. 20243080989 |
Operating Environment | 0 ° C ~ 50 ° C, 59% ~ 95% (without condensation), 57kPa~106kPa |
External Size(W*D*H) | 215*280*85mm |
Net Weight | 1.9kg |
Package Size(W*D*H) | 335*345*150mm |
Gross Weight | 3 kg |
Feature:
1. Fast and effective, reliable performance
2. The whole process of voice prompts, easy to operate
3. Toggle adult/child mode with one key
4. Regular self-test function
Parameter:
Model | BIO-AED-I |
Control Type | Semi-automatic |
Compensation Range | 25Ω~180Ω |
Mode | Adults (≥ 25 kg or ≥ 8 years); Children (< 25 kg or < 8years) |
Discharge Wave Form | Biphasic exponential truncated wave, waveform parameters can be automatically compensated |
Disposable Defibrillation Electrodes | Adult type, children type (optional) |
Battery | Manganese dioxide lithium battery DC12.0V, 4200mAh |
Number of Electric Shocks | ≥160 times (20°C±2°C) |
Duration of Continuous Monitoring | ≥450 minutes (20°C ± 2°C) |
Number of Electric Shocks (At Low Battery) | ≥15 times (20°C ± 2°C) after the first low battery prompt |
Service Life | Main instrument: 8 years; Battery: 5 years, electrode: ≥30 months |
Registration Certificate No. | National Instrument Registration No. 20243080989 |
Operating Environment | 0 ° C ~ 50 ° C, 59% ~ 95% (without condensation), 57kPa~106kPa |
External Size(W*D*H) | 215*280*85mm |
Net Weight | 1.9kg |
Package Size(W*D*H) | 335*345*150mm |
Gross Weight | 3 kg |
