This Coagulation Analyzer is a type of single-channel instrument. Its measurement principle is optical colorimetry. After mixing the reagents with plasma, fibrinogen converts into fibrin and coagulates, thus the optical density of the test sample changes and the analyzer can detect the coagulation end-point.
BIOBASE

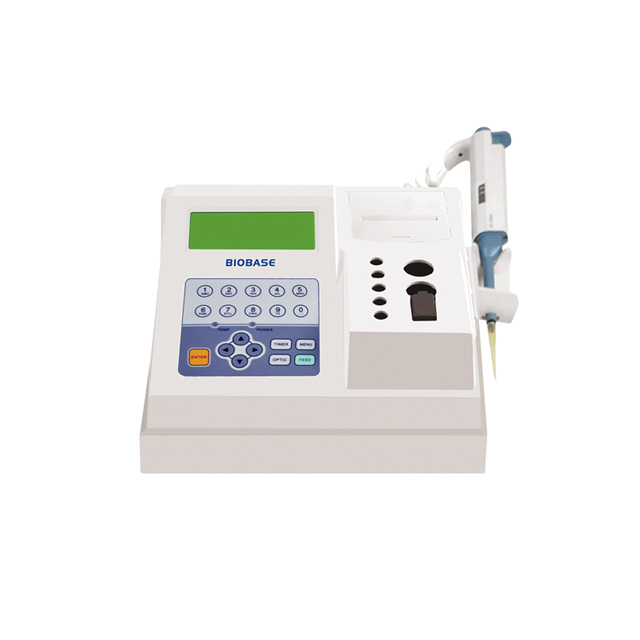

BIOBASE COA series Semi Auto Coagulation Analyzer is easy-to-use equipped with precise pipette. Small volume of sample and reagent is needed for tests to save cost, for sure it is designed to meet the requirement of small lab or clinics.
Features:
1. Parameters: PT, APTT, TT, FIB, etc.
2. Principle: Clotting, optical method.
3. Precise electronic pipette.
4. Languages: English, French, Spanish, Portuguese, etc.
5. Automatic start reagent addition.
6. Thermal Printer, auto & manual print.
7. LIS system availiable.
Reagent parameters:
Item | Sample volume | Reagent 1 | Reagent 2 | Incubating time | CV% |
PT | 20μl | 40μl | / | 120s | ≤5% |
APTT | 20μl | 20μl | 20μl | 180s | ≤5% |
TT | 30μl | 30μl | / | 120s | ≤8% |
FIB | 40μl | 20μl | / | 180s | ≤5% |
Models:
Model | COA01 | COA02 | COA04 |
Testing Channel | 1 | 2 | 4 |
Display | 4.3'' | 5'' | |
Cuvette Incubation Positions | 5 | 12 | 24 |
Reagent Incubation Positions | 2 | 5 | 6 |
Wavelength | LED 470nm | ||
Sample Type | Plasma | ||
Results | 10000 results storage | ||
Sample Volume | 20-40μl | ||
Available Units | Seconds,Ratio, %, g/L | ||
Incubation Temperature | 37.0±1.0℃ | ||
Relative Humidity | ≤85% | ||
Precision | PT, APTT, FIB≤5%; TT≤8%(Normal sample) | ||
Deviationbetween Channels | ≤5% | ||
Power Supply | AC100~240V, 50/60Hz | ||
External Size | 290*260*135mm | 345*325*145mm | 375*335*175mm |
Net Weight | 2.1kg | 4.5kg | 5.2kg |
Package Size | 360*360*260mm | 440*420*350mm | 440*420*340mm |
Gross Weight | 6.5kg | 7kg | 7.5kg |
