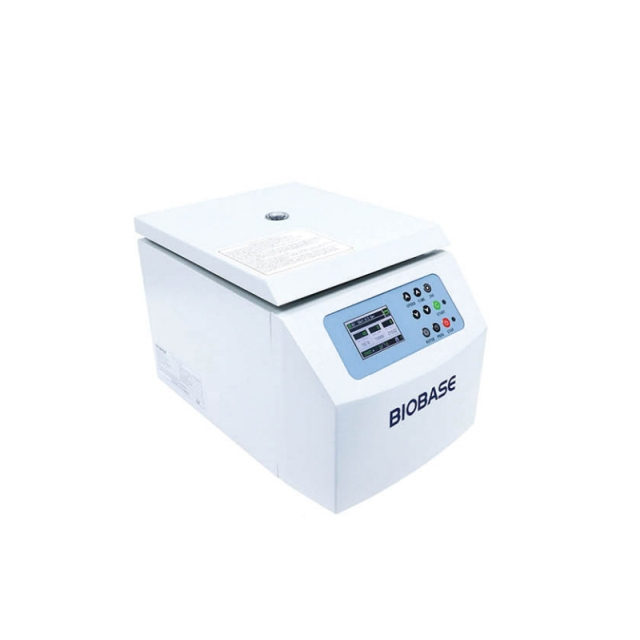

BKC-TH16E
BIOBASE
Features:
1. With instantaneous centrifugal function.
2. Whole machine adopts all-steel structure, stainless steel centrifugal chamber.
3. It can store 20 kinds of running programs and has 15 kinds of lifting and lowering rates to choose from.
4. Equipped with a DC brushless motor, ensuring smooth operation, minimal vibration and low noise.
5. Can set the centrifugal speed, time, speed up and down gear, and check the RCF at any time.
6. Capable of setting centrifugal speed, time, and lifting speed gears and viewing centrifugal force at any time.
7. With multiple protection functions and perfect fault alarm function, with door cover interlock, over-speed, unbalanced protection and other alarm reminders.
Technical Parameters:
Model | BKC-TH16E |
Max Speed | 16000rpm |
Max RCF | 20878×g |
Max Capacity | 12*10ml |
Speed Precision | ±20rpm |
Timing Range | 1s~99min |
Noise | ≤65dB |
Consumption | 500W |
Power Supply | AC 110~220V, 50/60Hz |
External Size (W*D*H) | 465*305*305mm |
Package Size (W*D*H) | 610*520*400mm |
Net Weight | 30kg |
Gross Weight | 40kg |
Rotor:
No. | Rotor | Capacity | Max Speed (rpm) | Max RCF (×g) | Adapter |
No.1 | Angle Rotor | 30*0.5ml | 15000 | 18510 | |
No.2 | 12*1.5/2ml | 16000 | 17800 | 12*0.5ml, 12*0.2ml | |
No.3 | 24*1.5/2ml | 15000 | 20878 | 24*0.5ml, 24*0.2ml | |
No.4 | 10*5ml | 16000 | 19040 | / | |
No.5 | 6*10ml | 12000 | 14800 | / | |
No.6 | 12*10ml | 12000 | 14800 | / | |
No.7 | 4*8PCR | 13000 | 10407 | / |
