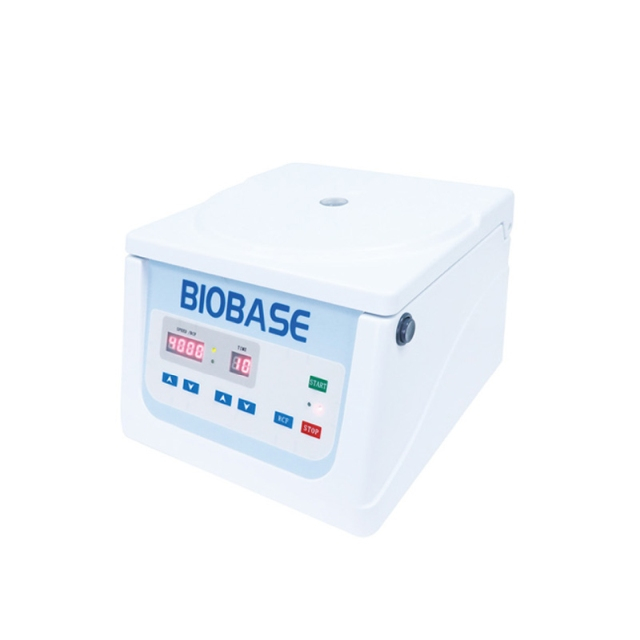

BKC-TL4C
BIOBASE
Feature:
1. Small size, safe and reliable, easy to use;
2. Adjustable acceleration levels: 10, deceleration levels: 10.
3. The fuselage is made of high-quality plastic mold material, with explosion-proof protection;
4. Adopt DC brushless motor, stable operation, small vibration and low noise;
5. The button-type programming design can display the running parameters in real time, and the operation is more intuitive;
6. Centrifugal speed, time, and elevating speed can be set freely, and centrifugal force can be checked at any time;
7. Ultra-low noise, microcomputer control, intelligent interface, fault display, door cover, overspeed and other automatic protection functions.
Technical Parameters:
Model | BKC-TL4C |
Max. Speed | 4000rpm |
Max. RCF | 1880xg |
Max. Capacity | 8*20ml |
Speed Precision | ±10rpm |
Time Range | 1s～99min59s |
Power Supply | AC 100~240V, 50/60Hz |
Consumption | 250W |
Noise | ≤55dB |
External Size(L*W*H)mm | 310*270*210 |
Package Size(L*W*H)mm | 370*310*250 |
Net Weight/Gross Weight(kg) | 7.5/8.5 |
Rotor:
No. | Rotor | Capacity | Max. Speed(rpm) | Max. RCF(xg) |
No.1 | Angle Rotor | 6*10/15ml | 4000 | 1880 |
No.2 | 8*10/15ml | 1880 | ||
No.3 | 8*20ml | 1840 | ||
No.4 | 12*5ml | 1540 | ||
No.5 | 12*7/10ml | 1790 |
