| Quantity: | |
|---|---|

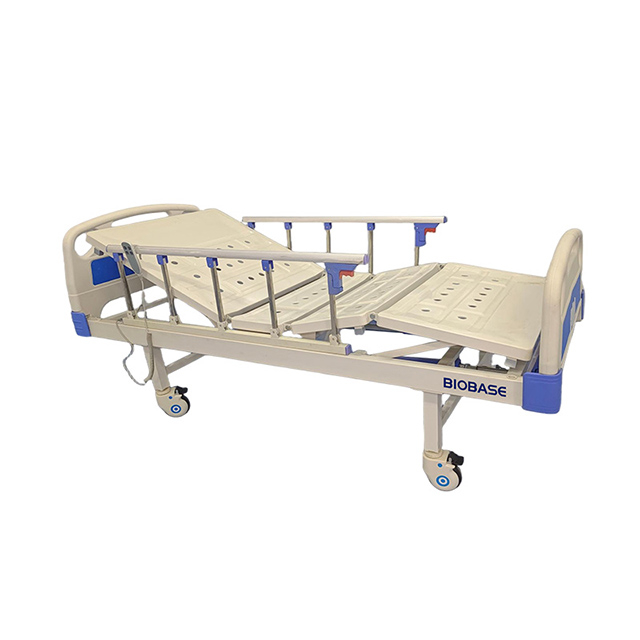

MF201D-11
BIOBASE
Optional Accessories:
1. PP guardrails
2. Mattress
3. Infusion support
4. Removable dining table
5. Stretching table
6. Bedside cupboard
7. Medical record folder
Features:
1. High-quantity materials: The head and foot of the bed are made of engineering plastics for one-time molding.
2. 5-inch silent casters: They are highly flexible in rotation, stable and durable, with excellent wear resistance and no noise. Each corner is equipped with a braking device.
3. Aluminum alloy foldable guardrails: It can be folded and unfolded freely, locked firmly.
Technical Parameters:
Model | MF201D-11 |
Instrument Size(W*D*H) | 2120*910*500mm(±10mm) |
Back Panel Adjustable Angle Range | 0°~70°(±5°) |
Thigh Panel Adjustable Angle Range | 0°~30°(±5°) |
Calf Panel Adjustable Angle Range | 0°~10°(±5°) |
Safe Load | 175kg |
Power Supply | AC220V, 50Hz/60Hz(Standard); AC110V, 50Hz/60Hz(Optional) |
IP Class | IPX4 |
Packing Size(W*D*H) | 2050*1000*300mm |
Gross Weight | 85kg |
Optional Accessories:
1. PP guardrails
2. Mattress
3. Infusion support
4. Removable dining table
5. Stretching table
6. Bedside cupboard
7. Medical record folder
Features:
1. High-quantity materials: The head and foot of the bed are made of engineering plastics for one-time molding.
2. 5-inch silent casters: They are highly flexible in rotation, stable and durable, with excellent wear resistance and no noise. Each corner is equipped with a braking device.
3. Aluminum alloy foldable guardrails: It can be folded and unfolded freely, locked firmly.
Technical Parameters:
Model | MF201D-11 |
Instrument Size(W*D*H) | 2120*910*500mm(±10mm) |
Back Panel Adjustable Angle Range | 0°~70°(±5°) |
Thigh Panel Adjustable Angle Range | 0°~30°(±5°) |
Calf Panel Adjustable Angle Range | 0°~10°(±5°) |
Safe Load | 175kg |
Power Supply | AC220V, 50Hz/60Hz(Standard); AC110V, 50Hz/60Hz(Optional) |
IP Class | IPX4 |
Packing Size(W*D*H) | 2050*1000*300mm |
Gross Weight | 85kg |
