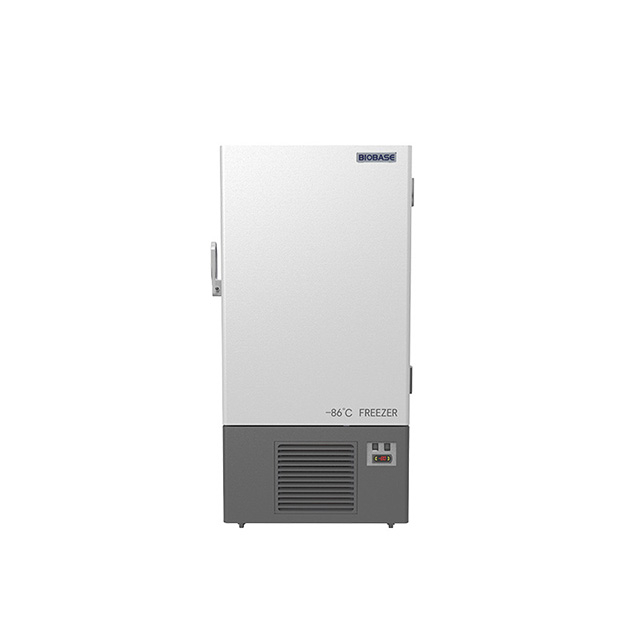

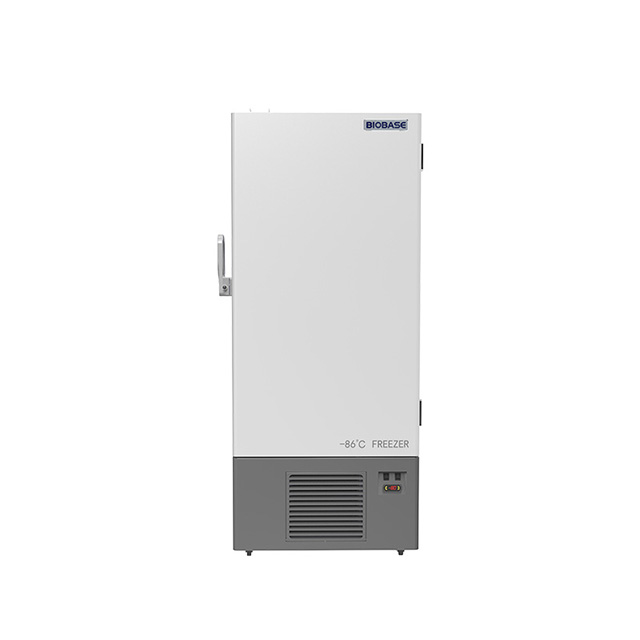

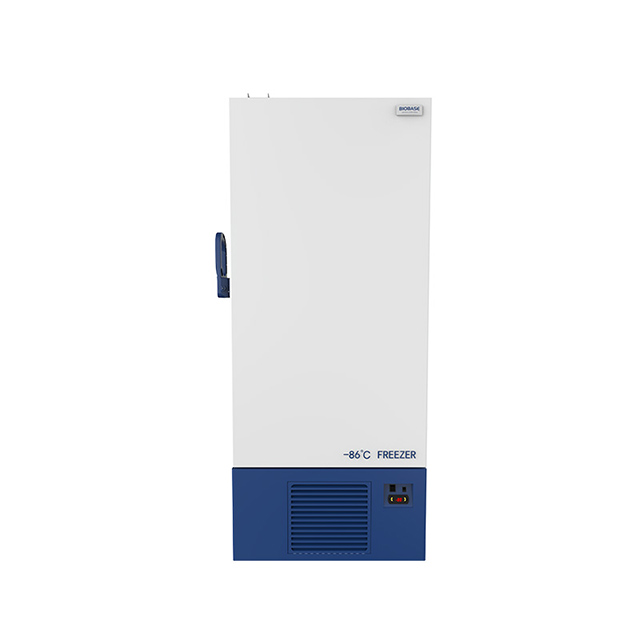

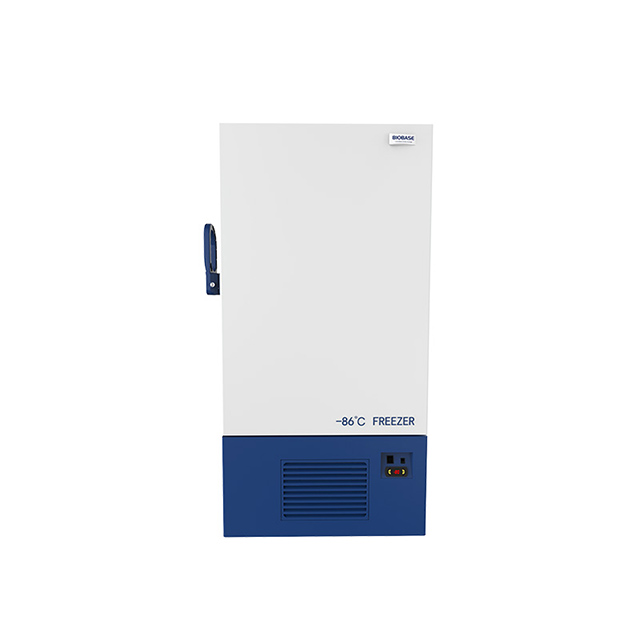

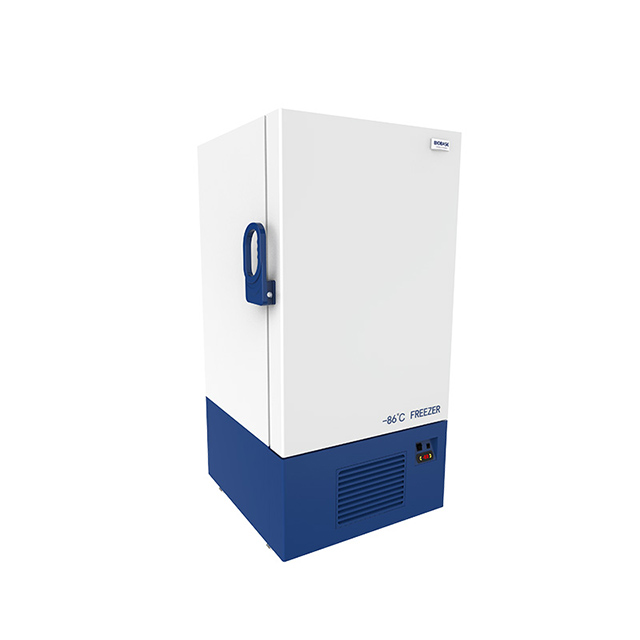

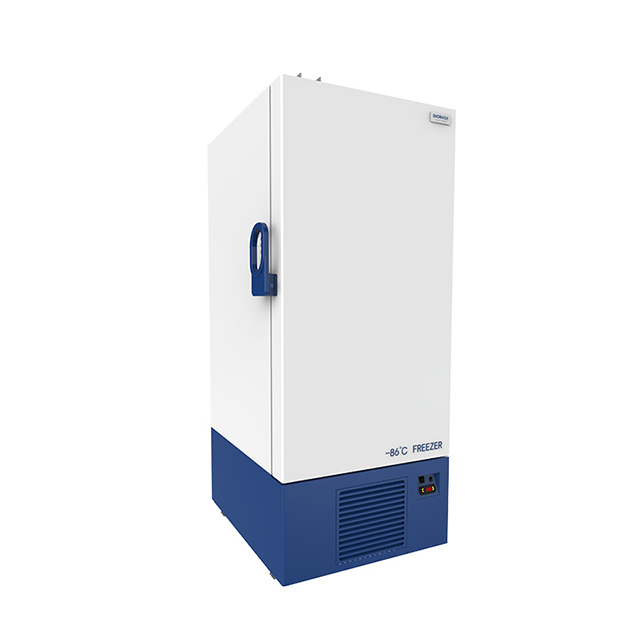

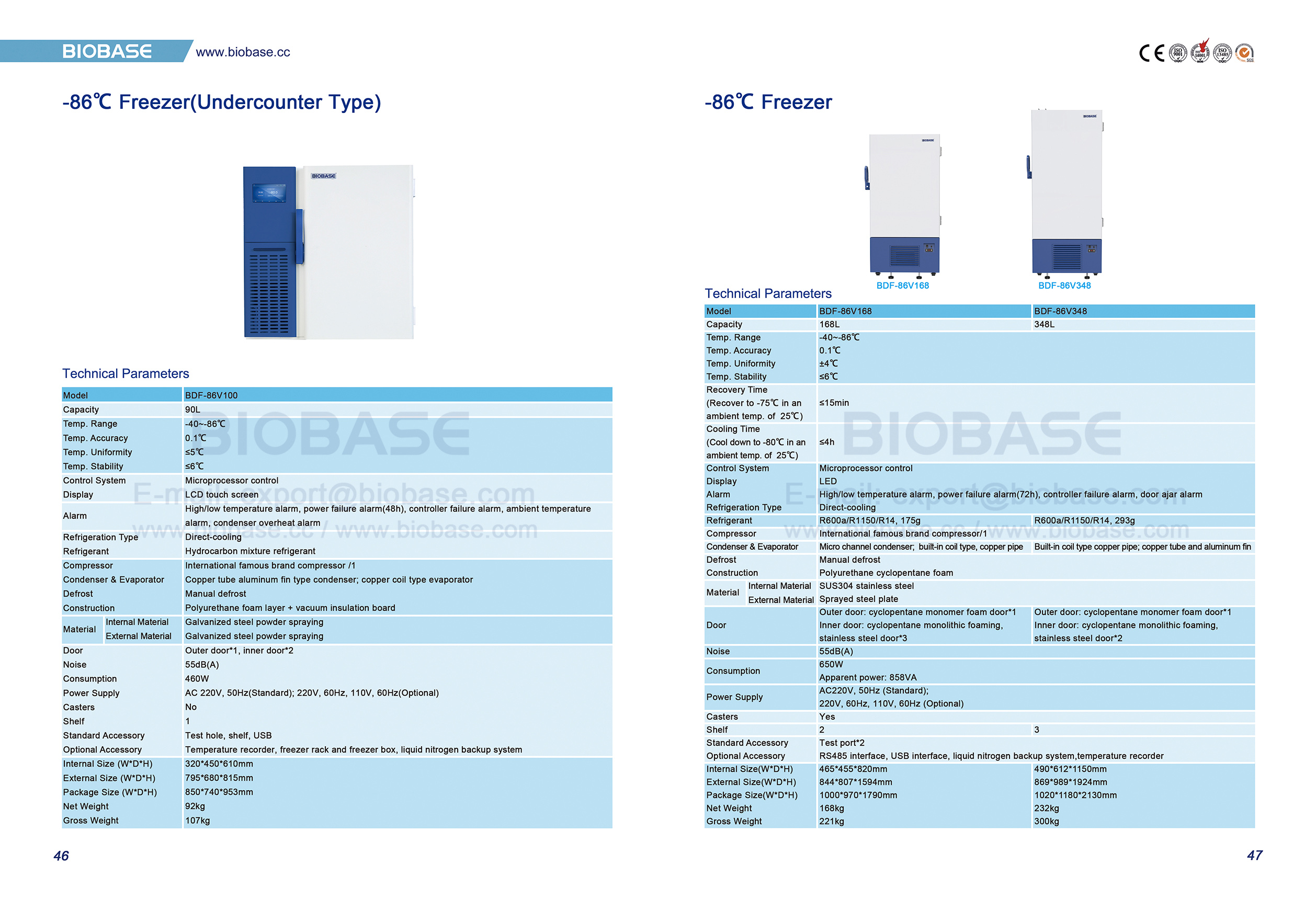

BDF-86V168 BDF-86V348
BIOBASE

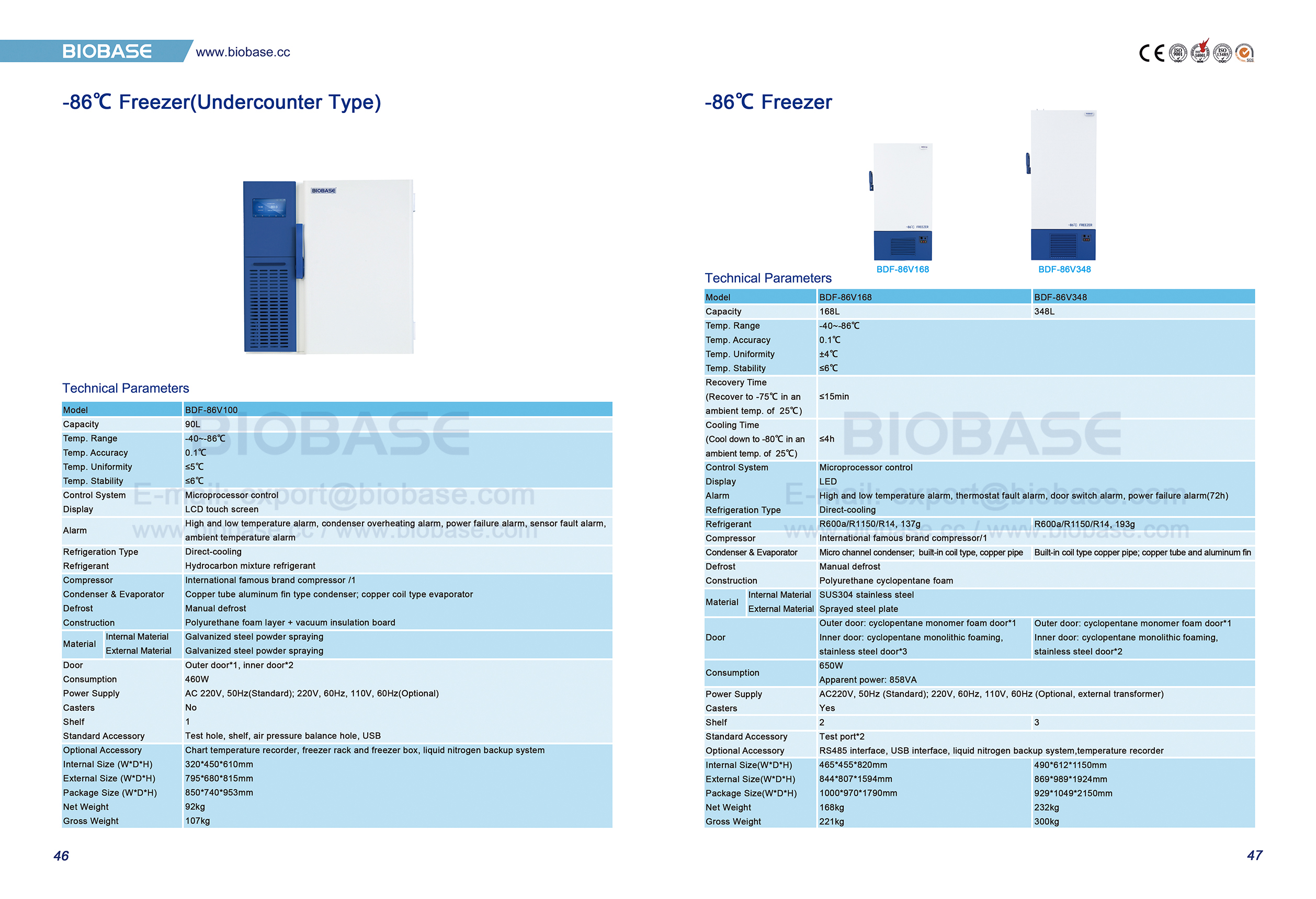

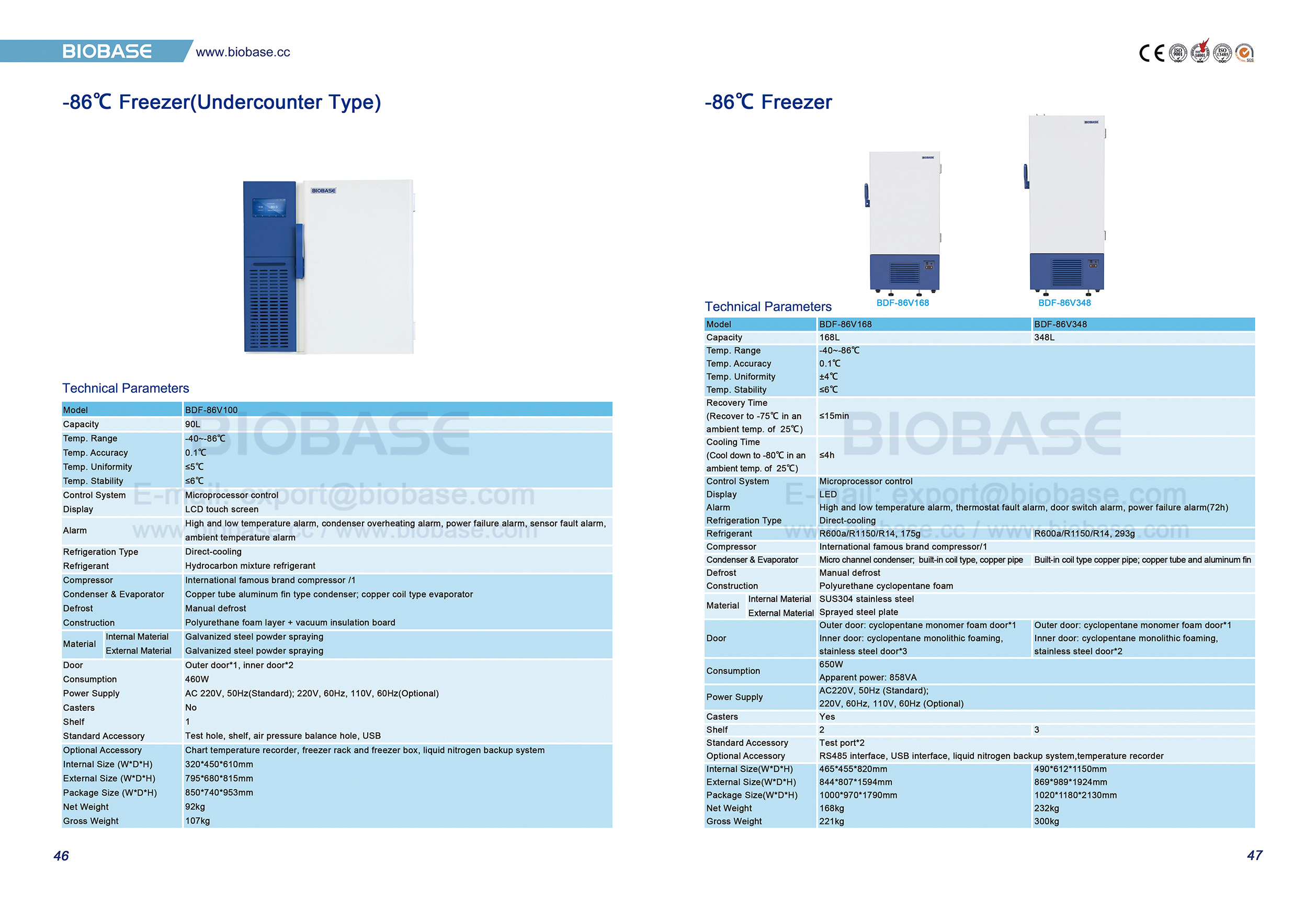

Technical Parameters:
Model | BDF-86V168 | BDF-86V348 | |||
Capacity | 168L | 348L | |||
Temp. Range | -40~-86℃ | ||||
Temp. Accuracy | 0.1℃ | ||||
Temp. Uniformity | ±4℃ | ||||
Temp. Stability | ≤6℃ | ||||
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤15min | ||||
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤4h | ||||
Control System | Microprocessor control | ||||
Display | LED | ||||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | ||||
Refrigeration Type | Direct-cooling | ||||
Refrigerant | R600a/R1150/R14, 137g | R600a/R1150/R14, 193g | |||
Compressor | International famous brand compressor/1 | ||||
Condenser&Evaporator | Micro channel condenser; built-in coil type, copper pipe | Built-in coil type copper pipe; copper tube and aluminum fin | |||
Defrost | Manual defrost | ||||
Construction | Polyurethane cyclopentane foam | ||||
Material | Internal Material | SUS304 stainless steel | |||
External Material | Sprayed steel plate | ||||
Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 | |||
Consumption | 650W Apparent power: 858VA | ||||
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | ||||
Casters | Yes | ||||
Shelf | 2 | 3 | |||
Standard Accessory | Test port*2 | ||||
Optional Accessory | RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder | ||||
Internal Size(W*D*H) | 465*455*820mm | 490*612*1150mm | |||
External Size(W*D*H) | 844*807*1594mm | 869*989*1924mm | |||
Package Size(W*D*H) | 1000*970*1790mm | 929*1049*2150mm | |||
Net Weight | 168kg | 232kg | |||
Gross Weight | 221kg | 300kg | |||
