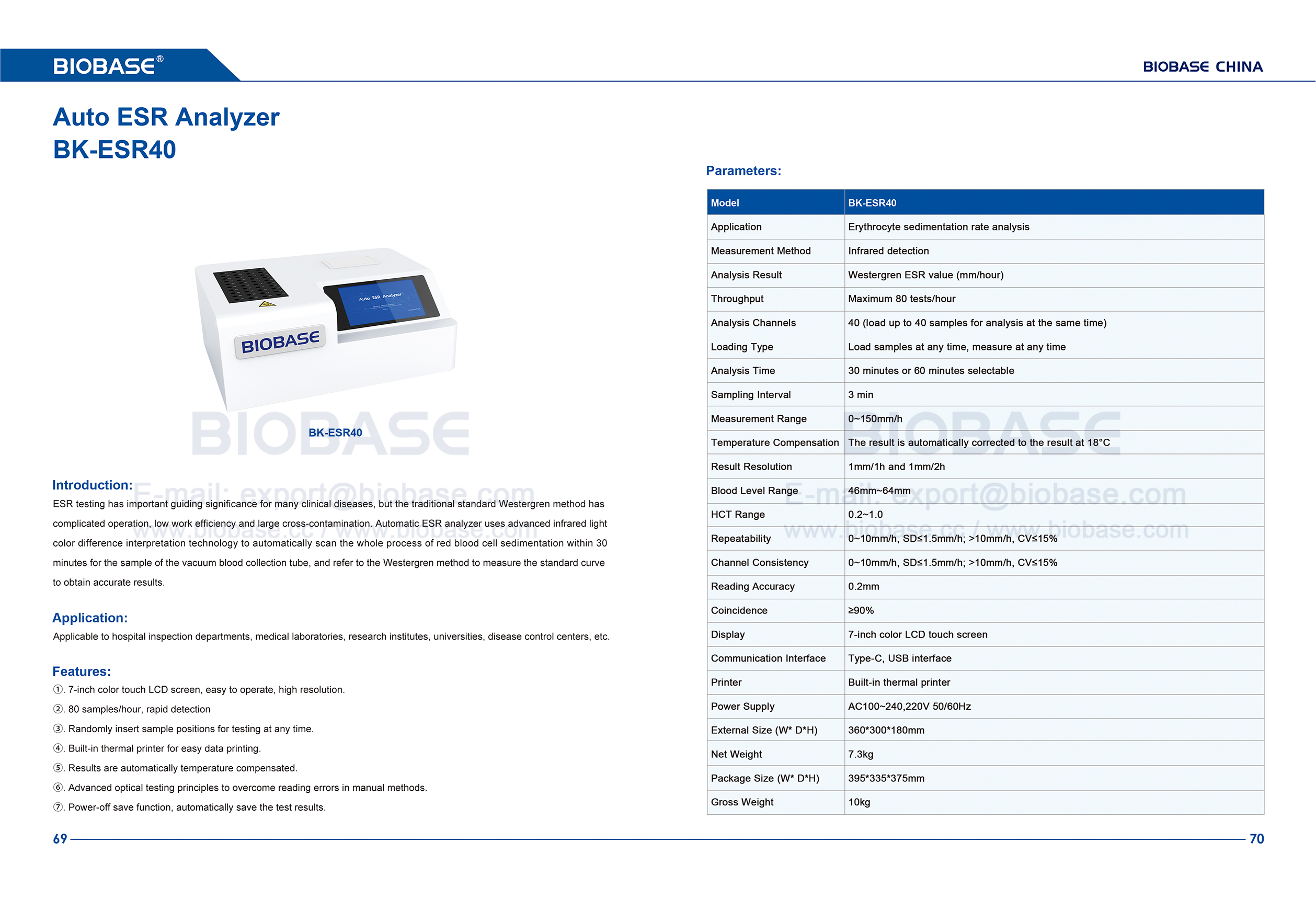

BK-ESR40
BIOBASE
Application:
Applicable to hospital inspection departments, medical laboratories, research institutes, universities, disease control centers, etc.
Feature:
7-inch color touch LCD screen, easy to operate, high resolution
80 samples/hour, rapid detection
Randomly insert sample positions for testing at any time
Built-in thermal printer for easy data printing
Results are automatically temperature compensated
Advanced optical testing principles to overcome reading errors in manual methods
Power-off save function, automatically save the test results
Technical Parameter：
Model | BK-ESR40 |
Application | Erythrocyte sedimentation rate analysis |
Measurement Method | Infrared detection |
Analysis Result | Westergren ESR value (mm/hour) |
Throughput | Maximum 80 tests/hour |
Analysis Channels | 40 (load up to 40 samples for analysis at the same time) |
Loading Type | Load samples at any time, measure at any time |
Analysis Time | 30 minutes or 60 minutes selectable |
Sampling Interval | 3 min |
Measurement Range | 0~120mm/h |
Temperature Compensation | The result is automatically corrected to the result at 18°C |
Result Resolution | 1mm/1h and 1mm/2h |
Blood Level Range | 50mm~64mm |
Result Accuracy | ±2mm/h (ESR≤30mm/h) ±3mm/h (30mm/h＜ESR≤80mm/h) ±5mm/h (ESR＞80mm/h) |
Result Precision | CV≤2% |
Channel Error | ≤±4mm/h |
Reading Accuracy | 0.2mm |
Timing Accuracy | 90 |
Display | 7-inch color LCD touch screen |
Communication Interface | RS232 serial interface |
Printer | Built-in thermal printer |
Power Supply | AC220V 50/60Hz |
External Size (W* D*H) | 360*300*180mm |
Net Weight | 7.3kg |
Package Size (W* D*H) | 395*335*375mm |
Gross Weight | 10Kg |
