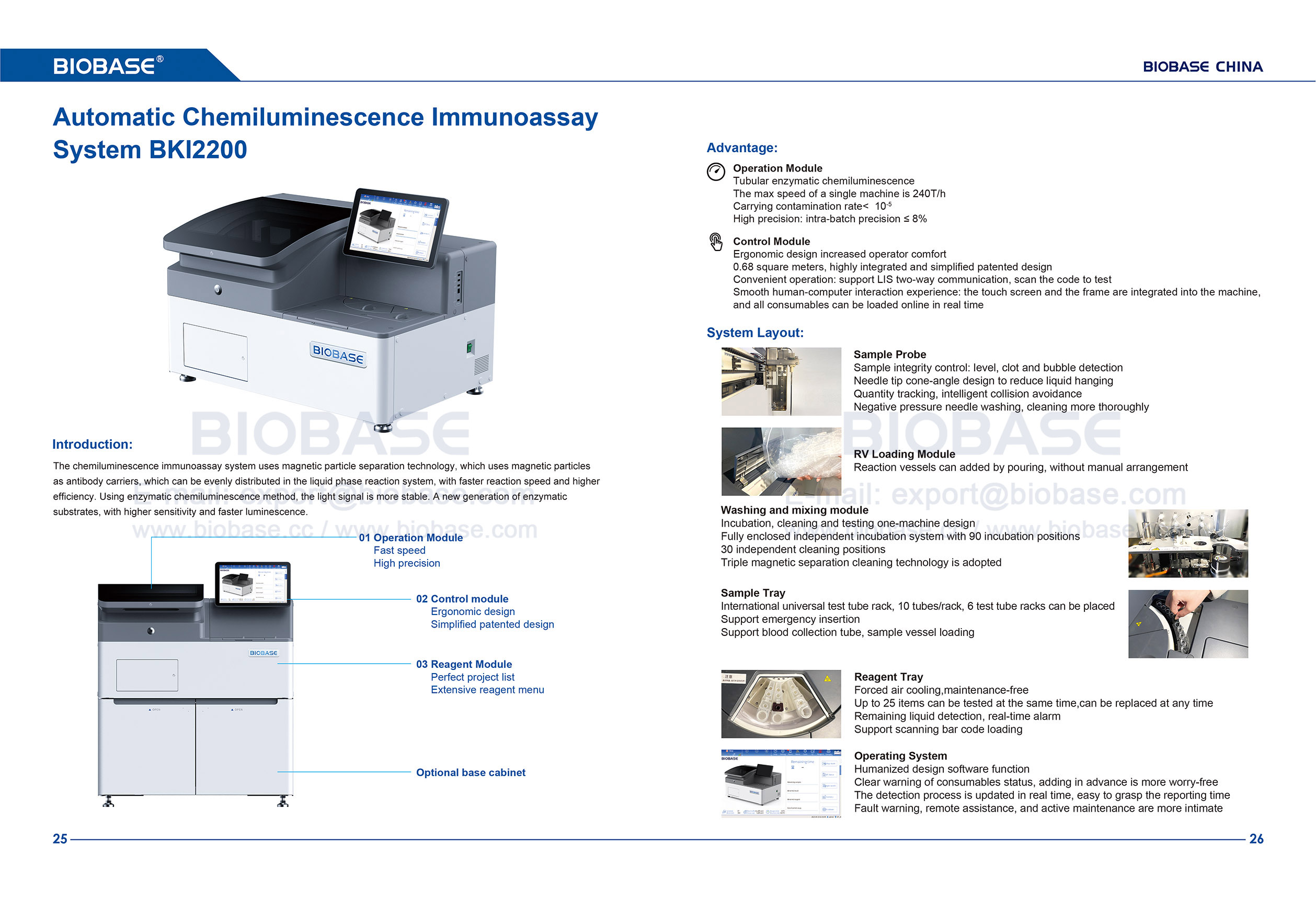

Introduction:
The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers, which can be evenly distributed in the liquid phase reaction system, with faster reaction speed and higher efficiency. Using enzymatic chemiluminescence method, the light signal is more stable. A new generation of enzymatic substrates, with higher sensitivity and faster luminescence.
| Quantity: | |
|---|---|
BKI2200
BIOBASE
Features:
Operation Module：
Tubular enzymatic chemiluminescence
The max speed of a single machine is 240T/h
Carrying contamination rate< 10ppm
High precision: intra-batch precision ≤ 8%
Control Module:
Ergonomic design increased operator comfort
0.68 square meters, highly integrated and simplified patented design
Convenient operation: support LIS two-way communication, scan the code to test
Smooth human-computer interaction experience: the touch screen and the frame are integrated into the machine, and all consumables can be loaded online in real time
System Layout：
Instrument Software Module
Humanized software functions
Reagent loading and sample operation are convenient and intuitive
Intuitive display of sample status in testing
Support checking experiment results by sample or project
Reagents and consumables status warning
Accurately record the use of reagents for each project
Accurately record the remaining amount of consumables
Timely alarm when the remaining consumables is insufficient
Simple and intuitive quality control process
Convenient addition of quality control experiments
Intuitive display of quality control results
Support various forms of T-P chart and L-J chart
Convenient and flexible maintenance functions
The maintenance program is comprehensive
Individual maintenance work can be flexibly chosen
Daily, monthly and yearly maintenance work is clearly distinguished

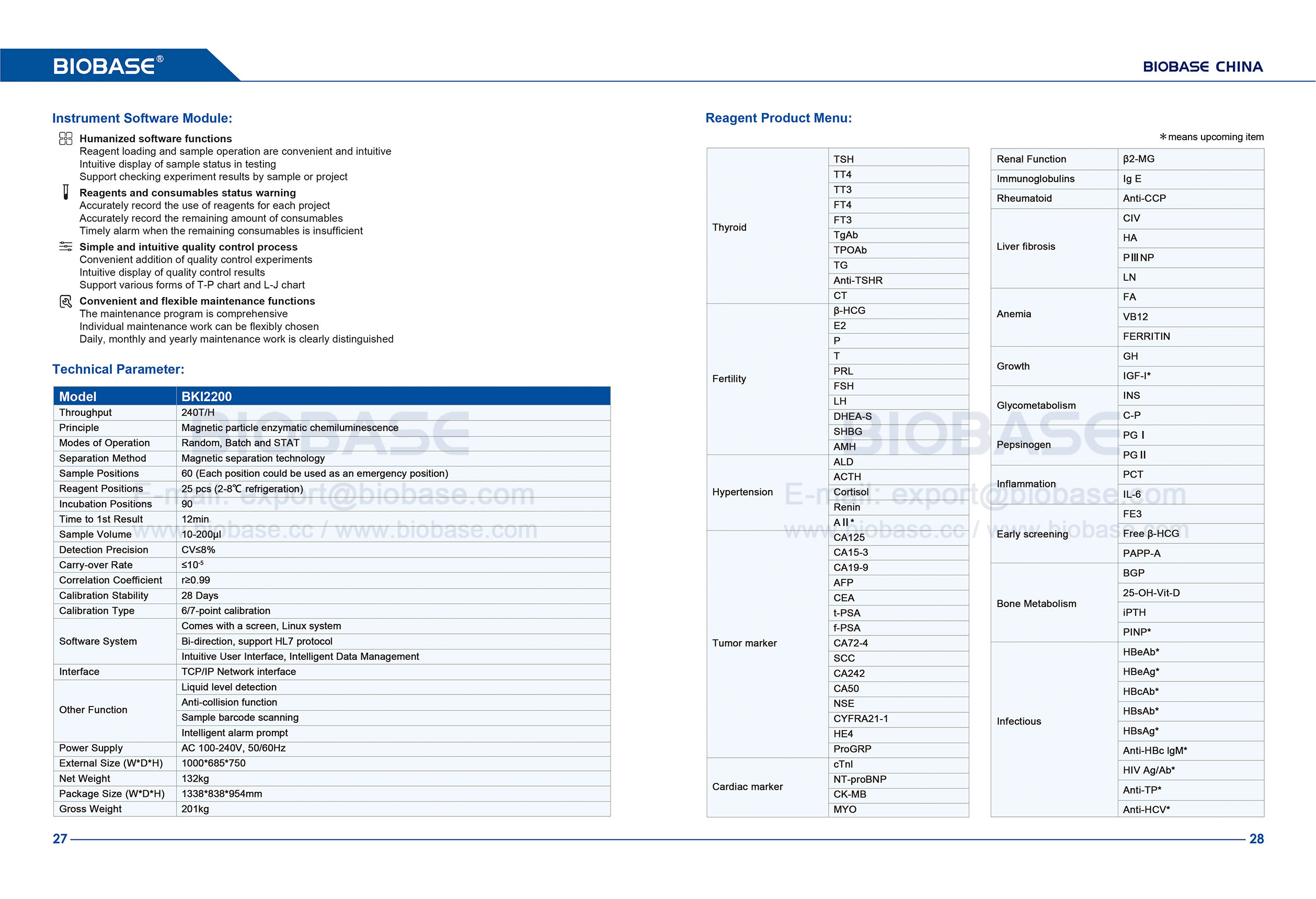

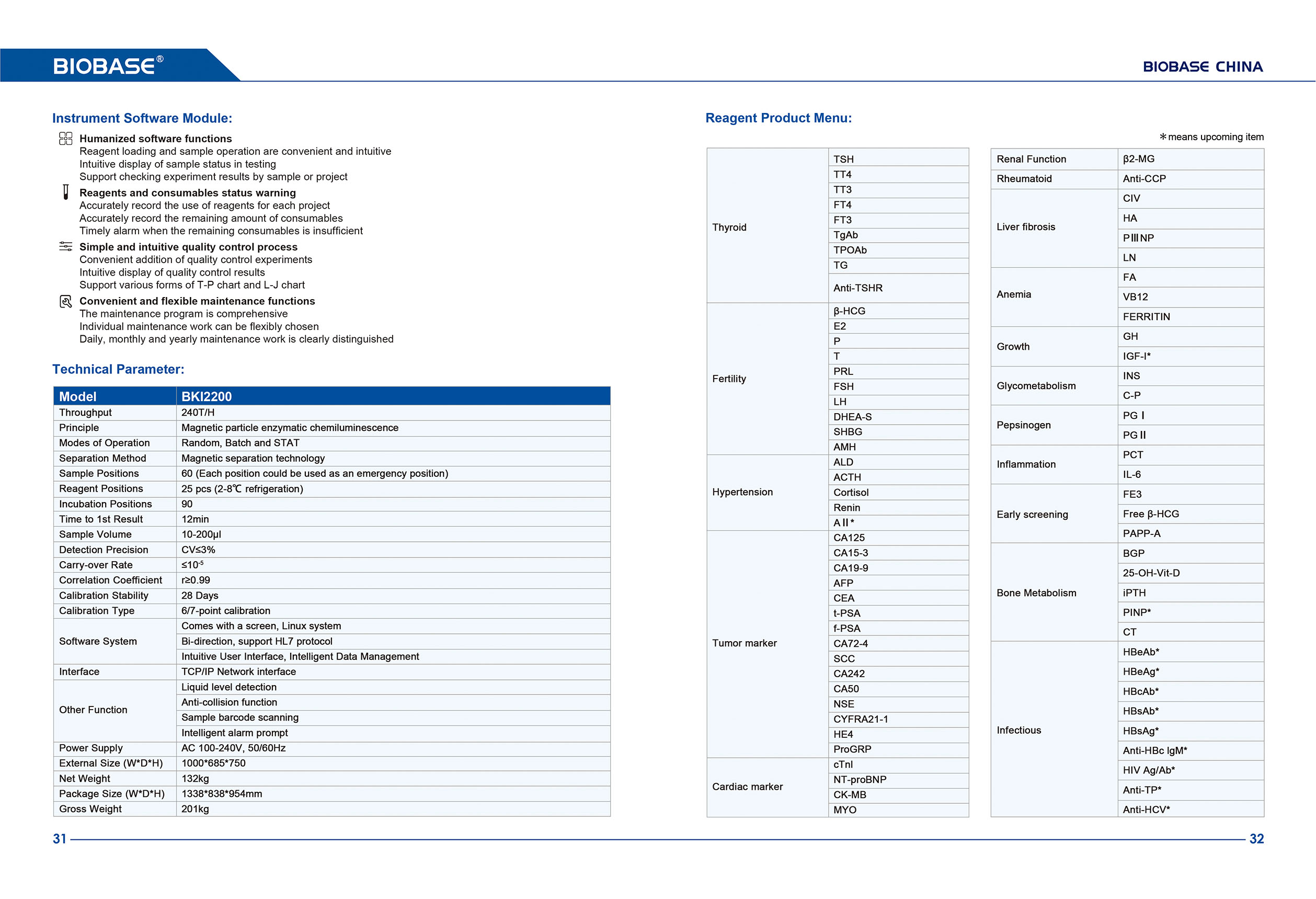

Technical Parameter:
Model | BKI2200 |
Throughput | 240T/H |
Principle | Magnetic particle enzymatic chemiluminescence |
Modes of Operation | Random, Batch and STAT |
Separation method | Magnetic separation technology |
Sample Positions | 60 (Each position could be used as an emergency position) |
Reagent Positions | 25 pcs (2-8℃ refrigeration) |
Incubation Positions | 90 |
Time to 1st Result | 18 Minutes |
Sample Volume | 10-200μl |
Detection Precision | CV≤8% |
Carry-over Rate | ≤10-5 |
Correlation Coefficient | r≥0.99 |
Calibration Stability | 28 Days |
Calibration Type | 6/7-point calibration |
Software system | Windows 7/8/10, 32 or 64 bit Bi-direction, support HL7 protocol Intuitive User Interface, Intelligent Data Management |
Interface | TCP/IP Network interface |
Other Function | Liquid level detection Anti-collision function Sample barcode scanning Intelligent alarm prompt |
Power Supply | AC220V，50Hz |
External Size (W*D*H) | 1000*685*750 |
Net Weight | 133 |
Package Size (W*D*H) | 1338*838*954mm |
Gross Weight | 201 |
Reagent Menu:
Thyroid | Cardiac marker |
TSH | cTnl |
TT4 | NT-proBNP |
TT3 | CK-MB |
FT4 | MYO |
FT3 | Rheumatoid |
TgAb | Anti-ccp |
TPOAb | Β2-MG |
TG | Liver fibrosis |
Anti-TSHR | CIV |
CT | HA |
Fertility | PⅢNP |
β-HCG | LN |
E2 | Anemia |
P | FA |
T | VB12 |
PRL | FERRITIN |
FSH | Growth |
LH | GH |
DHEA-S | IGF-Ⅰ* |
SHBG | Glycometabolism |
AMH* | INS |
Hypertension | C-P |
ALD | Pepsinogen |
ACTH | PGⅠ |
Cortisol | PGⅡ |
Renin | Inflammation |
AⅡ* | PCT |
Tumor marker | IL-6 |
CA125 | Early screening |
CA15-3 | FE3 |
CA19-9 | Free β-HCG |
AFP | PAPP-A |
CEA | Bone Metabolism |
t-PSA | BGP |
f-PSA | 25-OH-Vit-D |
CA72-4 | iPTH |
SCC | PINP* |
CA242 | Infectious |
CA50 | HBeAb* |
NSE | HBeAg* |
CYFRA21-1 | HBcAb* |
HE4 | |
ProGRP | HBsAg* |
Anti-HBc lgM* | |
HIV Ag/Ab* | |
Anti-TP* | |
Anti-HCV* |
