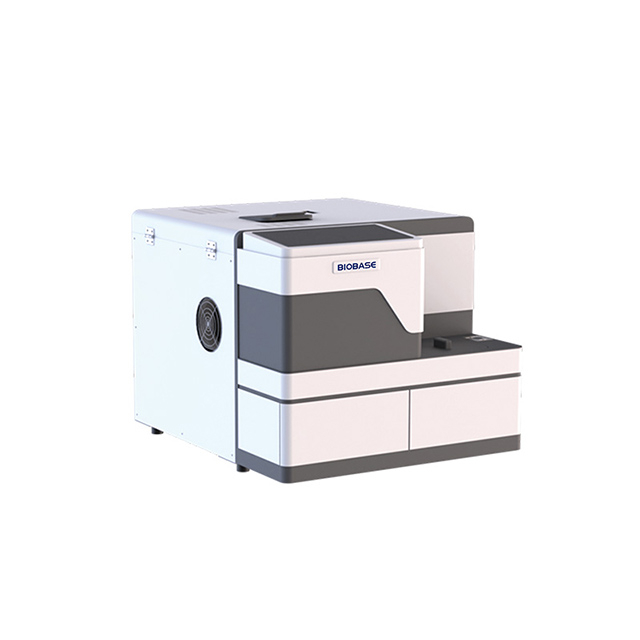

Automatic Chemiluminescence Immunoassay System

Introduction:

The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers, which can be evenly distributed in the liquid phase reaction system, with faster reaction speed and higher efficiency. Using enzymatic chemiluminescence method, the light signal is more stable. A new generation of enzymatic substrates, with higher sensitivity and faster luminescence.

Compared with the international brands, the chemiluminescence immunoassay reagents have good consistency, the coincidence rate can reach more than 95%, and the detection precision can reach CV<2%.

Quantity:
  • BIOBASE

Features:

Sample Tray:

Disc design, up to 60 samples loading capacity per batch

The position of sample, standard product and quality control positions can be edited

Support emergency function.

 05

Reagent Tray:

Patented semiconductor refrigeration technology

Up to 30 reagent position on board with refrigeration at 2-8℃

Up to 30 items can be tested at the same time.



Washing and mixing module:

Three-level cleaning mode, higher cleaning efficiency;

Non-contact mixing to avoid cross-contamination.



Sample Probe:

Excellent rinsing system make carry-over ≤10-5

Liquid-level and blood coagulation detection system

Intelligent anti-collision function

Sampling volume: 15ul-100ul

 04

RV Loading Module:

Independent reaction vessel

Up to 1200 pcs per batch with continues loading

Automatically supply reaction vessel

Intelligently detect the amount of RV



Incubation plate:

80 incubation positions

Constant 37°C incubation



Instrument Software:Flexible sample test mode: STAT function, automatic dilution, reset function, continuous loading

Reagent management: the remaining amount, calibration validity, expiry date management

Consumables management: continuous monitoring and low-level warning

Result management: store search, print and statistics, automatic unit conversion function

LIS/HIS connection

Auto daily maintenance


Models:

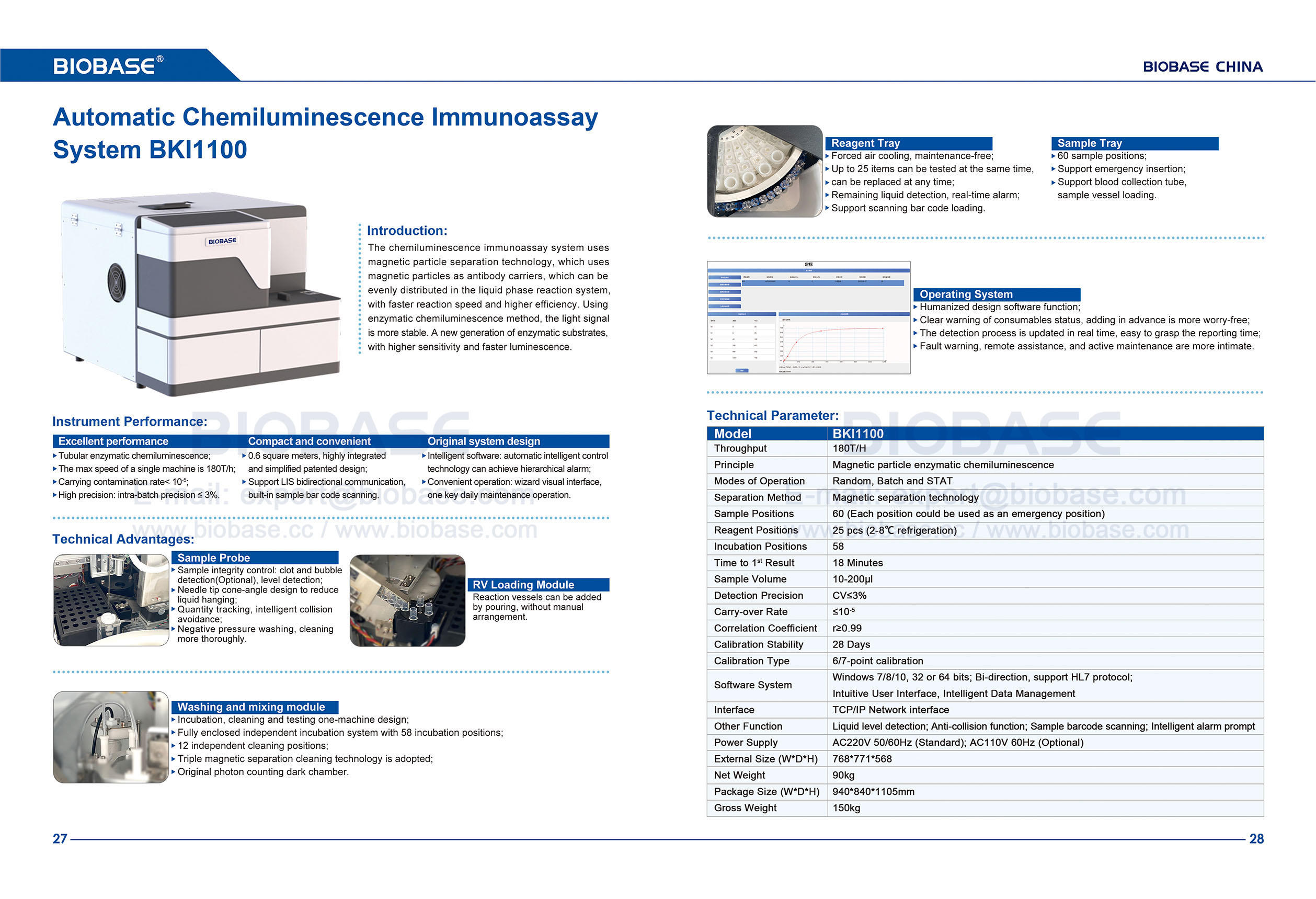

Technical Parameter:

Model

BKI1100

BKI2200

Throughput

80T/H

120T/H

Principle

Magnetic particle enzymatic chemiluminescence

Modes of Operation

Random, Batch and STAT

Separation method

Magnetic separation technology

Sample Positions

60 (Each position could be used as an emergency position)

Reagent Positions

30 pcs (2-8℃ refrigeration)

Incubation Positions

50

80

Time to 1st Result

18 Minutes

Sample Volume

15-100ul

Detection Precision

CV≤5%

Carry-over Rate

≤10-5

Correlation Coefficient

r≥0.99

Calibration Stability

28 Days

Calibration Type

6/7-point calibration

Software system

Windows 7/8/10, 32 or 64 bit

Bi-direction, support HL7 protocol

Intuitive User Interface, Intelligent Data Management

Interface

TCP/IP Network interface

Other Function

Liquid level detection

Anti-collision function

Sample barcode scanning

Reagent radio frequency identification

Intelligent alarm prompt

Power Supply

AC110/220V,50/60Hz

External Size (W*D*H)

1120*735*513mm

1305*770*1150mm

Net Weight

130Kg

220Kg

Package Size (WD*H)

1303*873*854mm

1608*898*1534mm

Gross Weight

180kg

294kg



Reagent Menu:

Thyroid

Anemia

TSH

FERRITIN

TT4

VB12

TT3

FA

FT4


FT3

Liver fibrosis

TgAb

CⅣ

TPOAb

LN

TG

HA

Anti-TSHR

PIIINP

CT


SHBG

Hypertension


ALD

Fertility

ACTH

β-HCG

Cortisol

E2

Renin

P


T

Growth

PRL

GH

FSH


LH

Bone Metabolism

DHEA-S

BGP


25-OH-Vit-D

Tumor marker

iPTH

CA125


CA15-3

Pepsinogen

CA199

PGII

AFP


CEA

Kidney Function

t-PSA

β2-MG

f-PSA



Rheumatism

Diabetes

Anti-CCP

C-P


INS

Pregnancy


FE3

Cardiac marker

PAPP-A

cTnI

Free-β-HCG

CK-MB

Inflammation

MYO

PCT

NT-proBNP

IL-6
