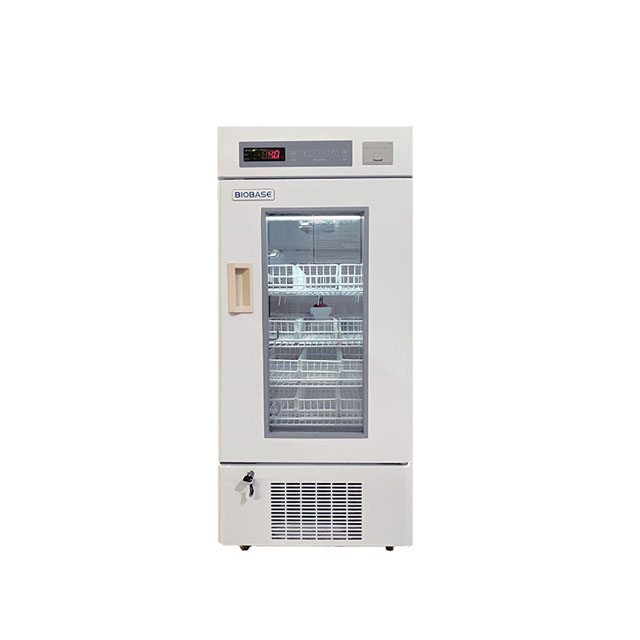

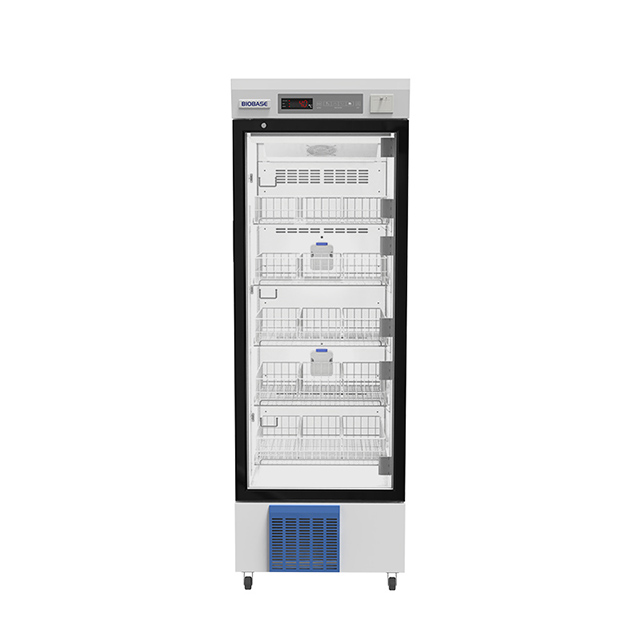

Blood Bank Refrigerator BBR Series

Introduction:

The Blood Bank Refrigerator is a specialized refrigeration unit designed to store blood and blood products at precise, stable temperatures, ensuring their safety and viability. Ideal for use in hospitals, blood banks, research laboratories, and clinical facilities, this refrigerator provides reliable temperature control and storage conditions for critical biological materials.

Availability:

Quantity:



Inquire Add to Basket

Model:

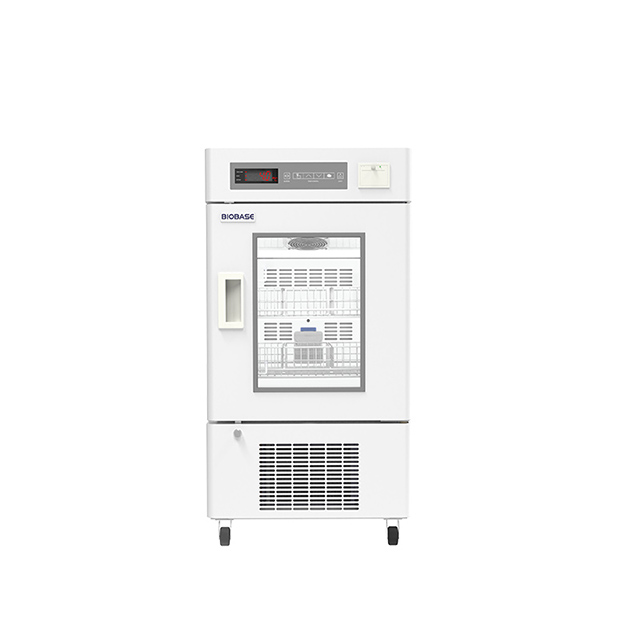

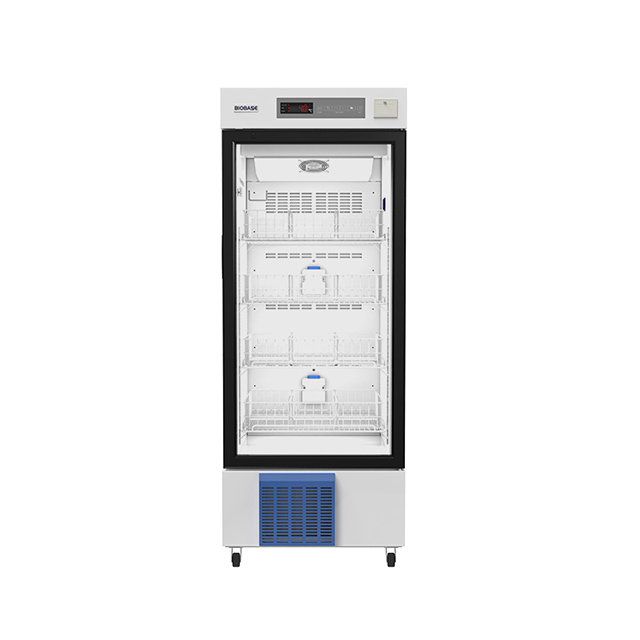

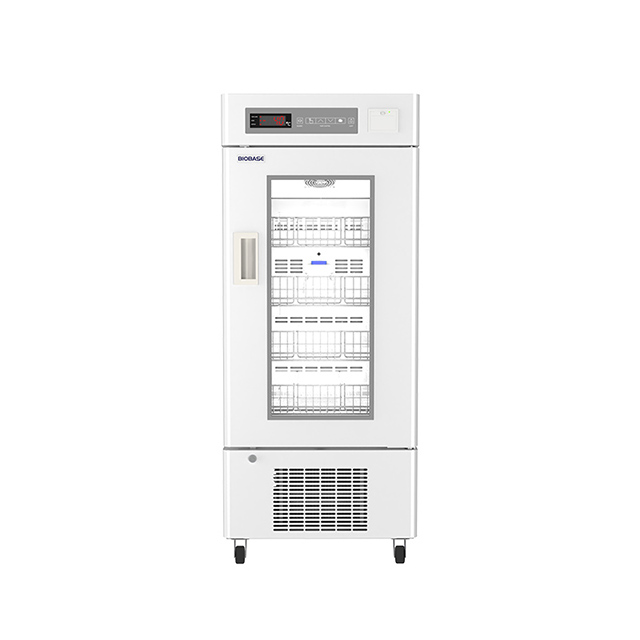

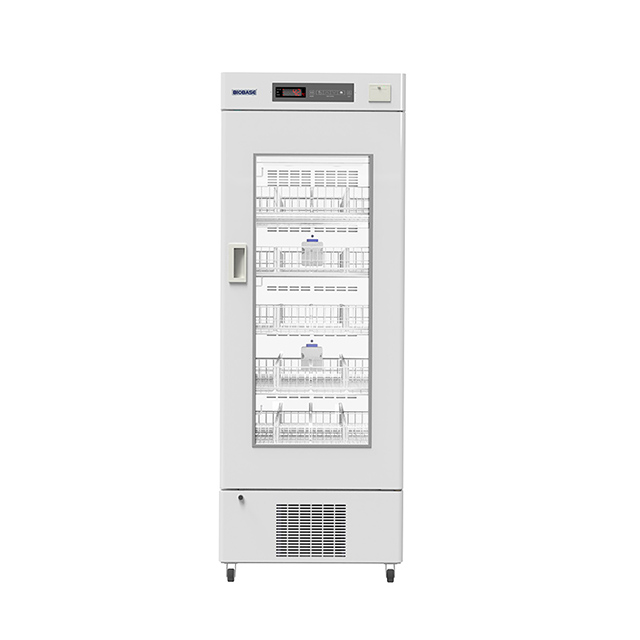

BBR-4V86 BBR-4V136 BBR-4V296 BBR-4V356 BBR-4V466
Brand:
BIOBASE

Features:

1. Multiple sensors design: make sure the precise monitoring and programming.

2. Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material).

3. Forced air refrigeration system, ensure inner temperature constant and uniform.

4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.

5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

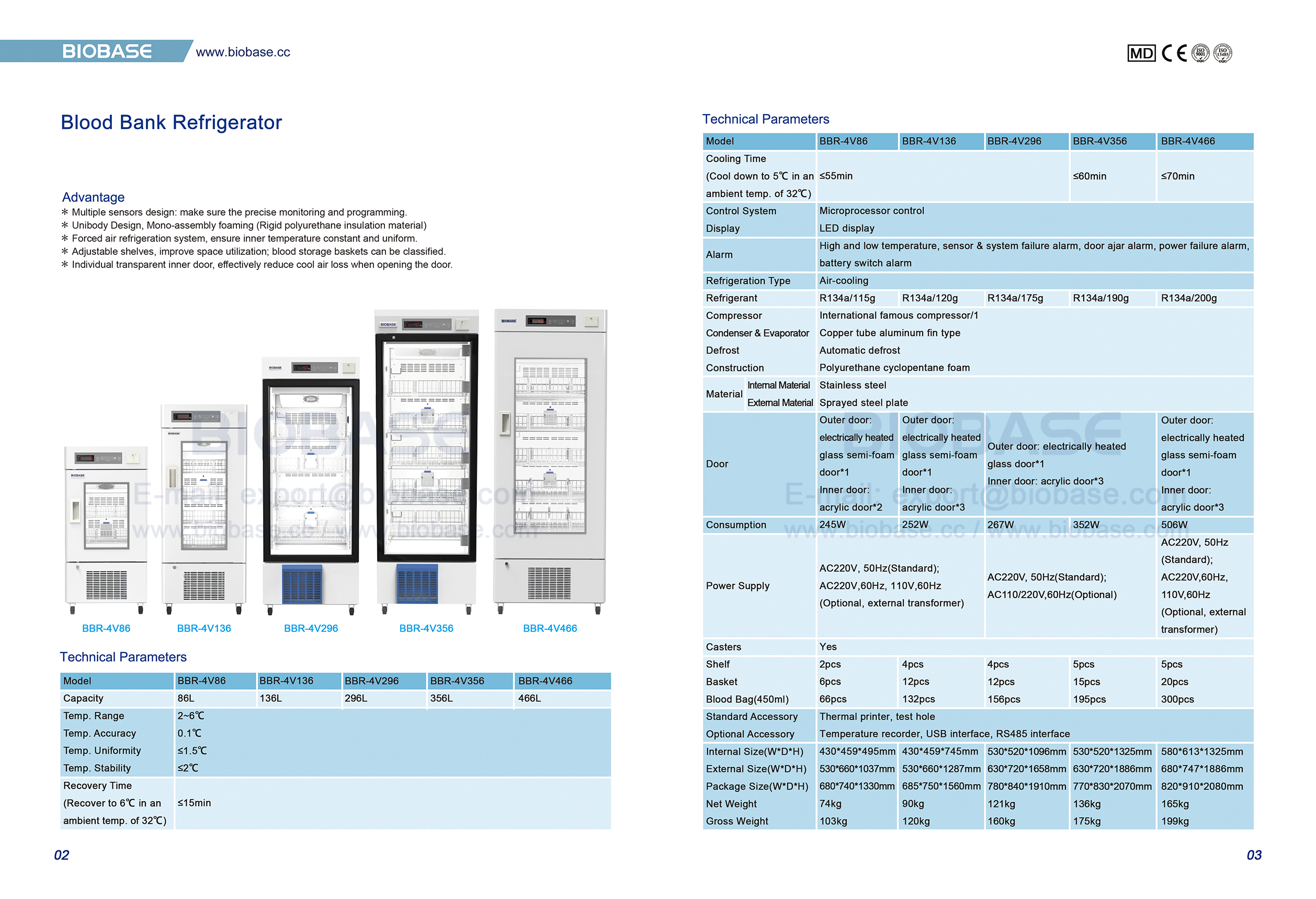

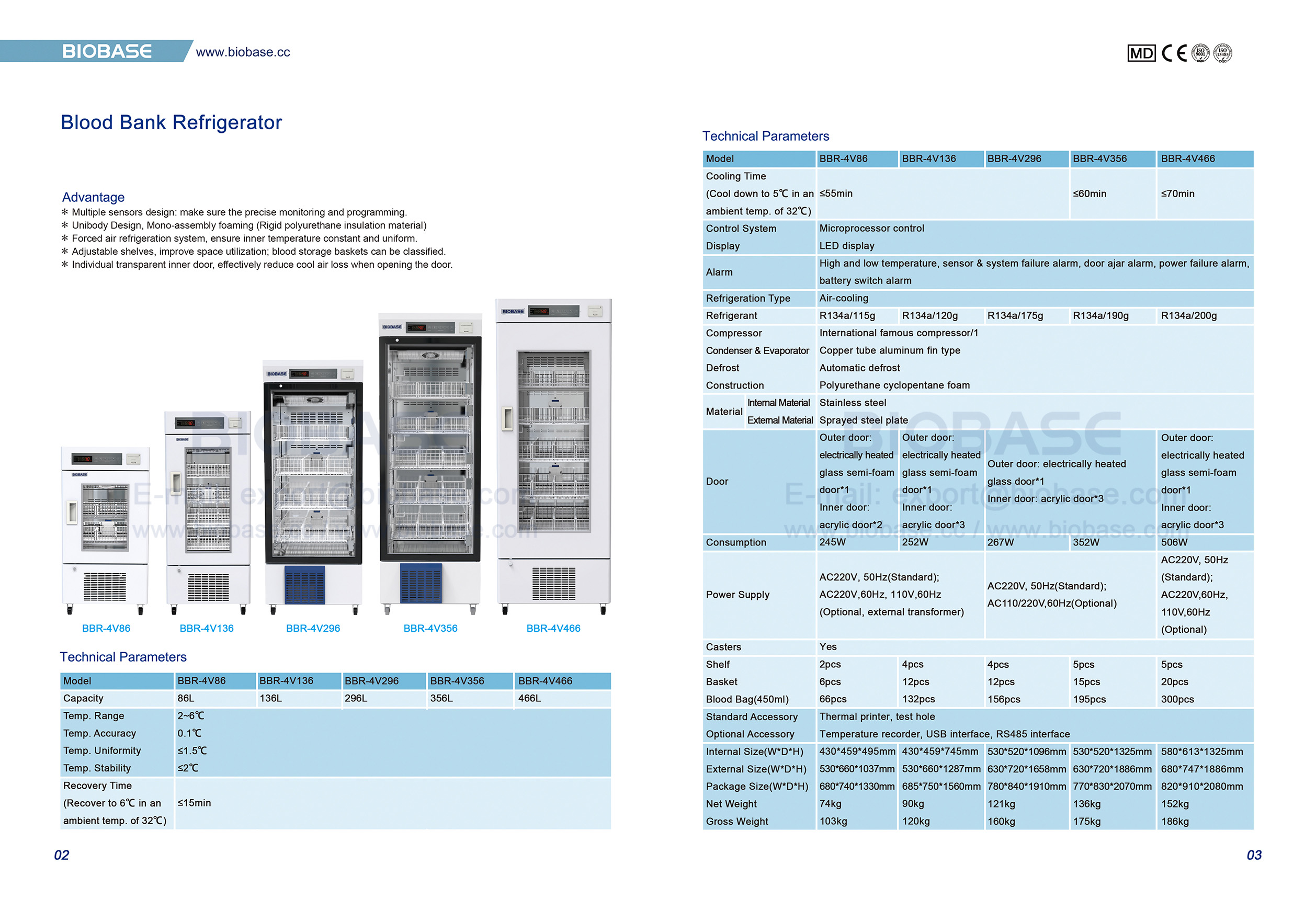

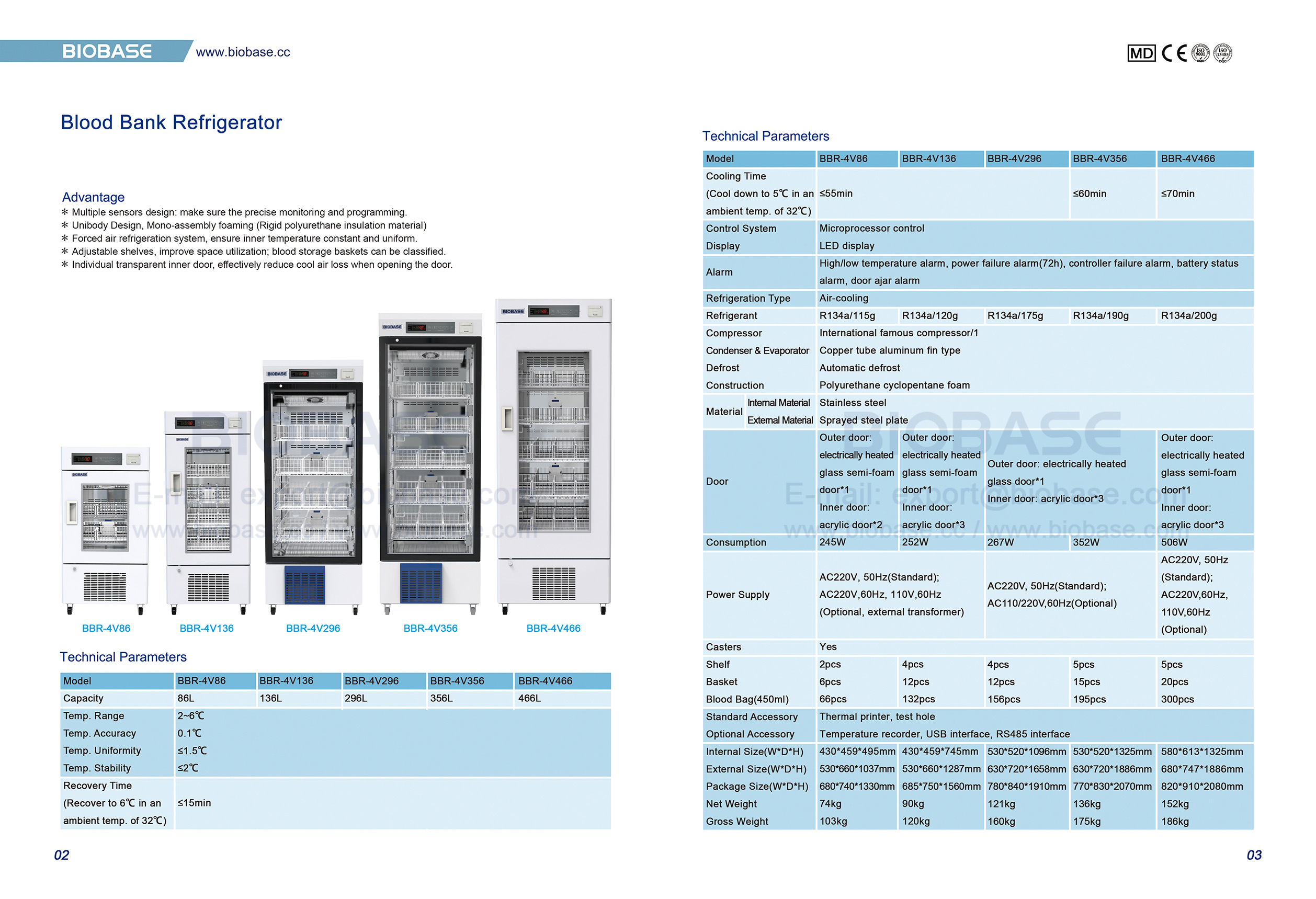

Technical Parameters:

Model		BBR-4V86	BBR-4V136	BBR-4V296	BBR-4V356	BBR-4V466
Capacity		86L	136L	296L	356L	466L
Temp. Range		4±2℃
Temp. Accuracy		0.1'℃
Control System		Microprocessor control
Display		LED display
Alarm		Audio and visual alarm for: High or low temperature, Sensor&system failure, Door ajar, Power failure
Refrigeration Type		Forced air refrigeration system
Refrigerant		R134a, CFC-Free
Compressor		International famous compressor
Condenser&Evaporator		High efficiency air-cooled condenser; Made of copper
Defrost		Frost less design
Construction		Uni body Design, Mono-assembly foaming (Rigid polyurethane insulation material)
Material	Internal Material	Stainless steel
	External Material	Sprayed steel plate
Door		Electric heated glass semi-foamed door with lock; Acrylic inner door		Electric heating glass outer door; Acrylic inner door; Outer door with locking buckle		Electric heated glass semi-foamed door with lock; Acrylic inner door
Consumption		245W/264VA	252W/264VA	267W/528VA	352W/528VA	380W/594VA
Power Supply		AC220V±10%, 50Hz(Standard); AC110/220V, 60Hz(Optional)				AC220V±10%, 50Hz(Standard)
Casters		Two universal casters with brakes, two directional casters
Adjustable Shelves		2pcs	4pcs	4pcs	5pcs	5pcs
Baskets		6pcs	12pcs	12pcs	15pcs	20pcs
Blood Bags (450ml)		66pcs(200ml)	132pcs(450ml)	156pcs(450ml)	195pcs(450ml)	300pcs(450ml)
Standard Accessory		Thermal printer, LED lamp, The temperature test box, probe access port, door key
Optional Accessory		Temperature recorder, USB port, RS485, Increase shelves number
External Size(W*D-H) mm		5306601037	5306601287	6307201658	6307201886	6807471886
Package Size(W"D*H)mm		6807401330	6857501560	7808401910	7708302070	8209102080
Gross Weight(kg)		103	120	160	175	199
