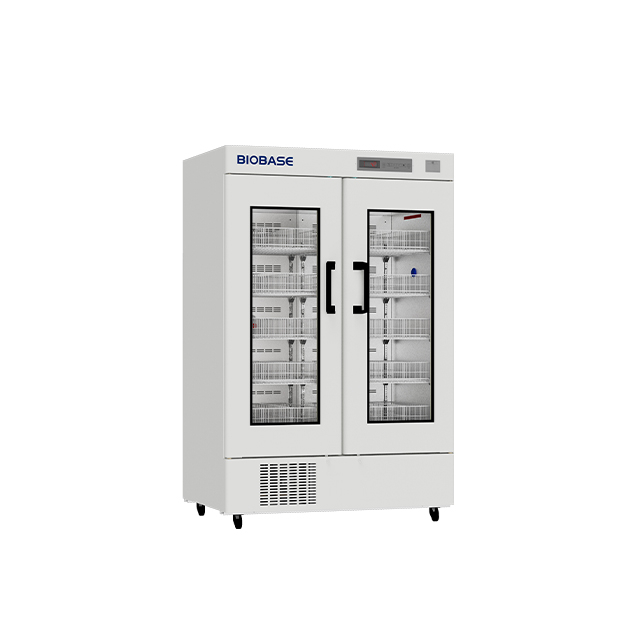

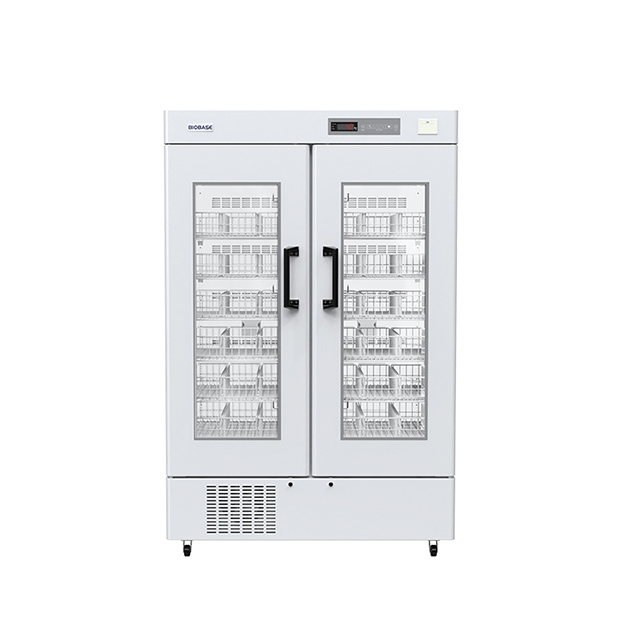

BBR-4V626 BBR-4V966
BIOBASE
Features:
1. Multiple sensors design: make sure the precise monitoring and programming.
2. Electric heated glass semi-foamed door, easy to observe, also keep a better cooling temperature.
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.
Technical Parameters:
Model | BPR-5V288F | BPR-5V358F | BPR-5V468F |
Volume | 288L | 358L | 468L |
Type | 4pcs shelves | 5pcs shelves | 5pcs shelves |
Refrigeration Mode | Air-cooled | ||
Defrosting Mode | Frost-free | ||
Refrigerant/g | R290, 55g | R290, 75g | R290, 97g |
Noise | 55dB(A) | ||
Ambient Temp. | 10~32℃ | ||
Temp. Range | 5±3℃ | ||
Temp. Accuracy | 0.1℃ | ||
Evaporator | Plate and tube type, copper tube and aluminum fin | ||
Condenser | Copper tube and aluminum fin | ||
Sensor | NTC | ||
Thermostat | Electronic thermostat | ||
Door | Foamed cyclopentane | ||
Display | Digital tube display | ||
Interface | USB | ||
Power Supply | 110~220V/50~60Hz | ||
Power | 220W/286VA | ||
Current | 1A | ||
Internal Material | Sprayed steel plate | ||
External Material | Sprayed steel plate | ||
Lagging | Foamed polyurethane cyclopentane | ||
| Standard Accessories | High and low temperature alarm, power fault alarm, thermostat fault alarm, door ajar alarm, LED lamp, USB port | ||
| Optional Accessories | Printer, 485 port | ||
Net Weight(kg) | 101 | 111 | 123 |
Gross Weight(kg) | 118 | 131 | 146 |
Internal Size(W*D*H)mm | 530*520*1096 | 530*520*1325 | 580*613*1325 |
External Size(W*D*H)mm | 630*653*1658 | 630*653*1886 | 680*747*1886 |
Package Size(W*D*H)mm | 730*780*1813 | 730*780*2038 | 780*880*2048 |
Features:
1. Multiple sensors design: make sure the precise monitoring and programming.
2. Electric heated glass semi-foamed door, easy to observe, also keep a better cooling temperature.
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.
Technical Parameters:
Model | BPR-5V288F | BPR-5V358F | BPR-5V468F |
Volume | 288L | 358L | 468L |
Type | 4pcs shelves | 5pcs shelves | 5pcs shelves |
Refrigeration Mode | Air-cooled | ||
Defrosting Mode | Frost-free | ||
Refrigerant/g | R290, 55g | R290, 75g | R290, 97g |
Noise | 55dB(A) | ||
Ambient Temp. | 10~32℃ | ||
Temp. Range | 5±3℃ | ||
Temp. Accuracy | 0.1℃ | ||
Evaporator | Plate and tube type, copper tube and aluminum fin | ||
Condenser | Copper tube and aluminum fin | ||
Sensor | NTC | ||
Thermostat | Electronic thermostat | ||
Door | Foamed cyclopentane | ||
Display | Digital tube display | ||
Interface | USB | ||
Power Supply | 110~220V/50~60Hz | ||
Power | 220W/286VA | ||
Current | 1A | ||
Internal Material | Sprayed steel plate | ||
External Material | Sprayed steel plate | ||
Lagging | Foamed polyurethane cyclopentane | ||
| Standard Accessories | High and low temperature alarm, power fault alarm, thermostat fault alarm, door ajar alarm, LED lamp, USB port | ||
| Optional Accessories | Printer, 485 port | ||
Net Weight(kg) | 101 | 111 | 123 |
Gross Weight(kg) | 118 | 131 | 146 |
Internal Size(W*D*H)mm | 530*520*1096 | 530*520*1325 | 580*613*1325 |
External Size(W*D*H)mm | 630*653*1658 | 630*653*1886 | 680*747*1886 |
Package Size(W*D*H)mm | 730*780*1813 | 730*780*2038 | 780*880*2048 |
