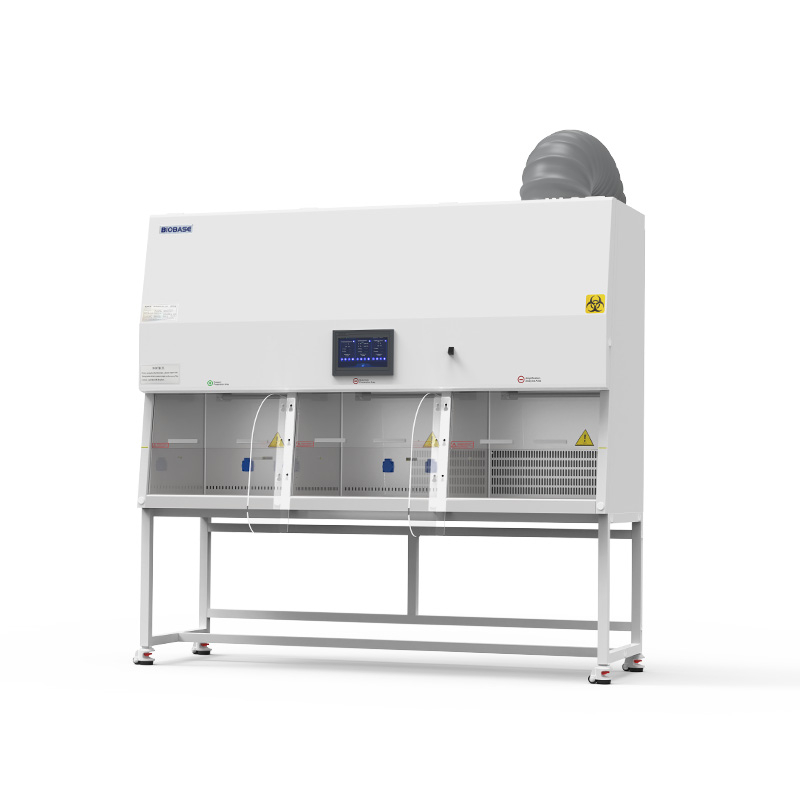

Multi-functional Workstation

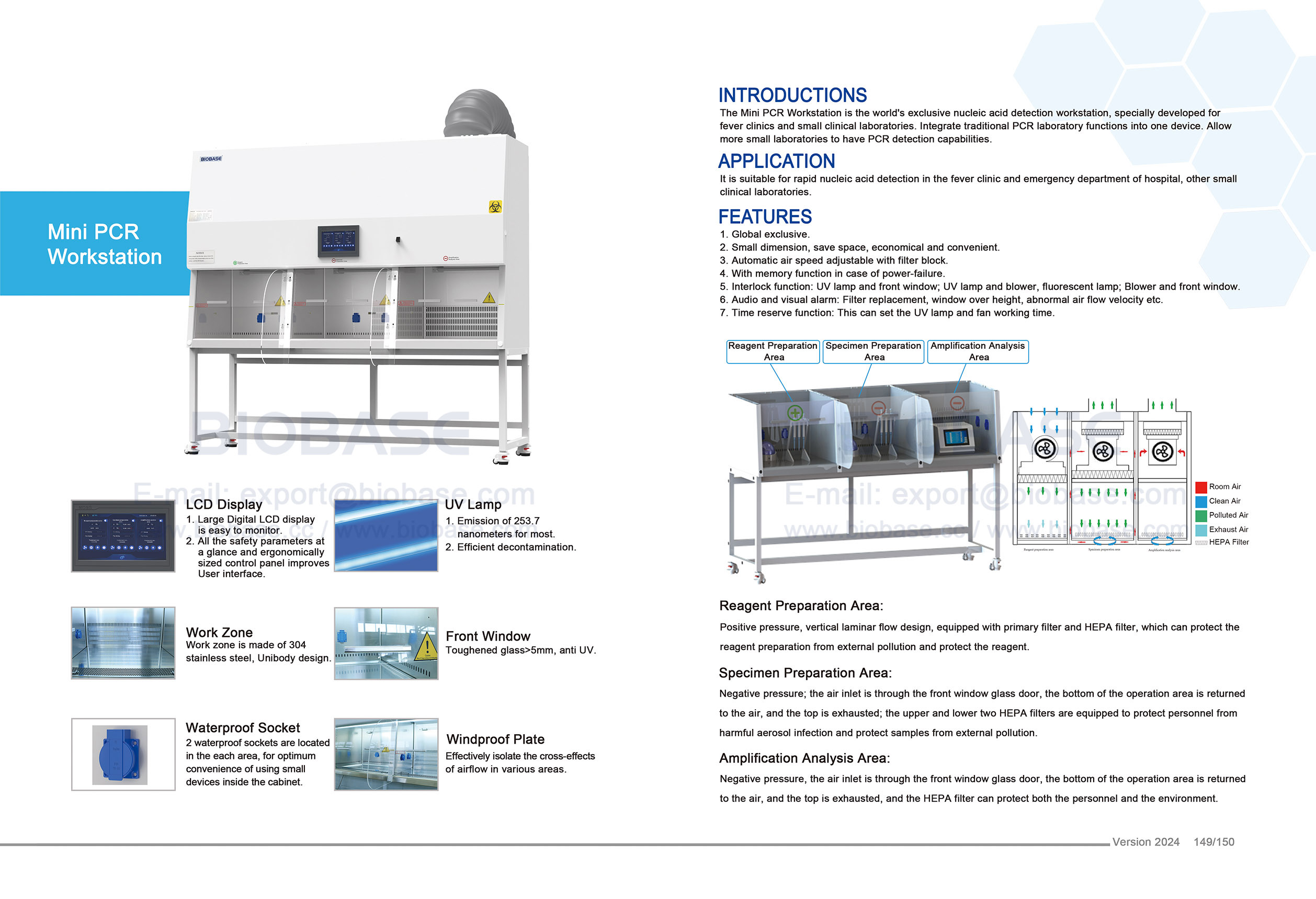

Introduction:
The Mini PCR Workstation is the world's exclusive nucleic acid detection workstation, specially developed for fever clinics and small clinical laboratories. Integrate traditional PCR laboratory functions into one device. Allow more small laboratories to have PCR detection capabilities.

Availability:
Quantity:
  • PCR1600 PCR2100 PCR2500

  • BIOBASE

Features:

1. Global exclusive.

2. Small dimension, save space, economical and convenient.

3. Automatic air speed adjustable with filter block.

4. With memory function in case of power-failure.

5. Interlock function: UV lamp and front window, UV lamp and blower, fluorescent lamp, blower and front window.

6. Audio and visual alarm: Filter replacement, window over height, abnormal air flow velocity etc.

7. Time reserve function: This can set the UV lamp and fan working time.


PCR1600-1PCR-1600

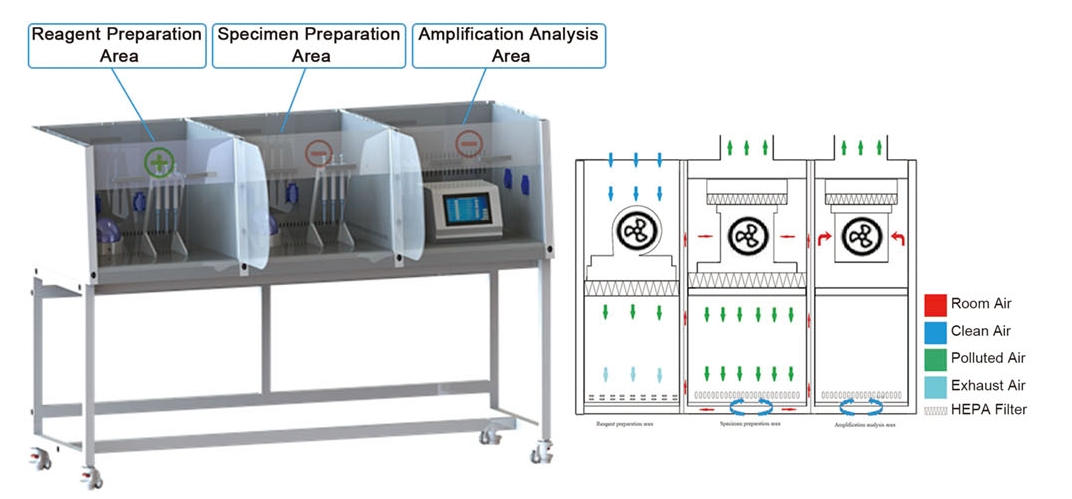

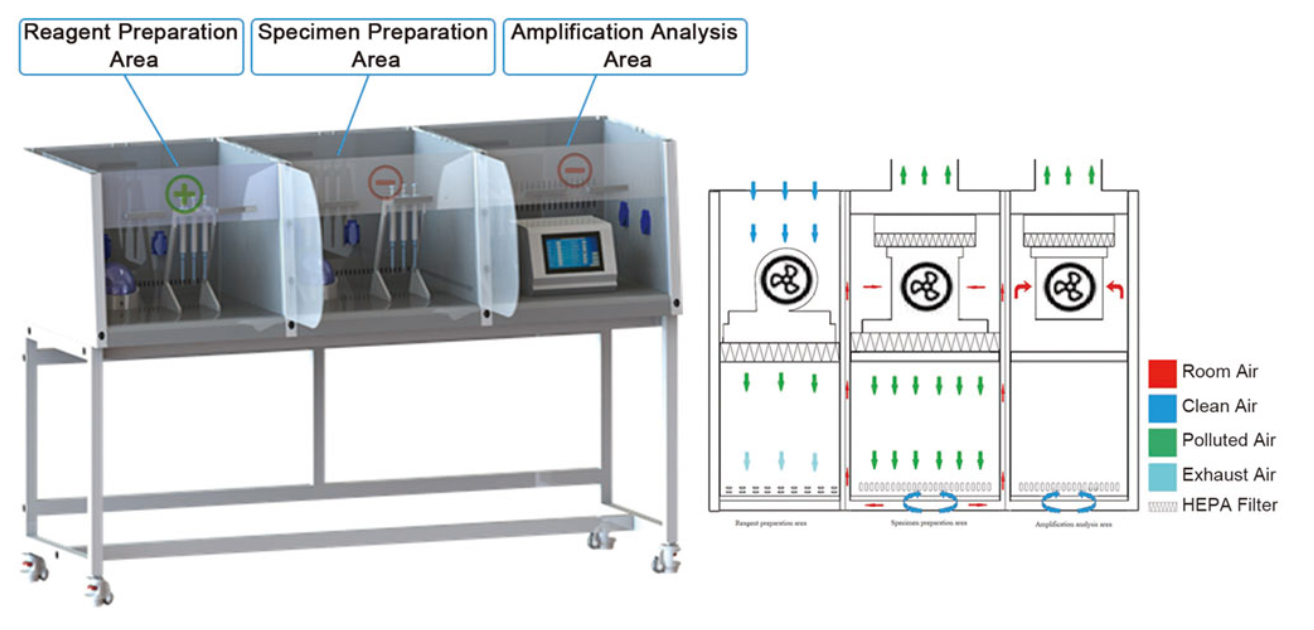

Reagent Preparation Area:

Positive pressure, vertical laminar flow design, equipped with primary filter and HEPA filter, which can protect the reagent preparation from external pollution and protect the reagent.

Specimen Preparation Area:

Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted, the upper and lower two HEPA filters are equipped to protect personnel from harmful aerosol infection and protect samples from external pollution.

Amplification Analysis Area:

Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returnedto the air, and the top is exhausted, and the HEPA filter can protect both the personnel and the environment.

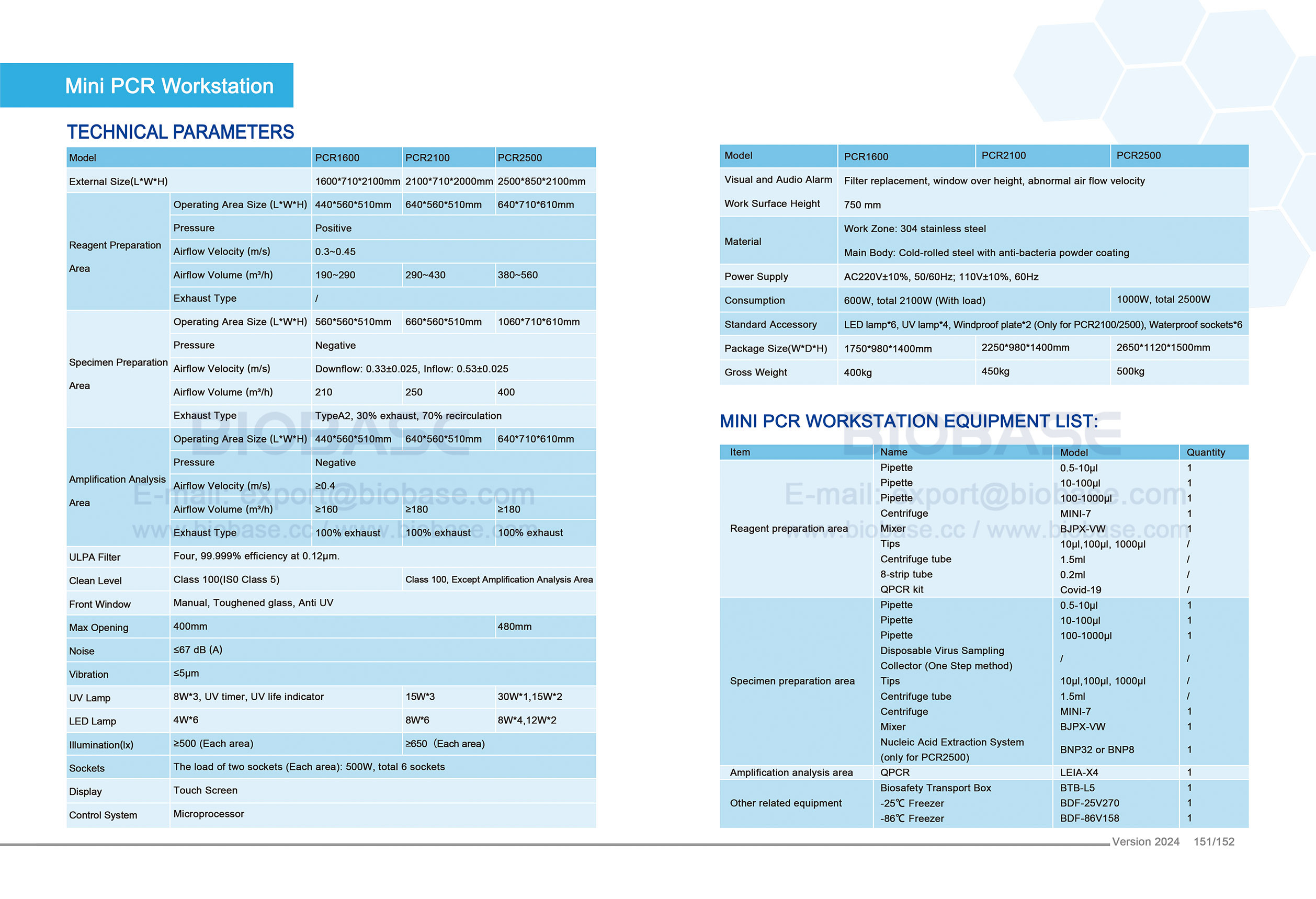

Technical Parameters:

Model

PCR1600

PCR2100

PCR2500

External Size(L*W*H)mm

1600*710*2100

2100*710*2000

2500*850*2100

Reagent Preparation Area

Operating Area Size(L*W*H)mm

440*560*510

640*560*510

640*710*610

Pressure

Positive

Airflow Velocity(m/s)

0.3~0.45

Airflow Volume(m3/h)

190~290

290~430

380~560

Exhaust Type

/

Specimen Preparation Area

Operating Area Size(L*W*H)mm

560*560*510

660*560*510

1060*710*610

Pressure

Negative

Airflow Velocity(m/s)

Downflow: 0.33±0.025

Inflow: 0.53±0.025

Airflow Volume(m3/h)

210

250

400

Exhaust Type

Type A2, 30% exhaust, 70% recirculation

Amplification Analysis Area

Operating Area Size(L*W*H)mm

440*560*510

640*560*510

640*710*610

Pressure

Negative

Airflow Velocity(m/s)

≥0.4

Airflow Volume(m3/h)

≥160

≥180

≥180

Exhaust Type

100% exhaust

100% exhaust

100% exhaust

ULPA Filter

Four, 99.999% efficiency at 0.12μm

Clean Level

Class 100(IS0 Class 5)

Class 100, Except Amplification Analysis Area

Front Window

Manual, toughened glass, anti UV

Max Opening

400mm

480mm

Noise

≤67dB(A)

Vibration

≤5μm

UV Lamp

8W*3, UV timer, UV life indicator

15W*3

30W*1, 15W*2

LED Lamp

4W*6

8W*6

8W*4, 12W*2

Illumination(lx)

≥500( Each area)

≥650(Each area)

Sockets

The load of two sockets(Each area): 500W, total 6 sockets

Display

Touch screen

Control System

Microprocessor

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity

Work Surface Height

750mm

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

600W, total 2100W(With load)

1000W, total 2500W

Standard Accessory

LED lamp*6, UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6

Package Size(W*D*H)mm

1750*980*1400

2250*980*1400

2650*1120*1500

Gross Weight

400kg

450kg

500kg



Multifunctional Workstation Product List

Item

Name

Model

Quantity

Reagent Preparation Area


Pipette

0.5~10μl

1

Pipette

10~100μl

1

Pipette

100~1000μl

1

Centrifuge

MINI-7

1

Mixer

BJPX-VW

1

Tips

10μl, 100μl, 1000μl

/

Centrifuge tube

1.5ml

/

8-strip tube

0.2ml

/

QPCR kit

Covid-19

/

Specimen Preparation Area


Pipette

0.5~10μl

1

Pipette

10~100μl

1

Pipette

100~1000μl

1

Disposable virus sampling collector(One step method)

/

/

Tips

10μl, 100μl, 1000μl

/

Centrifuge tube

1.5ml

/

Centrifuge

MINI-7

1

Mixer

BJPX-VW

1

Nucleic acid extraction system(only for PCR2500)

BNP32 or BNP8

1

Amplification Analysis Area

QPCR

LEIA-X4

1

Other Related Equipment

Biosafety transport box

BTB-L5

1

-25℃ freezer

BDF-25V270

1

-86℃ freezer

BDF-86V158

1
