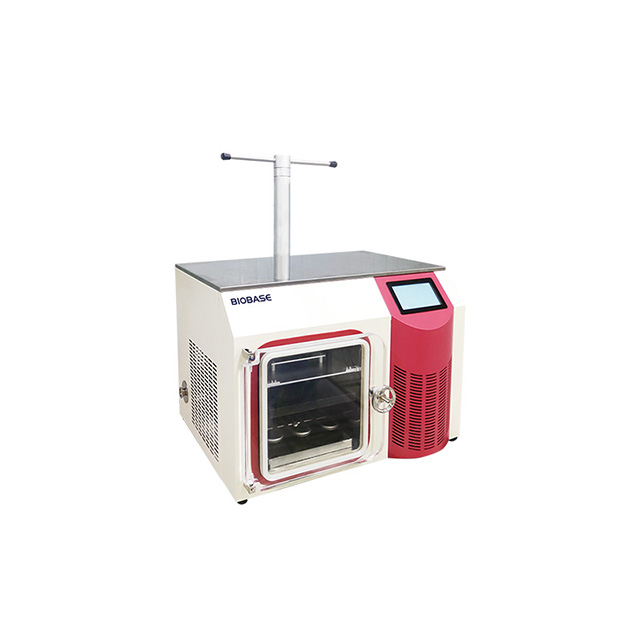

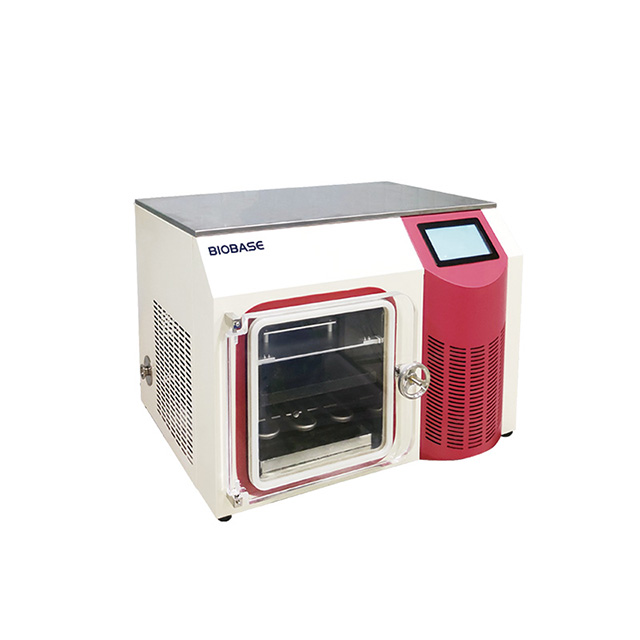

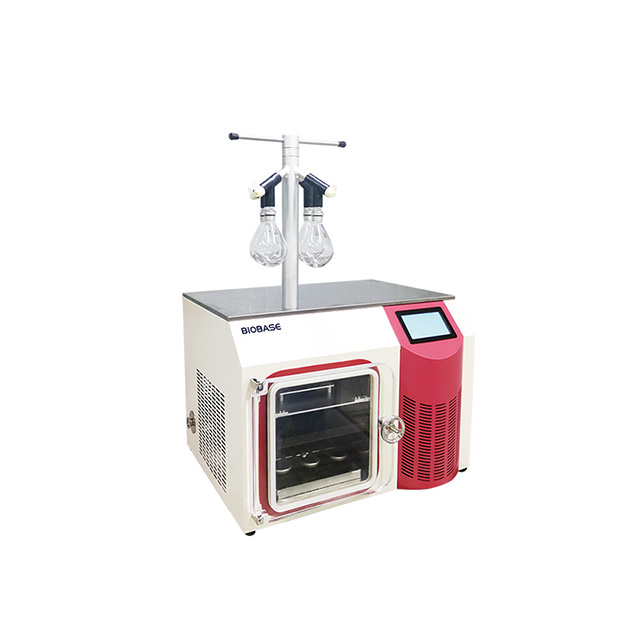

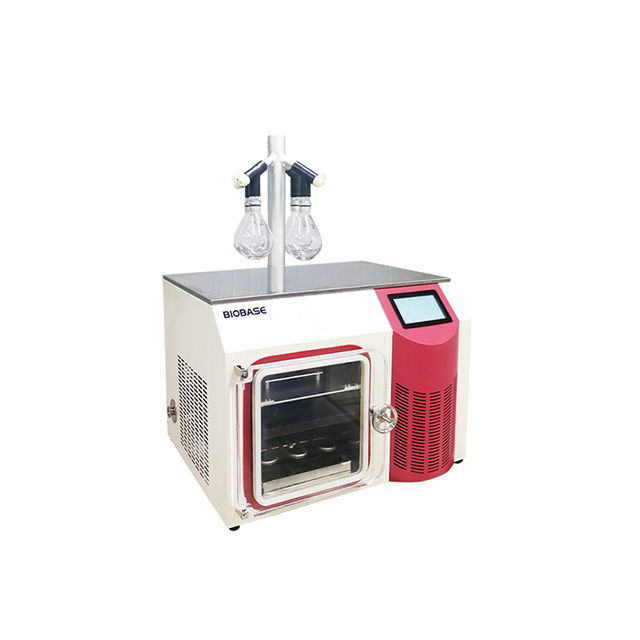

BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT
BIOBASE

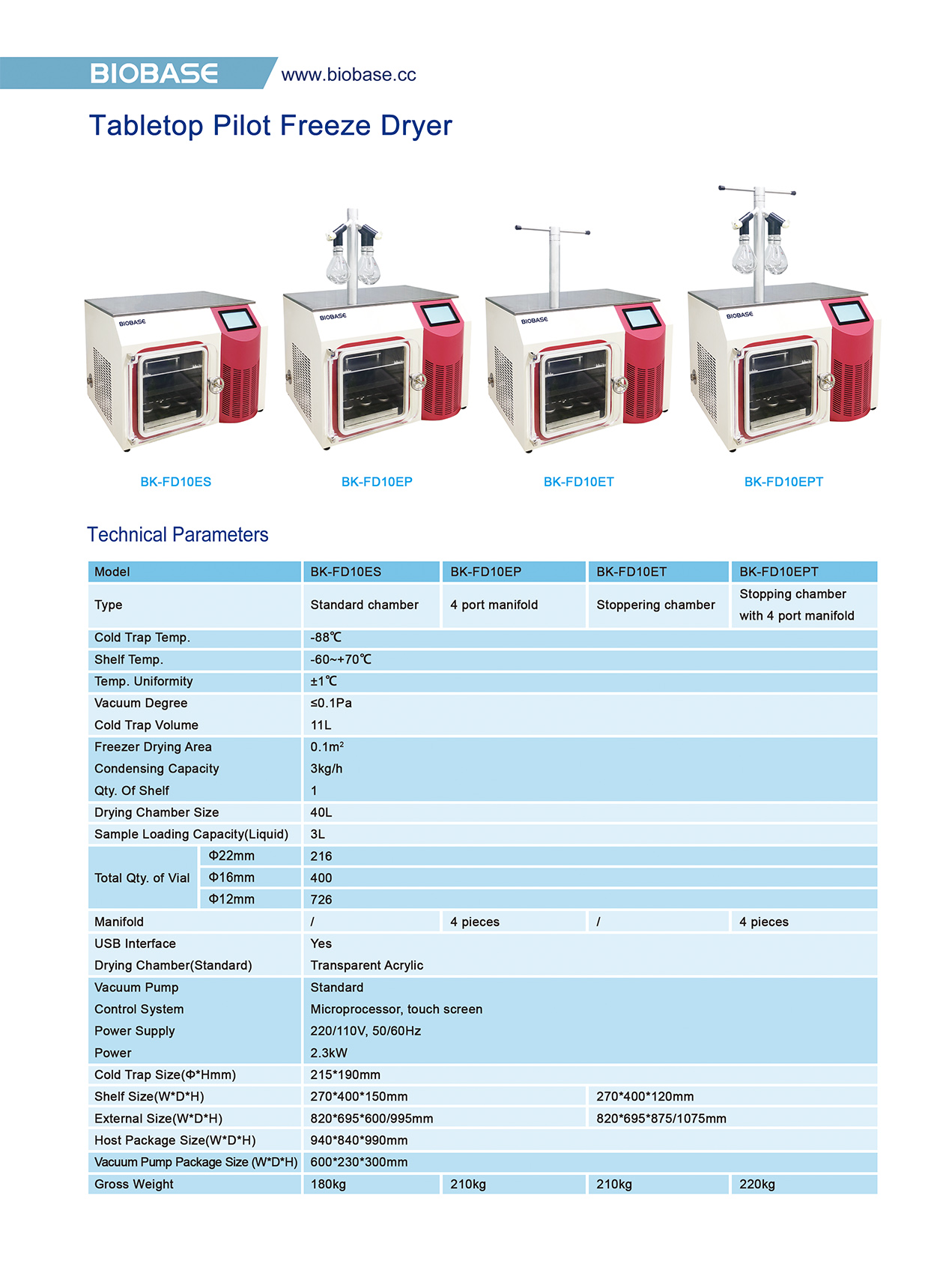

Technical Parameters:
Model | BK-FD10ES | BK-FD10EP | BK-FD10ET | ||
Type | Standard chamber | 4 port manifold | Stoppering chamber | Stopping chamber with 4 port manifold | |
Cold Trap Temp. | -88℃ | ||||
Shelf Temp. | -60~+70℃ | ||||
Temp. Uniformity | ±1℃ | ||||
Vacuum Degree | ≤0.1Pa | ||||
Cold Trap Volume | 11L | ||||
Freezer Drying Area | 0.1m2 | ||||
Condensing Capacity | 3kg/h | ||||
Qty. Of Shelf | 1 | ||||
Drying Chamber Size | 40L | ||||
Material Loading Capacity | 3000ml | ||||
Total Qty. of Vial | Φ22mm | 216 | |||
Φ16mm | 400 | ||||
Φ12mm | 726 | ||||
Manifold | / | 4 pieces | / | 4 pieces | |
USB Interface | Yes | ||||
Drying Chamber(Standard) | Transparent Acrylic | ||||
Vacuum Pump | Standard | ||||
Control System | Microprocessor, touch screen | ||||
Power Supply | 220/110V, 50/60Hz | ||||
Power | 2.3kW | ||||
Cold Trap Size(Φ*Hmm) | 215*190mm | ||||
Shelf Size(W*D*H) | 270*400*150mm | 270*400*120mm | |||
External Size(W*D*H) | 820*695*600/995mm | 820*695*875/1075mm | |||
Host Package Size(W*D*H) | 940*840*990mm | ||||
Vacuum Pump Package Size(W*D*H) | 600*230*300mm | ||||
Gross Weight | 180kg | 210kg | 210kg | 220kg | |
