The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,
vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
| Quantity: | |
|---|---|

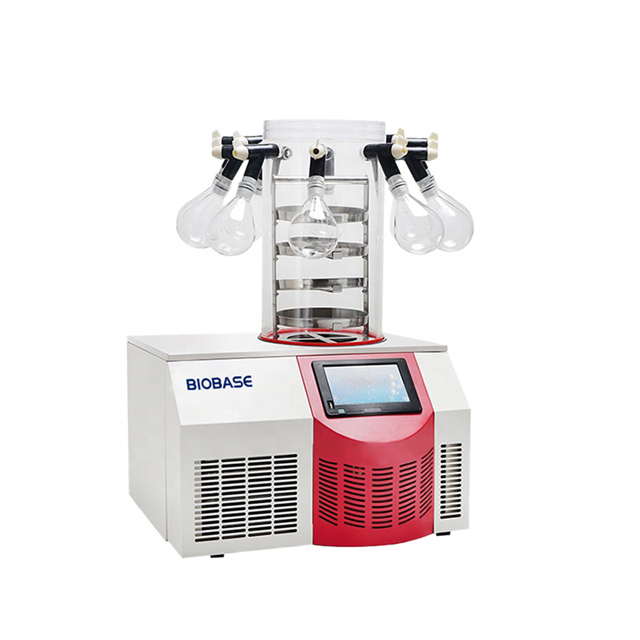

BK-FD10S, BK-FD10P, BK-FD10T, BK-FD10PT
BIOBASE
Laboratory Freeze Dryer
Features:
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Models:

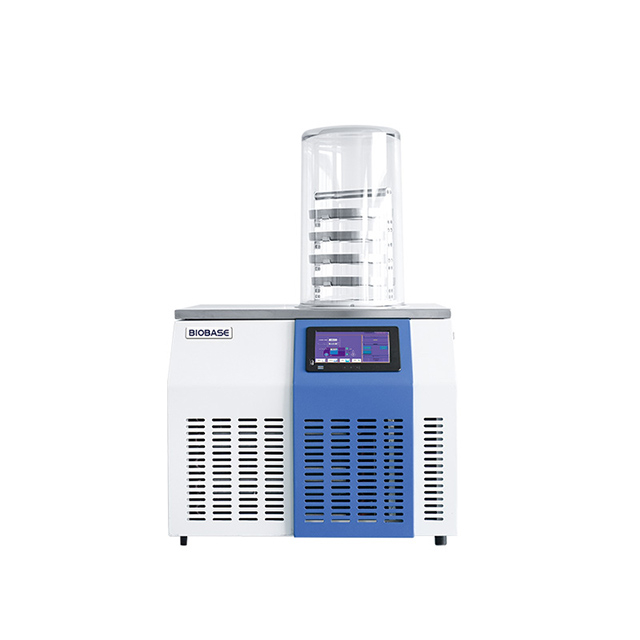

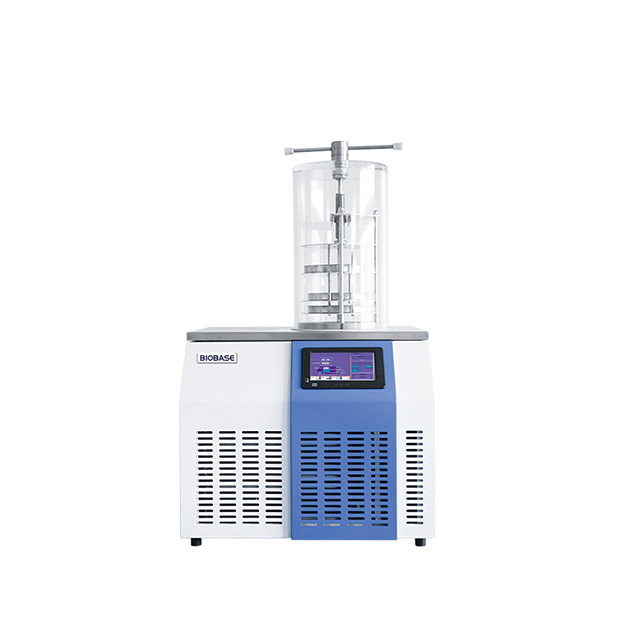

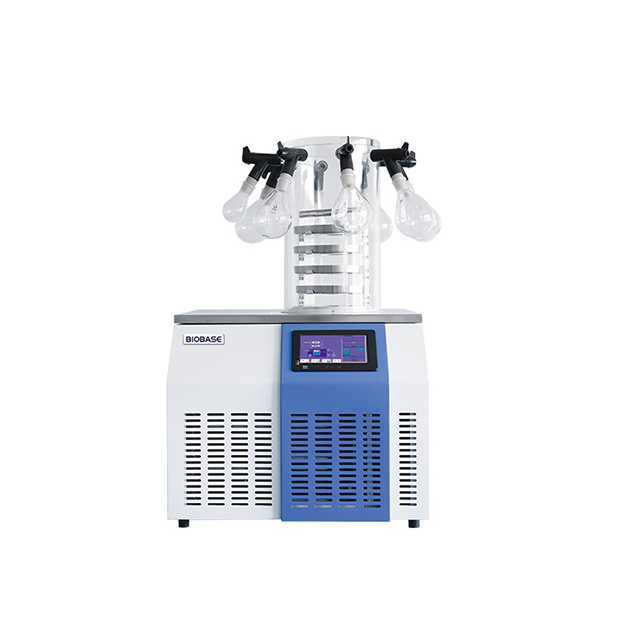

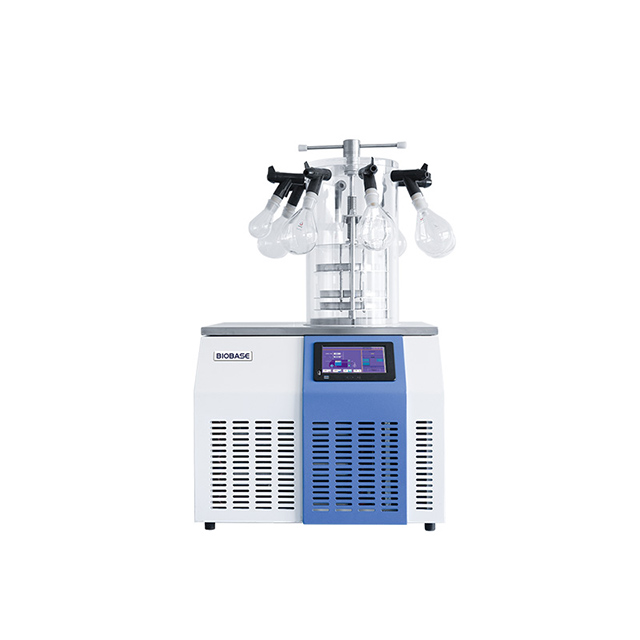

Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |
Type | Standard chamber | Standard chamber With 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |
Freeze Drying Area | 0.12m² | 0.08m² | |||
Tray | 4 pcs | 3 pcs | |||
Height Between Trays | 50mm | ||||
Cold Trap Temperature Cold Trap Capacity | ≤-60℃(No load)(-80℃ optional) 6L | ||||
Cold Trap Size (Diameter*H) Vacuum Degree Water Capture Capacity | φ 2 1 9 * 1 4 0 m m ≤5 Pa 3-4L/24h | ||||
Tray Size (D*H) | φ200*20mm | φ180*20mm | |||
Freeze Drying Time | 36h | ||||
Loading Capacity/Shelf (Liquid) Total Loading Capacity (Liquid) | 1.2L 2.4L | 0.9L 1.6L | |||
Drying Chamber Size (Diameter*H) | φ 2 6 0 * 4 2 0 mm | φ260*465mm | |||
Total Qty.Of Vial φ22 Total Qty.Of Vial φ16 Total Qty.Of Vial φ12 | / / / | / / / | 147 297 492 | 147 297 492 | |
Refrigerant Cooling System Power Supply Power Consumption | -60℃:R600a,R23 -80℃:R404a、R23 Standard:Air cooling Optional:Water cooling Standard:220V 50Hz Optional:220V 60Hz 1300W | ||||

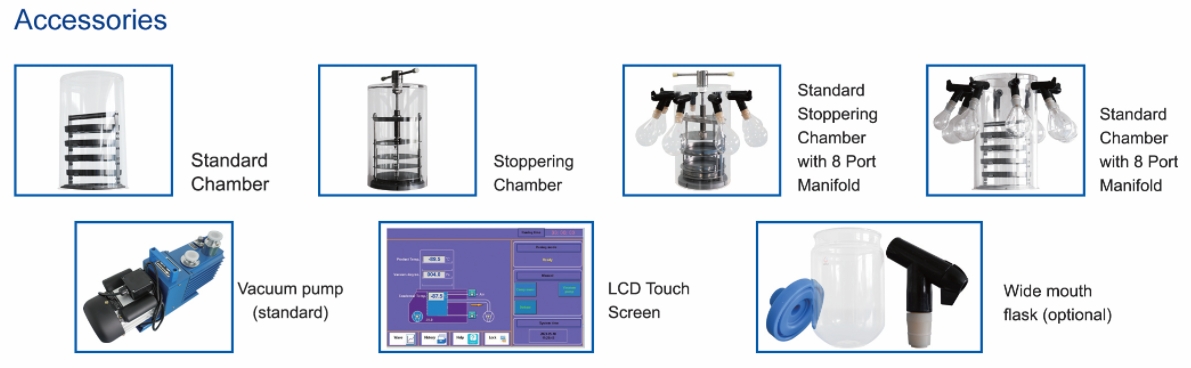

Standard Accessory | Vacuum pump 2L/S,Material tray*4(Material tray*3 for T/PT),Drying rack*1,Cover*1,Acrylic bucket*1(all models) Conical-mouth flask100ml*2pcs,200ml*2pcs,250ml*2pcs,500ml*2pcs,Switch valve*8 pcs (only for model BK-FD10P/PT) | ||||
Optional Function &Accessory | Equipment moving frame,vacuum pump of other specifications,vacuum regulation,oil mist filter, automatic air intake,automatic water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask (for BK-FD10P/PT) | ||||
External Size (W*D*H),mm | 640*610*550 | ||||
Package Size(W*D*H), mm | Main body | 735*720*760mm | |||
Accessory | 720*605*560mm | ||||
Gross Weight(kg) | Main body | -60℃:80kg -80℃:98kg | |||
Accessory | 45kg | 49kg | 54kg | 56kg | |
