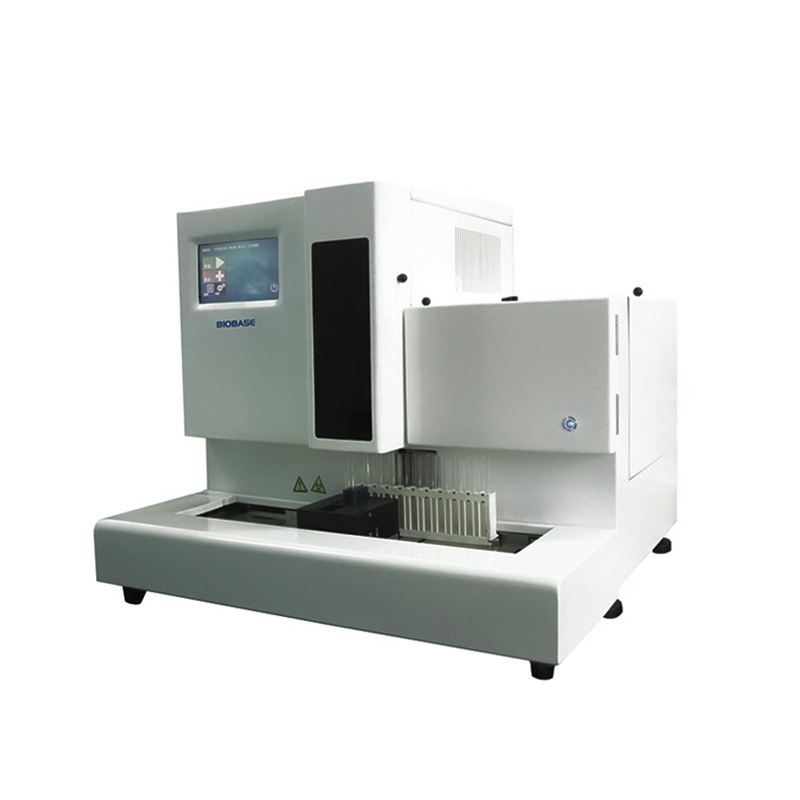

Fully automatic urine sediment analyzer can store clinical data, dry chemical index, microscopic examination results and other expansion projects. Classified store the various data to facilitate the data browse, query, edit and print and transmit, all the data fully realize the database management, provides a common database interface, is convenient to connect with hospital HIS, LIS system. Principle: using digital imaging automatic identification technology, automatic morphological method to identify, classify and count the urine formed elements, form to a report after screening and confirmed by the artificial recognition.
Availability: | |
---|---|
Quantity: | |
Test items:
Erythrocytes, while blood cells, Pus cells, Squamous epithelial cell, Non-squamous epithelial cell, Clear cast, Unclassified cast, Crystal, Bacteria, Blood bacteria, Sperm, Mucus, etc.
Features:
①.Automatic focusing function, no need of focusing liquid.
②.Sample waiting area can accommodate 60 samples at a time.
③.Automatic orbital 10-tube sample racks continuous sampling.
④.Single needle, 4-channel sampling design, equivalent to 4 instruments in testing.
⑤.Use of planar flow technique, medical image information fusion technology and intelligence visual recognition technology.
Models:
Model | US-120 |
Test Speed | 120Tests/hour |
Counting Cell | Four channels |
Sample Volume | ≥2.5ml |
Sampling Volume | 1ml |
Sensitivity | 5/μl |
Repeatability(CV) | <10% |
Pollution Rate | <0.05% |
Recognition Rate | >95% |
Data Storage | 200,000 results |
Language | English. Other languages on request |
Printe | External printer |
Working Environment | 18~30℃ |
Power Supply | AC220±10%, 50/60Hz; 110±10%,60Hz |
Package Size(W*D*H) | 1160*640*770mm |
Gross Weight | 130kg |
