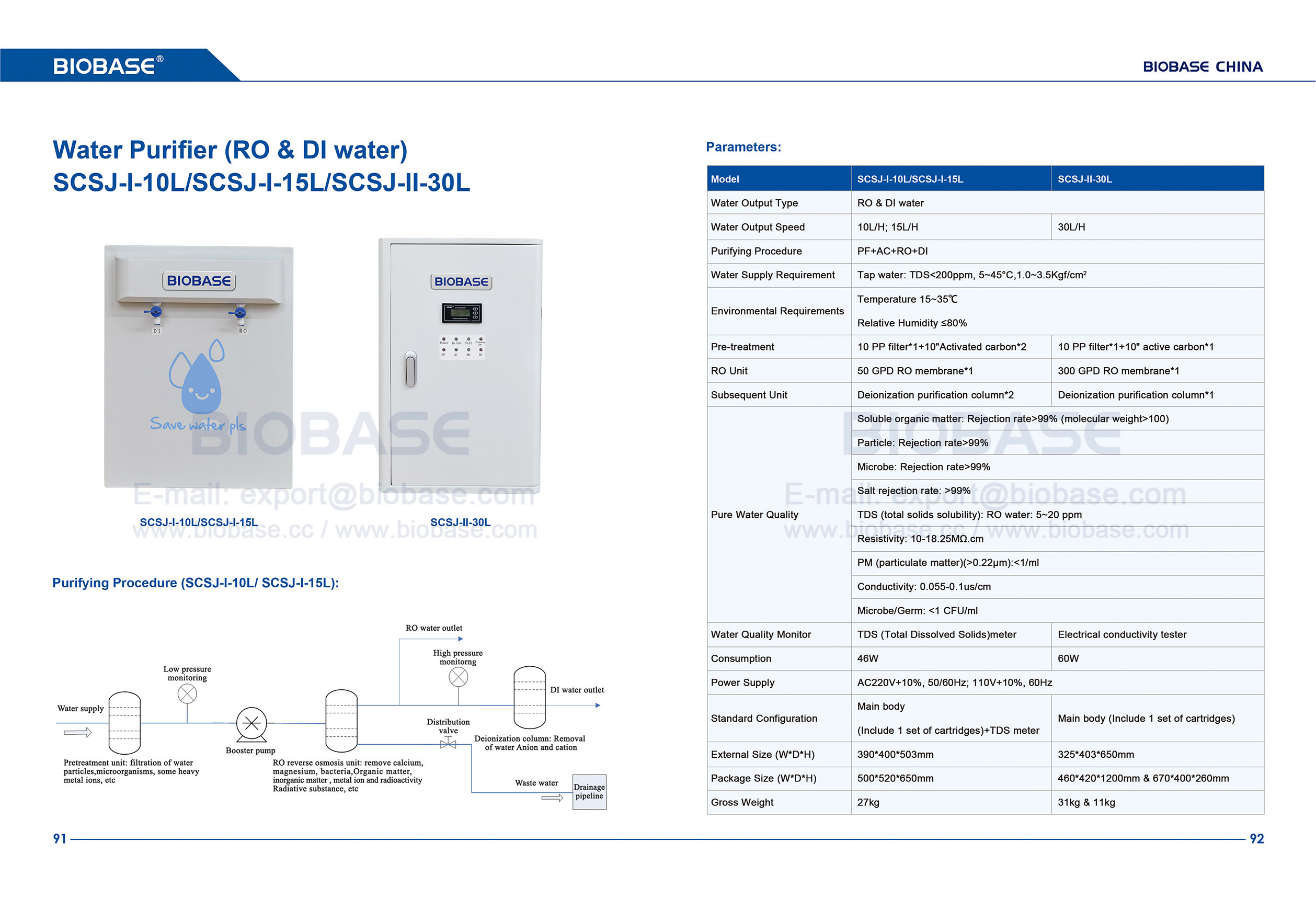

SCSJ-I-10L SCSJ-I-15L SCSJ-II-30L
BIOBASE
Technical Parameters:
Model | SCSJ-I-10L/SCSJ-I-15L | SCSJ-II-30L |
Water Output Type | RO&DI water | |
Water Output Speed | 10L/H; 15L/H | 30L/H |
Purifying Procedure | PF+AC+RO+DI | |
Water Supply Requirement | Tap Water: TDS<200ppm, 5~45°C,1.0~3.5Kgf/cm2 | |
Environmental Requirements | Temperature 15~35℃ Relative Humidity ≤80% | |
Pre-treatment | 10 PP filter*1+10"Activated carbon *2 | 10 PP filter*1+10" active carbon *1 |
RO Unit | 50 GPD RO membrane*1 | 300 GPD RO membrane*1 |
Subsequent Unit | Deionization purification column*2 | Deionization purification column*1 |
Pure Water Quality | Soluble organic matter: Rejection rate>99%(molecular weight>100) | |
Particle: Rejection rate>99% | ||
Microbe: Rejection rate>99% | ||
Salt rejection rate: >99% | ||
TDS(total solids solubility): RO water: 5~20 ppm | ||
Resistivity: 10~18.25MΩ.cm | ||
PM(particulate matter)(>0.22μm):<1/ml | ||
Conductivity:0.055-0.1us/cm | ||
Microbe/Germ: <1CFU/ml | ||
Water Quality Monitor | TDS(Total Dissolved Solids)meter | Electrical conductivity tester |
Consumption | 46W | 60W |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
Standard Configuration | Main body(Include 1 set of cartridges)+TDS meter | Main body(Include 1 set of cartridges) |
External Size(W*D*H) | 390*400*503mm | 325*403*650mm |
Package Size(W*D*H) | 500*520*650mm | 460*420*1200mm&670*400*260mm |
Gross Weight | 27kg | 31kg&11kg |
