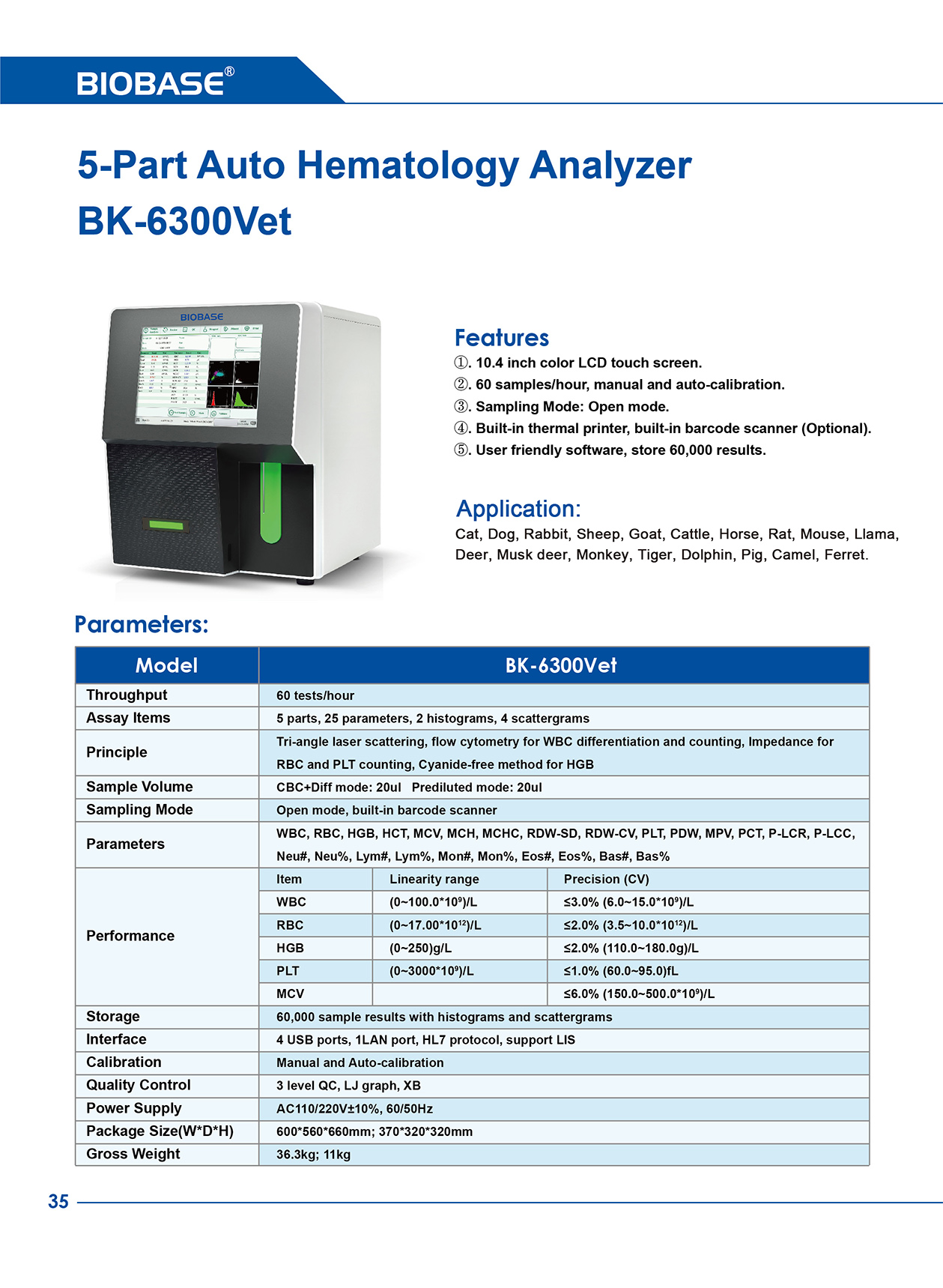

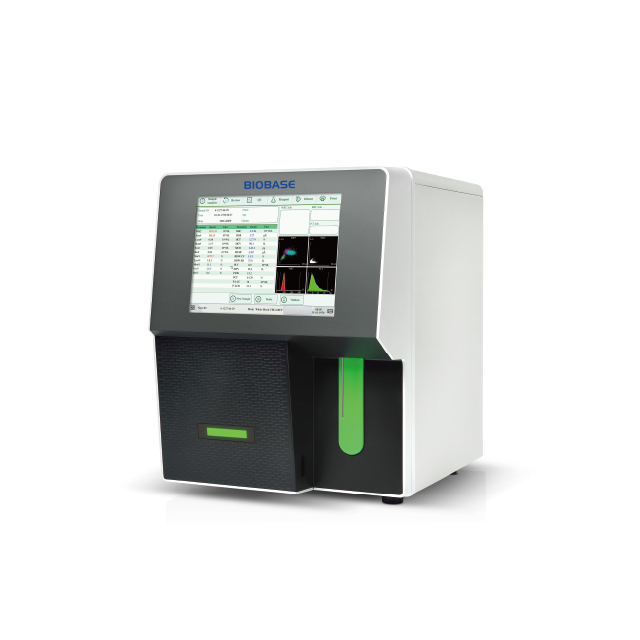

BK-6300Vet
BIOBASE
Features:
1. 10.4 inch color LCD touch screen.
2. 60 samples/hour, manual and auto-calibration.
3. Sampling Mode: Open mode.
4. Built-in thermal printer, built-in barcode scanner (Optional).
5. User friendly software, store 60,000 results.
Application:
Cat,Dog, Rabbit, Sheep,Goat,Cattle,Horse,Rat,Mouse, Llama,Deer,Musk deer,Monkey,Tiger,Dolphin,Pig, Camel, Ferret.
Models:
Model | BK-6300Vet | ||
Throughput | 60 tests/hour 60 tests/hour | ||
Assay Items | 5 parts, 25 parameters, 2 histograms, 4 scattergrams | ||
Principle | Tri-angle laser scattering, flow cytometry for WBC differentiation and counting, Impedance for RBC and PLT counting, Cyanide-free method for HGB | ||
Sample Volume | CBC+Diff mode: 20ul Prediluted mode: 20ul | ||
Sampling Mode | Open mode, built-in barcode scanner | ||
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PDW, MPV, PCT, P-LCR, P-LCC, Neu#, Neu%, Lym#, Lym%, Mon#, Mon%, Eos#, Eos%, Bas#, Bas% | ||
Performance | Item | Linearity range | Precision (CV) |
WBC | (0~100.0*109)/L | ≤3.0% (6.0~15.0*109)/L | |
RBC | (0~17.00*1012)/L | ≤2.0% (3.5~10.0*1012)/L | |
HGB | (0~250)g/L | ≤2.0% (110.0~180.0g)/L | |
PLT | (0~3000*109)/L | ≤1.0% (60.0~95.0)fL | |
MCV | ≤6.0% (150.0~500.0*109)/L | ||
Storage | 60,000 sample results with histograms and scattergrams | ||
Interface | 4 USB ports, 1LAN port, HL7 protocol, support LIS | ||
Calibration | Manual and Auto-calibration | ||
Quality Control | 3 level QC, LJ graph, XB | ||
Power Supply | AC110/220V±10%, 60/50Hz | ||
Package Size(W*D*H) | 600*560*660mm; 370*320*320mm | ||
Gross Weight | 36.3kg; 11kg | ||
Features:
1. 10.4 inch color LCD touch screen.
2. 60 samples/hour, manual and auto-calibration.
3. Sampling Mode: Open mode.
4. Built-in thermal printer, built-in barcode scanner (Optional).
5. User friendly software, store 60,000 results.
Application:
Cat,Dog, Rabbit, Sheep,Goat,Cattle,Horse,Rat,Mouse, Llama,Deer,Musk deer,Monkey,Tiger,Dolphin,Pig, Camel, Ferret.
Models:
Model | BK-6300Vet | ||
Throughput | 60 tests/hour 60 tests/hour | ||
Assay Items | 5 parts, 25 parameters, 2 histograms, 4 scattergrams | ||
Principle | Tri-angle laser scattering, flow cytometry for WBC differentiation and counting, Impedance for RBC and PLT counting, Cyanide-free method for HGB | ||
Sample Volume | CBC+Diff mode: 20ul Prediluted mode: 20ul | ||
Sampling Mode | Open mode, built-in barcode scanner | ||
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PDW, MPV, PCT, P-LCR, P-LCC, Neu#, Neu%, Lym#, Lym%, Mon#, Mon%, Eos#, Eos%, Bas#, Bas% | ||
Performance | Item | Linearity range | Precision (CV) |
WBC | (0~100.0*109)/L | ≤3.0% (6.0~15.0*109)/L | |
RBC | (0~17.00*1012)/L | ≤2.0% (3.5~10.0*1012)/L | |
HGB | (0~250)g/L | ≤2.0% (110.0~180.0g)/L | |
PLT | (0~3000*109)/L | ≤1.0% (60.0~95.0)fL | |
MCV | ≤6.0% (150.0~500.0*109)/L | ||
Storage | 60,000 sample results with histograms and scattergrams | ||
Interface | 4 USB ports, 1LAN port, HL7 protocol, support LIS | ||
Calibration | Manual and Auto-calibration | ||
Quality Control | 3 level QC, LJ graph, XB | ||
Power Supply | AC110/220V±10%, 60/50Hz | ||
Package Size(W*D*H) | 600*560*660mm; 370*320*320mm | ||
Gross Weight | 36.3kg; 11kg | ||
