| Quantity: | |
|---|---|

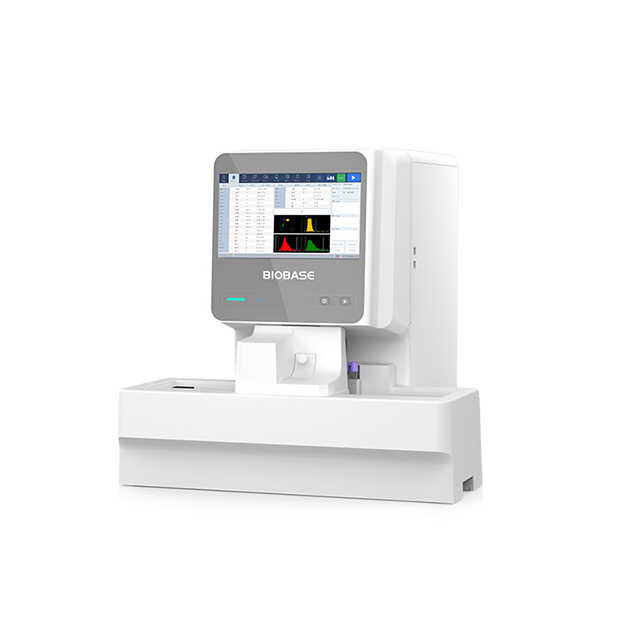

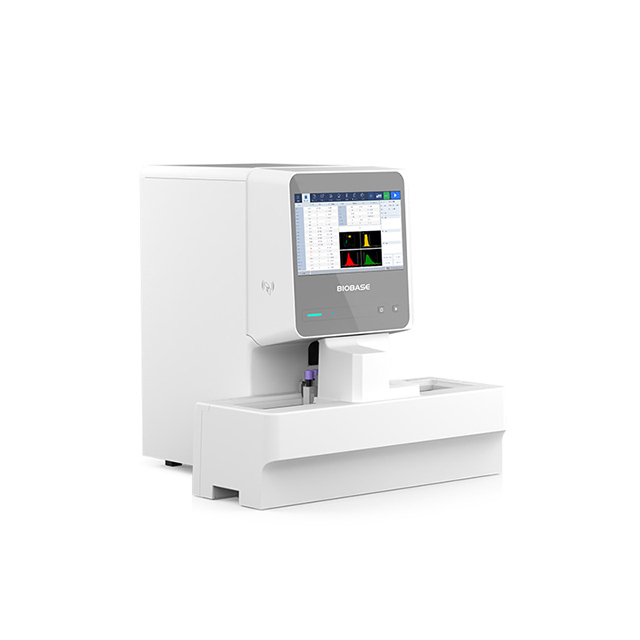

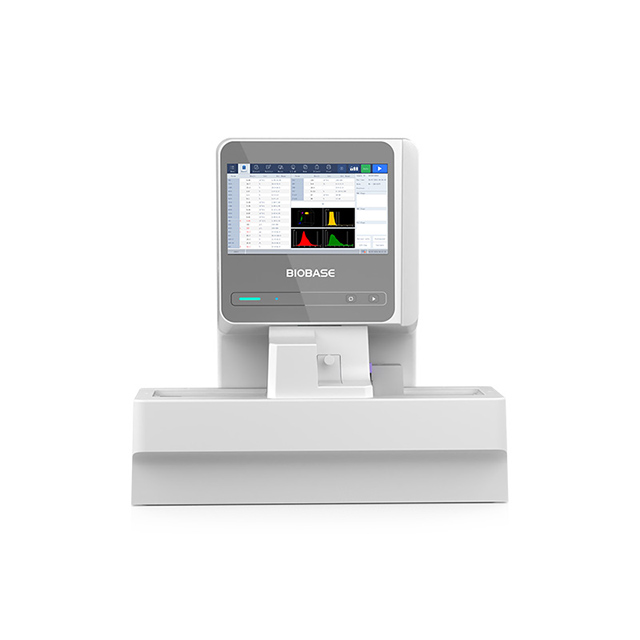

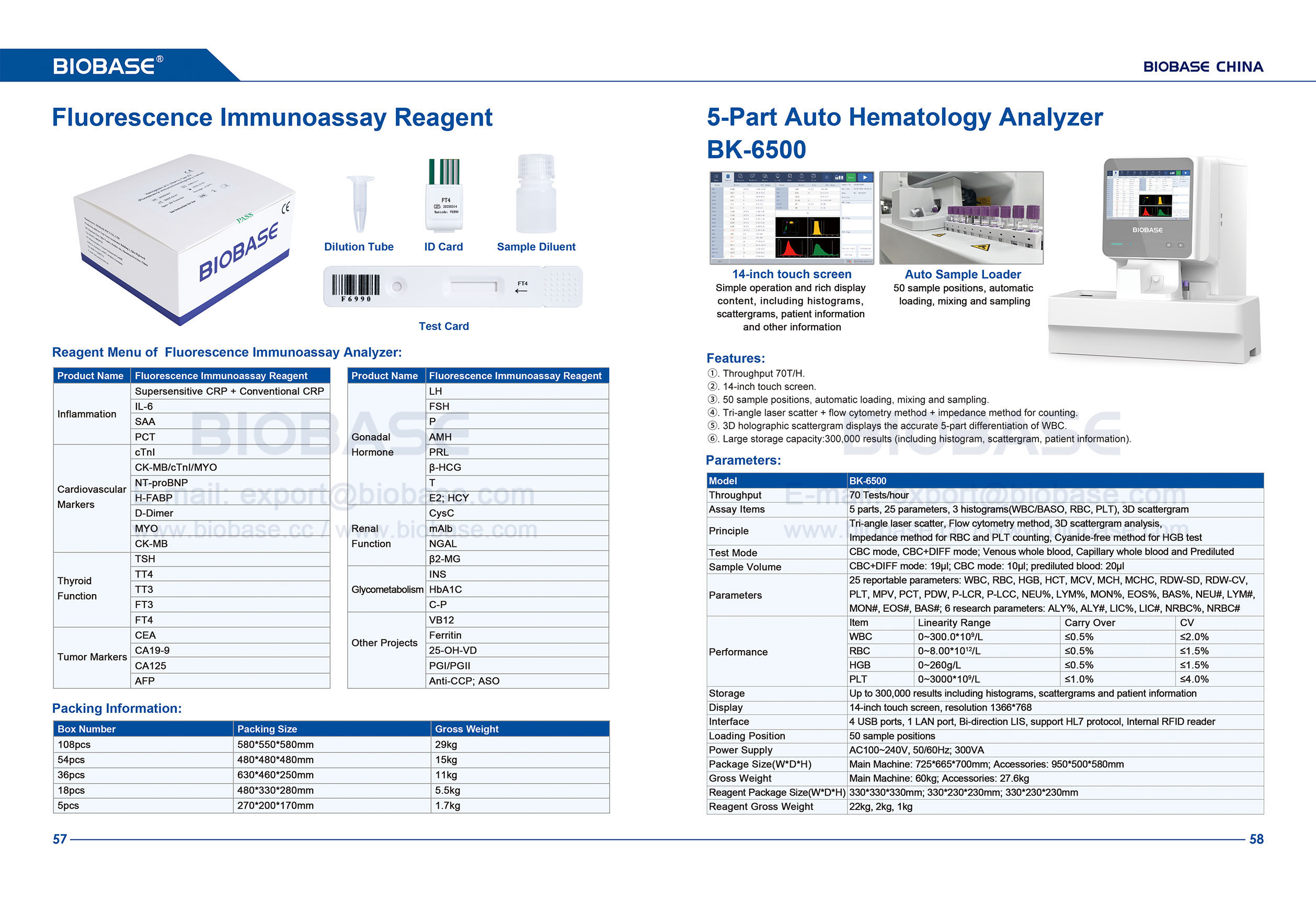

BK-6500
BIOBASE
Features:
1. Throughput 70t/h.

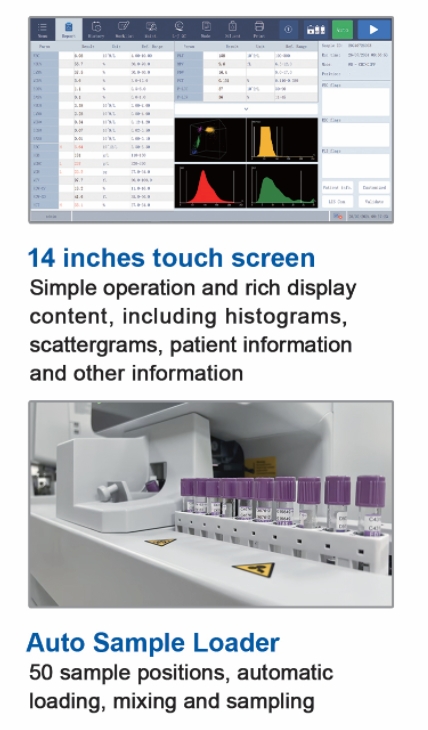

2. 14 inch touch screen.

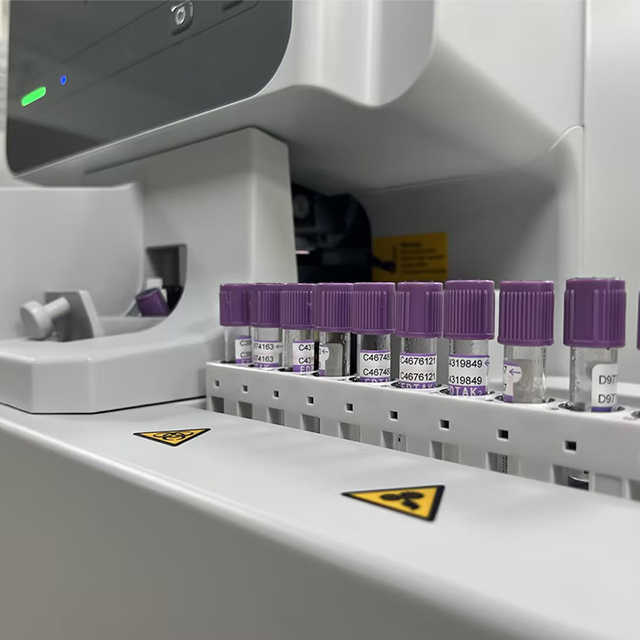

3. 50 sample positions, automatic loading, mixing and sampling
4. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
6. Large storage capacity: 100,000 results(including histogram, scattergram, patient information).
7. 50 Flags including MALARIA and DENGUE Flags to help analysis results

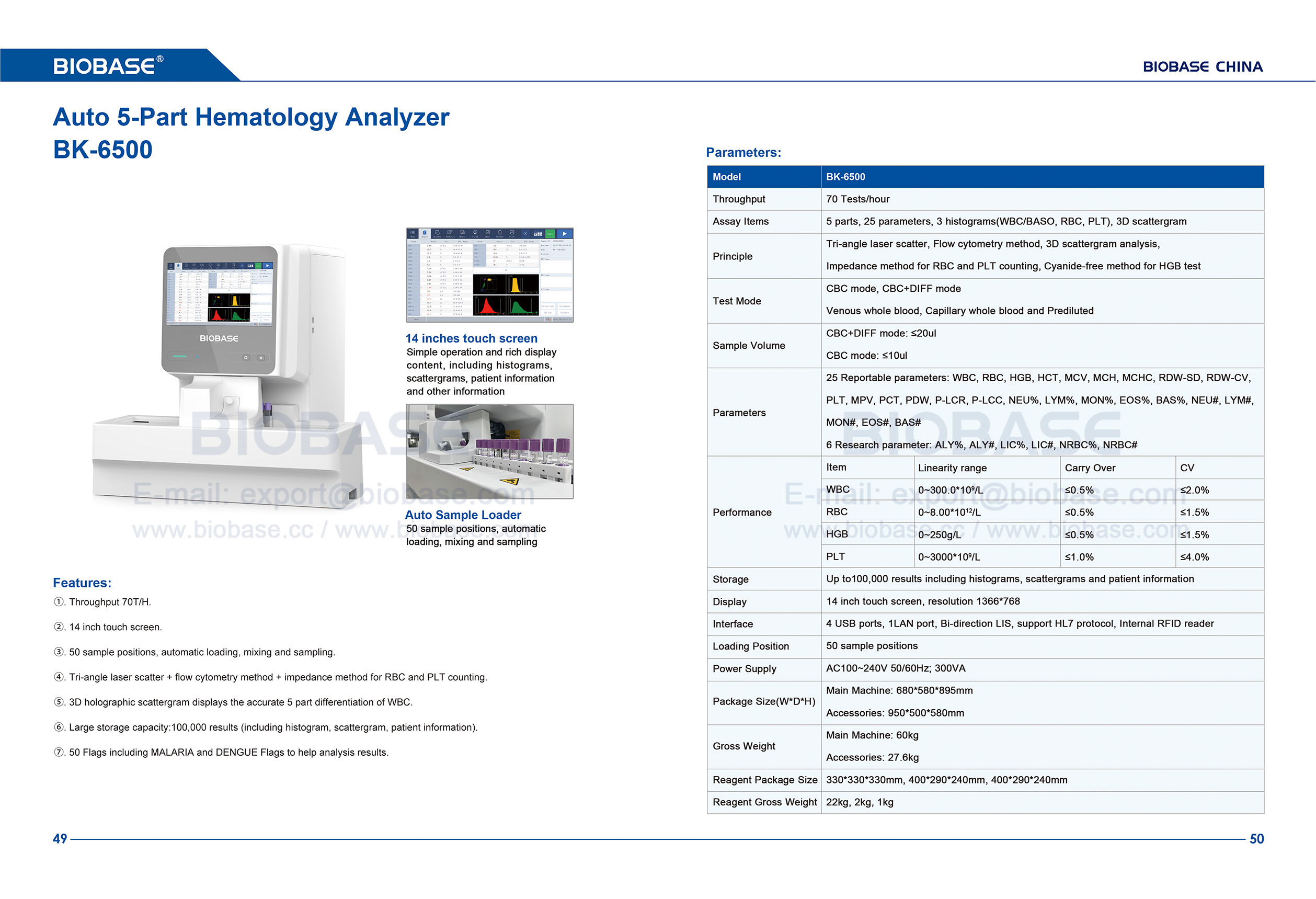

Technical Parameters:
Model | BK-6500 | |||
Throughput | 70 tests/hour | |||
Assay Items | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram | |||
Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | |||
Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | |||
Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | |||
Parameters | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# | |||
Performance | Item | Linearity Range | Carry Over | CV |
WBC | 0~300.0*10^9/L | ≤0.5% | ≤2.0% | |
RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% | |
HGB | 0~250g/L | ≤0.5% | ≤1.5% | |
PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% | |
Storage | Up to 100,000 results including histograms, scattergrams and patient information | |||
Display | 14 inch touch screen, resolution 1366*768 | |||
Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
Loading Position | 50 sample positions | |||
Power Supply | AC100~240V, 50/60Hz; 300VA | |||
Package Size(W*D*H) | Main Machine: 680*580*895mm Accessories: 950*500*580mm | |||
Gross Weight | Main Machine: 60kg Accessories: 27.6kg | |||
Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm | |||
Reagent Gross Weight | 22kg, 2kg, 1kg | |||
