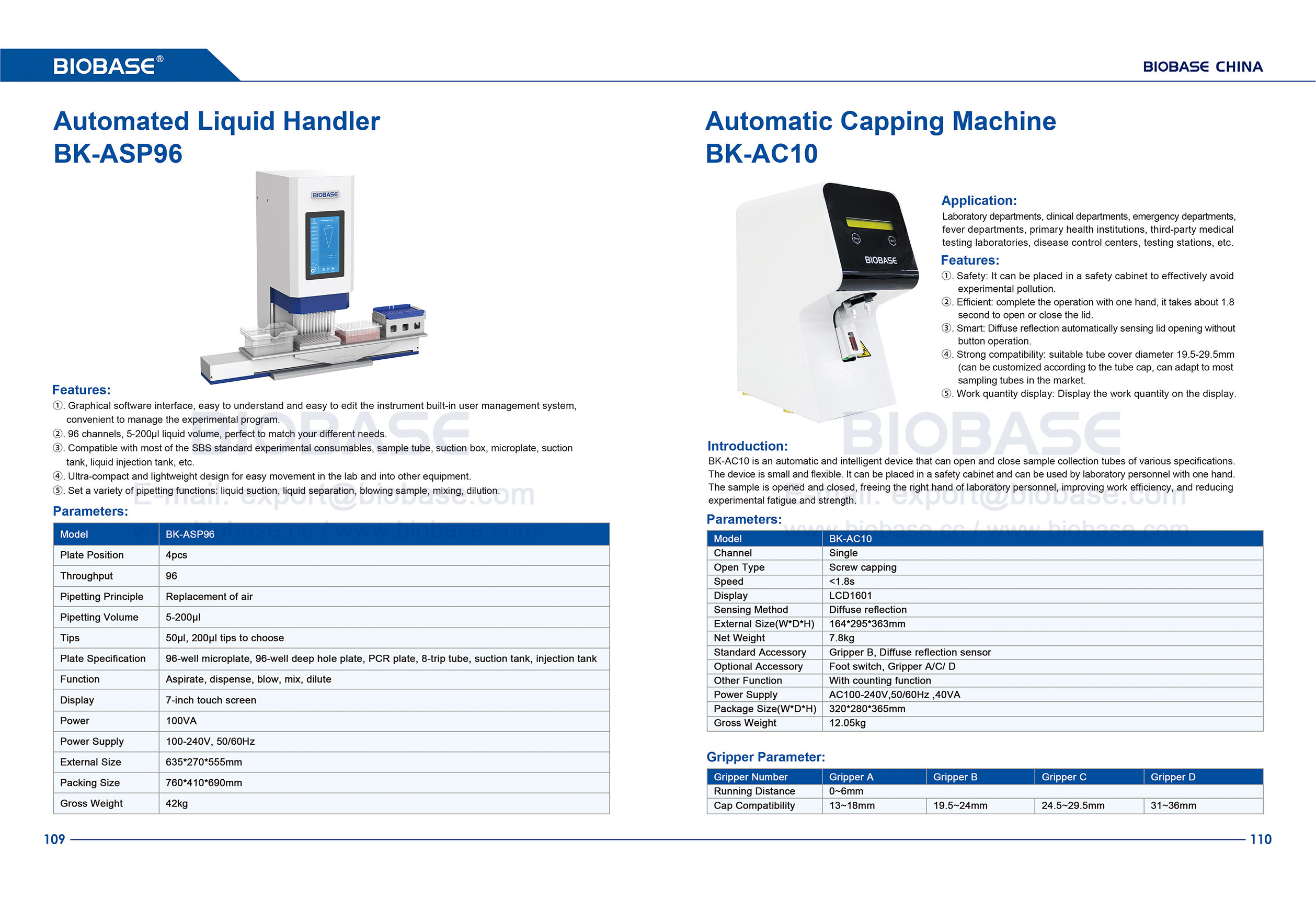

BK-ASP96
BIOBASE
Features:
Graphical software interface, easy to understand and easy to edit the instrument built-in user management system, convenient to manage the experimental program
96 channels, 5-200ul liquid volume, perfect to match your different needs
Compatible with most of the SBS standard experimental consumables, sample tube, suction box, microplate, suction tank, liquid injection tank, etc.
Ultra-compact and lightweight design for easy movement in the lab and into other equipment
Set a variety of pipetting functions: liquid suction, liquid separation, blowing sample, mixing, dilution
Technical Parameters:
Model | BK-ASP96 |
Plate Position | 4pcs |
Throughput | 96 |
Pipetting Principle | Replacement of air |
Pipetting Volume | 5-200ul |
Tips | 50ul, 200ul tips to choose |
Plate Specification | 96-well microplate, 96-well deep hole plate, PCR plate, 8-trip tube, suction tank, injection tank |
Function | Aspirate, dispense, blow, mix, dilute |
Display | 7-inch touch screen |
Power | 100W |
Power Supply | 100-240V, 50/60Hz |
External Size | 635*270*555mm |
Packing Size | 765*395*680mm |
Gross Weight | 33kg |
Features:
Graphical software interface, easy to understand and easy to edit the instrument built-in user management system, convenient to manage the experimental program
96 channels, 5-200ul liquid volume, perfect to match your different needs
Compatible with most of the SBS standard experimental consumables, sample tube, suction box, microplate, suction tank, liquid injection tank, etc.
Ultra-compact and lightweight design for easy movement in the lab and into other equipment
Set a variety of pipetting functions: liquid suction, liquid separation, blowing sample, mixing, dilution
Technical Parameters:
Model | BK-ASP96 |
Plate Position | 4pcs |
Throughput | 96 |
Pipetting Principle | Replacement of air |
Pipetting Volume | 5-200ul |
Tips | 50ul, 200ul tips to choose |
Plate Specification | 96-well microplate, 96-well deep hole plate, PCR plate, 8-trip tube, suction tank, injection tank |
Function | Aspirate, dispense, blow, mix, dilute |
Display | 7-inch touch screen |
Power | 100W |
Power Supply | 100-240V, 50/60Hz |
External Size | 635*270*555mm |
Packing Size | 765*395*680mm |
Gross Weight | 33kg |
