Applications:
It's mostly suitable for steriling of surgical, dental instruments, glassware, culture medium and biological dressing, food and goods, etc.
| Quantity: | |
|---|---|

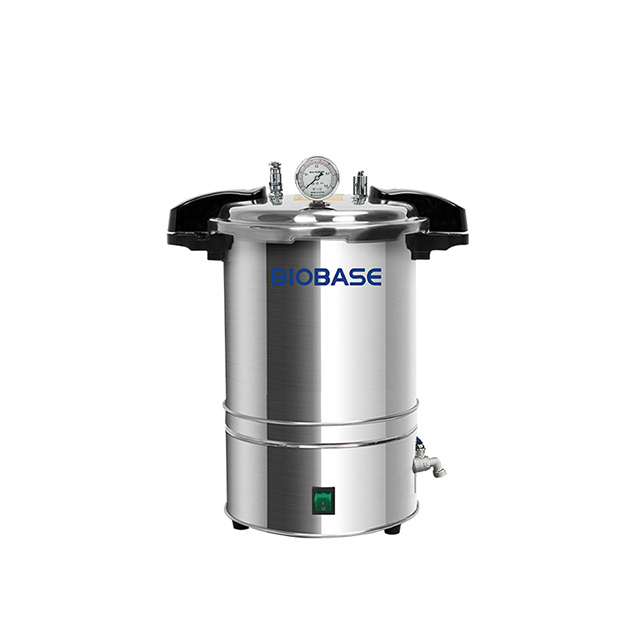

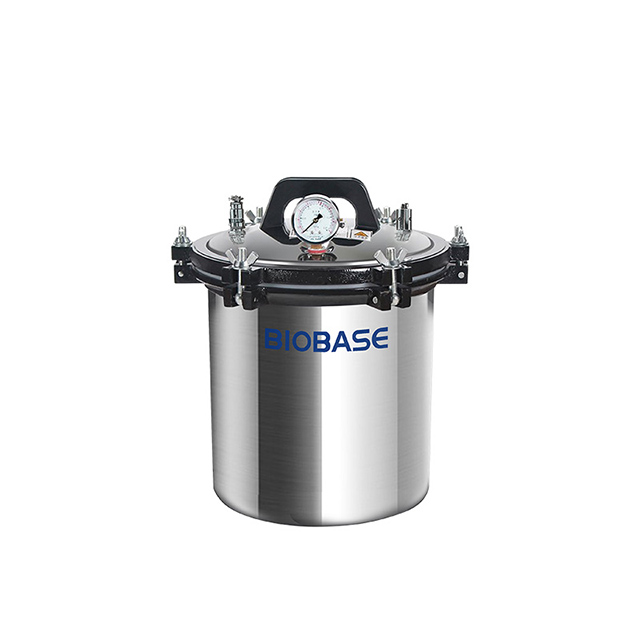

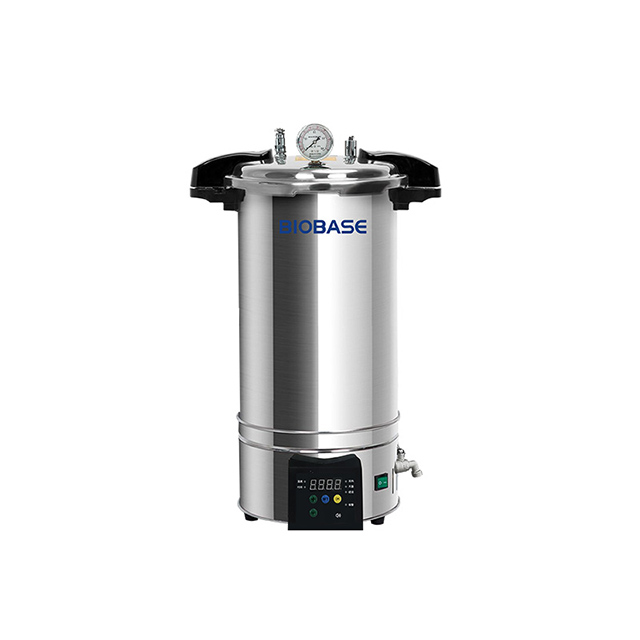

BKM-P18III BKM-P24III BKM-P18II BKM-P24II BKM-P18I BKM-P24I
BIOBASE
Features:
1. Self-expanding sealing ring has good sealing performance and can effectively prevent steam leakage.
2. Over-temperature and over-pressure automatic protection.
3. Immersion electric heating tube, high thermal efficiency, durable stainless steel tube.
4. Equipped with a water level gauge, if the water level is too low, it will automatically stop heating(anti-dry type).
5. Electric heating or liquefied petroleum gas heating(dual-use type).
6. With self-adjustment function, temperature and time can be adjusted by itself, automatically stop heating and alarm function after sterilization(timing control type).
7. Two safety valves keep double safety(timing control type).
Technical Parameters:
Model | BKM-P18I | BKM-P18II | BKM-P18III | BKM-24I | BKM-P24II | BKM-P24III |
Type | Dual-use Type | Anti-dry Type | Timing Control Type | Dual-use Type | Anti-dry Type | Timing Control Type |
Capacity | 18L | 24L | ||||
Max Working Pressure | 0.165MPa | |||||
Max Working Temp. | 129℃ | |||||
Rated Working Pressure | 0.14MPa | |||||
Rated Working Temp. | 126℃ | |||||
Temp. Setting | Fixed 126℃ | Fixed 126℃ | 105~127℃ | |||
Heating Method | Coal or electricity | Electricity | Coal or electricity | Electricity | ||
Sterilizing Time | Manual timing | 0~99min | Manual timing | 0~99min | ||
Chamber Size | Ф300*320mm | Ф280*350mm | Ф300*450mm | Ф280*460mm | ||
Altitude | ＜2600m | |||||
Disinfection Tank | Φ280*240mm | Φ265*265mm | Φ280*350mm | Φ265*375mm | ||
Automatic Control | No | Yes | No | Yes | ||
Low Water Level Power Off Mode | Anti-dry burning heating pipe | Water level switch | Anti-dry burning heating pipe | Water level switch | ||
Standard Accessories | Sealing rubber ring*1, O-type silicone sealing ring*3, Large gasket*2, Disinfection tank*1 | |||||
Consumption | 2KW, 1.5KW can be customized | |||||
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | |||||
External Size(W*D*H) | 385*385*450mm | 450*340*600mm | 385*385*560mm | 450*340*710mm | ||
Net Weight | 15.5kg | 13.5kg | 16.5kg | 14.5kg | ||
Package Size(W*D*H) | 400*400*430mm | 400*400*670mm | 400*400*530mm | 400*400*770mm | ||
Gross Weight | 16.5kg | 14.5kg | 17.5kg | 15.5kg | ||
Features:
1. Self-expanding sealing ring has good sealing performance and can effectively prevent steam leakage.
2. Over-temperature and over-pressure automatic protection.
3. Immersion electric heating tube, high thermal efficiency, durable stainless steel tube.
4. Equipped with a water level gauge, if the water level is too low, it will automatically stop heating(anti-dry type).
5. Electric heating or liquefied petroleum gas heating(dual-use type).
6. With self-adjustment function, temperature and time can be adjusted by itself, automatically stop heating and alarm function after sterilization(timing control type).
7. Two safety valves keep double safety(timing control type).
Technical Parameters:
Model | BKM-P18I | BKM-P18II | BKM-P18III | BKM-24I | BKM-P24II | BKM-P24III |
Type | Dual-use Type | Anti-dry Type | Timing Control Type | Dual-use Type | Anti-dry Type | Timing Control Type |
Capacity | 18L | 24L | ||||
Max Working Pressure | 0.165MPa | |||||
Max Working Temp. | 129℃ | |||||
Rated Working Pressure | 0.14MPa | |||||
Rated Working Temp. | 126℃ | |||||
Temp. Setting | Fixed 126℃ | Fixed 126℃ | 105~127℃ | |||
Heating Method | Coal or electricity | Electricity | Coal or electricity | Electricity | ||
Sterilizing Time | Manual timing | 0~99min | Manual timing | 0~99min | ||
Chamber Size | Ф300*320mm | Ф280*350mm | Ф300*450mm | Ф280*460mm | ||
Altitude | ＜2600m | |||||
Disinfection Tank | Φ280*240mm | Φ265*265mm | Φ280*350mm | Φ265*375mm | ||
Automatic Control | No | Yes | No | Yes | ||
Low Water Level Power Off Mode | Anti-dry burning heating pipe | Water level switch | Anti-dry burning heating pipe | Water level switch | ||
Standard Accessories | Sealing rubber ring*1, O-type silicone sealing ring*3, Large gasket*2, Disinfection tank*1 | |||||
Consumption | 2KW, 1.5KW can be customized | |||||
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | |||||
External Size(W*D*H) | 385*385*450mm | 450*340*600mm | 385*385*560mm | 450*340*710mm | ||
Net Weight | 15.5kg | 13.5kg | 16.5kg | 14.5kg | ||
Package Size(W*D*H) | 400*400*430mm | 400*400*670mm | 400*400*530mm | 400*400*770mm | ||
Gross Weight | 16.5kg | 14.5kg | 17.5kg | 15.5kg | ||
