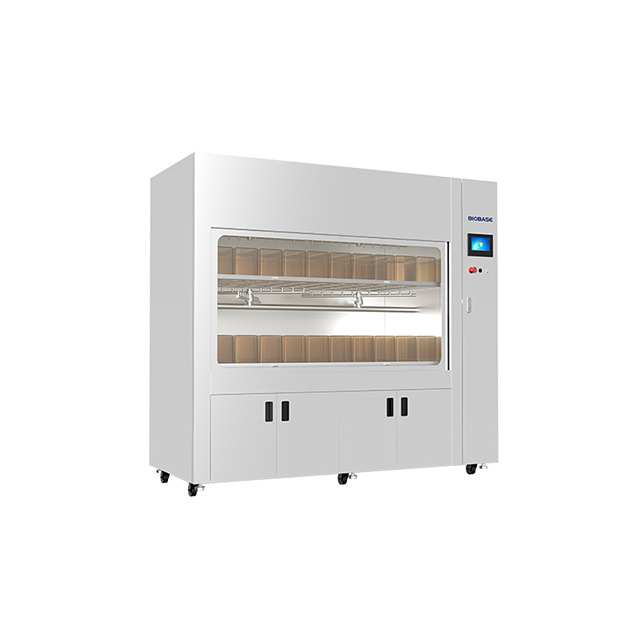

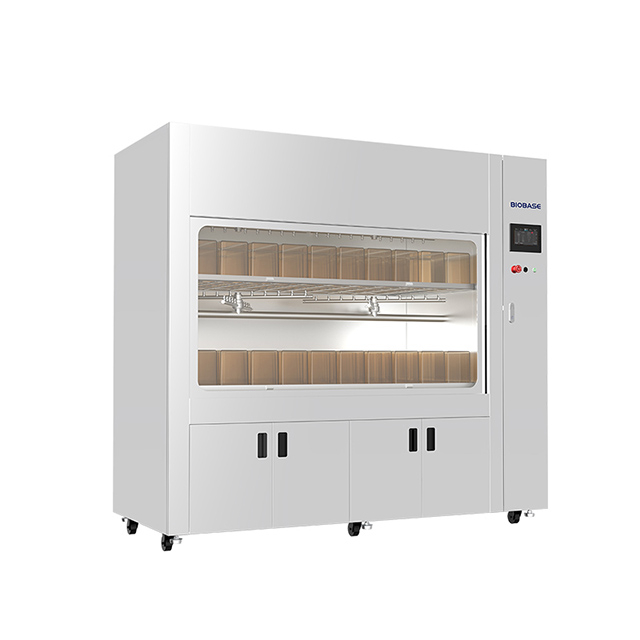

Automatic Animal Cage Washer

Introduction：
Automatic animal cage washer is suitable for automatic cleaning, disinfection and drying of animal cages, drinking bottles, feed boxes and other utensils in laboratory animal feeding.

Availability:

Quantity:



Inquire Add to Basket

Model:
BKCW-1500 BKCW-1500Z
Brand:
Biobase

Features:
1. Different batches and the same batch cleaning point cleaning effect is the same.

2. Realize the traceability management of cleaning data.

3. 7 inch color LCD touch screen, easy to operate.

4. Equipped with preheating water tank to reduce water heating preparation time.

5. The fast cleaning program can be cleaned once in 4~6 minutes to meet the fast cleaning.

6. Up to 40 mouse IVC cages can be cleaned at a time.

7. Through automatic program control of cleaning process and monitoring of key parameters, to achieve automated and standardized cleaning.

Technical Parameters:

Model	BKCW-1500	BKCW-1500Z
Capacity(L)	1500
Cleaning Volume	Up to 40 mouse IVC cages can be cleaned
Opening Mode	Automatic
Control System	PLC/Siemens
Touch Screen	7 inch
Cleaning Time	Quick cleaning program can be cleaned once in 4~6 minutes
Cleaning Temperature	≥60°C(Adjustable)
Rinsing Temperature	≥82°C(Adjustable)
Drying Temperature	RT~120℃(Optional)
Heating Method	Electric heating	Steam heating
Power Supply	AC380V/50Hz, 34KW	AC380V/50Hz, 4KW
Power Supply(Optional)	AC220V, 60Hz; 380V, 60Hz; 110V, 50/60Hz
Steam Source	/	Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h
Water Source	Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 25L/min
Compressed Air	Pressure: 0.5~0.7Mpa, Flow Rate: 100L/min
External Size(WDH)mm	21409251950
Package Size(WDH)mm	225010502160
Gross Weight(kg)	600
