| Quantity: | |
|---|---|

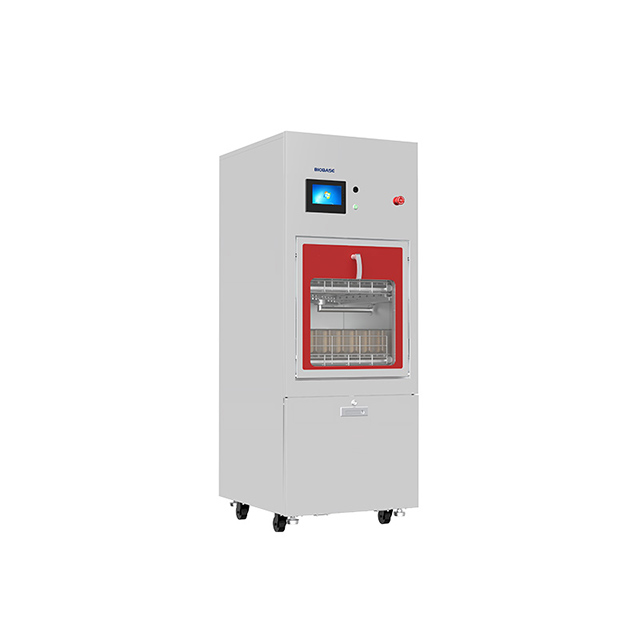

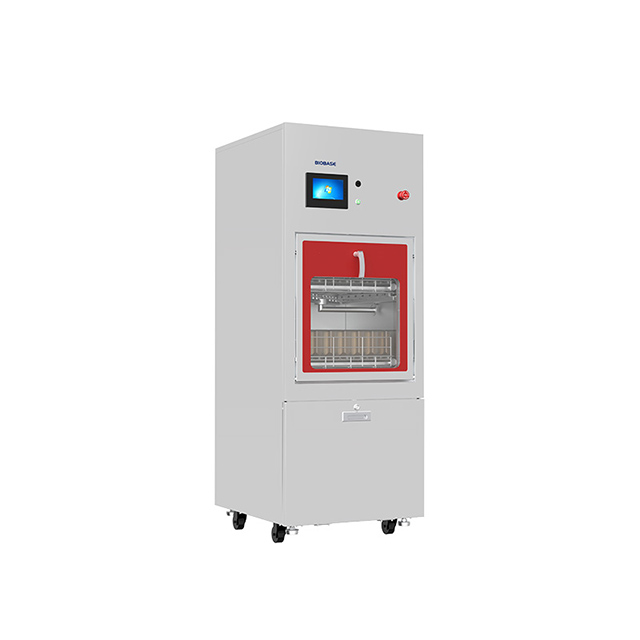

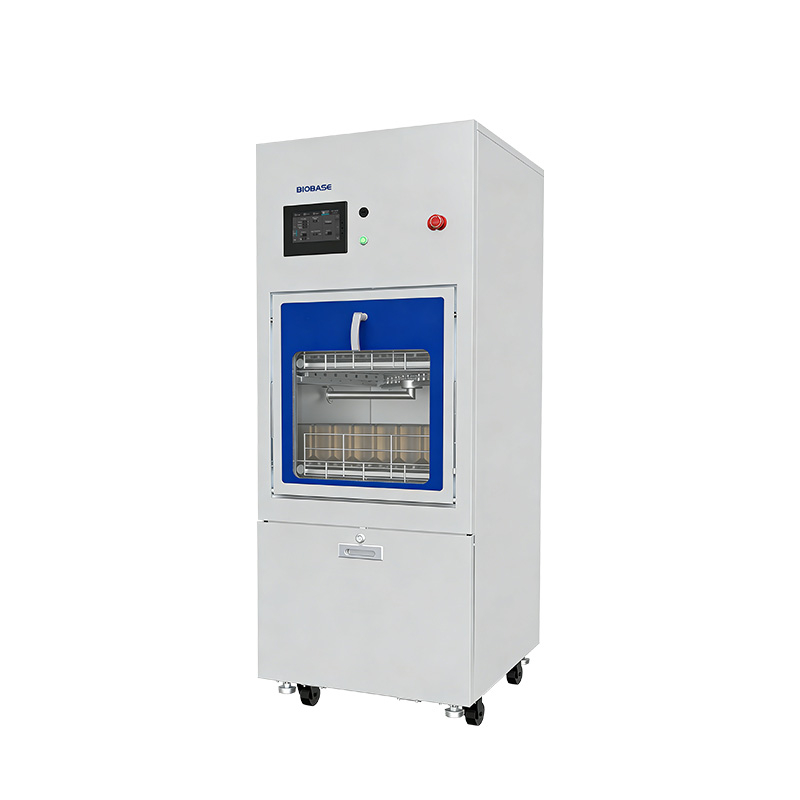

BK-CW330 BK-CW330Z
Biobase
Features：
1. Equipped with preheating water tank to reduce the cleaning water heating waiting time.
2. 4~6 minutes quick cleaning, can clean 72 drinking bottles at a time.
3. Original imported European circulation pump, large circulation design, spray strength, stable quality, effectively improve the cleaning effect.
4. The final rinse water is used for the next cleaning, saving water.
5. 7 inch color LCD touch screen, easy to operate.
6. Independently design and develop control systems to meet various operation and management needs.
Technical Parameters:
Model | BK-CW330 | BK-CW330Z |
Capacity(L) | 330 | |
Cleaning Volume | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 | |
Opening Mode | Manual | |
Control System | PLC/Siemens | |
Touch Screen | 7 Inch | |
Cleaning Time | Quick cleaning program can be cleaned once in 4-6 minutes | |
Cleaning Temperature | ≥60℃(Adjustable) | |
Rinsing Temperature | ≥82℃(Adjustable) | |
Drying Temperature | RT~120℃(Optional) | |
Heating Method | Electric heating | Steam heating |
Power Supply | AC380V, 50Hz, 17KW | AC 380V, 50Hz, 2KW |
Power Supply(Optional) | AC220V, 60Hz; 380V, 60Hz; 110V, 50/60Hz | |
Steam Source | / | |
Water Source | Softened Water: Pressure: 0.2~0.5Mpa Flow Rate: 15L/min | |
Compressed Air | Pressure: 0.5~0.7Mpa Flow Rate: 50L/min | |
External Size(W*D*H)mm | 690*790*1950 | |
Package Size(W*D*H)mm | 810*990*2185 | |
Gross Weight(kg) | 320 | |
