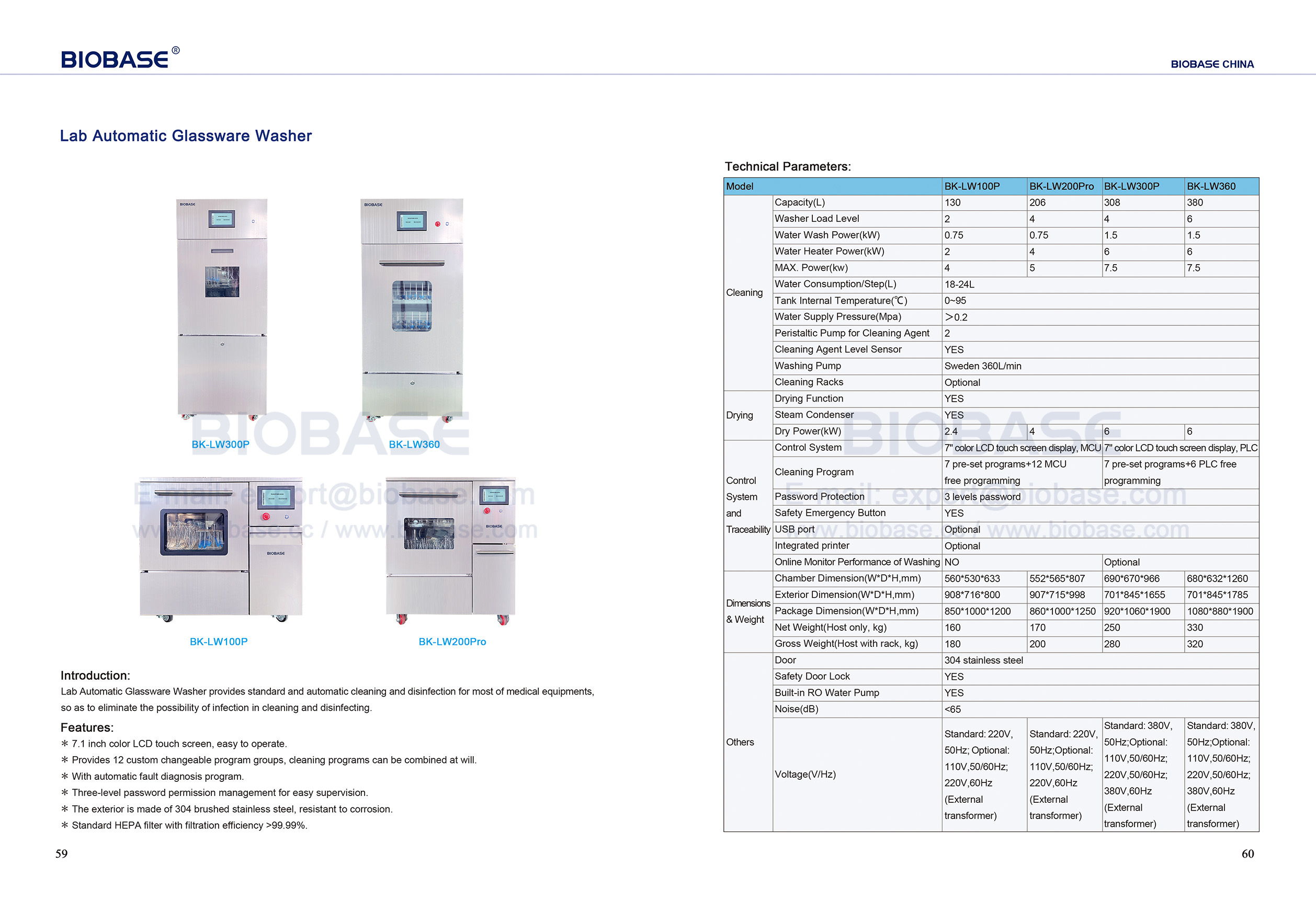

Introduction:
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.
| Quantity: | |
|---|---|

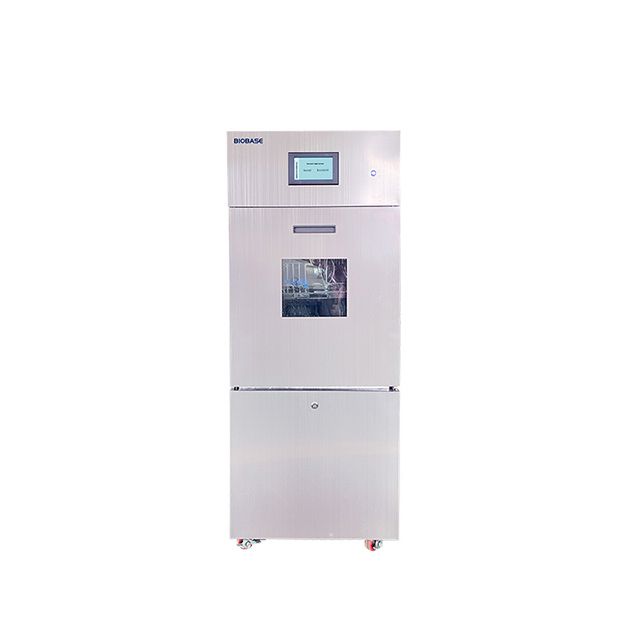

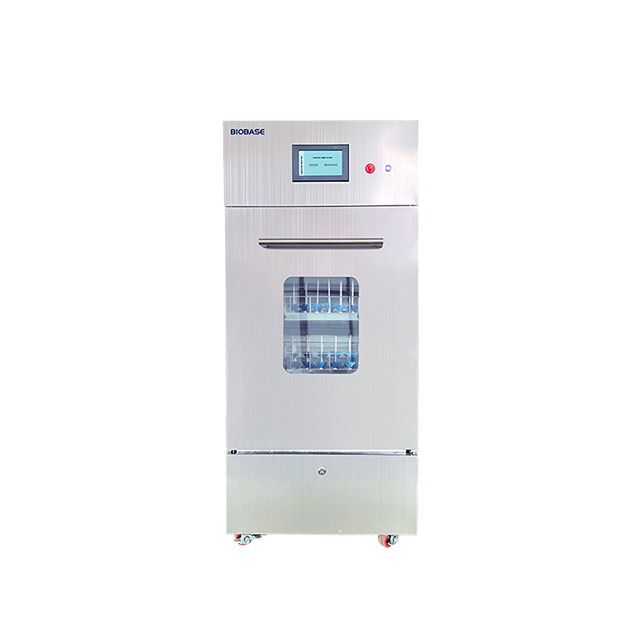

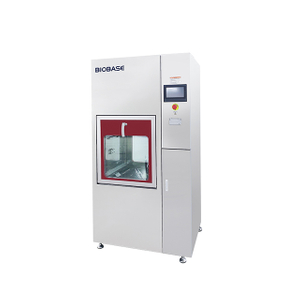

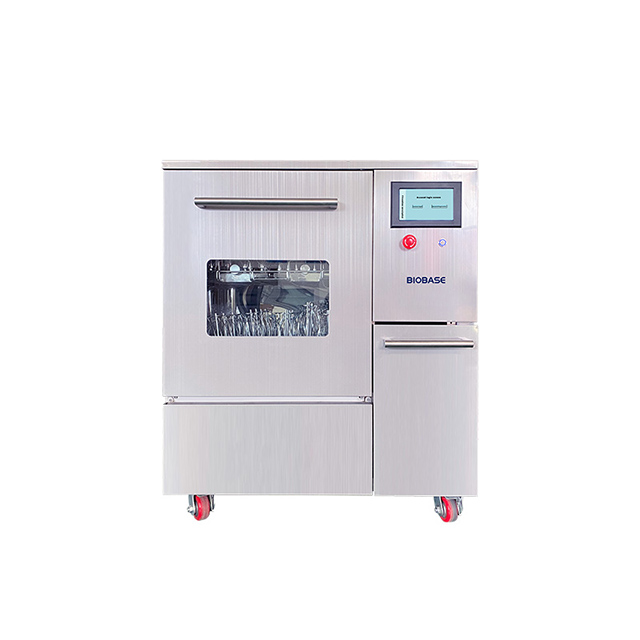

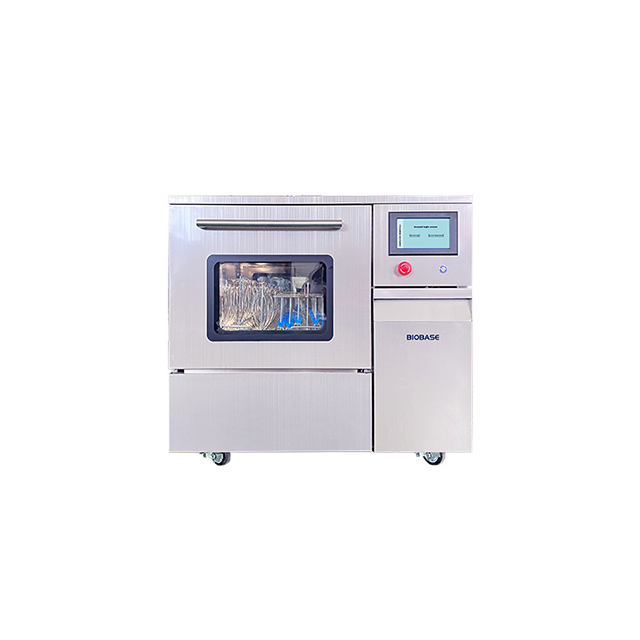

BK-LW100P BK-LW200Pro BK-LW300P BK-LW360
BIOBASE
Features:
1. 7.1 inch color LCD touch screen, easy to operate.
2. Provides 12 custom changeable program groups, cleaning programs can be combined at will.
3. With automatic fault diagnosis program.
4. Three-level password permission management for easy supervision.
5. The exterior is made of 304 brushed stainless steel, resistant to corrosion.
6. Standard HEPA filter with filtration efficiency >99.99%.

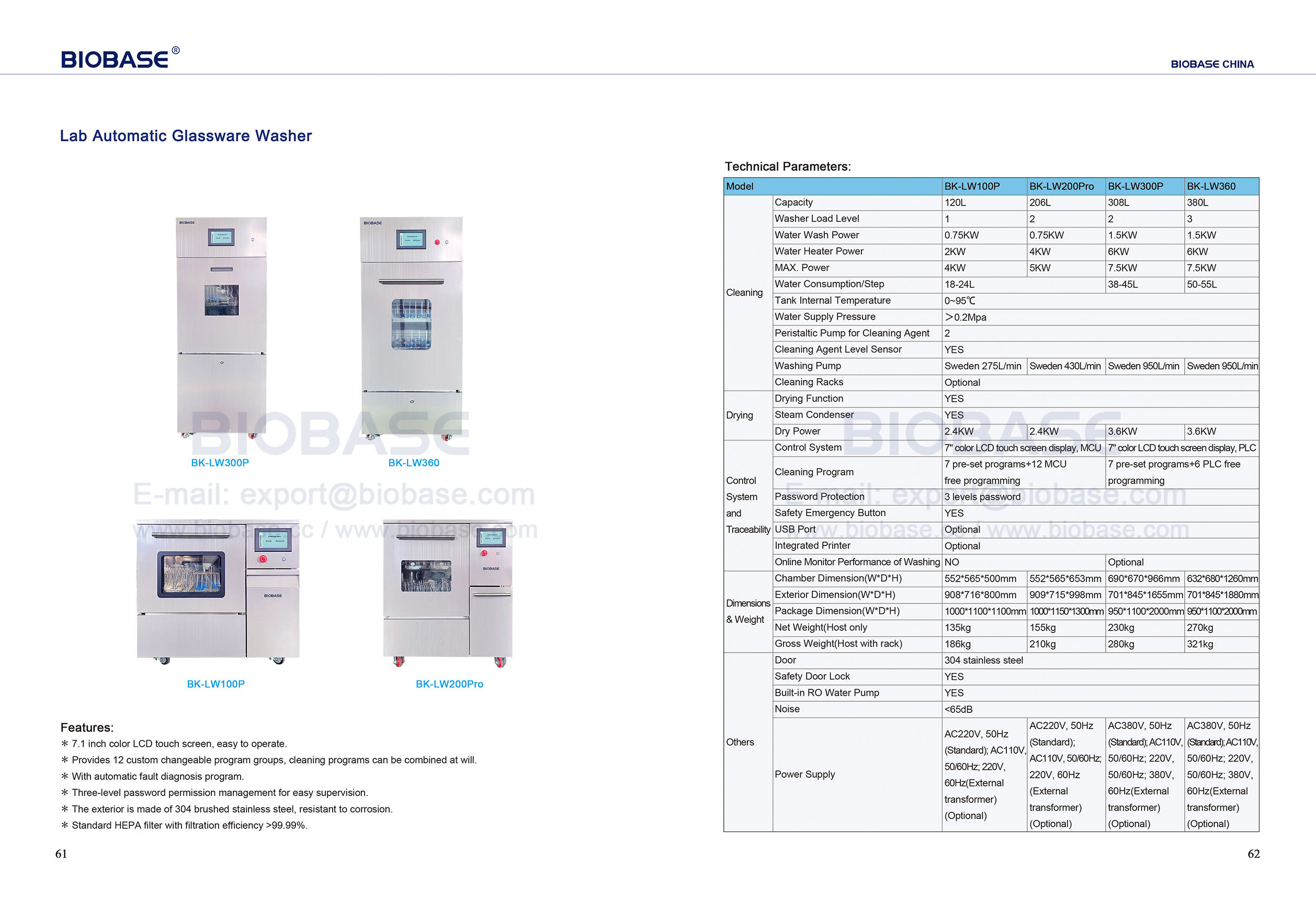

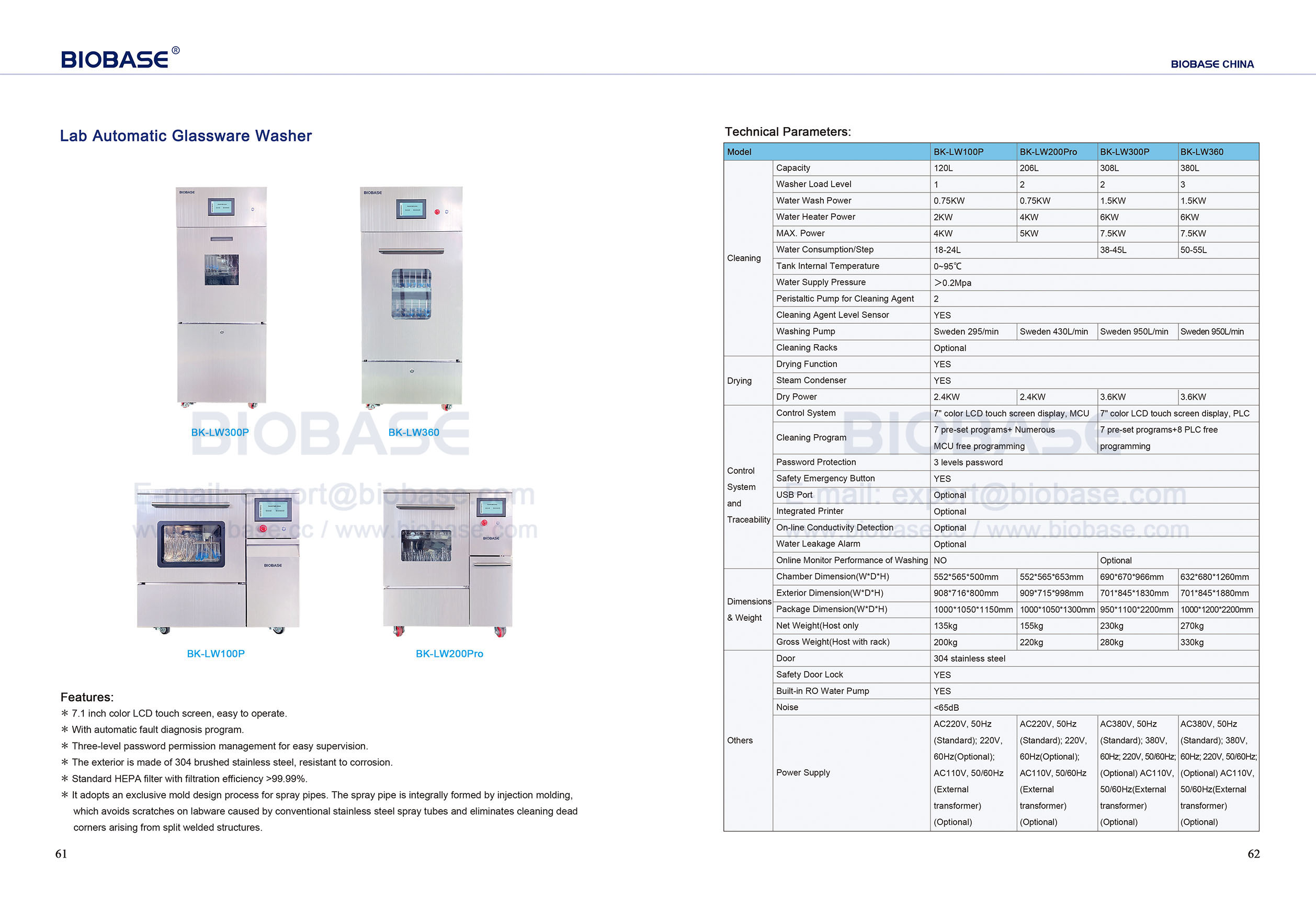

Technical Parameters:
Model | BK-LW100P | BK-LW200Pro | BK-LW300P | BK-LW360 | |
Cleaning | Capacity(L) | 130 | 206 | 308 | 380 |
Washer Load Level | 2 | 4 | 4 | 6 | |
Water Wash Power(KW) | 0.75 | 0.75 | 1.5 | 1.5 | |
Water Heater Power(KW) | 2 | 4 | 6 | 6 | |
MAX. Power(KW) | 4 | 5 | 7.5 | 7.5 | |
Water Consumption/Step(L) | 18~24L | ||||
Tank Internal Temperature(℃) | 0~95 | ||||
Water Supply Pressure(Mpa) | ＞0.2 | ||||
Peristaltic Pump for Cleaning Agent | 2 | ||||
Cleaning Agent Level Sensor | YES | ||||
Washing Pump | Sweden 360L/min | ||||

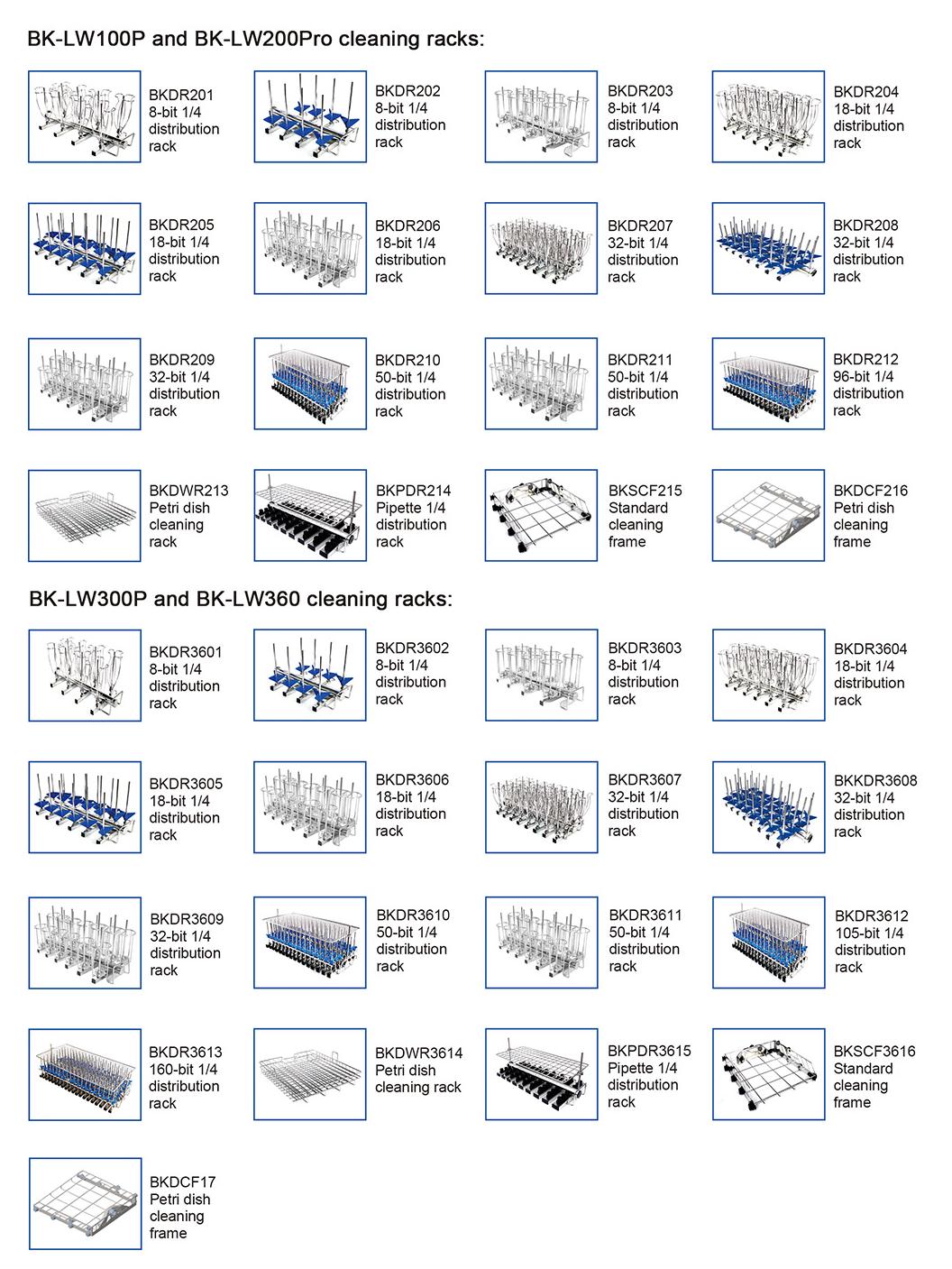

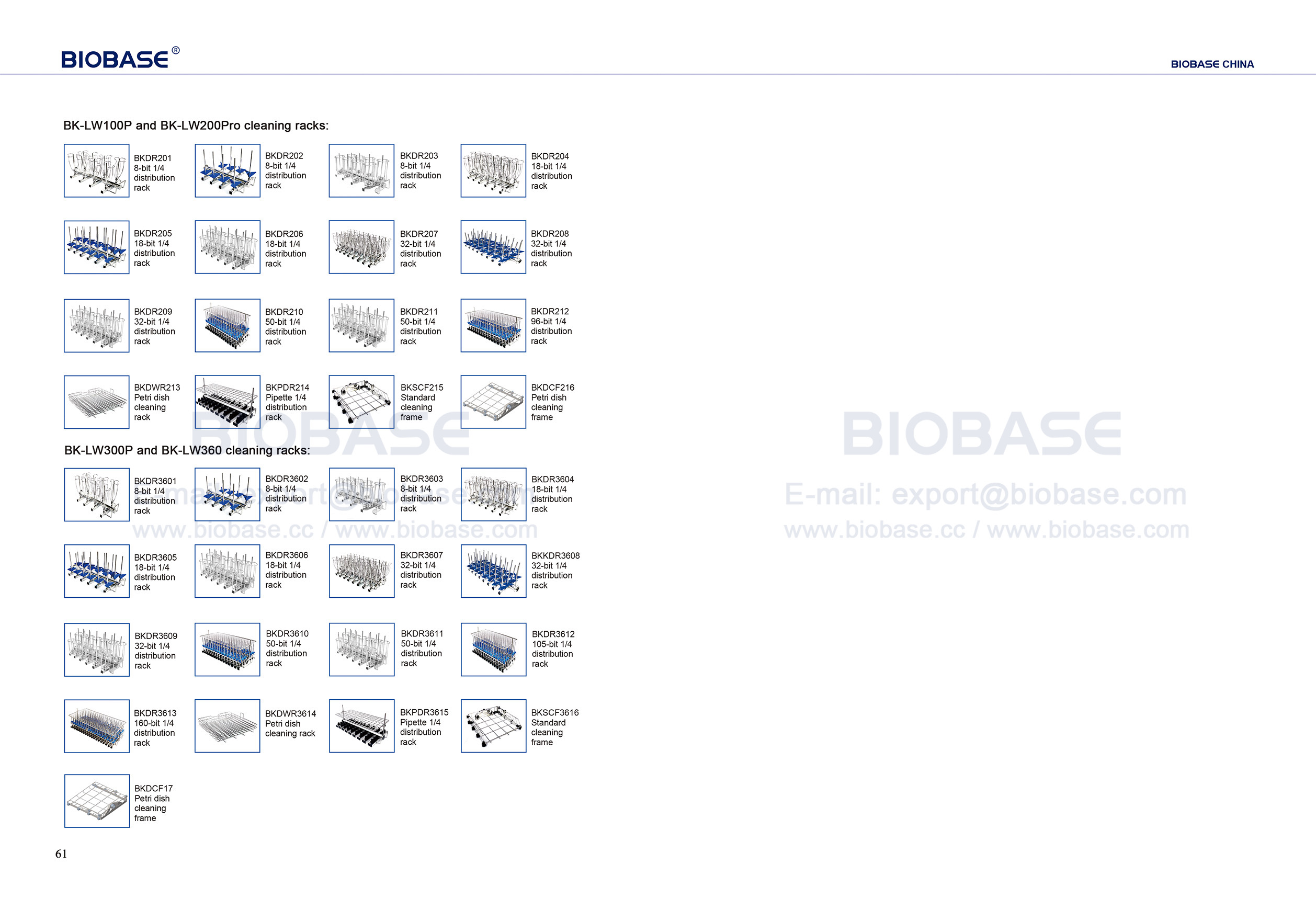

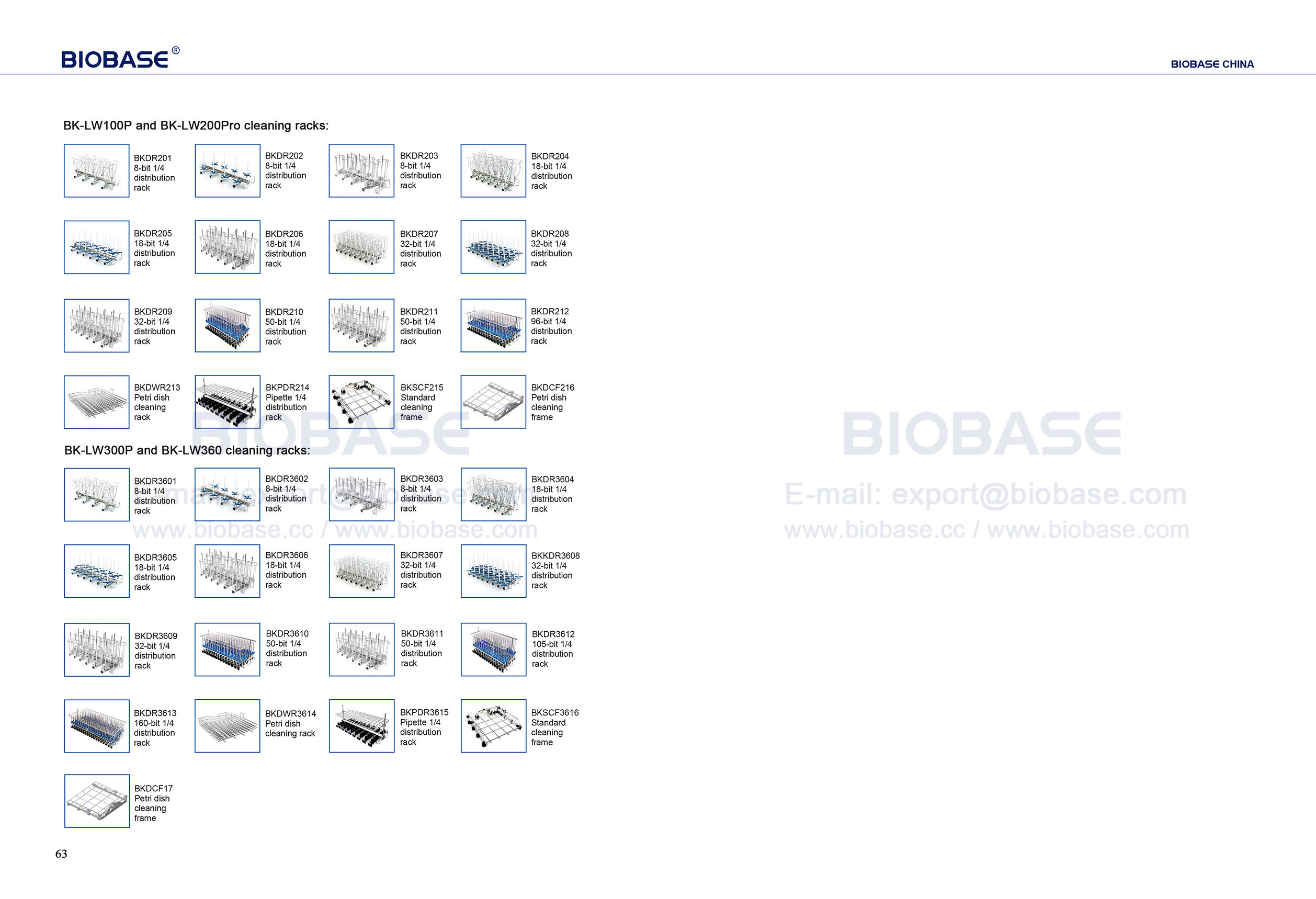

Cleaning Racks | Optional | ||||
Drying | Drying Function | YES | |||
Steam Condenser | YES | ||||
Dry Power(KW) | 2.4 | 4 | 6 | 6 | |
Control System and Traceability | Control System | 7" color LCD touch screen display, MCU | 7" color LCD touch screen display, PLC | ||
Cleaning Program | 7 pre-set programs+12 MCU free programming | 7 pre-set programs+6 PLC free programming | |||
Password Protection | 3 levels password | ||||
Safety Emergency Button | YES | ||||
USB Port | Optional | ||||
Integrated Printer | Optional | ||||
Online Monitor Performance of Washing | NO | Optional | |||
Dimensions&Weight | Chamber Dimension(W*D*H, mm) | 560*530*633 | 552*565*807 | 690*670*966 | 680*632*1260 |
Exterior Dimension(W*D*H, mm) | 908*716*800 | 907*715*998 | 701*845*1655 | 701*845*1785 | |
Package Dimension(W*D*H, mm) | 850*1000*1200 | 860*1000*1250 | 920*1060*1900 | 1080*880*1900 | |
Net Weight(Host only, kg) | 160 | 170 | 250 | 330 | |
Gross Weight(Host with rack, kg) | 180 | 200 | 280 | 320 | |
Others | Door | 304 stainless steel | |||
Safety Door Lock | YES | ||||
Built-in RO Water Pump | YES | ||||
Noise(dB) | <65 | ||||
Voltage(V/Hz) | Standard: 220V, 50Hz: Optional: 110V, 50/60Hz; 220V, 60Hz(External transformer) | Standard: 220V, 50Hz; Optional: 110V, 50/60Hz；220V, 60Hz(External transformer) | Standard: 380V, 50Hz；Optional: 110V, 50/60Hz; 220V, 50/60Hz; 380V, 60Hz(External transformer) | Standard: 380V, 50Hz: Optional: 110V, 50/60Hz; 220V, 50/60Hz; 380V, 60Hz(External transformer) | |
