Electric Wheelchair MFN803 Series

Introduction:
The Electric Wheelchair is designed for individuals with mobility challenges, offering an easy-to-use, comfortable, and reliable solution for both indoor and outdoor navigation. Powered by a rechargeable battery, this wheelchair provides smooth movement with minimal effort, enabling users to maintain their independence.

Availability:

Quantity:



Inquire Add to Basket

Model:
MFN803A MFN803B MFN803C MFN803D MFN803E MFN803F
Brand:
BIOBASE

Features:

1. Humanized intelligent controller, 360°sensitive control, mobile APP control.

2. Front wheel honeycomb wheel, rear wheel aluminum alloy hub tires, good shock absorption function.

3. High efficiency energy-saving dual motor, hand/electric mode one key switch.

4. Intelligent electromagnetic brake system.

5. Durable lithium battery, stable power supply performance, easy to disassemble.

6. High elastic memory sponge back cushion, cushion comfortable and smooth.

7. Aviation aluminum alloy frame, bearing 120kg, optional color can be customized.

Electric Wheelchair

Technical Parameters:

Model	MFN803A	MFN803B	MFN803C	MFN803D	MFN803E	MFN803F
Front Wheel Diameter	8 inches
Rear Wheel Diameter	12 inches
Seat Width	460mm
Seat Depth	420mm
Seat Height	510mm
Instrument Size(WDH)	1040630980mm
Max Speed	4.5km/h
Endurance Mileage	Standard: 12~15km Optional: 20~25km
Climbing Ability	6°
Loading Capacity	120kg
Fold Mode	Manual	Electric	Manual	Electric	Electric	Manual
Back Lying Mode	/		Manual		Electric
Back Lying Angle	/		100~135°
Battery	Lithium batteries Standard: 24V12Ah Optional: 24V20Ah
Power Supply	AC100~240V, 50/60Hz
Standard Accessory	/		Adjustable headrest

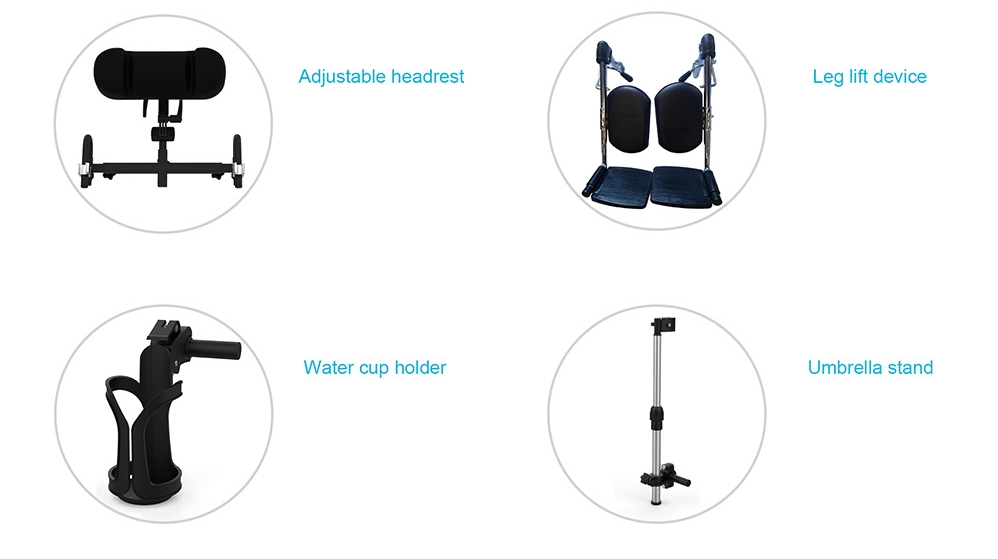

Optional Accessory	Honeycomb rear wheel, adjustable headrest, leg lift device, water cup holder, umbrella stand
Package Size(WDH)	680450880mm(±20mm)
Net Weight	29kg	30kg	29kg	31kg	33kg	30kg
Gross Weight	35kg	37kg	37kg	39kg	41kg	38kg
