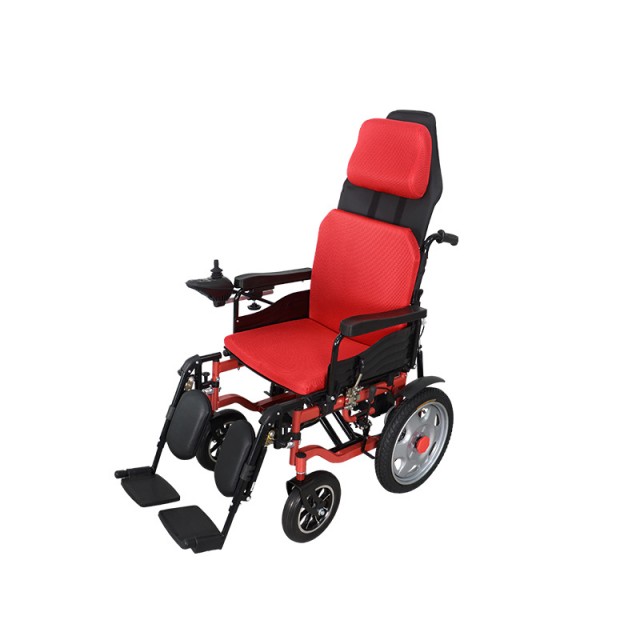

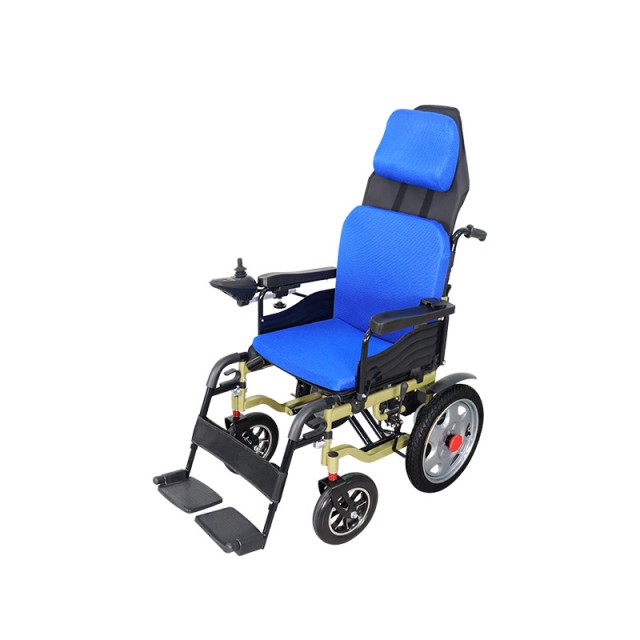

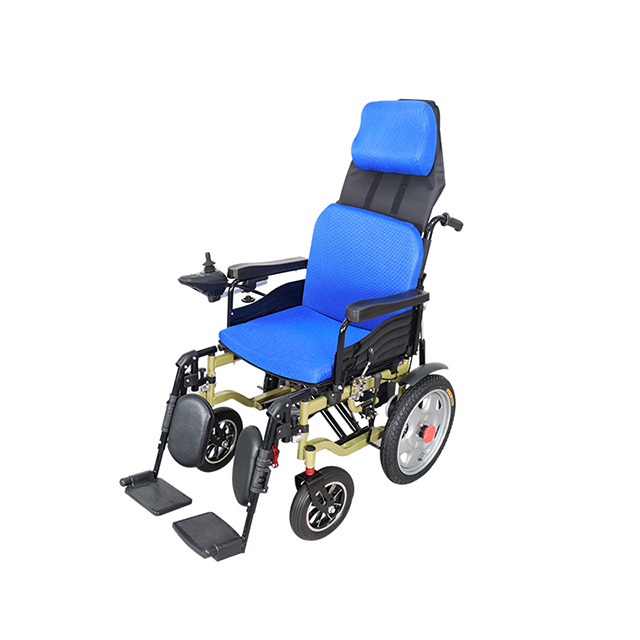

MFW805BT MFW805BTQ MFW805CT MFW805CTQ MFW805DT MFW805DTQ MFW805ET MFW805ETQ
BIOBASE
Features:
1. Humanized intelligent controller, 360° sensitive control, mobile APP control, optional wireless telecontroller.
2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.

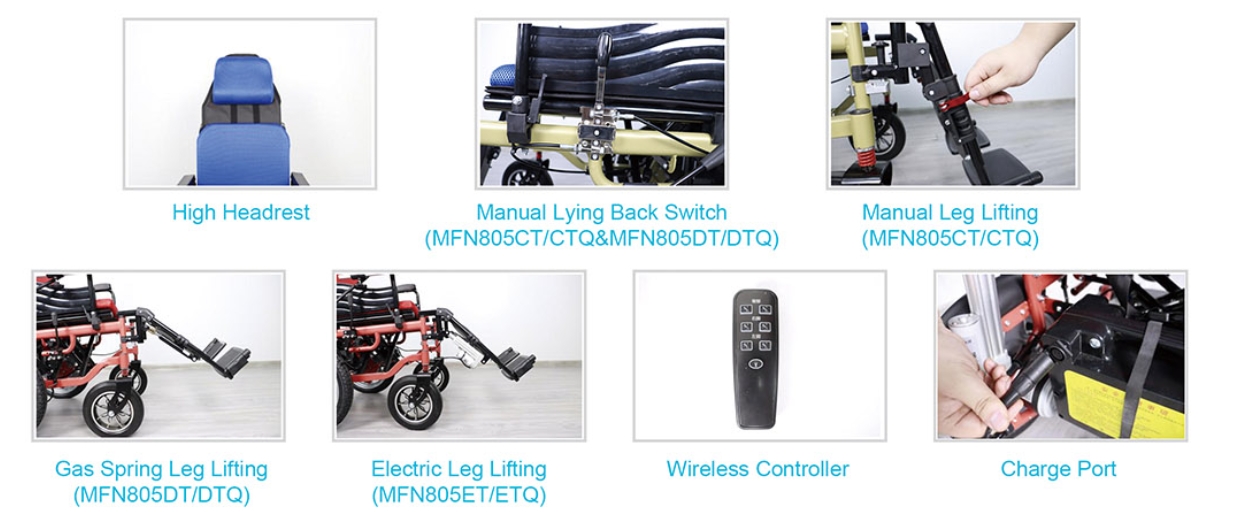

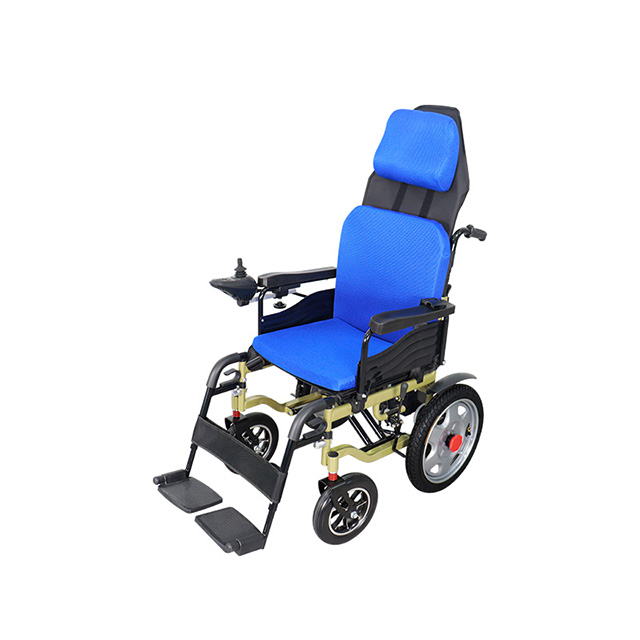

3. The high backrest is fixed so that users can not lie back(MFW805BT/BTQ).
4. High backrest for pneumatic lying back and manual leg lifting(MFW805CT/BTQ).
5. High backrest for pneumatic lying back and pneumatic leg lifting(MFW805DT/DTQ).

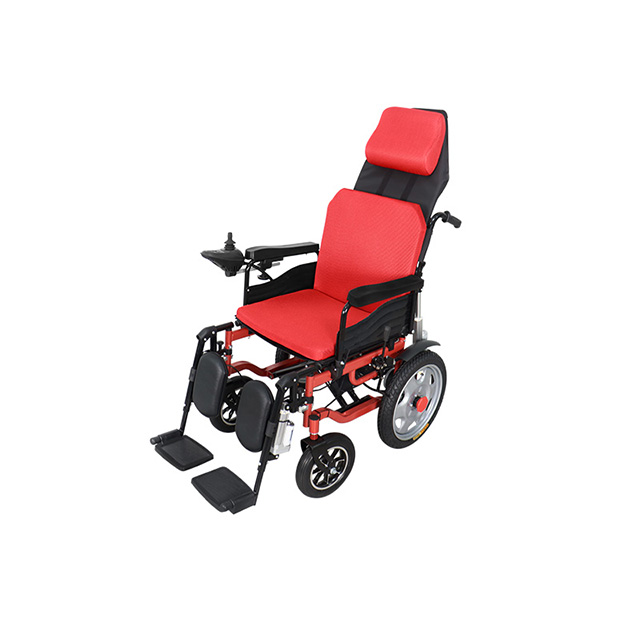

6. Electric remote control high backrest for lying back and electric leg lifting(MFW805ET/ETQ).

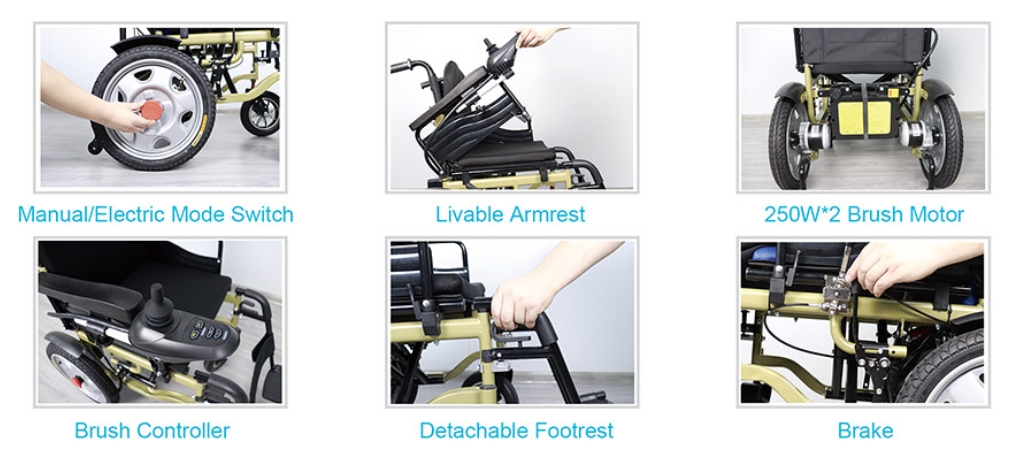

7. 250W high efficiency energy-saving dual motor.
8. Durable battery(Lead-acid or lithium battery alternative), stable power supply performance, easy to disassemble.
9. High-elastic memory sponge back cushion, breathable and indeformable, comfortable and stable.
10. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.
11. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.
Technical Parameters:
Model | MFW805BT | MFW805CT | MFW805DT MFW805DTQ | MFW805ET MFW805ETQ |
Front Wheel Diameter | 10 inches | |||
Rear Wheel Diameter | 16 inches | |||
Seat Width | 460mm | |||
Seat Depth | 400mm | |||
Seat Height | 575mm | |||
Max. Speed | 4.5km/h | |||
Endurance Mileage | 15~20km | About 20km | ||
Climbing Ability | ≥3° | |||
Loading Capacity | 120kg | |||
Fold Mode | Manual | |||
Battery | Lithium battery(MFN805BT, MFN805CT, MFN805DT, MFN805ET) Lead-acid battery(MFN805BTQ, MFN805CTQ, MFN805DTQ, MFN805ETQ) Standard: 24V12Ah Optional: 24V20Ah | |||
Motor | DC24V 250W*2, brush motor | |||
Power Supply | AC100~240V, 50/60Hz | |||
Controller | 45A, brush controller | |||
Charge Time | 2A charger, 6~8h | |||
Standard Accessory | 250W*2 brush motor, Brush controller | |||
Optional Accessory | Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP | |||
Unfold Size | 1130*650*1300mm | |||
Net Weight(Not including charger and battery) | 35.5kg | 38.5kg | 39kg | 40.5kg |
Package Size | 680*450*880mm | |||
Gross Weight | 40kg | 43kg | 43.5kg | 45kg |
Features:
1. Humanized intelligent controller, 360° sensitive control, mobile APP control, optional wireless telecontroller.
2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.
3. The high backrest is fixed so that users can not lie back(MFW805BT/BTQ).
4. High backrest for pneumatic lying back and manual leg lifting(MFW805CT/BTQ).
5. High backrest for pneumatic lying back and pneumatic leg lifting(MFW805DT/DTQ).
6. Electric remote control high backrest for lying back and electric leg lifting(MFW805ET/ETQ).
7. 250W high efficiency energy-saving dual motor.
8. Durable battery(Lead-acid or lithium battery alternative), stable power supply performance, easy to disassemble.
9. High-elastic memory sponge back cushion, breathable and indeformable, comfortable and stable.
10. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.
11. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.
Technical Parameters:
Model | MFW805BT | MFW805CT | MFW805DT MFW805DTQ | MFW805ET MFW805ETQ |
Front Wheel Diameter | 10 inches | |||
Rear Wheel Diameter | 16 inches | |||
Seat Width | 460mm | |||
Seat Depth | 400mm | |||
Seat Height | 575mm | |||
Max. Speed | 4.5km/h | |||
Endurance Mileage | 15~20km | About 20km | ||
Climbing Ability | ≥3° | |||
Loading Capacity | 120kg | |||
Fold Mode | Manual | |||
Battery | Lithium battery(MFN805BT, MFN805CT, MFN805DT, MFN805ET) Lead-acid battery(MFN805BTQ, MFN805CTQ, MFN805DTQ, MFN805ETQ) Standard: 24V12Ah Optional: 24V20Ah | |||
Motor | DC24V 250W*2, brush motor | |||
Power Supply | AC100~240V, 50/60Hz | |||
Controller | 45A, brush controller | |||
Charge Time | 2A charger, 6~8h | |||
Standard Accessory | 250W*2 brush motor, Brush controller | |||
Optional Accessory | Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP | |||
Unfold Size | 1130*650*1300mm | |||
Net Weight(Not including charger and battery) | 35.5kg | 38.5kg | 39kg | 40.5kg |
Package Size | 680*450*880mm | |||
Gross Weight | 40kg | 43kg | 43.5kg | 45kg |
