| Quantity: | |
|---|---|

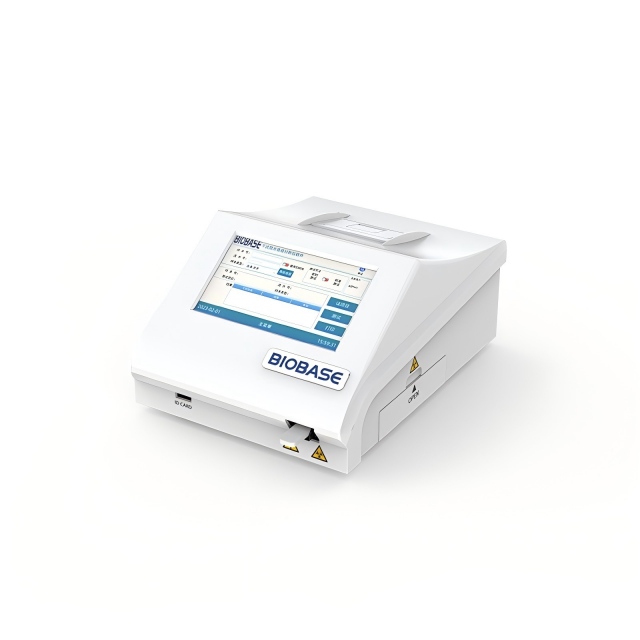

BKP1000
BIOBASE
Application:
It is suitable for clinical diagnosis of disease control medical treatment, health examination centers, scientific research institutions and laboratories, food hygiene and safety testing, blood product companies, central blood stations, etc.
Features:
1. The instrument is compact, easy to carry, can be connected to the code scanner, and can be connected to the LIS/HIS system.
2. The test results are automatically printed.
3. Sample types: Serum, plasma, whole blood and urine.
4. Sample instant test can be performed at any time, with random sample insertion function.
5. Supports multiple items in one card, and the detection time can reach 8 seconds/test.
6. Appearance design integration, 7-inch color touch screen.
7. It can provide two operation modes of instant test and standard test.
Technical Parameters:
Model | BKP1000 |
Excitation Light Source | LED |
Wavelength | Excitation wavelength λ0=365nm Detection wavelength λ1=615nm |
Detection Channel | 1 |
Sample Type | Serum, plasma, whole blood and urine, etc |
Detection Mode | Supports multiple items in one card |
Testing Speed | ＜10s/test |
Repeatability | CV≤5% |
Stability | σ≤±8% |
Linear Correlation | (r)≥0.98 |
Accuracy | Δn≤±8% |
Display | 7-inch color touch screen |
Language | Chinese, English, Other languages can be customized |
Interface | RS232, USB, ethernet port |
Printer | Built-in thermal printer |
Power Supply | 100~240V, 50/60Hz |
External Size(L*W*H)mm | 228*312*158 |
Net Weight(kg) | 3 |
Package Size(L*W*H)mm | 455*325*245 |
Gross Weight(kg) | 4.5 |
Note: Equipped with 5 CRP tests cards for installation and testing.
