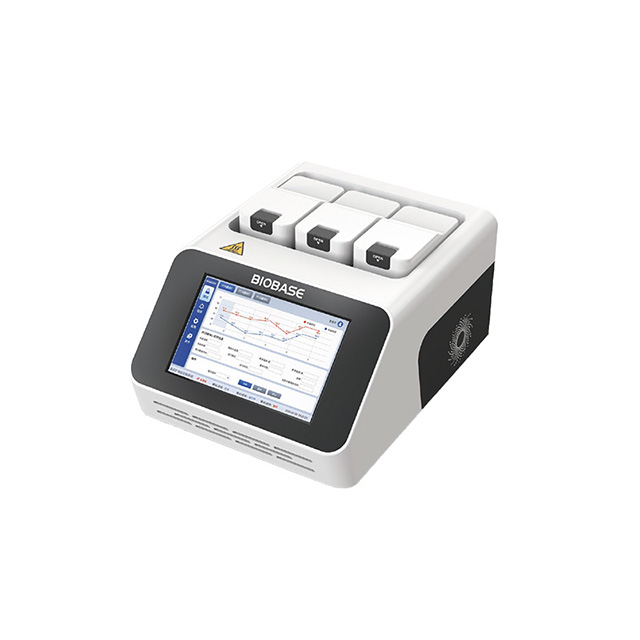

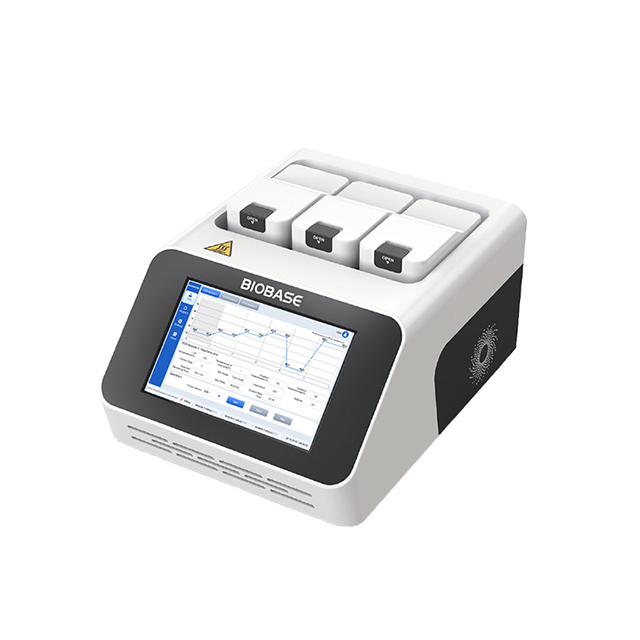

Gene Amplification Instrument

Introduction:

The gene amplification instrument is an instrument that performs nucleic acid amplfication by polymerase chain reaction.
Mainly used in Medical institutions, clinical gene amplification testing laboratories that meet the requirements, scientific research institutes, universities, etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
TEC01 TEC03
Brand:
BIOBASE

Features:

1. Reliable performance of heating and cooling elements, high-performance temperature control system.
2. High-performance digital signal processor for precise temperature control.
3. Excellent temperature uniformity.

4. Rapid heating and cooling.

5. Color touch panel, easy to operate.
6. Support large-capacity program storage.

Technical Parameters:

Model	TEC01	TEC03
Capacity	96	3*32
Reaction Volume	10~200μl
Tube Type	960.2ml PCR plate; 80.2ml PCR tube; 0.2ml single PCR tube	8*0.2ml PCR tube; 0.2ml single PCR tube
Block Temperature Range	4℃~105℃
Heat Lid Temperature Range	30℃~110℃
Max Heating Rate	4.0℃/s	7.7℃/s
Max Cooling Rate	2.5℃/s	4.6℃/s
Display Resolution	0.1℃
Temperature Accuracy	±0.5℃	±0.3℃
Temperature Uniformity	±1℃	±0.3℃
Block Material	Aluminum
Gradient Range	30~99℃	30~105℃
Temperature Differential Range	1~42℃	1~25℃
Program	A single program can be up to 30 steps, 99 cycles	A single program can be up to 99+ steps, 120 cycles
Display	7" LCD	10.1" LCD
Power Supply	110V~220V, 50/60Hz
External Size(LWH)	398280257mm	445340240mm
Net Weight	11kg	14kg
Package Size(LWH)	495380380mm	600480380mm
Gross Weight	17kg	25kg
