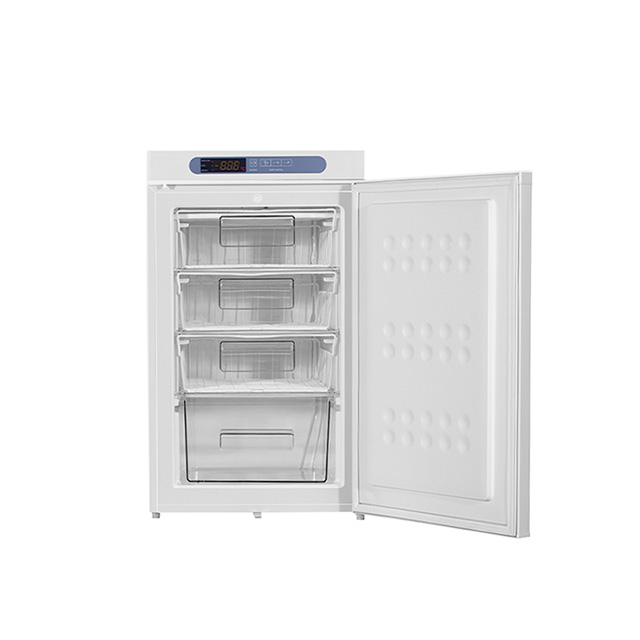

BDF-25V100 BDF-25V936
BIOBASE
Technical Parameters
| Model | BDF-25V100 | BDF-25V936 | |
| External Size(W*D*H) mm Internal Size(W*D*H) mm Capacity | 540*540*880 410*410*670 100L | 1304*1000*2017 1000*700*1335 936L | |
| Type | Vertical | ||
| Temp.Range Temp.Accuracy Control System | -10℃~～-25℃ 0.1℃ Microprocessor control,LED Digital Display | ||
Audible and Visual Alarm | High and low temperature alarm, sensor failure alarm, power failure alarm, door open alarm, etc. | High and low temperature alarm, sensor failure alarm,thermostat failure alarm, power failure alarm, door open alarm, ambient temperature alarm, condenser failure alarm, filter inspection alarm,abnormal voltage alarm,low battery alarm. | |
| Alarm Method Refrigeration type Refrigerant | Sound beeps and lights flash Direct refrigeration | ||
| R600a | R404A | ||
| Construction | Foam Layer Thickness lnternal Material | 65m mHIPS | 150mm |
| Sprayed steel plate | |||
| Consumption Power Supply | 150w AC220V+10%,50/60Hz | 1000w AC110V/220V±10%,50/60Hz | |
| Package Size (W'D*H) mm Gross Weight | 610*625*950 43kg | 1360*1135*2170 421kg | |
Technical Parameters
| Model | BDF-25V100 | BDF-25V936 | |
| External Size(W*D*H) mm Internal Size(W*D*H) mm Capacity | 540*540*880 410*410*670 100L | 1304*1000*2017 1000*700*1335 936L | |
| Type | Vertical | ||
| Temp.Range Temp.Accuracy Control System | -10℃~～-25℃ 0.1℃ Microprocessor control,LED Digital Display | ||
Audible and Visual Alarm | High and low temperature alarm, sensor failure alarm, power failure alarm, door open alarm, etc. | High and low temperature alarm, sensor failure alarm,thermostat failure alarm, power failure alarm, door open alarm, ambient temperature alarm, condenser failure alarm, filter inspection alarm,abnormal voltage alarm,low battery alarm. | |
| Alarm Method Refrigeration type Refrigerant | Sound beeps and lights flash Direct refrigeration | ||
| R600a | R404A | ||
| Construction | Foam Layer Thickness lnternal Material | 65m mHIPS | 150mm |
| Sprayed steel plate | |||
| Consumption Power Supply | 150w AC220V+10%,50/60Hz | 1000w AC110V/220V±10%,50/60Hz | |
| Package Size (W'D*H) mm Gross Weight | 610*625*950 43kg | 1360*1135*2170 421kg | |
