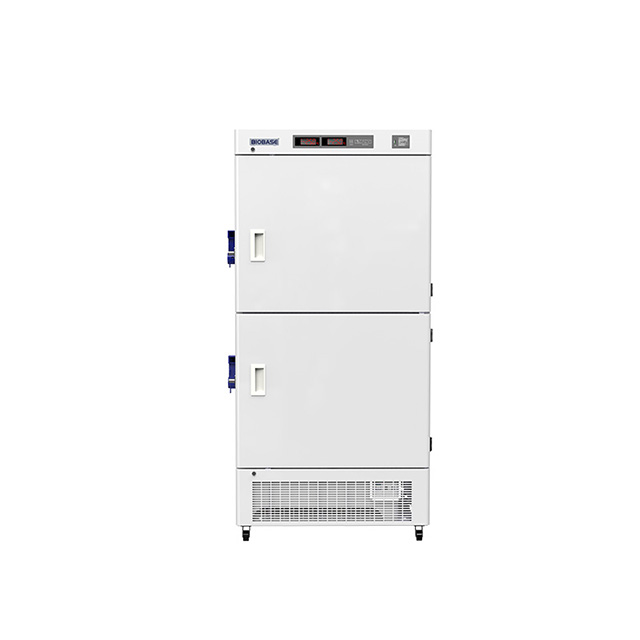

-25℃ Freezer BDF-25V368D BDF-25V528D

Introduction:
The -25 ° C freezer can be used for scientific research, low temperature test of special materials, low temperature test of frozen plasma, biological materials, vaccines, biological products, etc. Applicable to scientific research institutes, electronics industry, chemical industry, hospitals, university laboratories, etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
BDF-25V368D BDF-25V528D
Brand:
BIOBASE

Technical Parameters:

Model			BDF-25V368D		BDF-25V528D
Capacity			368L		528L
Temp. Range			-10~-25℃
Temp. Accuracy			0.1℃
Temp. Uniformity			≤3℃
Temp. Stability			≤3℃
Recovery Time(Recover to -22℃ in an ambient temp. of 25℃)			≤15min
Cooling Time(Cool down to -25℃ in an ambient temp. of 25℃)			≤1.5h
Control System			Microprocessor control
Display			LED display
Alarm			High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type			Direct-cooling
Refrigerant			Upper chamber: R290, 50g; Lower chamber: R290, 50g	Upper chamber: R290, 62g; Lower chamber: R290, 62g
Compressor			International famous brand compressor/2
Condenser&Evaporator			Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost			Manual defrost
Construction			Polyurethane cyclopentane foam
Material		Internal Material	304 stainless steel
		External Material	Sprayed steel plate
Door			Outer door: cyclopentane integral foam outer door*2 Inner door: optional
Consumption			718W		821W
Power Supply			AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters			Yes
Shelf			4
Standard Accessory			Test hole*2, USB interface, shelf
Optional Accessory			RS485 interface, inner door, temperature recorder
Internal Size(WDH)	Upper Chamber		580575563mm		720649563mm
	Lower Chamber
External Size(WDH)			7507361884mm		8908101884mm
Package Size(WDH)			8908802100mm		10309502100mm
Net Weight			153kg		177kg
Gross Weight			168kg		200kg
