Introduction:
The -25 ° C freezer can be used for scientific research, low temperature test of special materials, low temperature test of frozen plasma, biological materials, vaccines, biological products, etc. Applicable to scientific research institutes, electronics industry, chemical industry, hospitals, university laboratories, etc.
| Quantity: | |
|---|---|
BDF-25H110 BDF-25H210 BDF-25H310
BIOBASE

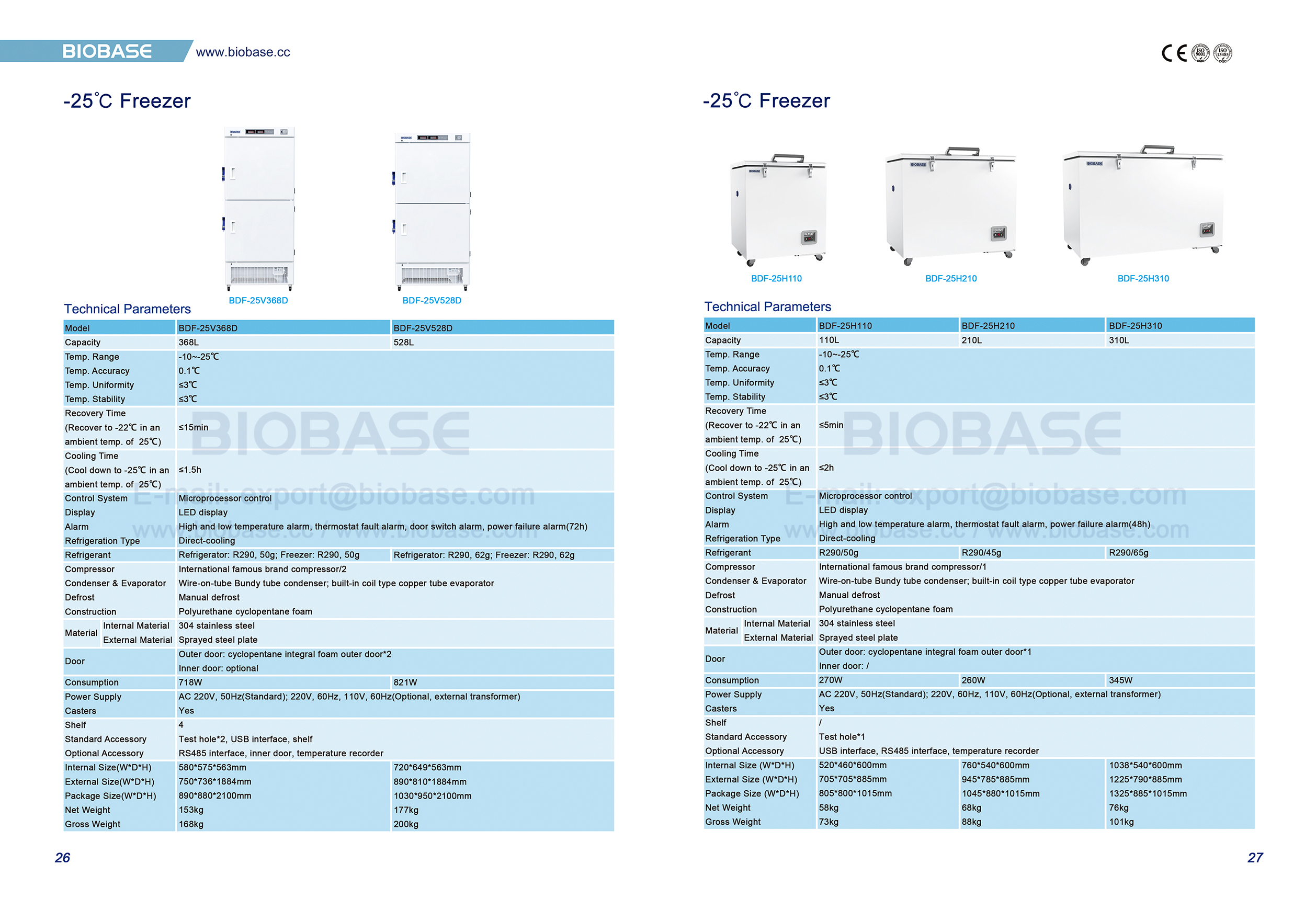

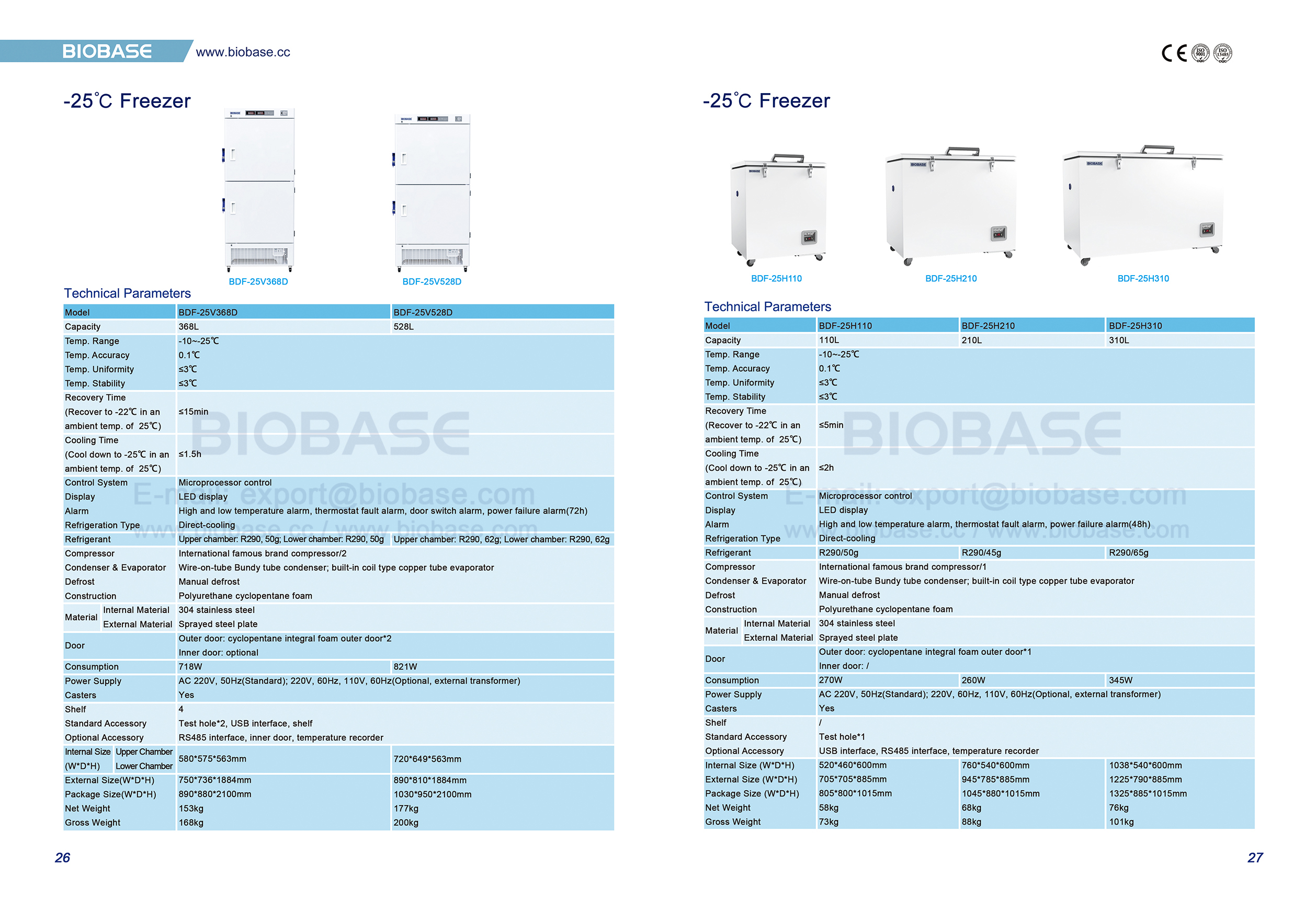

Technical Parameters:
Model | BDF-25H110 | BDF-25H210 | BDF-25H310 | |
Capacity | 110L | 210L | 310L | |
Temp. Range | -10~-25℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤3℃ | |||
Temp. Stability | ≤3℃ | |||
Recovery Time(Recover to -22℃ in an ambient temp. of 25℃) | ≤5min | |||
Cooling Time(Cool down to -25℃ in an ambient temp. of 25℃) | ≤2h | |||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, power failure alarm(48h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290/50g | R290/45g | R290/65g | |
Compressor | International famous brand compressor/1 | |||
Condenser&Evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane integral foam outer door*1 Inner door: / | |||
Consumption | 270W | 260W | 345W | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | |||
Casters | Yes | |||
Shelf | / | |||
Standard Accessory | Test hole*1 | |||
Optional Accessory | USB interface, RS485 interface, temperature recorder | |||
Internal Size(W*D*H) | 520*460*600mm | 760*540*600mm | 1038*540*600mm | |
External Size(W*D*H) | 705*705*885mm | 945*785*885mm | 1225*790*885mm | |
Package Size(W*D*H) | 805*800*1015mm | 1045*880*1015mm | 1325*885*1015mm | |
Net Weight | 58kg | 68kg | 76kg | |
Gross Weight | 73kg | 88kg | 101kg | |
Technical Parameters:
Model | BDF-25H110 | BDF-25H210 | BDF-25H310 | |
Capacity | 110L | 210L | 310L | |
Temp. Range | -10~-25℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤3℃ | |||
Temp. Stability | ≤3℃ | |||
Recovery Time(Recover to -22℃ in an ambient temp. of 25℃) | ≤5min | |||
Cooling Time(Cool down to -25℃ in an ambient temp. of 25℃) | ≤2h | |||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, power failure alarm(48h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R290/50g | R290/45g | R290/65g | |
Compressor | International famous brand compressor/1 | |||
Condenser&Evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane integral foam outer door*1 Inner door: / | |||
Consumption | 270W | 260W | 345W | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | |||
Casters | Yes | |||
Shelf | / | |||
Standard Accessory | Test hole*1 | |||
Optional Accessory | USB interface, RS485 interface, temperature recorder | |||
Internal Size(W*D*H) | 520*460*600mm | 760*540*600mm | 1038*540*600mm | |
External Size(W*D*H) | 705*705*885mm | 945*785*885mm | 1225*790*885mm | |
Package Size(W*D*H) | 805*800*1015mm | 1045*880*1015mm | 1325*885*1015mm | |
Net Weight | 58kg | 68kg | 76kg | |
Gross Weight | 73kg | 88kg | 101kg | |
