BRF-40V318 BRF-40V368 BRF-40V450
BIOBASE

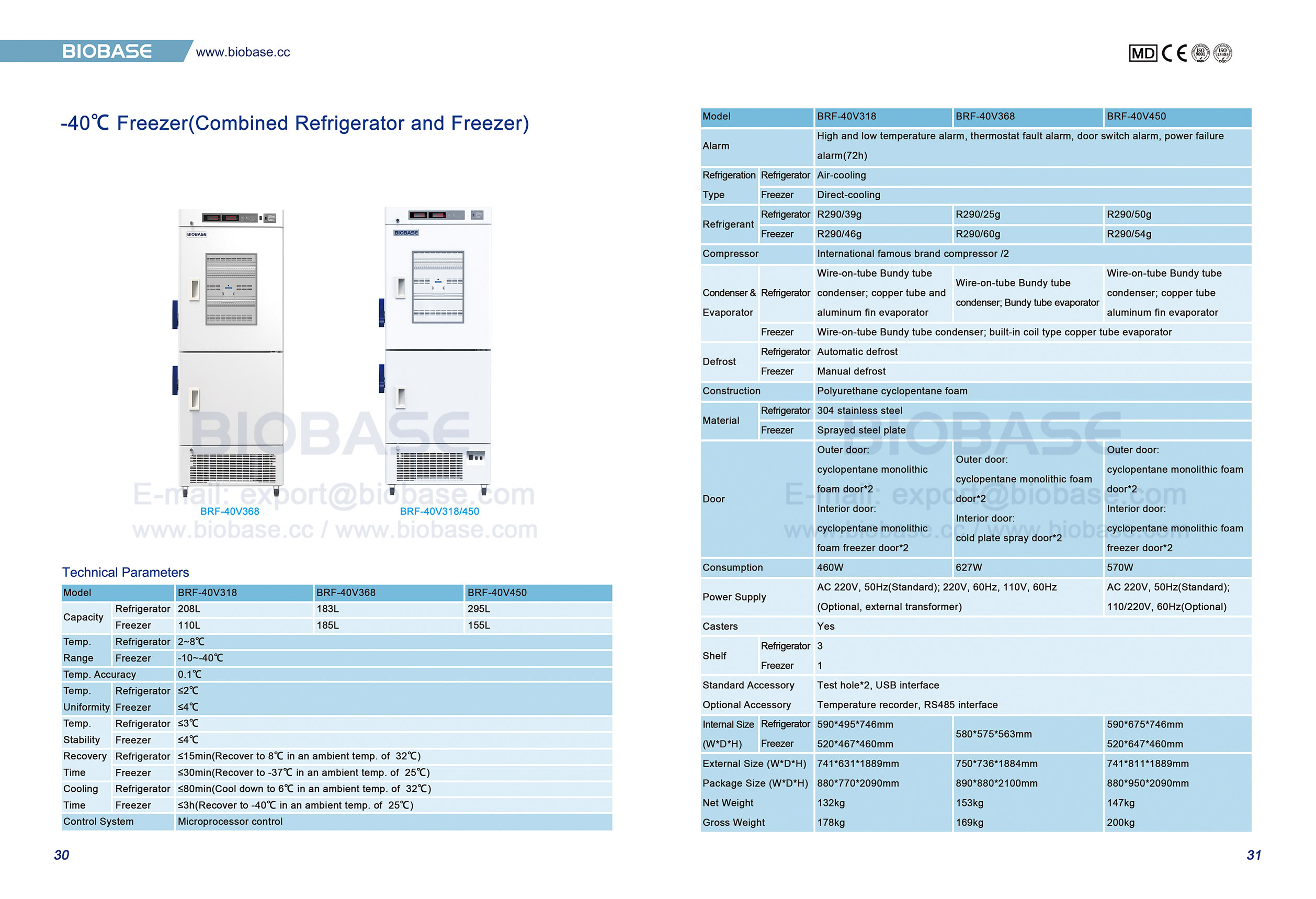

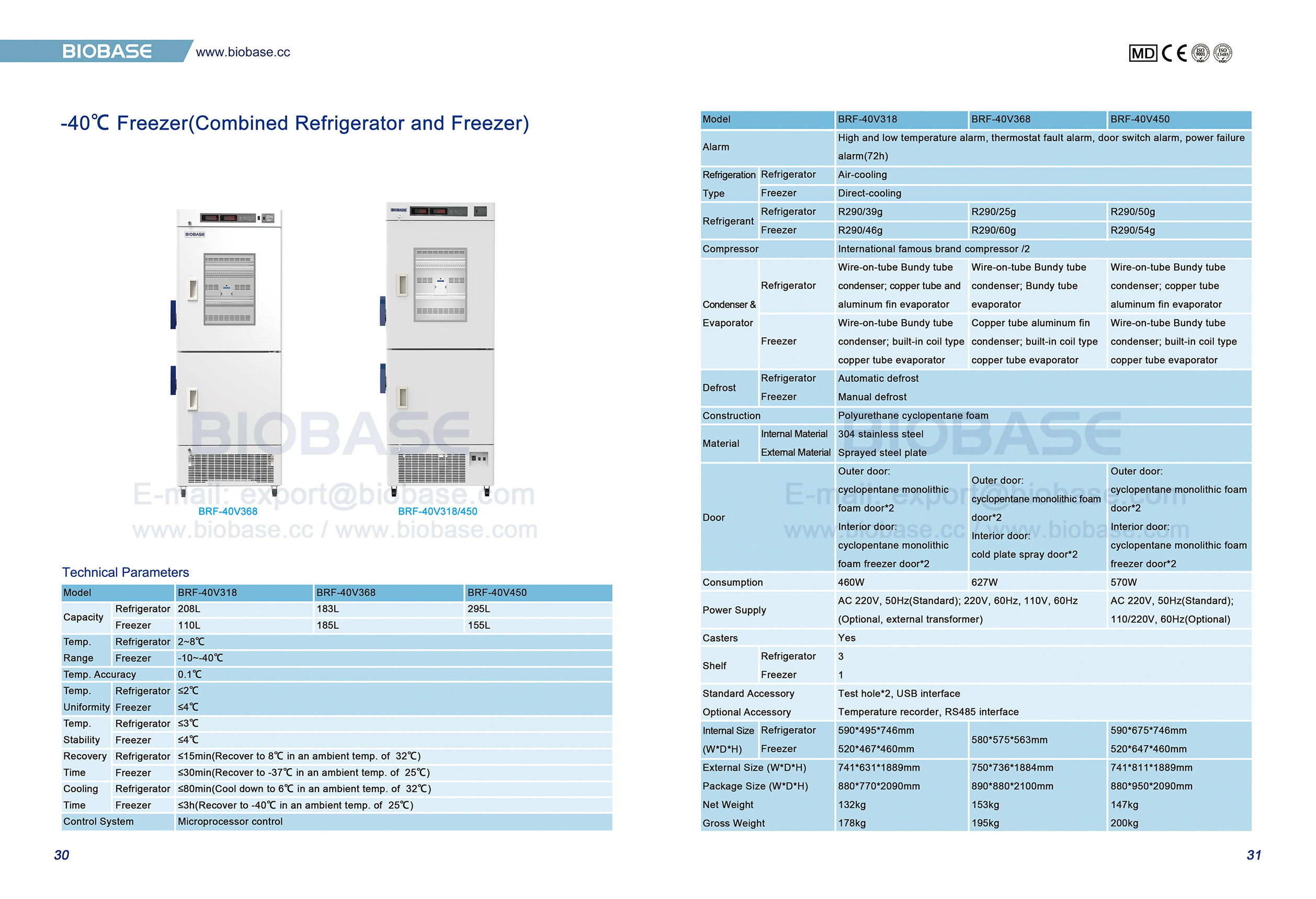

Technical Parameters:
Model | BRF-40V318 | BRF-40V368 | BRF-40V450 | |
Capacity | Refrigerator | 208L | 183L | 295L |
Freezer | 110L | 185L | 155L | |
Temp. Range | Refrigerator | 2~8℃ | ||
Freezer | -10~-40℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | Refrigerator | ≤2℃ | ||
Freezer | ≤4℃ | |||
Temp. Stability | Refrigerator | ≤3℃ | ||
Freezer | ≤4℃ | |||
Recovery Time | Refrigerator | ≤15min(Recover to 8℃ in an ambient temp. of 32℃) | ||
Freezer | ≤30min(Recover to -37℃ in an ambient temp. of 25℃) | |||
Cooling Time | Refrigerator | ≤80min(Cool down to 6℃ in an ambient temp. of 32℃) | ||
Freezer | ≤3h(Recover to -40℃ in an ambient temp. of 25℃) | |||
Control System | Microprocessor control | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Refrigerator | Air-cooling | ||
Freezer | Direct-cooling | |||
Refrigerant | Refrigerator | R290/39g | R290/25g | R290/50g |
Freezer | R290/46g | R290/60g | R290/54g | |
Compressor | International famous brand compressor/2 | |||
Condenser&Evaporator | Refrigerator | Wire-on-tube Bundy tube condenser; copper tube and aluminum fin evaporator | Wire-on-tube Bundy tube condenser; Bundy tube evaporator | Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator |
Freezer | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | |||
Defrost | Refrigerator | Automatic defrost | ||
Freezer | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane monolithic foam door*2 Interior door: cyclopentane monolithic foam freezer door*2 | Outer door: cyclopentane monolithic foam door*2 Interior door: cold plate spray door*2 | Outer door: cyclopentane monolithic foam door*2 Interior door: cyclopentane monolithic foam freezer door*2 | |
Consumption | 460W | 627W | 570W | |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||
Casters | Yes | |||
Shelf | Refrigerator | 3 | ||
Freezer | 1 | |||
Standard Accessory | Test hole*2, USB interface | |||
Optional Accessory | Temperature recorder, RS485 interface | |||
Internal Size(W*D*H) | Refrigerator | 590*495*746mm | 580*575*563mm | 590*675*746mm |
Freezer | 520*467*460mm | 520*647*460mm | ||
External Size(W*D*H) | 741*631*1889mm | 750*736*1884mm | 741*811*1889mm | |
Package Size(W*D*H) | 880*770*2090mm | 890*880*2100mm | 880*950*2090mm | |
Net Weight | 132kg | 153kg | 147kg | |
Gross Weight | 178kg | 169kg | 200kg | |
