Introduction:
-40℃ Low Temperature Freezer Two rooms design is suitable for storing multi kinds of samples that need different temperature, or some samples that need separate storage. This type of freezers has independent temperature control to help you save both room and power. BIOBASE always try to supply environment friendly products and economical& practical technologies to customers.
| Quantity: | |
|---|---|
BDF-40V368D BDF-40V528D
BIOBASE

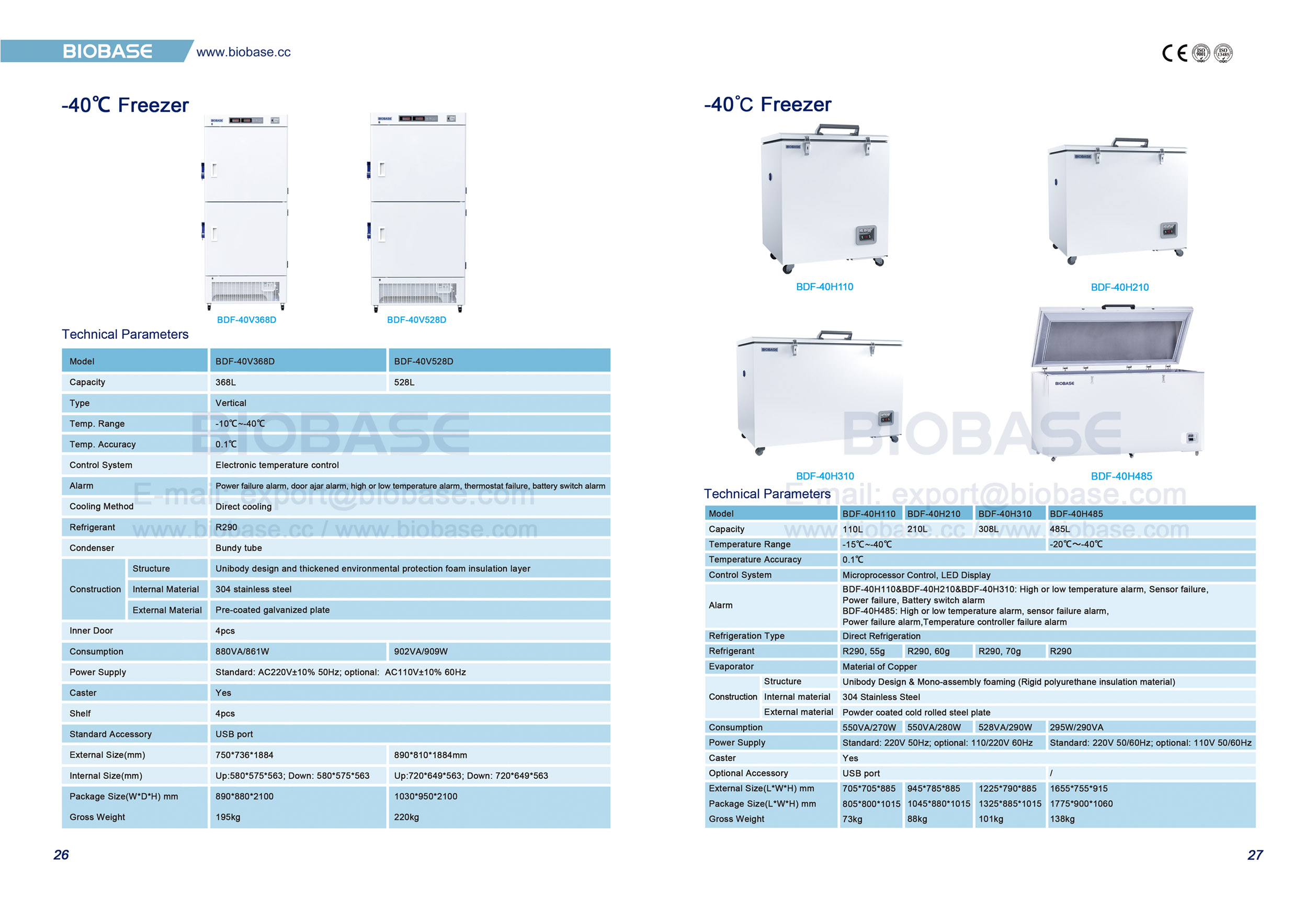

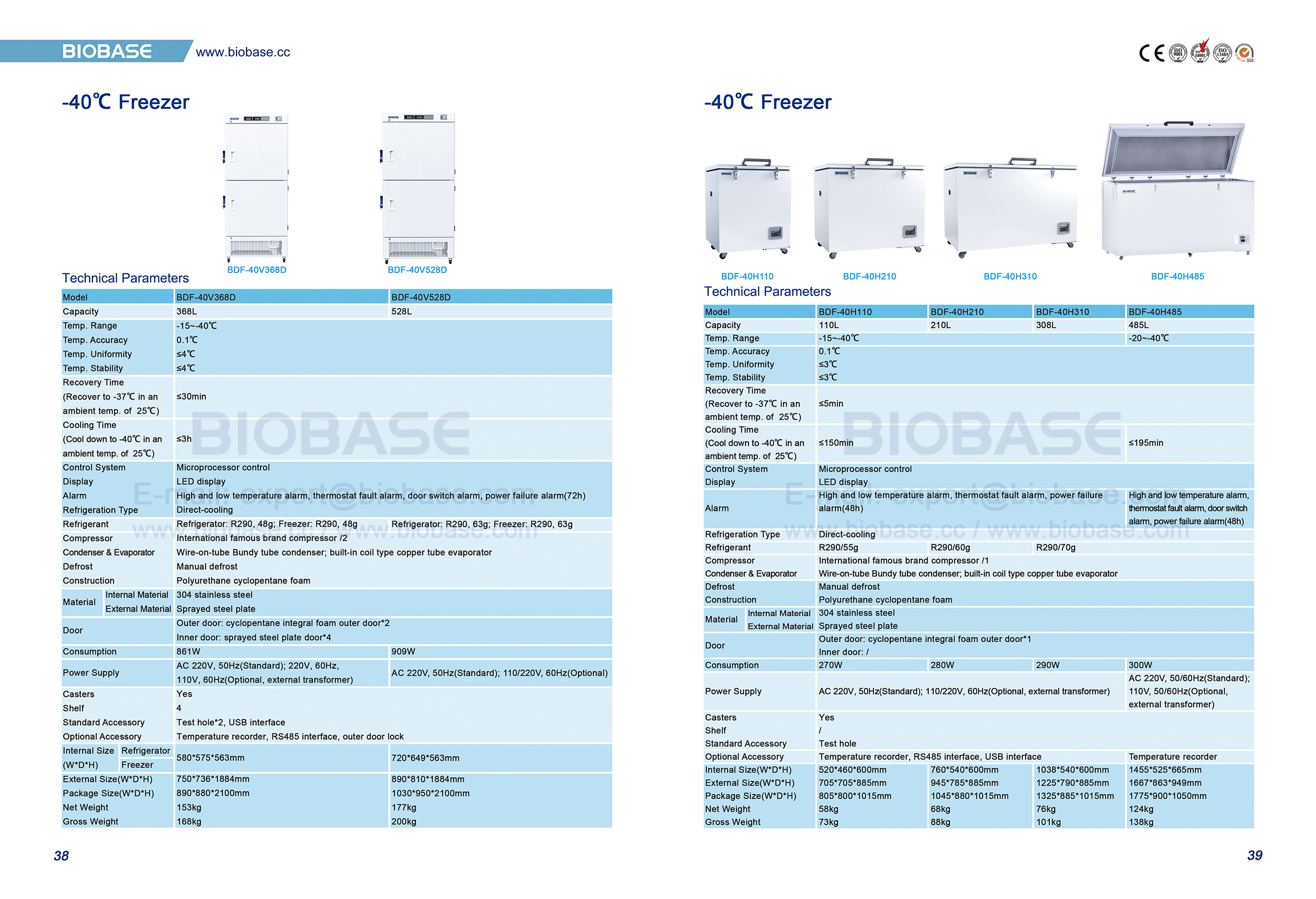

Technical Parameters:
Model | BDF-40V368D | BDF-40V528D | ||
Capacity | 368L | 528L | ||
Temp. Range | -15~-40℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤4℃ | |||
Temp. Stability | ≤4℃ | |||
Recovery Time(Recover to -37℃ in an ambient temp. of 25℃) | ≤30min | |||
Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃) | ≤3h | |||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | Refrigerator: R290, 48g Freezer: R290, 48g | Refrigerator: R290, 63g Freezer: R290, 63g | ||
Compressor | International famous brand compressor/2 | |||
Condenser & Evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane integral foam outer door*2 Inner door: sprayed steel plate door*4 | |||
Consumption | 861W | 909W | ||
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||
Casters | Yes | |||
Shelf | 4 | |||
Standard Accessory | Test hole*2, USB interface | |||
Optional Accessory | Temperature recorder, RS485 interface, outer door lock | |||
Internal Size(W*D*H) | Refrigerator | 580*575*563mm | 720*649*563mm | |
Freezer | ||||
External Size(W*D*H) | 750*736*1884mm | 890*810*1884mm | ||
Package Size(W*D*H) | 890*880*2100mm | 1030*950*2100mm | ||
Net Weight | 153kg | 177kg | ||
Gross Weight | 168kg | 200kg | ||
Technical Parameters:
Model | BDF-40V368D | BDF-40V528D | ||
Capacity | 368L | 528L | ||
Temp. Range | -15~-40℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤4℃ | |||
Temp. Stability | ≤4℃ | |||
Recovery Time(Recover to -37℃ in an ambient temp. of 25℃) | ≤30min | |||
Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃) | ≤3h | |||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | Refrigerator: R290, 48g Freezer: R290, 48g | Refrigerator: R290, 63g Freezer: R290, 63g | ||
Compressor | International famous brand compressor/2 | |||
Condenser & Evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane integral foam outer door*2 Inner door: sprayed steel plate door*4 | |||
Consumption | 861W | 909W | ||
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||
Casters | Yes | |||
Shelf | 4 | |||
Standard Accessory | Test hole*2, USB interface | |||
Optional Accessory | Temperature recorder, RS485 interface, outer door lock | |||
Internal Size(W*D*H) | Refrigerator | 580*575*563mm | 720*649*563mm | |
Freezer | ||||
External Size(W*D*H) | 750*736*1884mm | 890*810*1884mm | ||
Package Size(W*D*H) | 890*880*2100mm | 1030*950*2100mm | ||
Net Weight | 153kg | 177kg | ||
Gross Weight | 168kg | 200kg | ||
