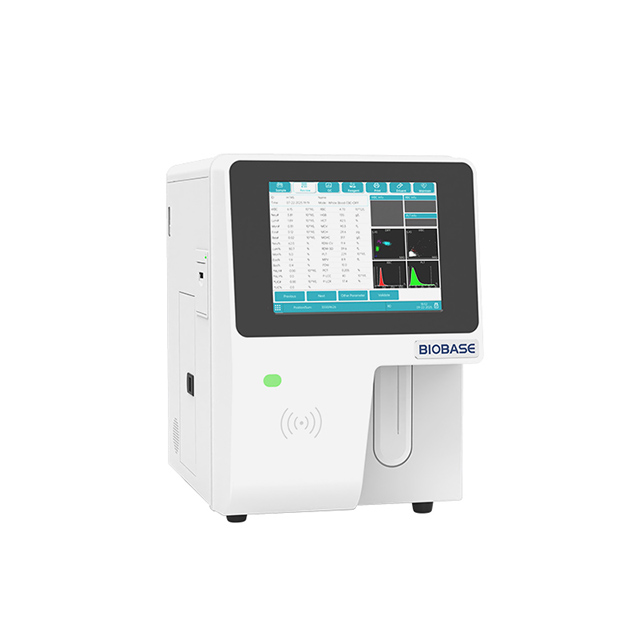

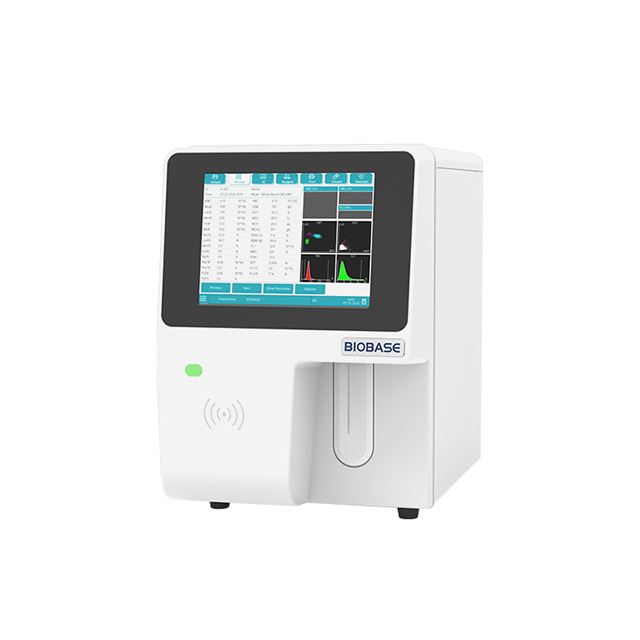

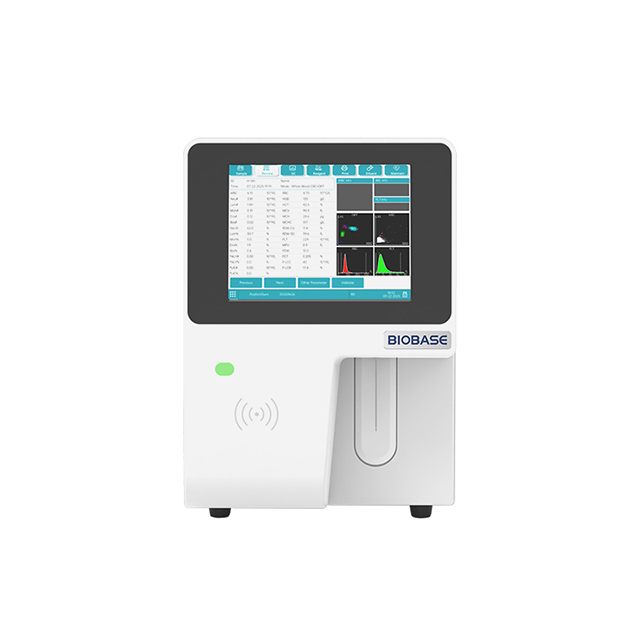

BH-HA610
BIOBASE
Application:
The hematology analyzer is a core piece of equipment in modern clinical blood analysis, and its application has deeply penetrated many key areas of healthcare. In the laboratories and outpatient departments of hospitals at all levels, it plays a crucial role in the initial screening and differential diagnosis of diseases. Through precise analysis of white blood cells, red blood cells, platelets, and other cells, it provides essential evidence for the detection of anemia, infection, inflammation, and even leukemia. In health checkup centers, it is a standardized tool for assessing an individual's basic health status. Simultaneously, this instrument plays an irreplaceable role in emergency resuscitation and intensive care units, providing rapid results to support urgent clinical decision-making.
Features:
1. Accurate Data
Advanced sweep flow technology ensures PLT accuracy.

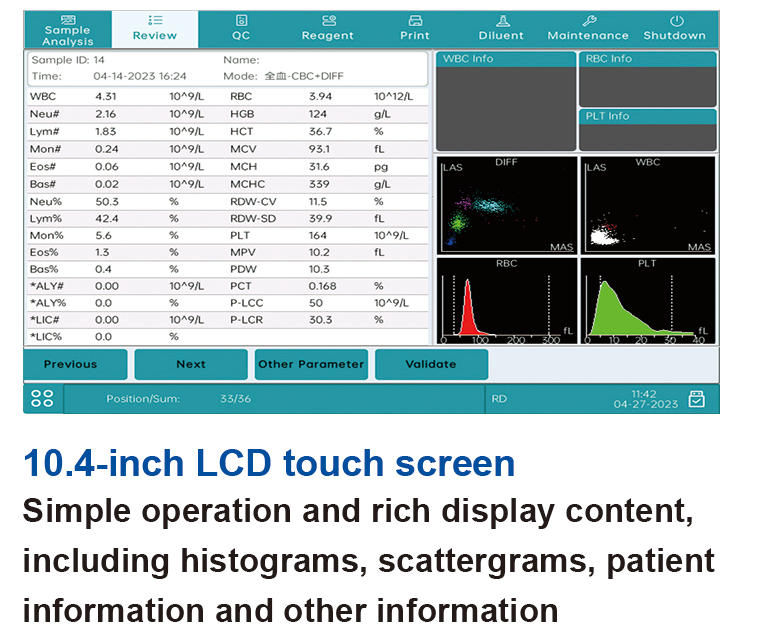

2. LCD Touchscreen
High-definition color display, sensitive touch, supports operation while wearing rubber gloves.
3. Easy Operation
One-button testing, one-button fault clearing, single-interface display of daily information.
4. Patented Technology
SMART-FLOW liquid circuit invention patent, innovative, efficient, and simple.
Technical Parameters:
Model | BH-HA610 | |||
Throughput | 60 Tests/hour | |||
Assay Items | 5 parts, 29 parameters, 3 histograms, 3D scattergram | |||
Principle | Semiconductor laser scattering technology, flow cytometry, three-dimensional scatter plot analysis, electrical impedance measurement technology, and cyanide-free HGB measurement technology. | |||
Test Mode | CBC+DIFF mode Venous whole blood, capillary whole blood and prediluted | |||
Sample Volume | CBC+DIFF mode: ≤20μl | |||
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameters: ALY%, ALY#, LIC%, LIC# | |||
Performance | Item | Linearity Range | Carry Over | CV(Whole blood) |
WBC | 0~100.00*109/L | ≤0.5% | ≤2.0% | |
RBC | 0~8.00*1012/L | ≤0.5% | ≤1.5% | |
HGB | 0~250g/L | ≤0.6% | ≤1.5% | |
PLT | 0~1000*109/L | ≤1.0% | ≤6.0%(100~149*109/L) ≤4.0%(150~500*109/L) | |
Storage | 100,000 results including histogram, scattergram and patient information | |||
Interface | 1 Ethernet port, 2 USB ports, supports bidirectional LIS systems and HL7 protocol. Optional of printer and Wi-Fi | |||
Screen | 10.4-inch LCD touch screen | |||
Power Supply | AC220V 50/60Hz (Standard); AC110V 50/60Hz (Optional), 200VA | |||
Package Size(W*D*H) | 570*450*700mm | |||
Gross Weight | 36kg | |||
Reagent Package Size(W*D*H) | 330*330*330m, 400*290*240mm, 400*290*240mm | |||
Reagent Gross Weight | 22kg, 2kg, 2kg | |||
