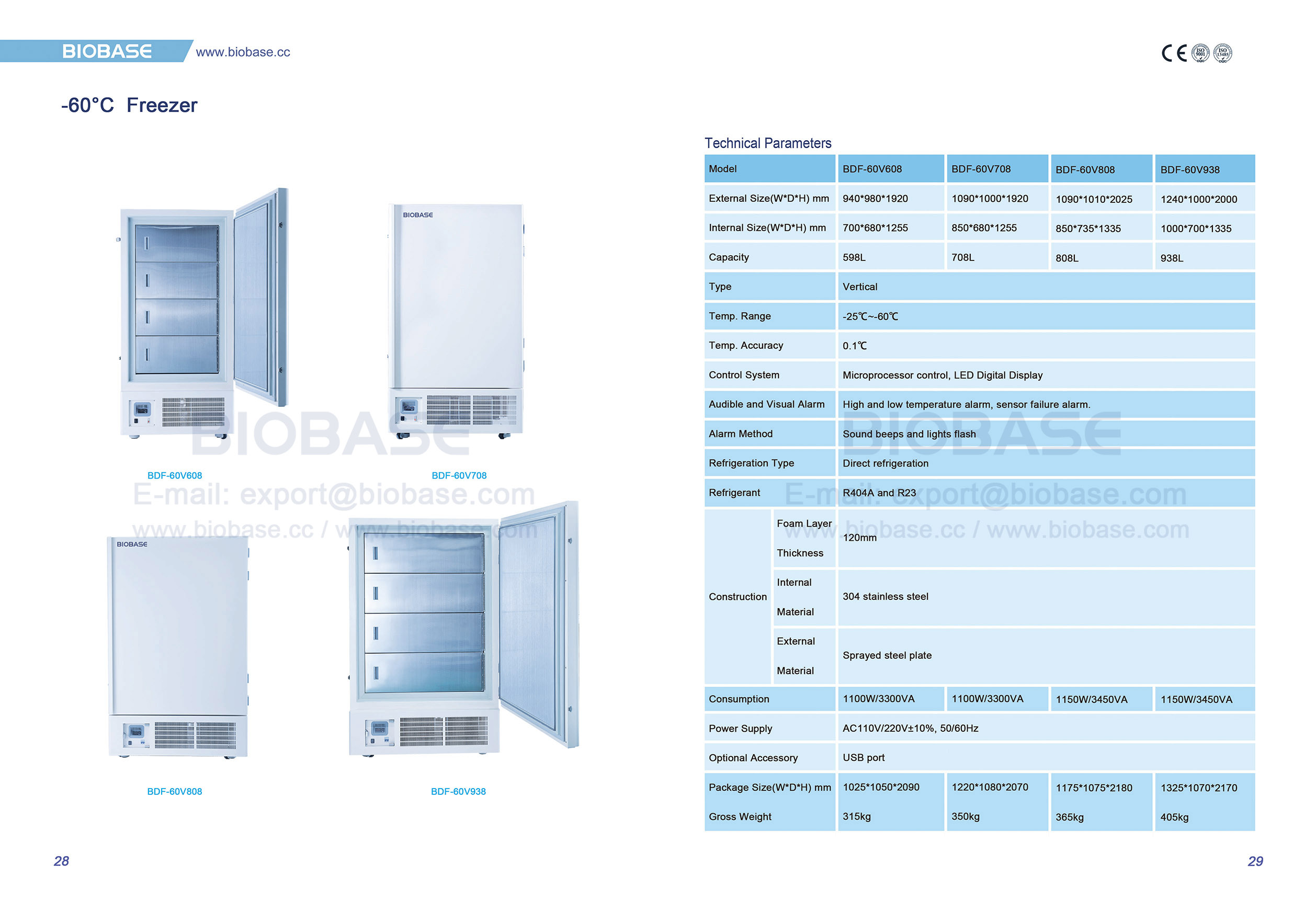

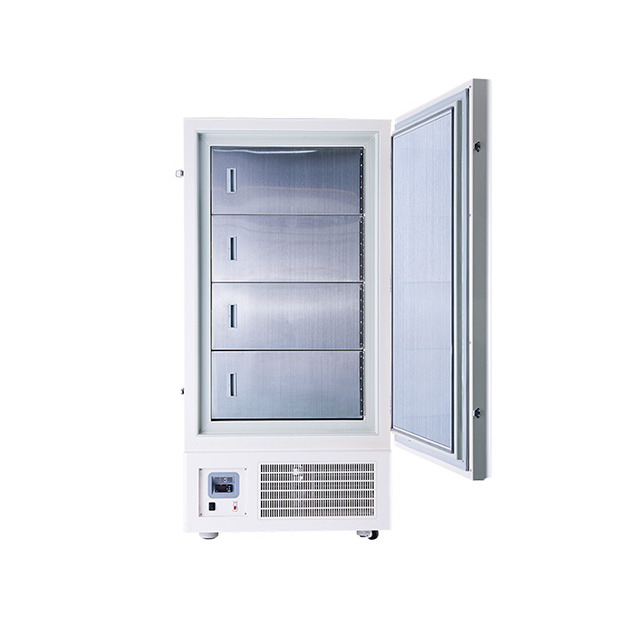

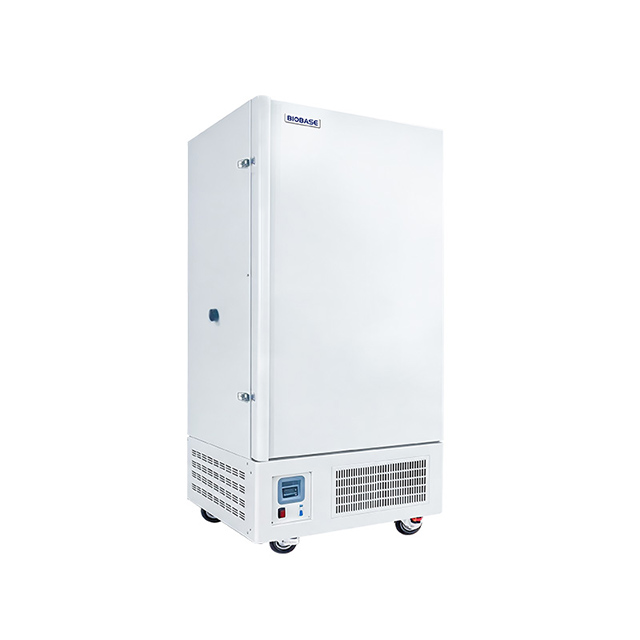

BDF-60V608 BDF-60V708 BDF-60V808 BDF-60V938
BIOBASE
Technical Parameters:
Model | BDF-60V608 | BDF-60V708 | BDF-6V808 | BDF-60V938 | |
External Size(W*D*H)mm | 940*980*1920 | 1090*1000*1920 | 1090*1010*2025 | 1240*1000*2000 | |
Internal Size(W*D*H)mm | 700*680*1255 | 850*680*1255 | 850*735*1335 | 1000*700*1335 | |
Capacity | 598L | 708L | 808L | 938L | |
Type | Vertical | ||||
Temp. Range | -25°℃~-60℃ | ||||
Temp. Accuracy | 0.1℃ | ||||
Control System | Microprocessor control, LED digital display | ||||
Audible and Visual Alarm | High and low temperature alarm, Sensor failure alarm | ||||
Alarm Method | Sound beeps and lights flash | ||||
Refrigeration Type | Direct refrigeration | ||||
Refrigerant | R404A and R23 | ||||
Construction | Foam Layer | 120mm | |||
lnternal | 304 stainless steel | ||||
External | Sprayed steel plate | ||||
Consumption | 1100W/3300VA | 1100W/3300VA | 1150W/3450VA | 1150W/3450VA | |
Power Supply | AC110V/220V±10%, 50/60Hz | ||||
Optional Accessory | USB port | ||||
Package Size(W*D*H)mm | 1025*1050*2090 | 1220*1080*2070 | 1175*1075*2180 | 1325*1070*2170 | |
Gross Weight(kg) | 315 | 350 | 365 | 405 | |
Technical Parameters:
Model | BDF-60V608 | BDF-60V708 | BDF-6V808 | BDF-60V938 | |
External Size(W*D*H)mm | 940*980*1920 | 1090*1000*1920 | 1090*1010*2025 | 1240*1000*2000 | |
Internal Size(W*D*H)mm | 700*680*1255 | 850*680*1255 | 850*735*1335 | 1000*700*1335 | |
Capacity | 598L | 708L | 808L | 938L | |
Type | Vertical | ||||
Temp. Range | -25°℃~-60℃ | ||||
Temp. Accuracy | 0.1℃ | ||||
Control System | Microprocessor control, LED digital display | ||||
Audible and Visual Alarm | High and low temperature alarm, Sensor failure alarm | ||||
Alarm Method | Sound beeps and lights flash | ||||
Refrigeration Type | Direct refrigeration | ||||
Refrigerant | R404A and R23 | ||||
Construction | Foam Layer | 120mm | |||
lnternal | 304 stainless steel | ||||
External | Sprayed steel plate | ||||
Consumption | 1100W/3300VA | 1100W/3300VA | 1150W/3450VA | 1150W/3450VA | |
Power Supply | AC110V/220V±10%, 50/60Hz | ||||
Optional Accessory | USB port | ||||
Package Size(W*D*H)mm | 1025*1050*2090 | 1220*1080*2070 | 1175*1075*2180 | 1325*1070*2170 | |
Gross Weight(kg) | 315 | 350 | 365 | 405 | |
