Introduction:
Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel. The application is convenient and the performance is reliable.
| Quantity: | |
|---|---|
BDF-60H58 BDF-60H118A BDF-60H218 BDF-60H318 BDF-60H458
BIOBASE

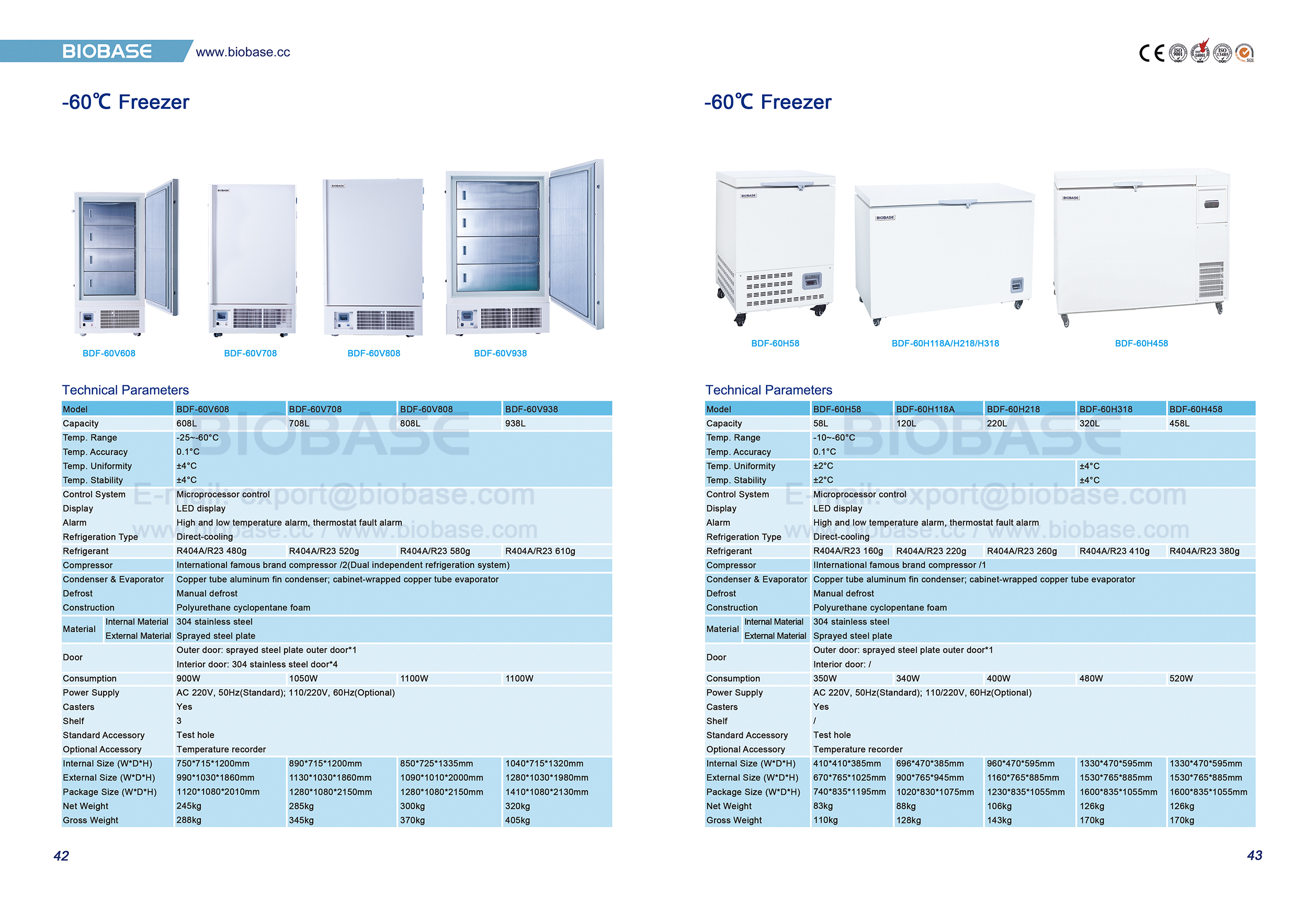

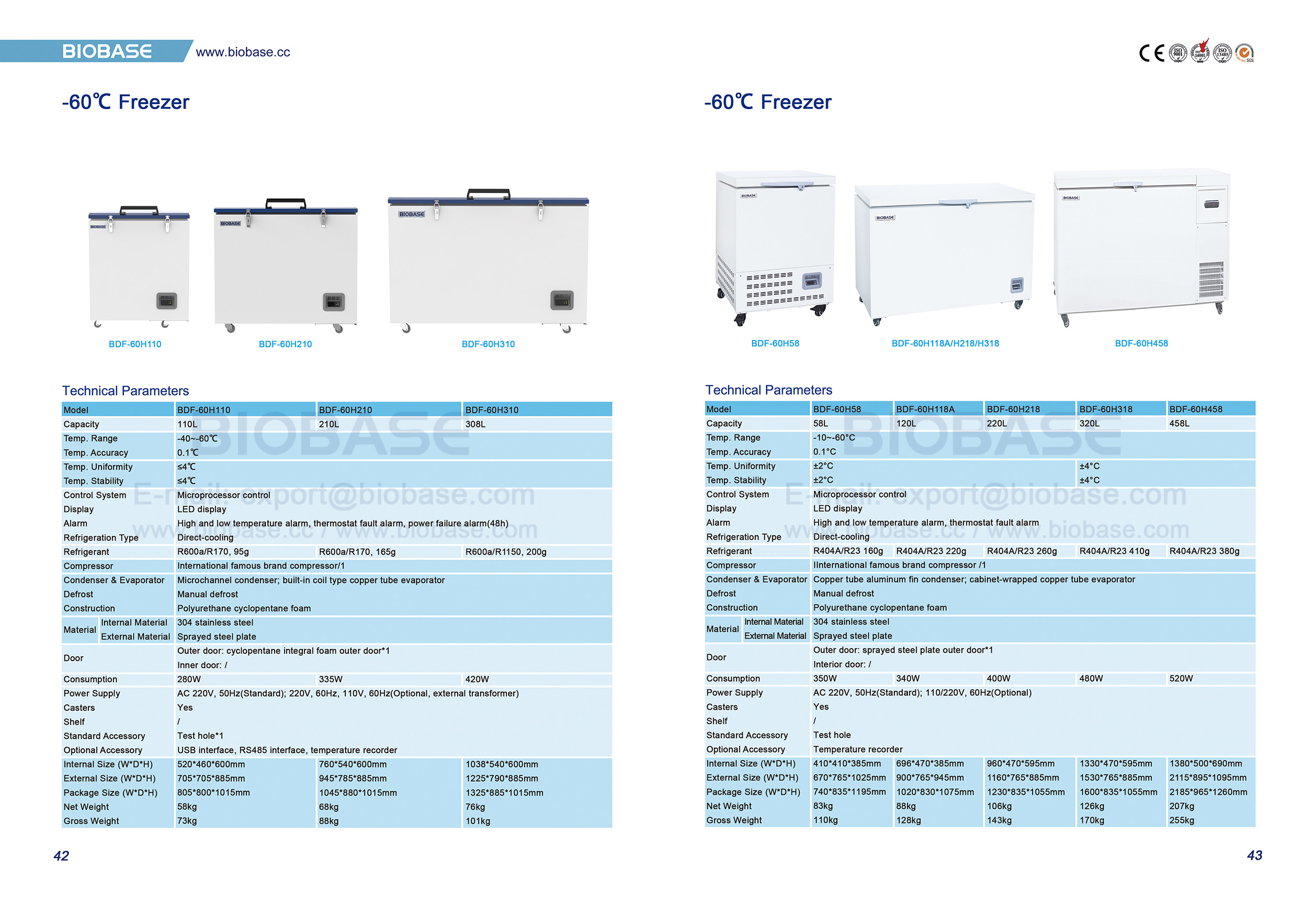

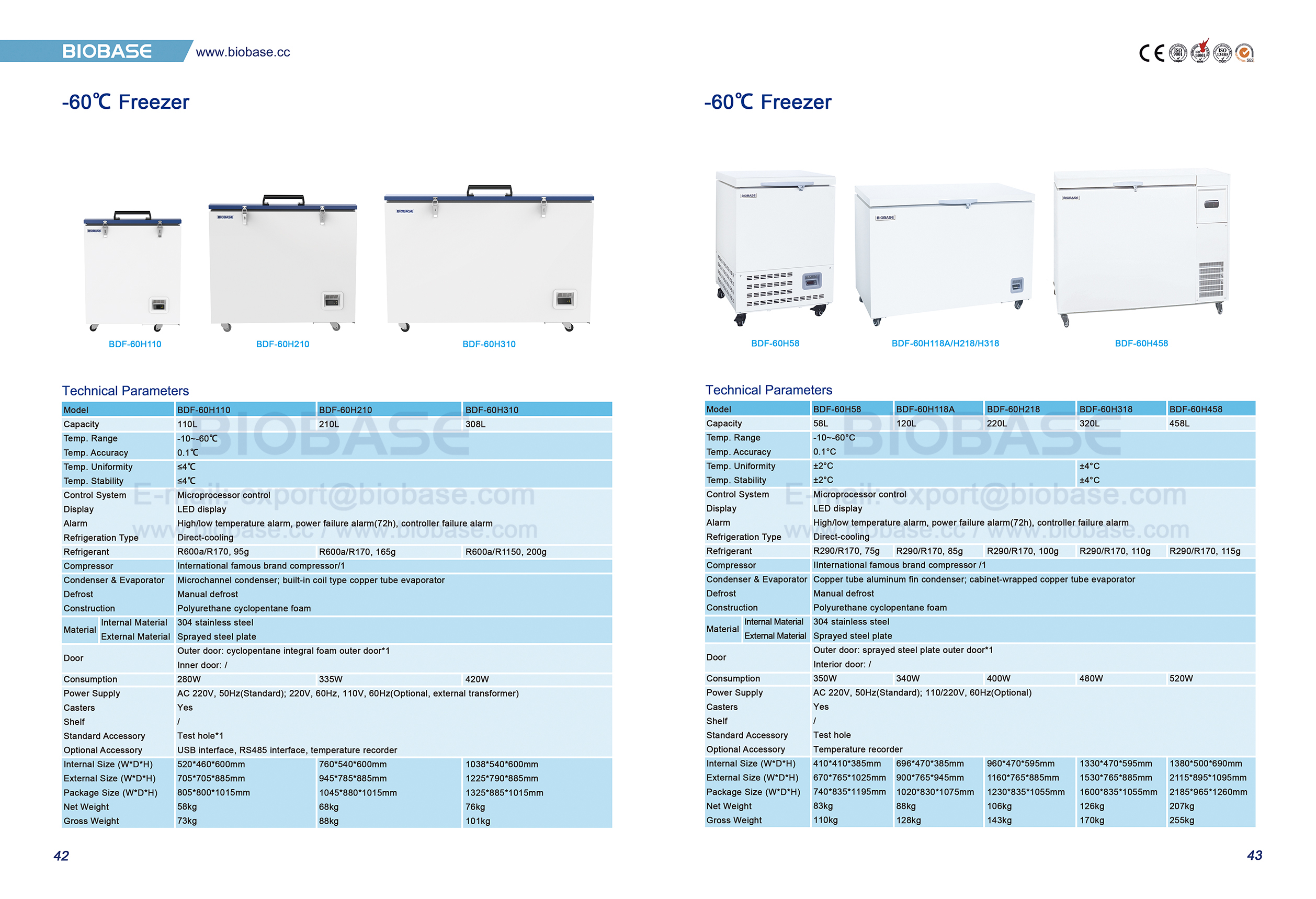

Technical Parameters:
Model | BDF-60H58 | BDF-60H118A | BDF-60H218 | BDF-60H318 | BDF-60H458 | ||
Capacity | 58L | 120L | 220L | 320L | 458L | ||
Temp. Range | -10~-60°C | ||||||
Temp. Accuracy | 0.1°C | ||||||
Temp. Uniformity | ±2°C | ±4°C | |||||
Temp. Stability | ±2°C | ±4°C | |||||
Control System | Microprocessor control | ||||||
Display | LED display | ||||||
Alarm | High and low temperature alarm, thermostat fault alarm | ||||||
Refrigeration Type | Direct-cooling | ||||||
Refrigerant | R404A/R23 160g | R404A/R23 220g | R404A/R23 260g | R404A/R23 410g | R404A/R23 380g | ||
Compressor | International famous brand compressor/1 | ||||||
Condenser&Evaporator | Copper tube aluminum fin condenser; cabinet-wrapped copper tube evaporator | ||||||
Defrost | Manual defrost | ||||||
Construction | Polyurethane cyclopentane foam | ||||||
Material | Internal Material | 304 stainless steel | |||||
External Material | Sprayed steel plate | ||||||
Door | Outer door: sprayed steel plate outer door*1 Interior door: / | ||||||
Consumption | 350W | 340W | 400W | 480W | 520W | ||
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||||||
Casters | Yes | ||||||
Shelf | / | ||||||
Standard Accessory | Test hole | ||||||
Optional Accessory | Temperature recorder | ||||||
Internal Size(W*D*H) | 410*410*385mm | 696*470*385mm | 960*470*595mm | 1330*470*595mm | 1380*500*690mm | ||
External Size(W*D*H) | 670*765*1025mm | 900*765*945mm | 1160*765*885mm | 1530*765*885mm | 2115*895*1095mm | ||
Package Size(W*D*H) | 740*835*1195mm | 1020*830*1075mm | 1230*835*1055mm | 1600*835*1055mm | 2185*965*1260mm | ||
Net Weight | 83kg | 88kg | 106kg | 126kg | 207kg | ||
Gross Weight | 110kg | 128kg | 143kg | 170kg | 255kg | ||
